Q: What signals that RTC8 support?

A: RTC8, with dual signals that SBUS and PPM signals can be identified and converted automatically, is suitable for most remote controls.

Compared with the protocol transverter which with single SBUS signal, the RTC8 greatly expands the options range of remote controls.

Q: Where can I download the driver and Parameter Setup APP for RTC8?

A: The driver needs to be installed when using the Firmware Update Tool or Parameter Setup APP for the first time. Please follow the steps in the link below to install the driver and Parameter Setup APP.

Driver download link: https://www.radiolink.com/rtc8_parameters_setup_app

Parameter Setup APP download link: https://www.radiolink.com/rtc8_parameters_setup_app

Q: Where can I download the latest firmware for RTC8?

A: The driver needs to be installed when using the Firmware Update Tool or Parameter Setup APP for the first time. Please follow the steps in the link below to install the driver, Firmware Update Tool, and the latest firmware.

Driver download link:

https://www.radiolink.com/rtc8_firmware

Firmware Update Tool and the latest firmware download link:

https://www.radiolink.com/rtc8_firmware

Q: Can RTC8 change CAN ID, baud rate, and communication cycle?

A: Yes.

Q: What is the power of RTC8?

A: The operating voltage of RTC8 is 3V-12V, and the operating current is 20mA.

For detailed parameters of RTC8, please refer to the link:

https://www.radiolink.com/rtc8_specification

Q: Can RTC8 directly convert the SBUS signal to the CAN signal and use it?

A: Yes. RTC8 can convert SBUS signal into CAN protocol data packets and then send them in a fixed format. RTC8 can only be used as a slave machine and a collection device. It cannot directly control other devices and needs to be used with an industrial computer.

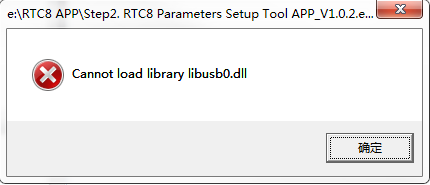

Q: The Parameter Setup APP of RTC8 cannot be opened, and an error message is reported: Cannot load library libursb0.dll, as shown below:


A: It is because the system lacks libursb0.dll.

1. You can click the link below to download libursb0.dll.

Download link: https://drive.google.com/file/d/1BGgFkf-3Y5UWNhiDGKJ0csTIdPmH9rlr/view

2. After downloading, please copy libursb0.dll to the Windows system directory. If the computer system is 32-bit, put libursb0.dll in the folder C:/Windows/System32. If the computer system is 64-bit, put libursb0 Place the .dll in the folder C:/Windows/SysWOW64. If you don't know whether your computer system is 32-bit or 64-bit, you can put it in these two folders respectively.

3. After the copying is completed, please close the anti-virus software and open the parameter adjustment APP again.

Q: RTC8 is not recognized after connecting to the computer, how to solve this problem?

A: Update the firmware. For the latest firmware and firmware upgrade methods, please refer to the official website link:

https://www.radiolink.com/rtc8_firmware

Q: RTC8, Bit tate is set correctly, and the CAN device is also connected correctly, but the CAN device cannot receive or send any data. Why?

A: There is something wrong with the communication chip of RTC8.

Send emails to after_service@radiolink.com.cn to get more after-sales service.
