R16F

Real-time Built-In Telemetry

Cutting-edge Communication Technology

4000 Meters Control Distance


FHSS spread spectrum algorithm and 67-channel pseudo-random frequency hopping make excellent anti-interference performance, perfect for multiplayer complete synchronously, and helps protect from fuel engine spark and ensures the safety of enjoying fuel-powered model cars.

600 meters stable offshore control distance and 4000 meters air control distance.

Real-time Built-In Telemetry

Real-time Latitude and Longitude, Distance, Heading, and Other Information Telemetry


The receiver has a built-in data transmission function*, rich information will be sent without any external sensors.

In addition to real-time transmission of the RSSI, receiver, and model battery voltage, the fishing spot information such as fishing spot name, latitude, and longitude, distance, heading, the number of GPS satellites received, etc. will be displayed on the transmitter screen when the R16F is connected to the flight control at the bait boat mode.

Anti-polarity Connect Protection, Power by Wide Voltage


Even if the polarities are mistakenly connected, the receiver will not get damaged.

The power of 3-12V supports high voltage servo.

Engine Battery Voltage Telemetry Connect Cable


PWM, SBUS, and CRSF Signal-supported

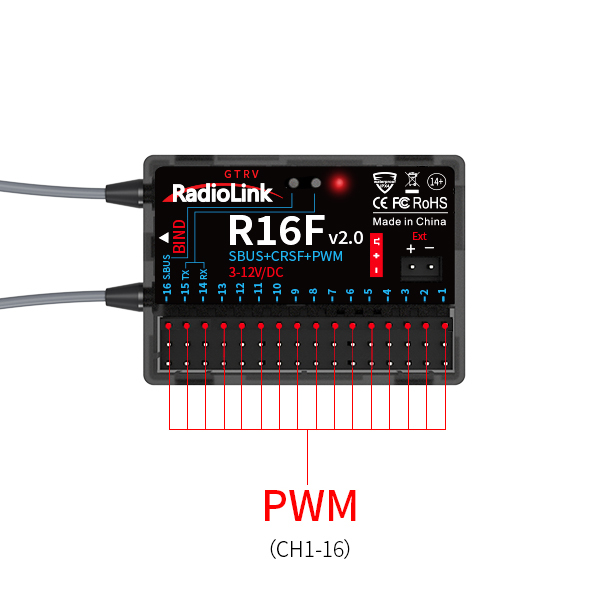

PWM working mode: Red LED always on indicates PWM signal output, 16 channels total.

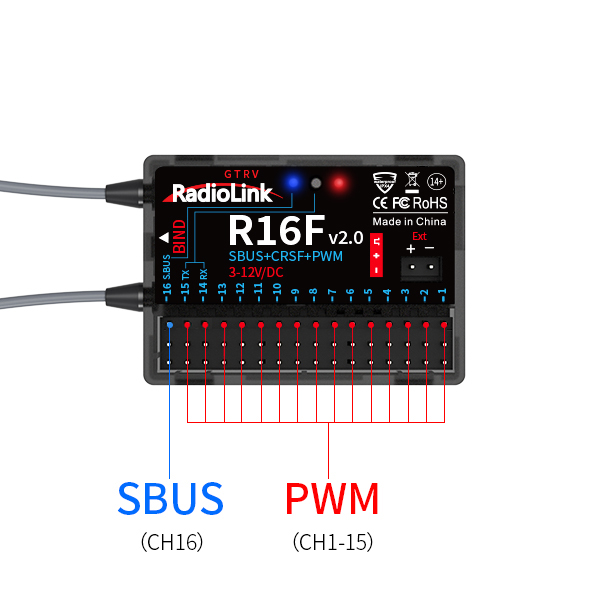

PWM+SBUS working mode: Blue and red LED always on indicates PWM+SBUS signals output.

CH1 to CH15 are with PWM signal output while CH16 with SBUS signal output.

Users can personalize signal output mode to fully enjoy the fun of a model bait boat or car with FPV.

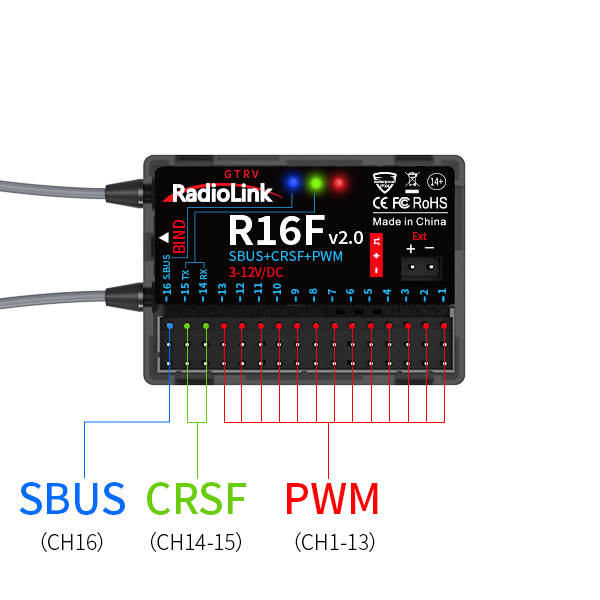

PWM+CRSF+SBUS working mode: Blue, green, and red LED always on indicates PWM+CRSF+SBUS signals output.

CH1 to CH13 outputs the PWM signal, CH14 to CH15 outputs the CRSF protocol, and CH16 outputs the SBUS signal.

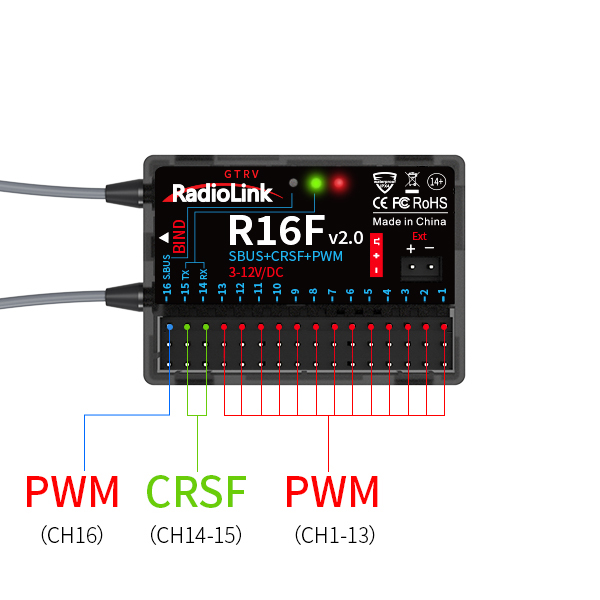

CRSF+PWM working mode: Green and red LED always on indicate CRSF+PWM signals output.

CH1 to CH13, and the CH16 output the PWM signal, CH14 to CH15 outputs the CRSF protocol.

PWM Signal Output

CRSF+PWM Signals Output

SBUS+CRSF+PWM Signals Output

SBUS+PWM Signals Output


Subsidiary ID

Rescue, Towing, Parent-child Entertainment, and Friend Teaching in One Control


Capable of designating a subsidiary ID among multiple binding receivers to meet special needs such as long-distance rescue with model cars/boats.

Example of the use of the Subsidiary ID ①: Ship No. 1 is parked in the middle of the lake due to insufficient engine battery voltage.

At this time, ship No. 2 can be switched to tow to rescue.

Example of the use of the Subsidiary ID Mode ②: After the No. 1 trailer consigns the No. 2 vehicle to the designated address. Switch the Subsidiary ID number of the remote control from No. 1 to No. 2 to control the No. 2 car, and let the No. 2 car reverse from the trailer.

Water Splash Proof (IPX4)


The PCB board and pins of R16F have the same waterproof treatment as the mobile phone,

that is, nano-coating technology treatment and the waterproof grade is IPX4.

IPX4: The IP×× rating standard recommended by the International Electrotechnical Commission (IEC).

Receiver Supports Upgrade Online


With a Type-C cable (for data transmission) connecting the R16F to the computer,

the latest cutting-edge functions can be easily added without any extra device.

Full Models with Full Functions


R16F, with 16 channels output, is compatible with helicopters, fixed-wing, gliders, multi-rotors, engineering vehicles,

racing boats, robots, lawnmowers, bait boats, mechas, and other models on the market.

Multiple Transmitter Compatible


R16F is compatible with RadioLink T series aircraft transmitters and all the surface transmitters.

T series aircraft transmitters: 16 fully-proportional channels transmitter T16D, 12 fully-proportional channels transmitter T12D,

8 channels transmitter T8FB(BT), T8S(BT), T8FB(OTG), and T8S(OTG).

All the surface transmitters: 8 channels transmitter RC8X, 7 channels transmitter RC6GS V3, 5 channels transmitter RC4GS V3,

6 channels transmitter RC6GS V2, RC6GS, and 4 channels transmitter RC4GS V2, RC4GS.

  • T16D(NEW)

  • T12D(NEW)

  • T8FB(BT)

  • T8S(BT)

  • RC8X

  • RC6GS V3

  • RC4GS V3

Old Version(out of production) Transmitters

  • RC6GS V2

  • RC4GS V2

  • RC6GS

  • RC4GS

  • OTG T8FB

  • OTG T8S

R16F Packing List

  • R16F*1

  • Engine Voltage Telemetry Connect Cable

  • Packaging Bag

  • R16F to the TELEM1 port of CrossFlight*1

  • R16F CH16 to RC IN port of CrossFlight*1

  • R16F CH14&15 to TELEM2 port of CrossFlight*1
