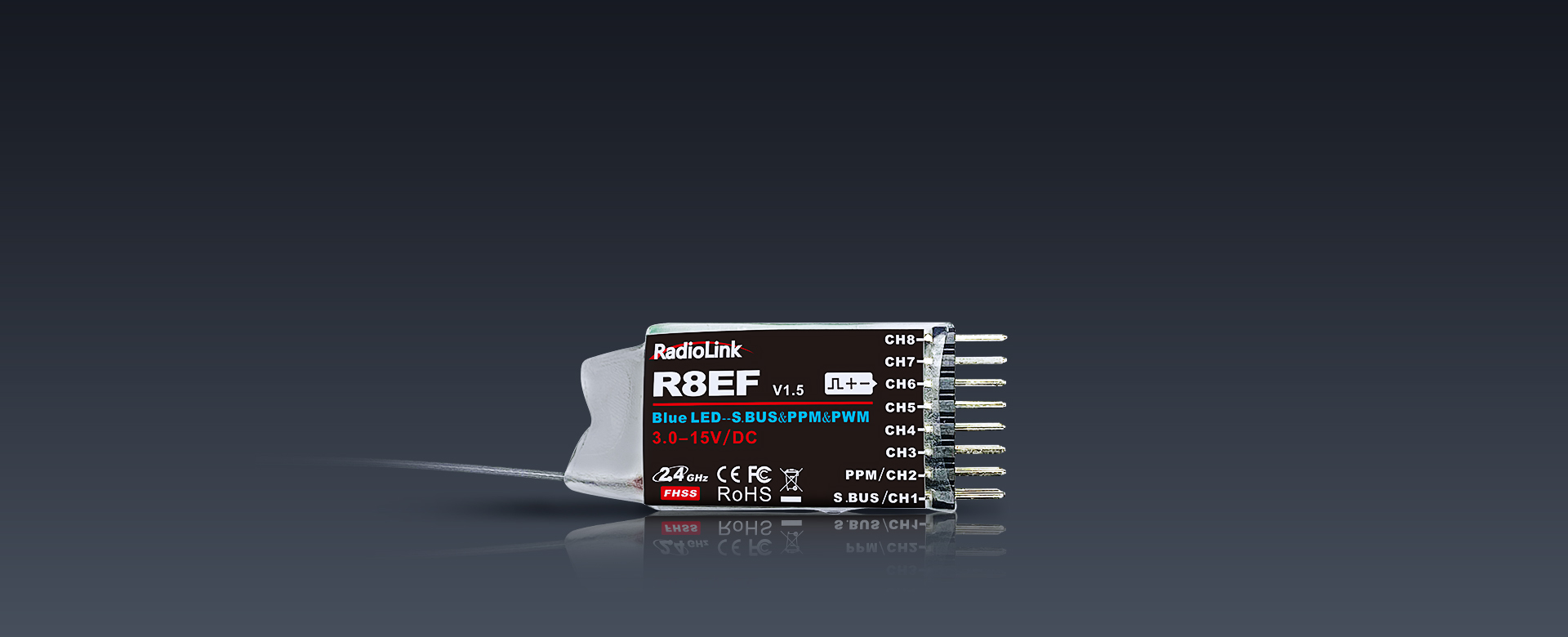

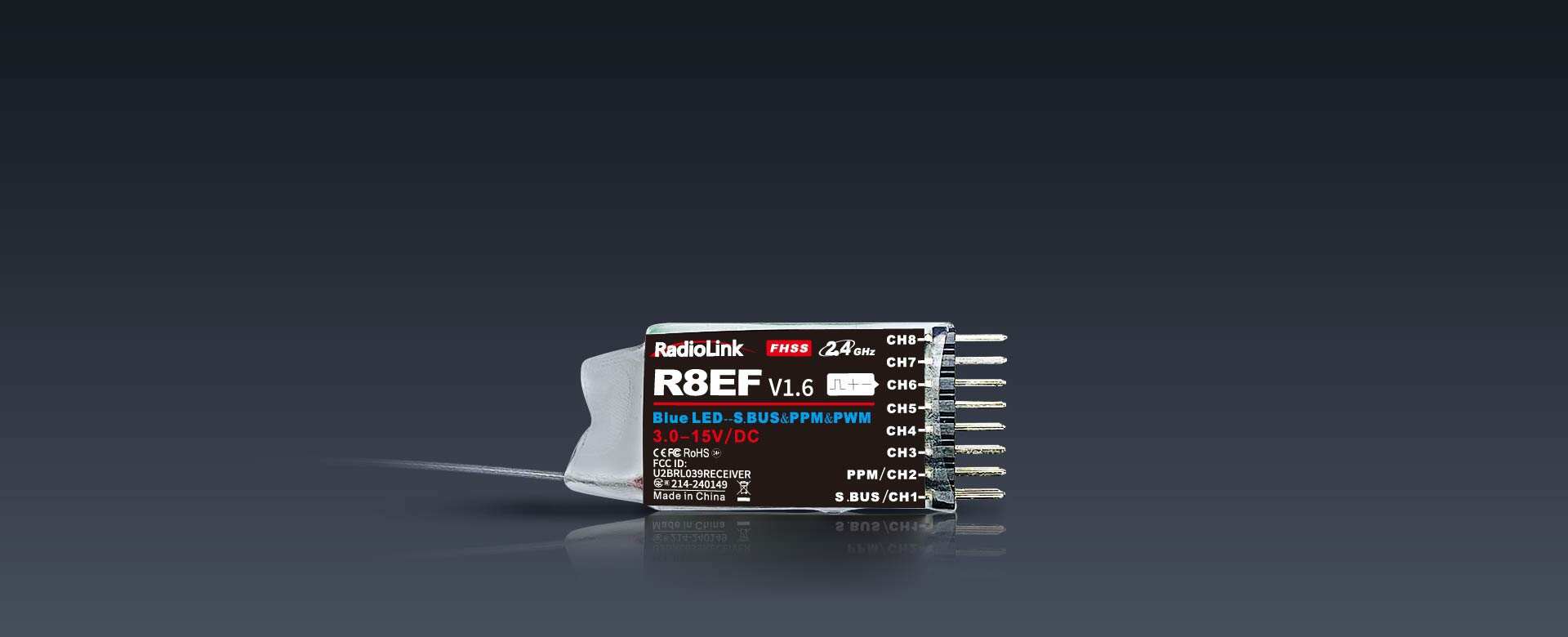

R8EF
8 Channels Receiver
2000 Meters Control Distance
Same FHSS* spread spectrum algorithm as AT9S Pro and 67-channel pseudo-random frequency hopping help reduce overall signal interference.
2KM (1.24 Miles) * Range enables all possible RC fun.
The maximum PWM jitter is 1.84us with a standard of just 0.5us.
* Frequency Hopping Spread Spectrum offers three main advantages: signals are highly resistant to narrowband interference, are difficult to intercept and can share a frequency band with many types of conventional transmissions with minimal interference.
* Maximum range is tested in an unobstructed area free of interference.
SBUS/PPM and PWM Signals Output
8 channels.
SBUS/PPM and PWM can operate simultaneously for seamless user control.

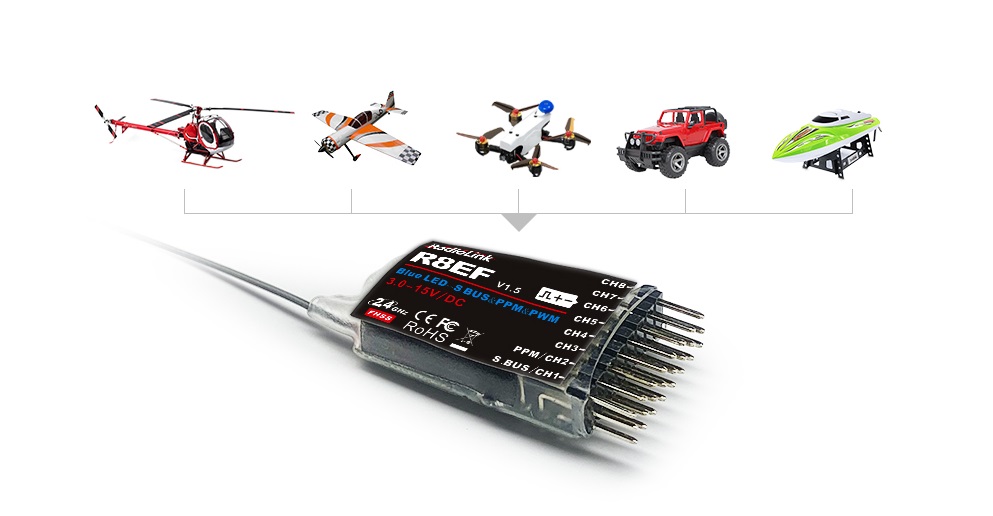

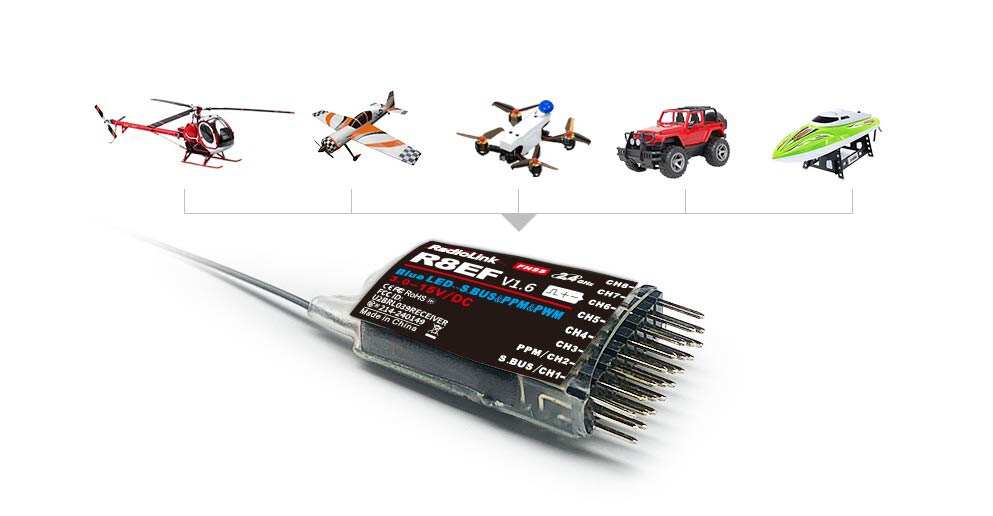

Adaptable models include Rotary Wing, Fixed Wing, Glider, Multicopter, Car, Boat and Robot.
Wide operating voltage tolerance that from 3 to 12 volts.
Specifications

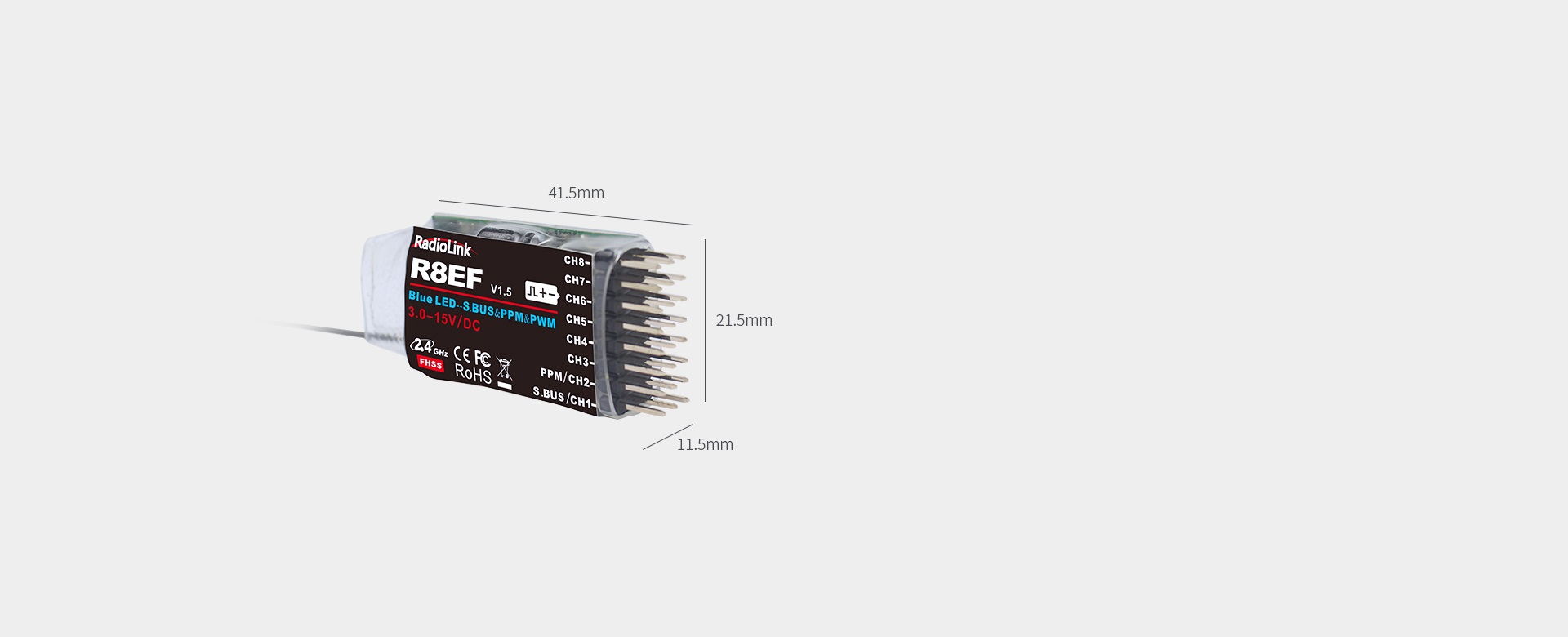

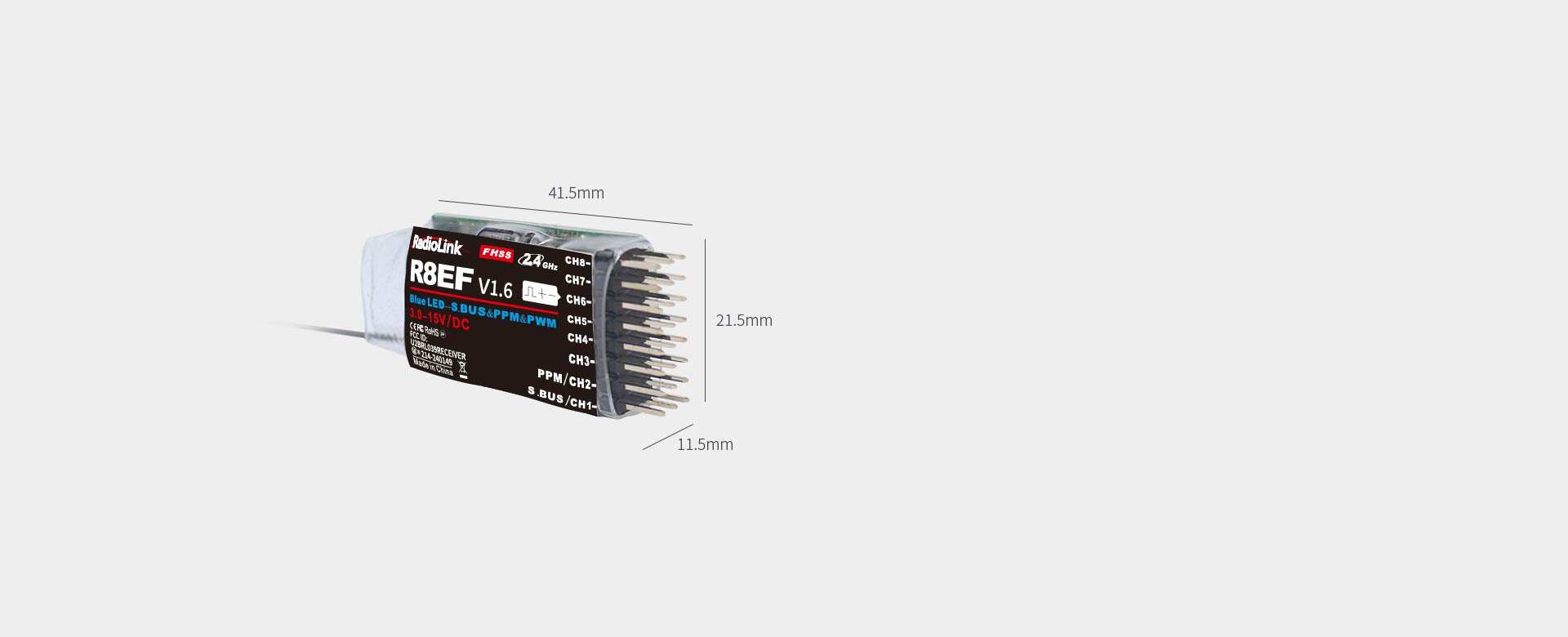

Size: 41.5*21.5*11.5mm (1.63” *0.85” *0.45”)
Weight:7g (0.25oz)
Channels Qty: 8 channels
Signals: SBUS&PPM&PWM
Operating Voltage: 3-15V
Operating Current: 38-45mA@5V
Section Precision: 4096, 0.25us per section
Control distance: 2000 meters(1.24Miles) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
Compatible transmitter: T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)/
RC8X/RC6GS V3/RC6GS V2/RC6GS/RC4GS V3/RC4GS V2/RC4GS
