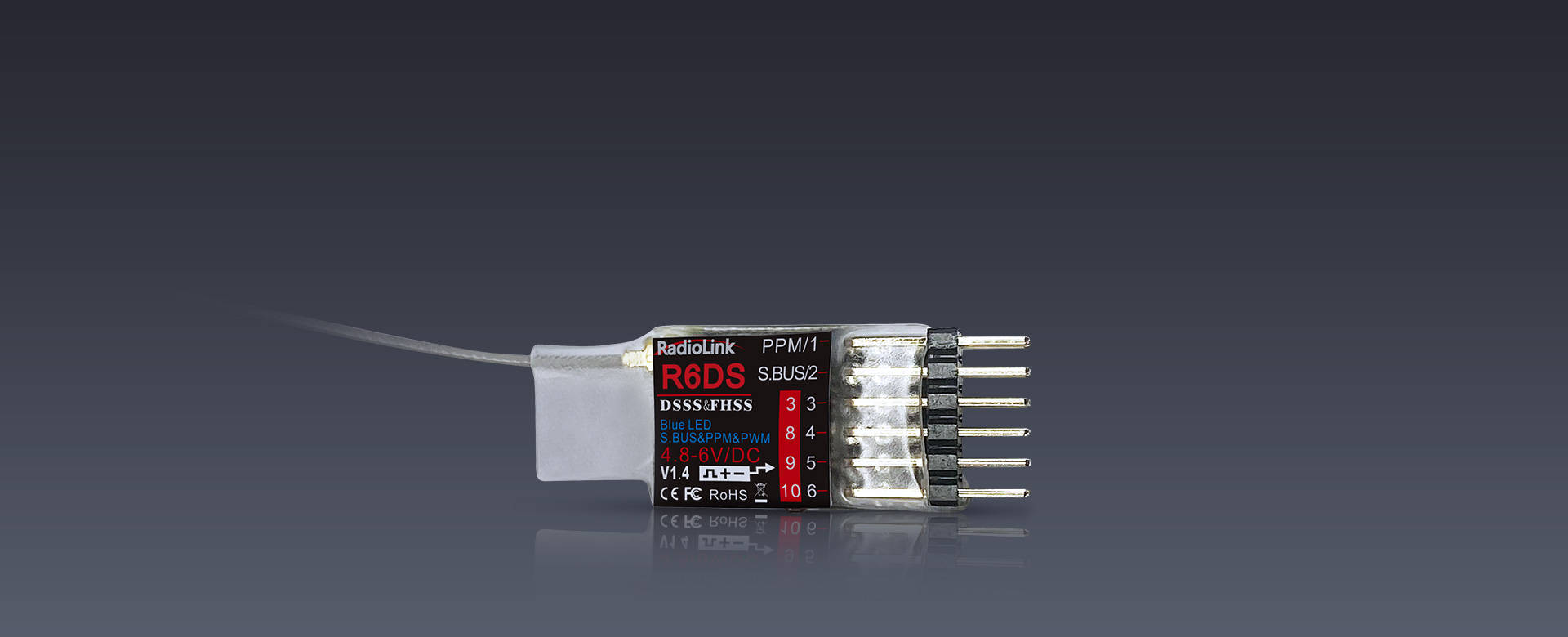

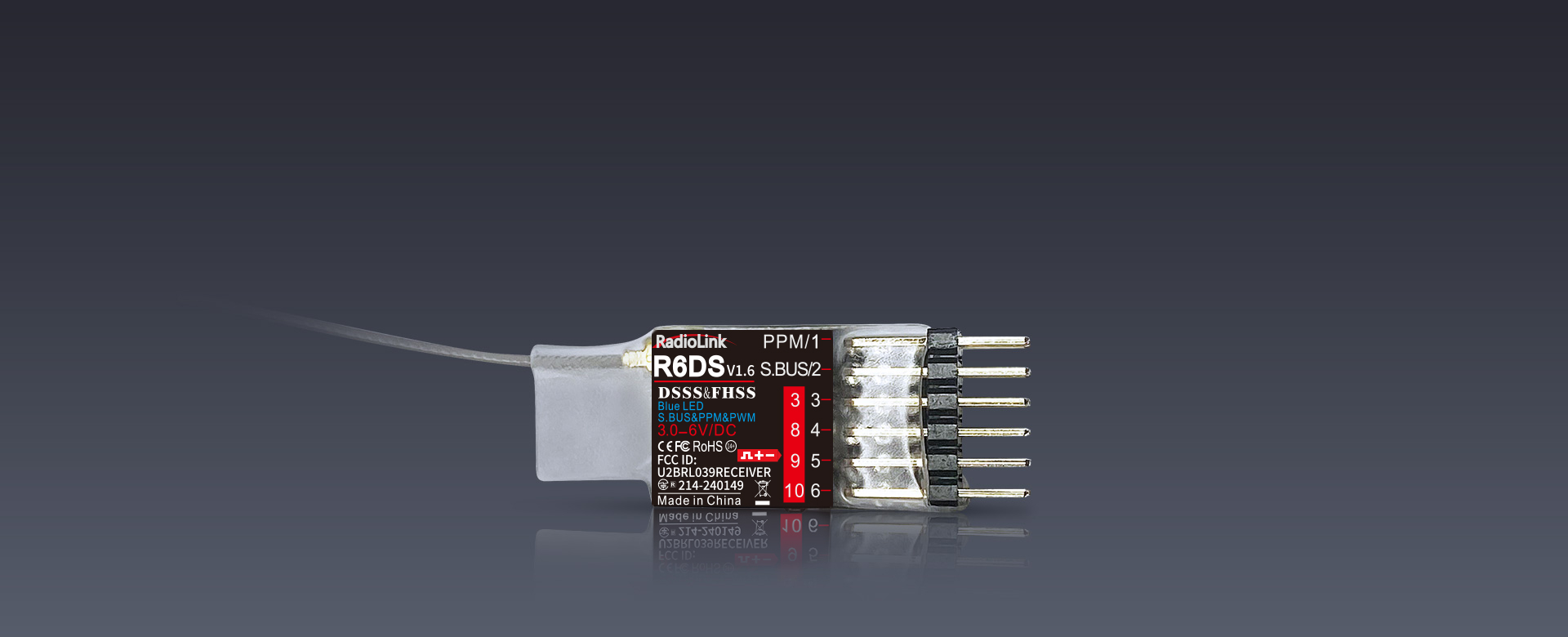

R6DS


6/10 Channels Receiver

600 Meters Control Distance

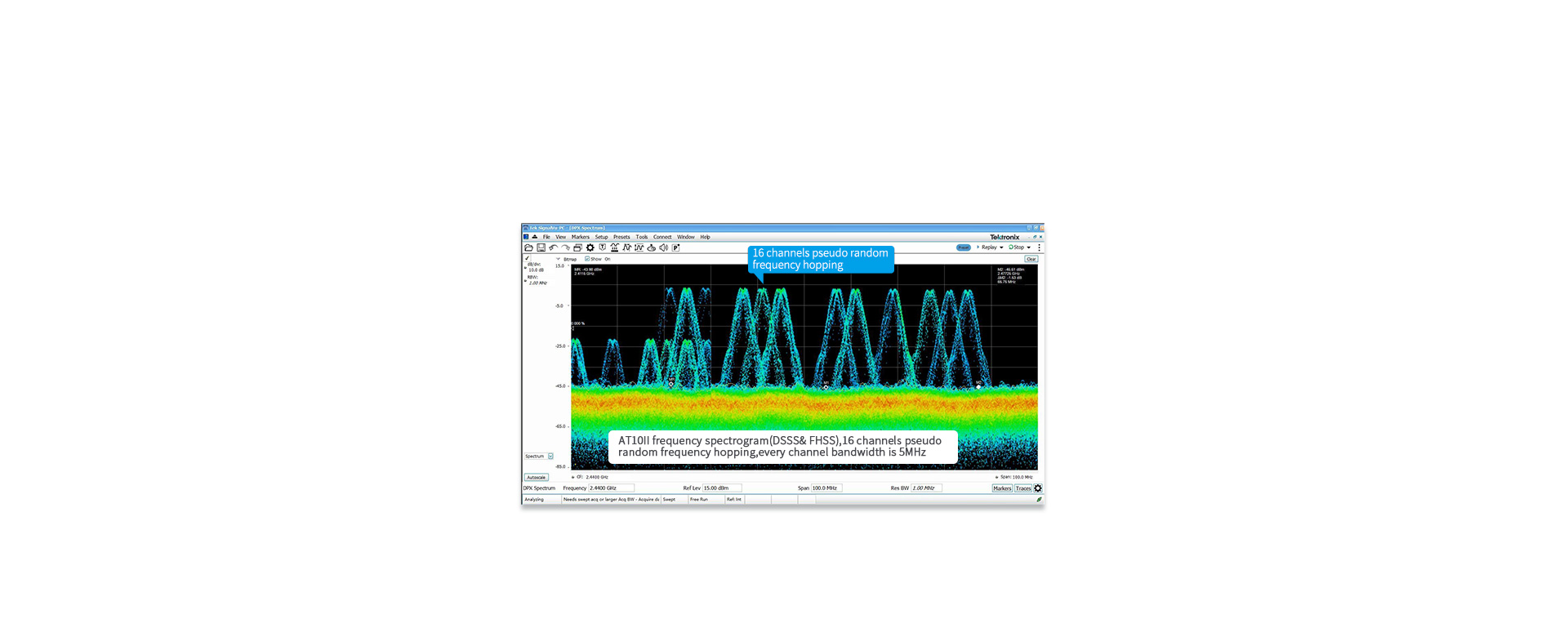

DSSS* and FHSS* hybrid spread spectrum, 16 channels pseudo-random frequency hopping, and QPSK* modulation ensures excellent anti-interference performance, highly constant, and stable transmission signal present on all 10 channels of R6DS.

600 meters (0.37 Miles) * range enables all possible RC fun.

* Direct Sequence Spread Spectrum transmissions multiply the data by a "noise" signal. This noise signal is a pseudorandom sequence of 1 and -1 at a frequency higher than that of the original signal.

* Frequency Hopping Spread Spectrum offers three main advantages: signals are highly resistant to narrowband interference, are difficult to intercept, and can share a frequency band with many types of conventional transmissions with minimal interference.

* Maximum range is tested in an unobstructed area free of interference.

SBUS/PPM and PWM Signals Output


6/10 channels of SBUS/PPM and PWM signal output.

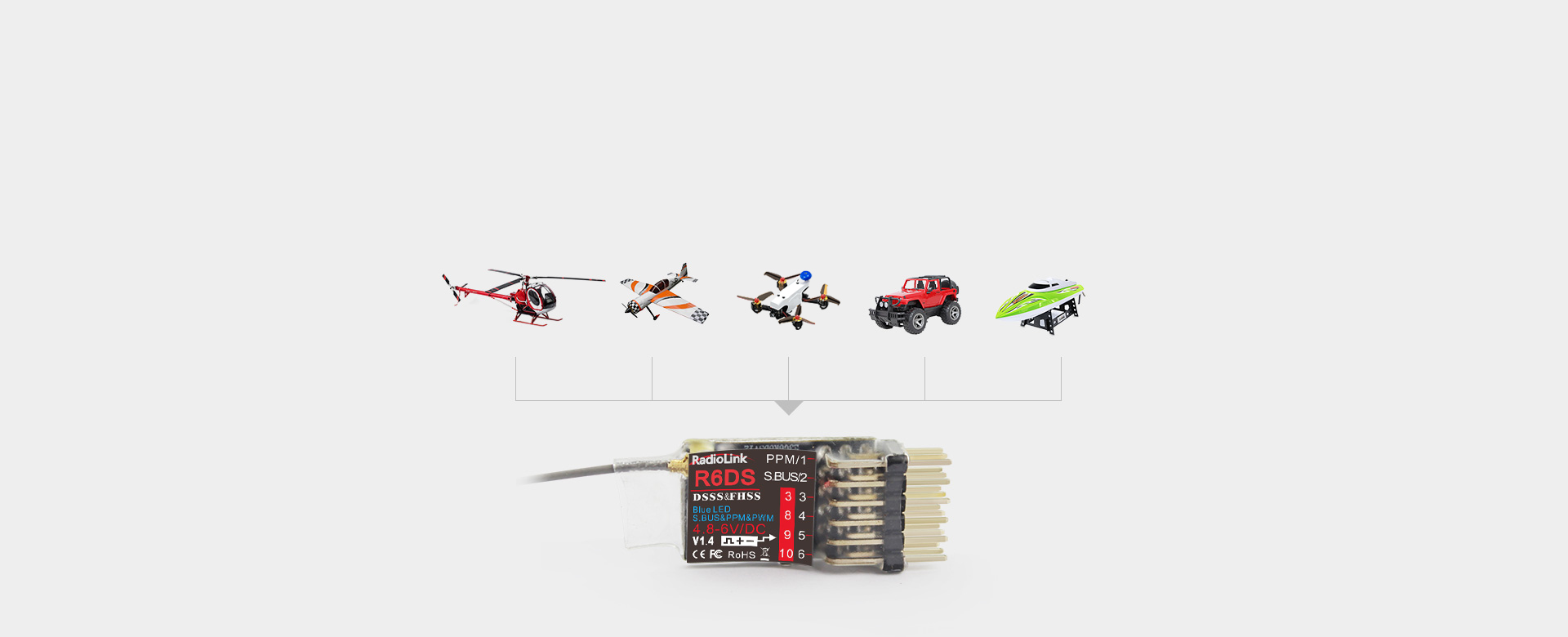

Adaptable models include Rotary Wing, Fixed Wing, Glider, Multicopter, Car, Boat, and Robot.

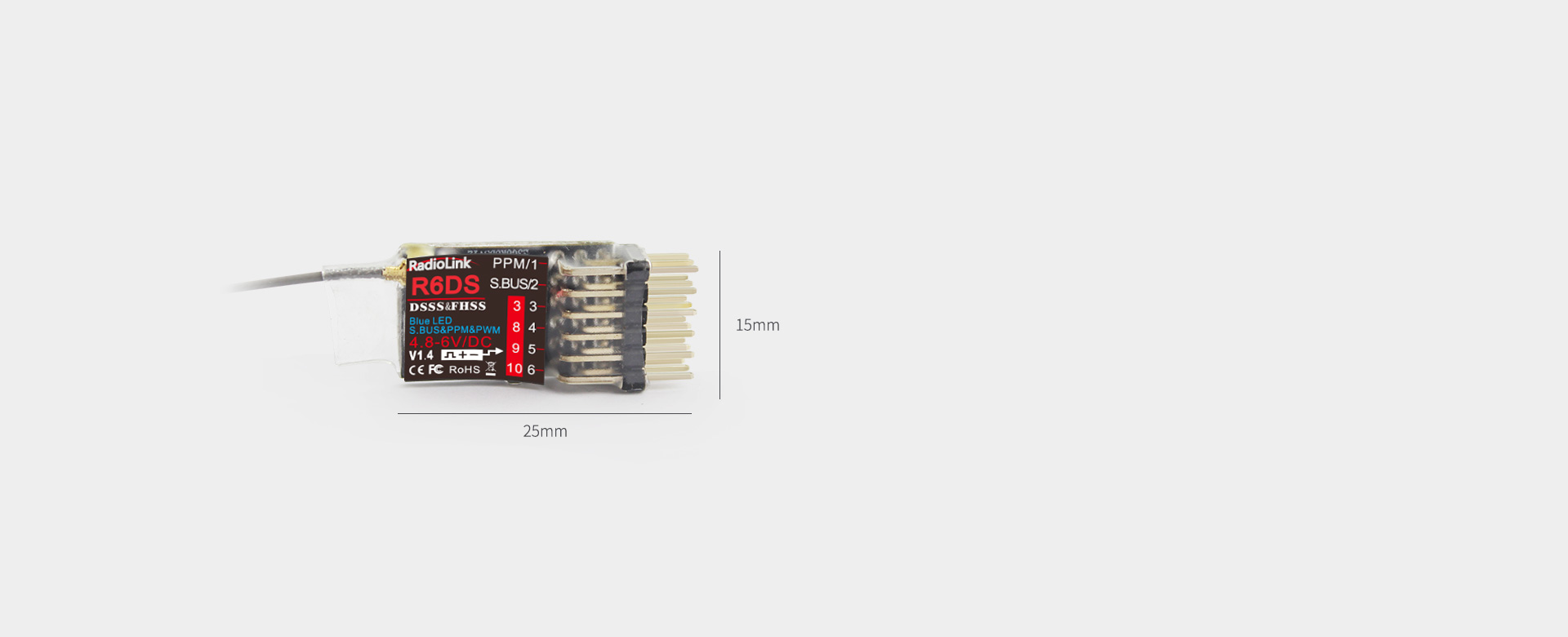

Weight of 3.4g (0.12oz) and small size of 25*15 mm (0.98"*0.59") make R6DS is tiny enough even for racing drone and glider.

Real-time Telemetry


Real-time telemetry RSSI information allow users to receive crucial information on the model's systems.

Specifications

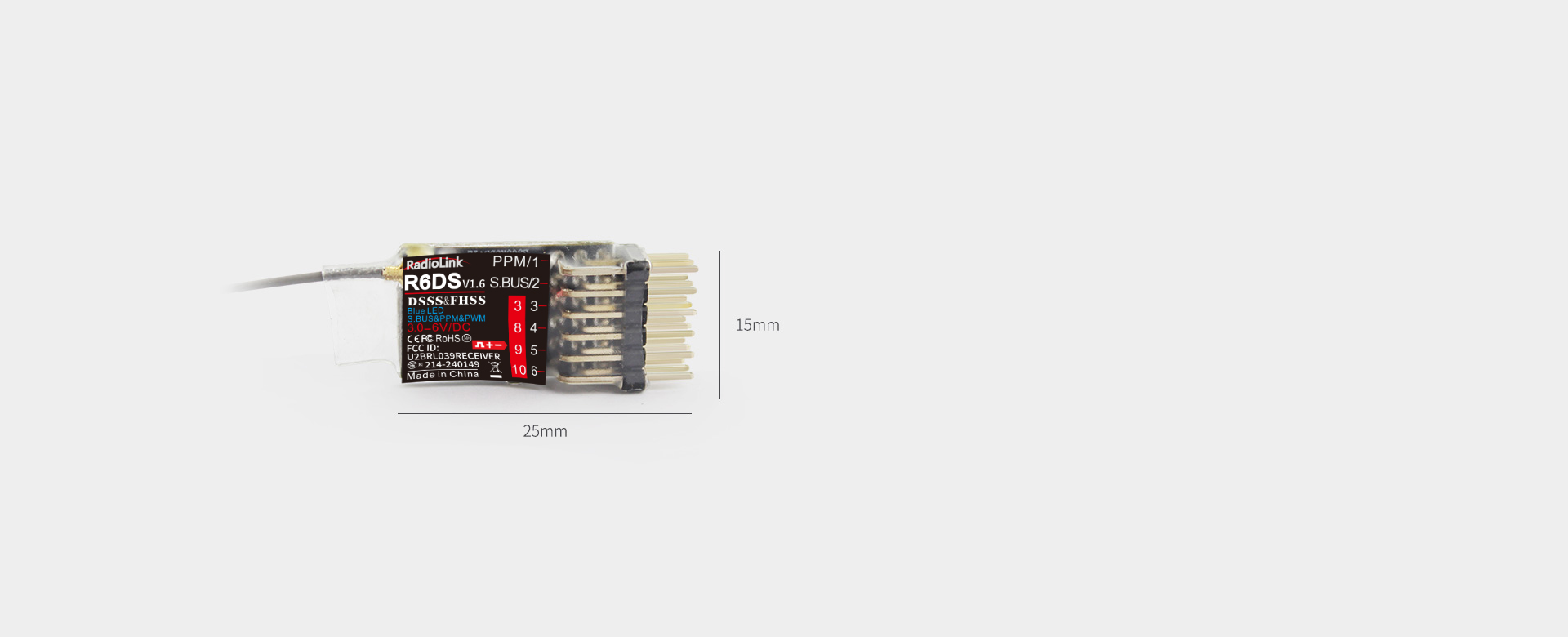

Size: 25*15 mm (0.98"*0.59")

Weight: 3.4g (0.12oz)

Channels Qty: 6 channels for PWM signal output;

                     10 channels for SBUS/PPM&PWM signal output.

Signals: SBUS/PPM&PWM

Operating Voltage: 4.8-6V

Operating Current: 38-45mA@5V

Section Precision: 4096, 0.25us per section

Control distance: 600 meters(1968.5ft) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).

Compatible transmitter: AT10II/AT10/AT9S Pro/AT9S/AT9
