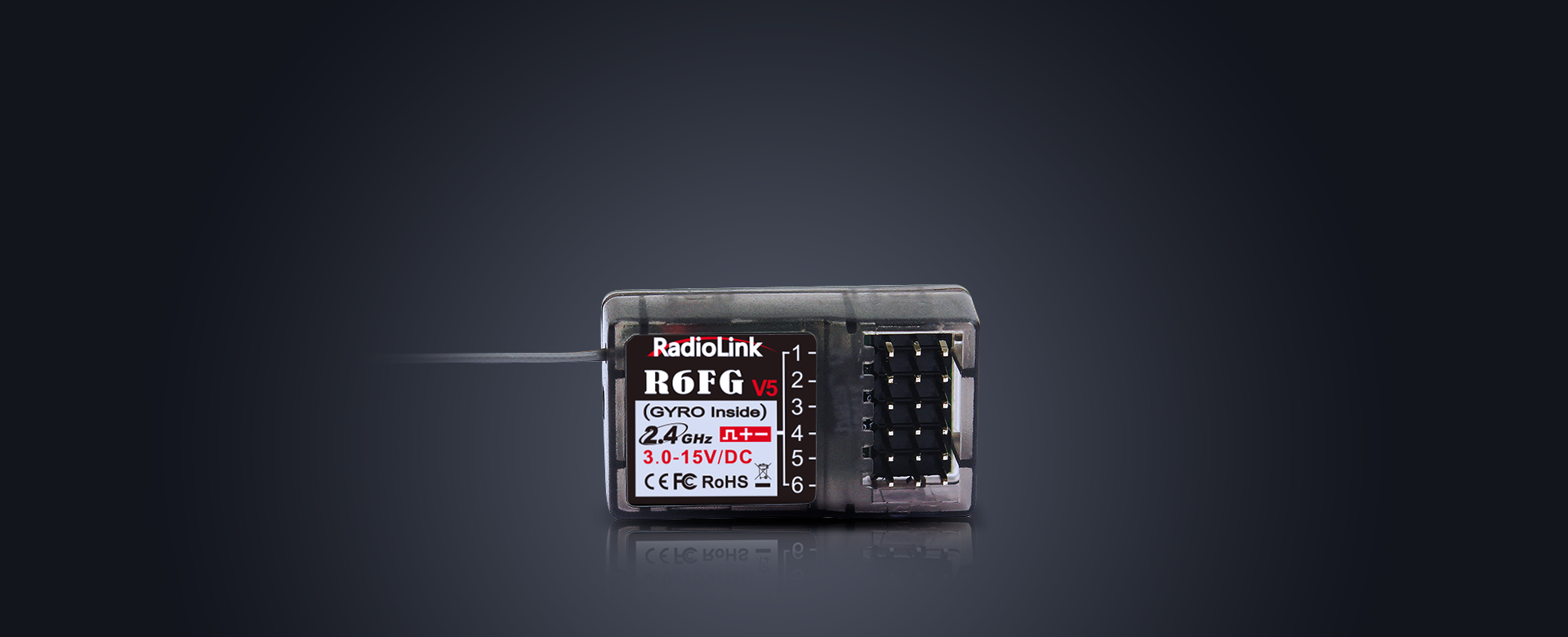

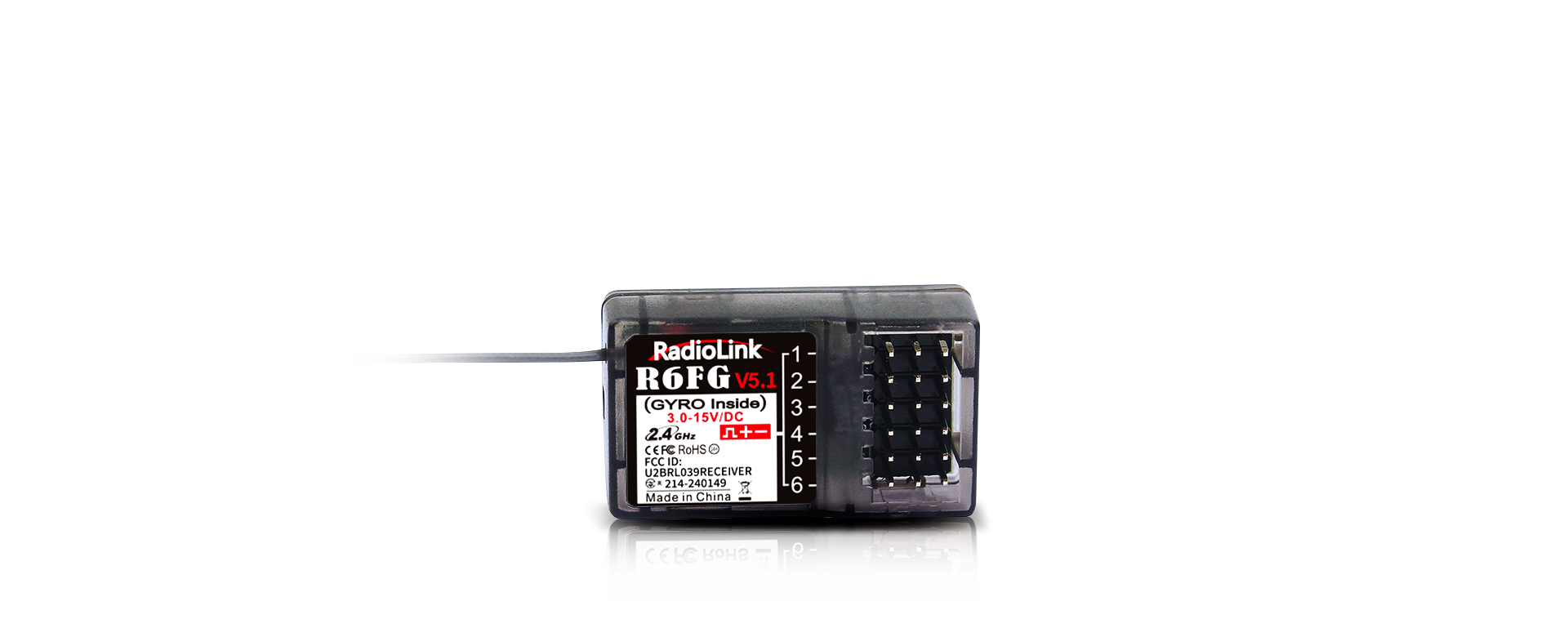

R6FG

6 Channels Receiver

400 Meters Control Distance


Same FHSS* spread spectrum algorithm as AT9S and 67-channel pseudo-random frequency hopping help reduce overall signal interference.

400M(1312ft) * Range enables all possible RC fun.

Industrial chip ensures superior anti-sparks interference ability, random sensitivity of gyro will not interfere steering make RC4GS V2 well controlled even oil tanker.

Industrial grade anti-interference ability makes sure multiplayer compete at the same time.

12ms only from the transmitter to the receiver, thus provide control synchronous and performance perfect.

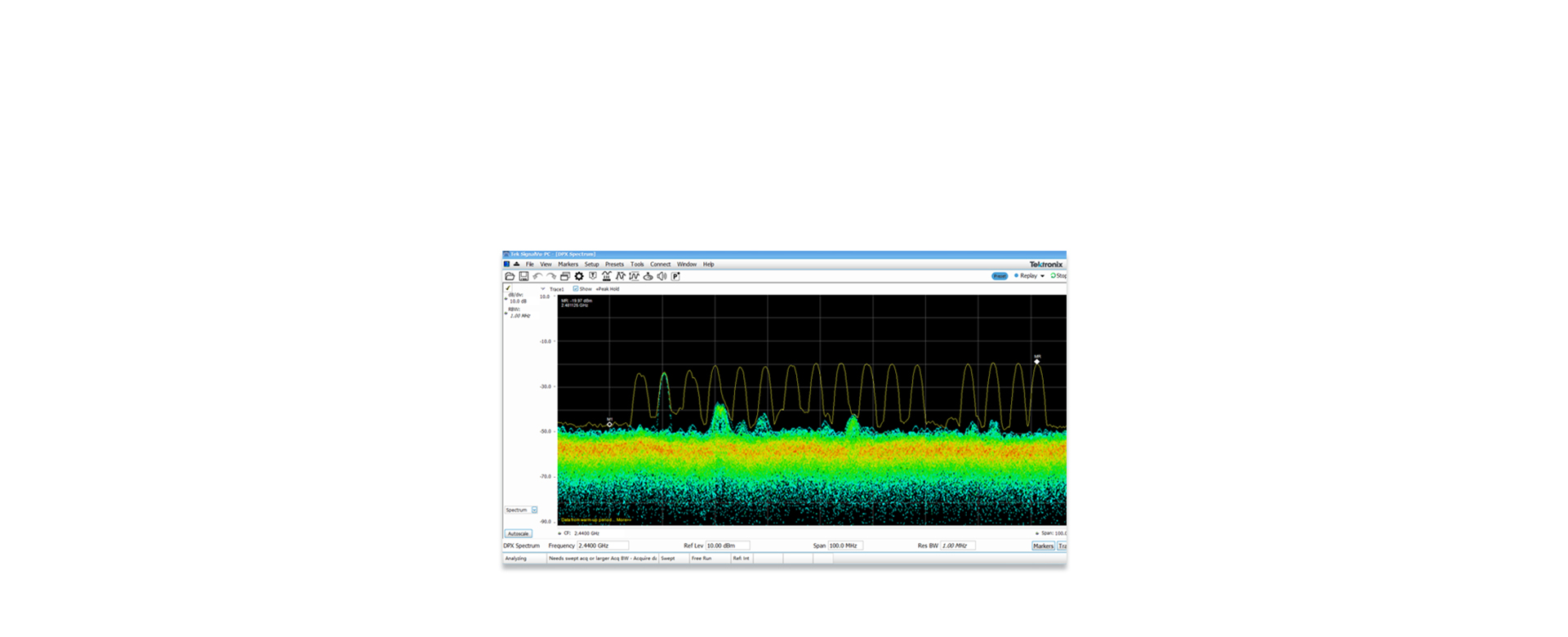

* Frequency Hopping Spread Spectrum offers three main advantages: signals are highly resistant to narrowband interference, are difficult to intercept and can share a frequency band with many types of conventional transmissions with minimal interference.

* Maximum range is tested in an unobstructed area free of interference.

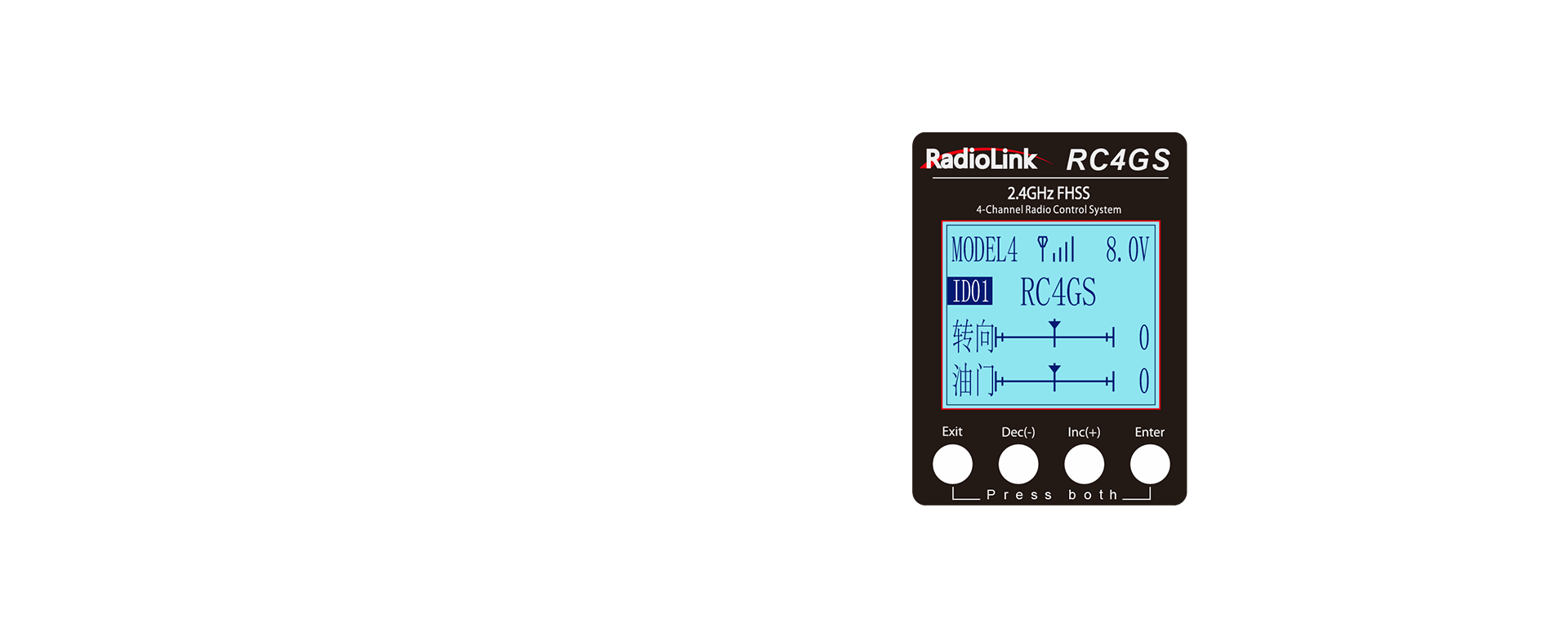

Real-time Telemetry


Real-time telemetry RSSI and transmitter voltage information allow users to receive crucial information on the model's systems.

Operation as You Want


Receiver with gyro integrated makes the vehicle in a straight line during aggressive acceleration and braking or get bumped around by rough terrain.

Receiver with gyro integrated makes the vehicle keep unidirectional and anti-slip.

Specifications


Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)

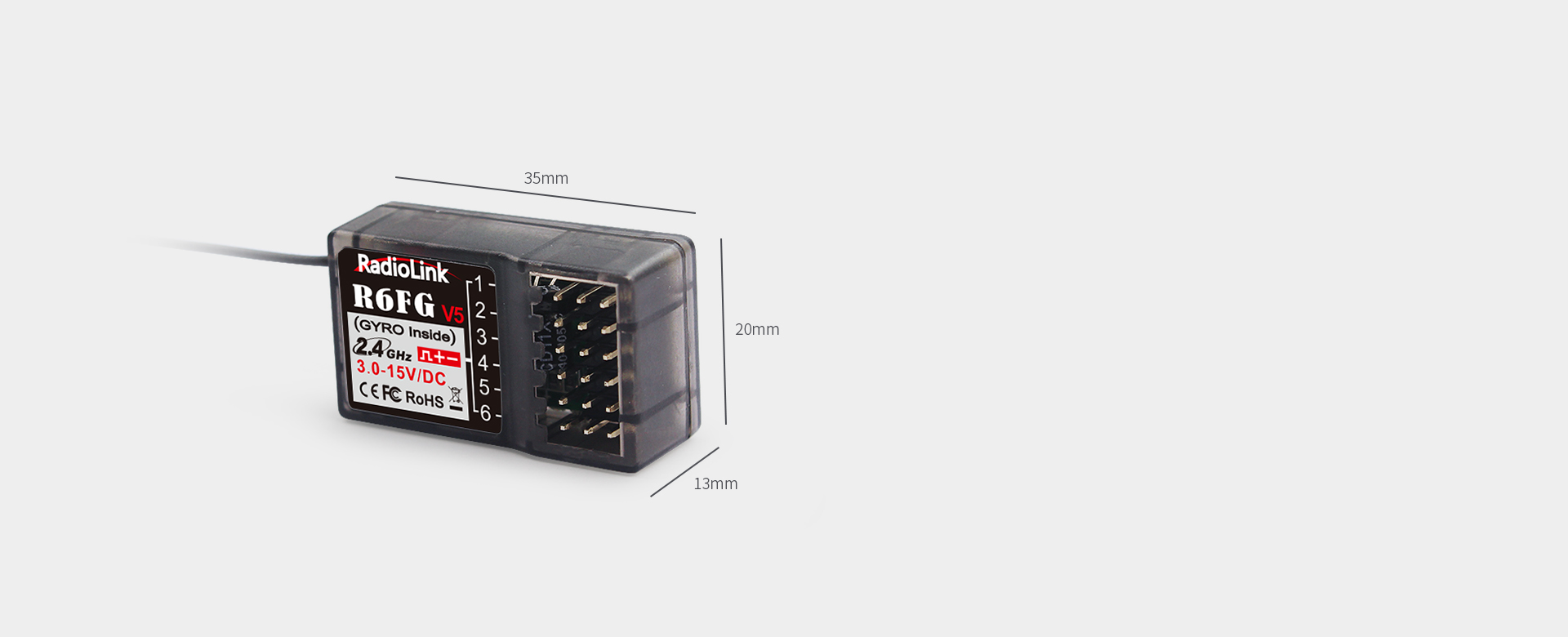

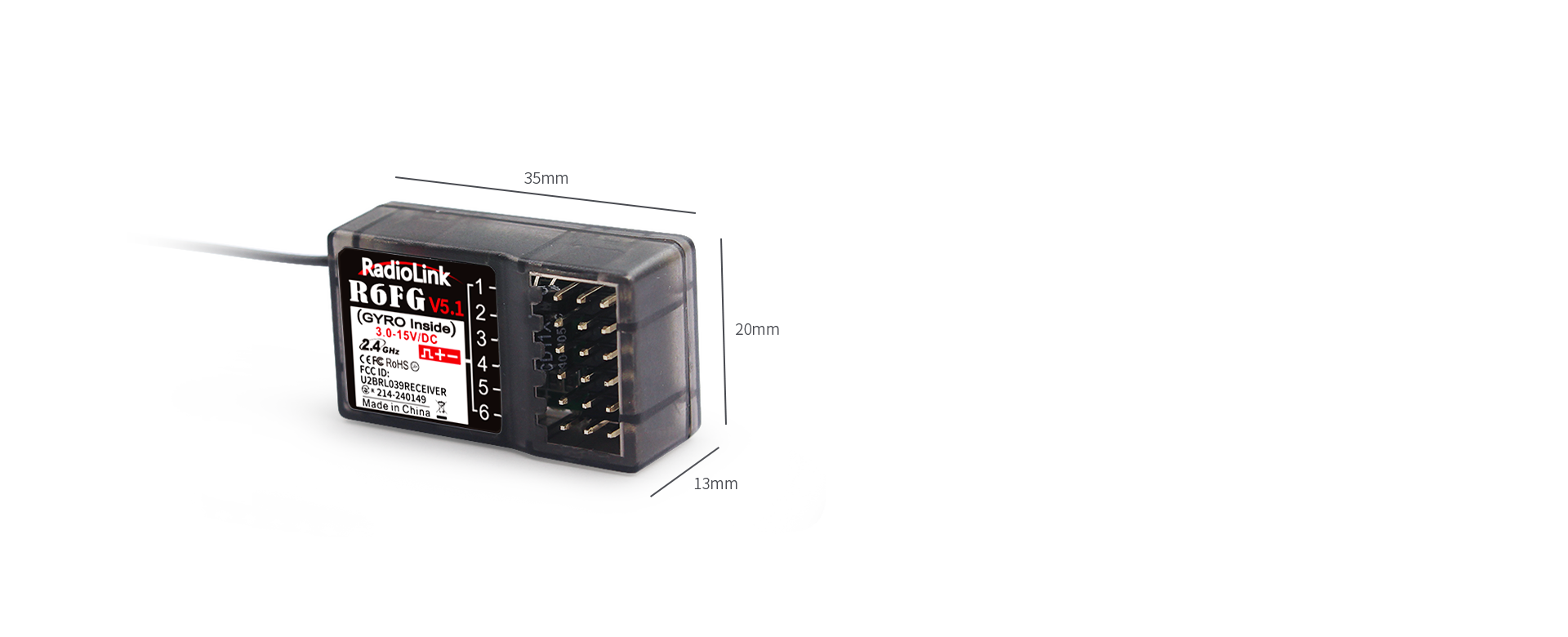

Size: 35*20*13mm (1.38"*0.79"*0.51")

Weight: 6g(0.21oz)

Channel Qty: 6 channels

Model: cars/boats

Spread Spectrum: FHSS & 67 signal channel pseudorandom frequency sequence hopping

Antenna Length: 205mm (8.07")

Power Supply: 3-15V DC

Channel Resolution: 4096

Operating Current: 30mA

Control Range: 400 meters(1312ft)

Compatible transmitter: RC8X/RC6GS V3/RC4GS V3/

RC6GS V2/RC4GS V2/RC6GS (3-position switch version)/RC4GS (version with P.D AFTER 180101) /T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)/T16D/T12D
