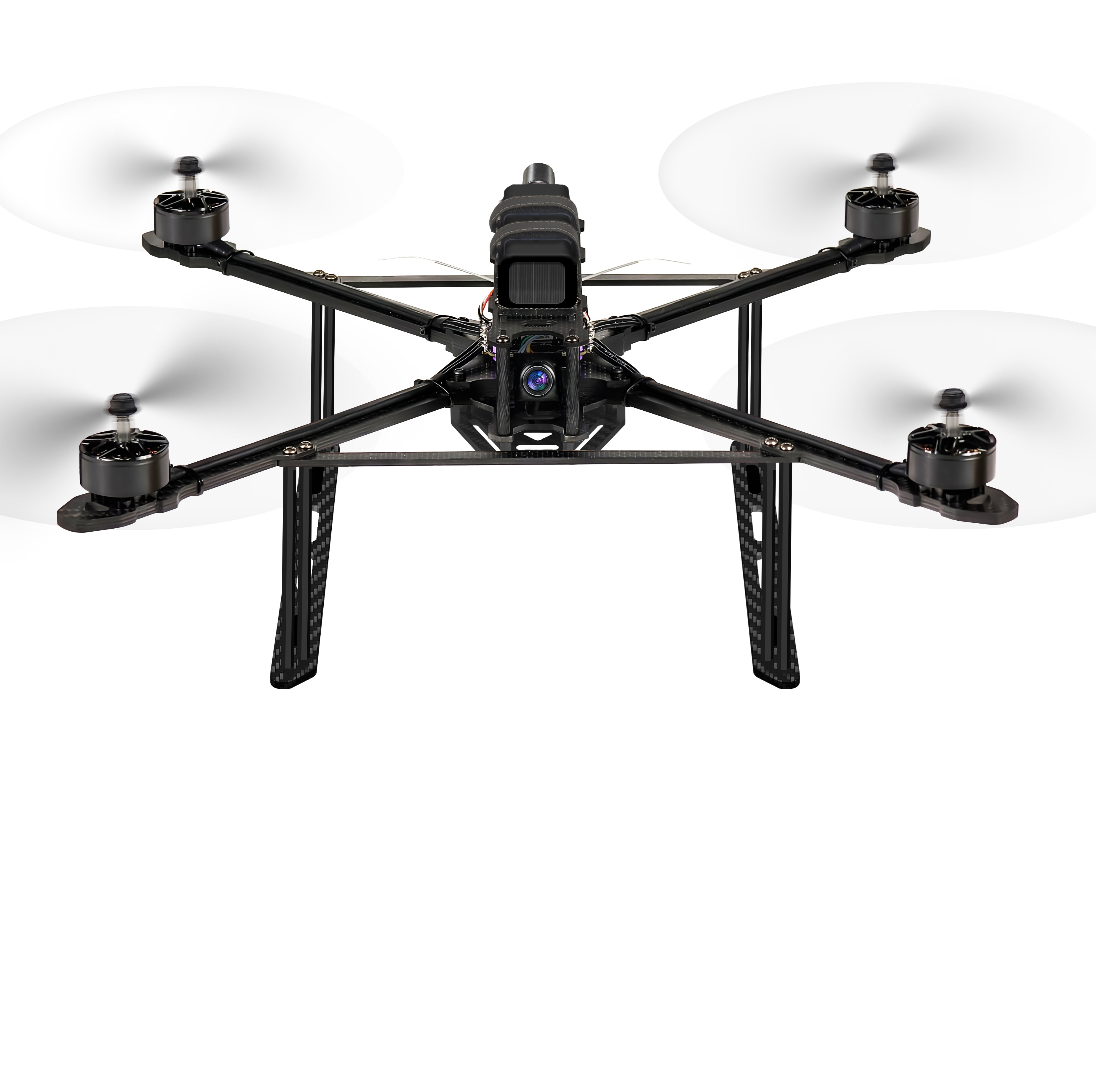

Radiolink M435 | GPS Heavy Lift Drone

3KG Payload with 120km/h Flight Speed


M435, the 3KG Heavy Lift Drone with 120KM/H flight speed,

integrates high speed, strong signal, and portable load.

It is efficient, intelligent, and can be reached anywhere.


4000 Meters

Control Distance


3KG

Heavy Lift Drone


120km/h

Max Flight Speed


10 Minutes

With 3KG Payload


12m/s

Max Wind Speed Resistance


28 Minutes

Without Load


Auto Flight by Following the Waypoints

It can pre-set flight routes to perform tasks such as autonomous takeoff or landing, and automatic delivery packages.

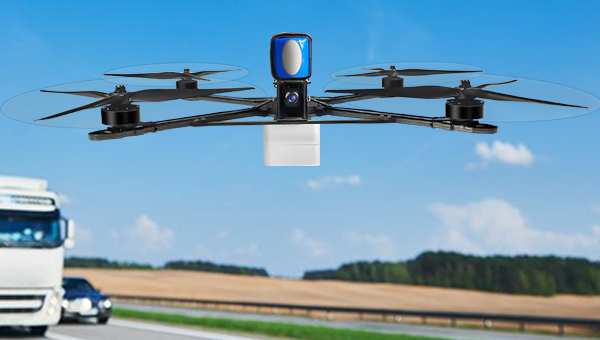

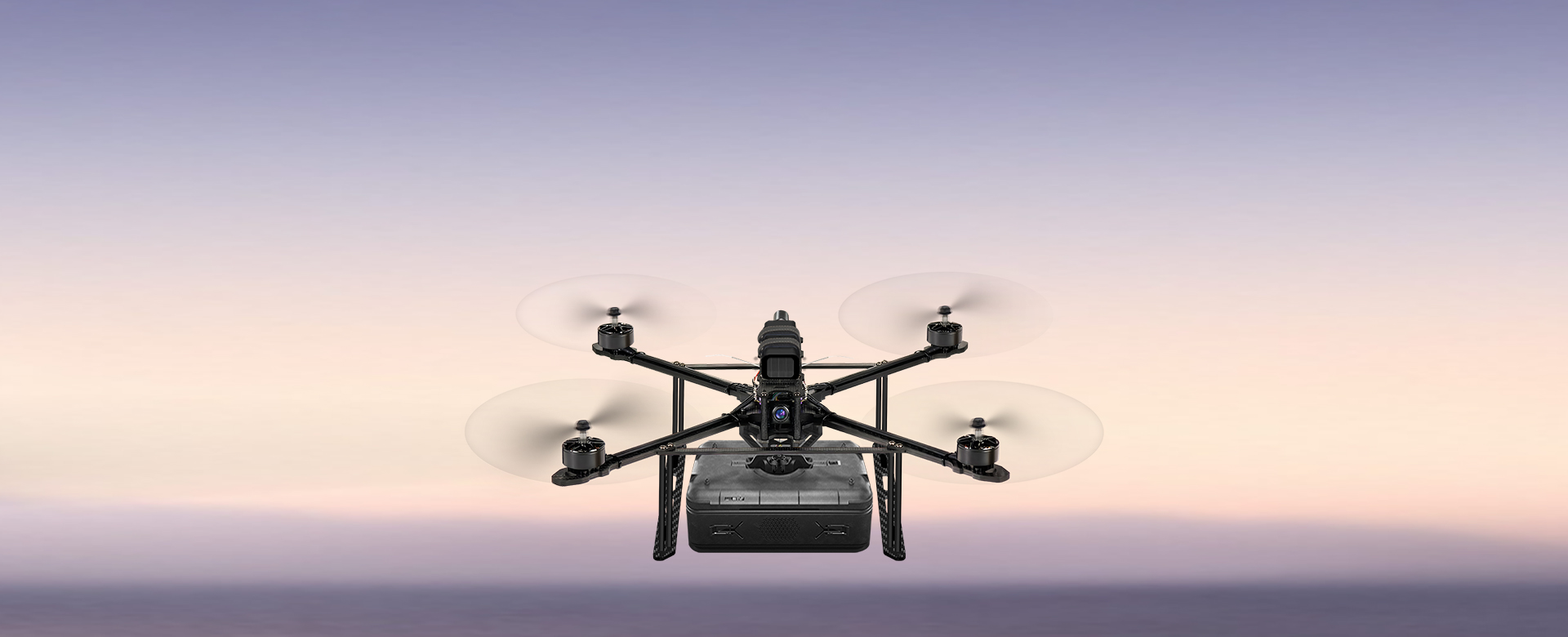

Racing Drone Flight Speed Even with 3KG Payload

Even when 3KG equipment is loaded, it can still achieve a high-speed flight speed of 20 m/s,

greatly shortening the task execution time and completing the delivery task intelligently and efficiently.


3KG Payload

The power configuration can easily be equipped with 3KG of packages such as food, medical supplies,

or other equipment, and there is still a large power reserve even when carrying the counterweight.

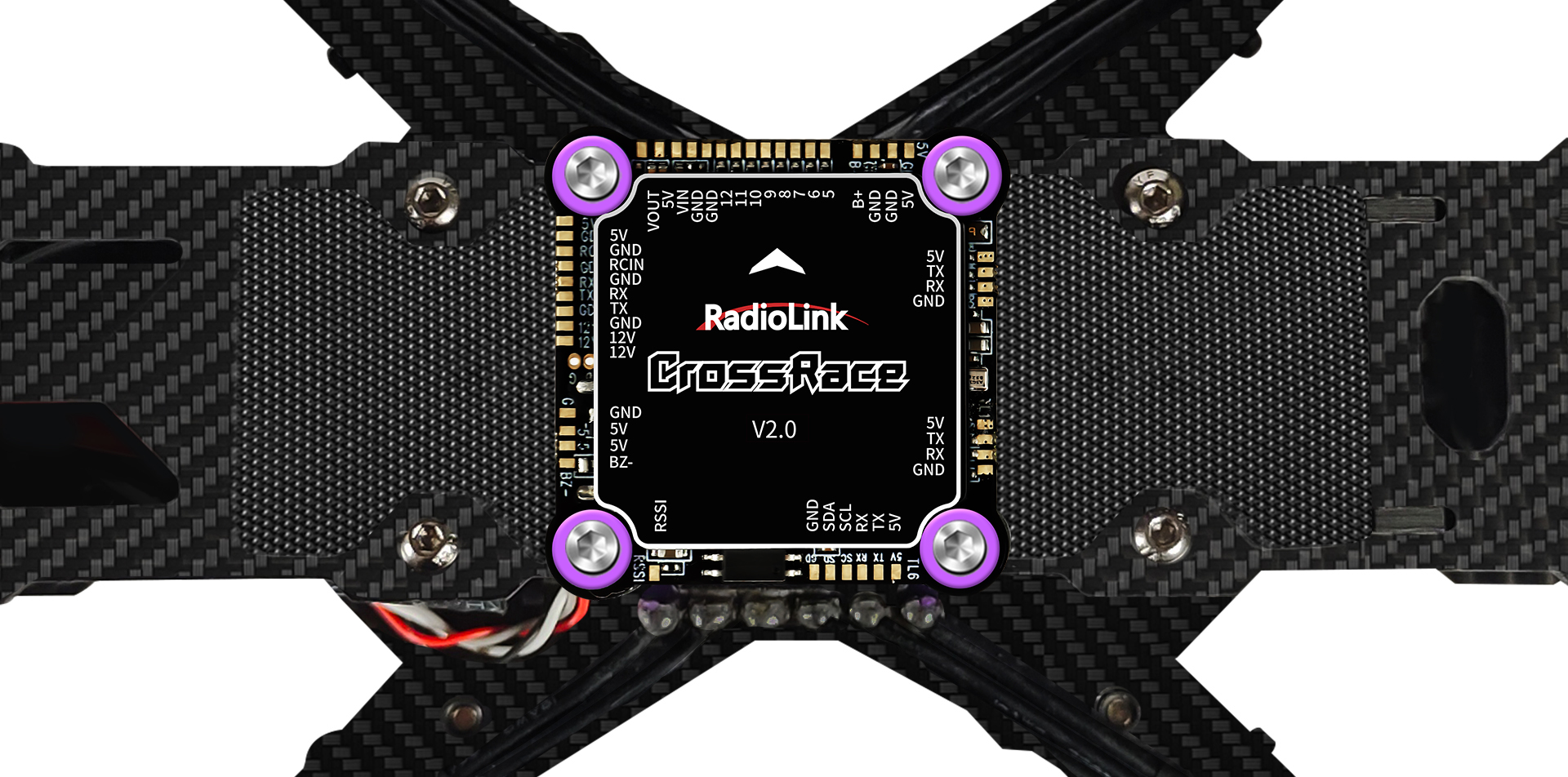

Radiolink Flight Controller CrossRace

Built-in Radiolink's new flight controller CrossRace, the full-featured flight controller is compatible with four-in-one ESC.

With a micro size of 37*37mm, it supports 12 PWM output channels,

all interfaces are directly plugged in without soldering wires, and the installation is completed in one go!

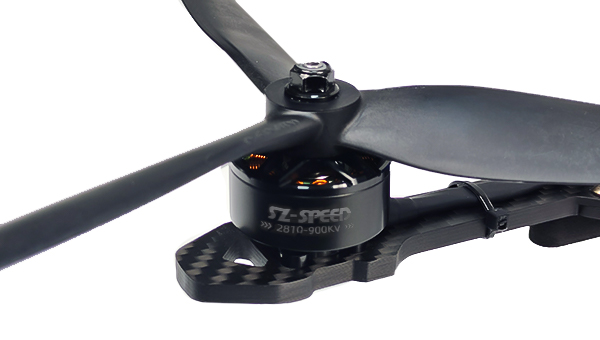

SZ-SPEED 2812 900KV Motor

Good mechanical design ensures the heat dissipation of the base.

The linear output power ensures higher efficiency, more steady flight, and longer flight time.

飞盈佳乐猛禽5代60A四合一电调

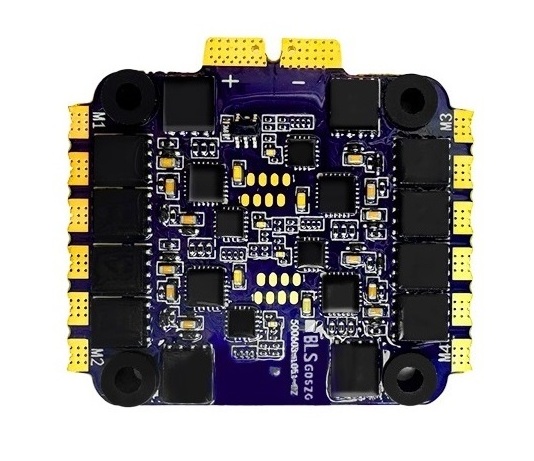

FLYCOLOR 55A 4in1 ESC


It uses a high-performance EFM8BB21 MCU with a frequency of up to 50MHz.

The continuous current is 55A, supporting a 3S-6S (11.1-25.2V) LiPo battery. Large-area aluminum heat sinks can effectively slow down the temperature rise.

Damped light regenerative braking causes very fast motor retardation and inherently also does active freewheeling, ensuring linear throttle with no delayed response.

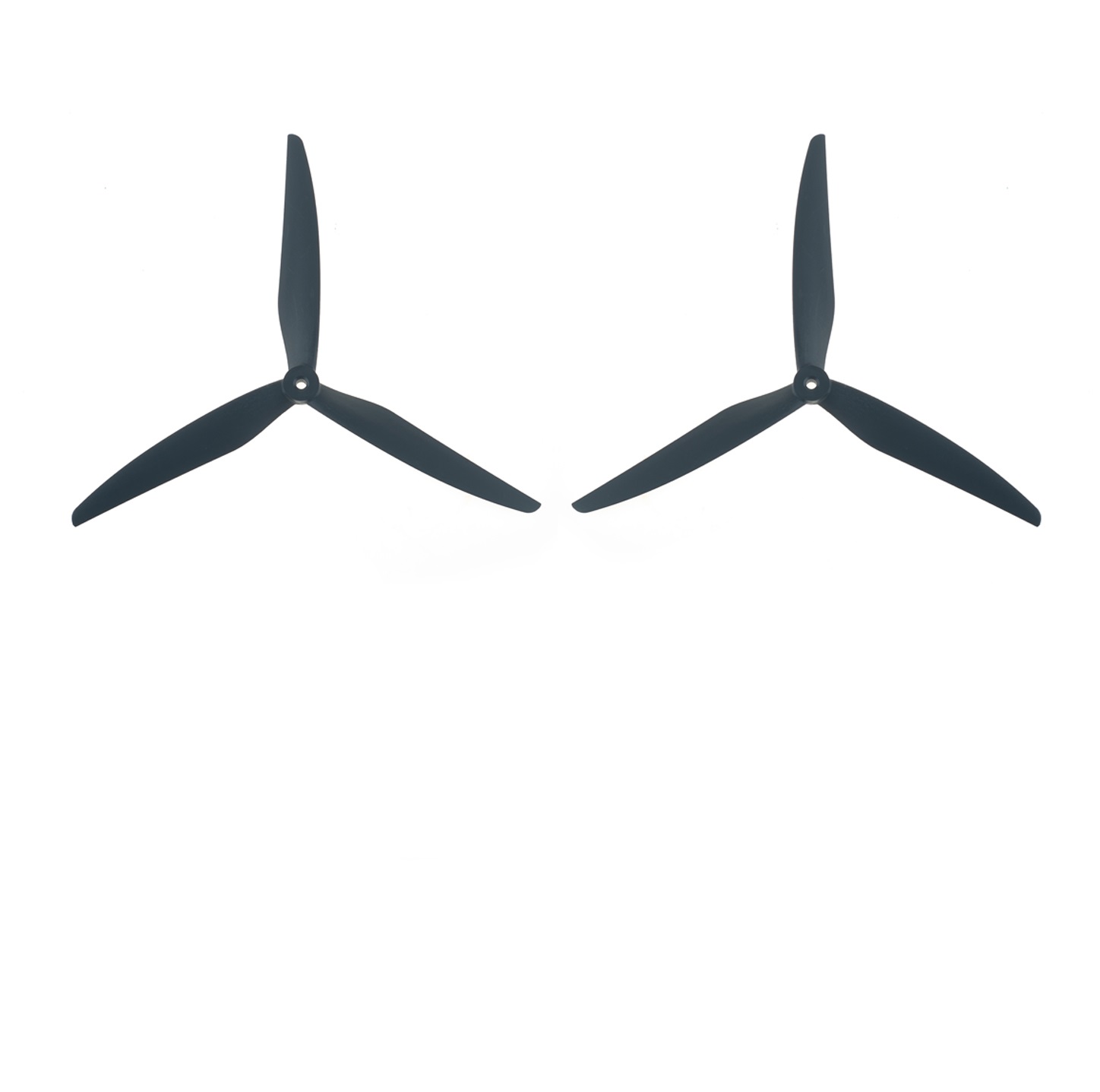

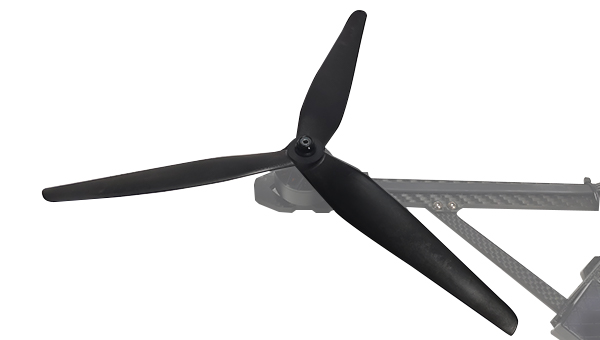

Gemfan 10*5*3 Propellers


The propeller from Gemfan takes full advantage of aerodynamics and is repeatedly tested and modified, based on its weight and the effects of thickness distribution on rotary inertia.

The propellers use fiber-reinforced nylon and are bending-resistant.  Every detail from appearance to function is carefully polished to achieve high efficiency. With extremely fast response and no vibration under high speed, the propellers offer pilots an unforgettable flight experience.

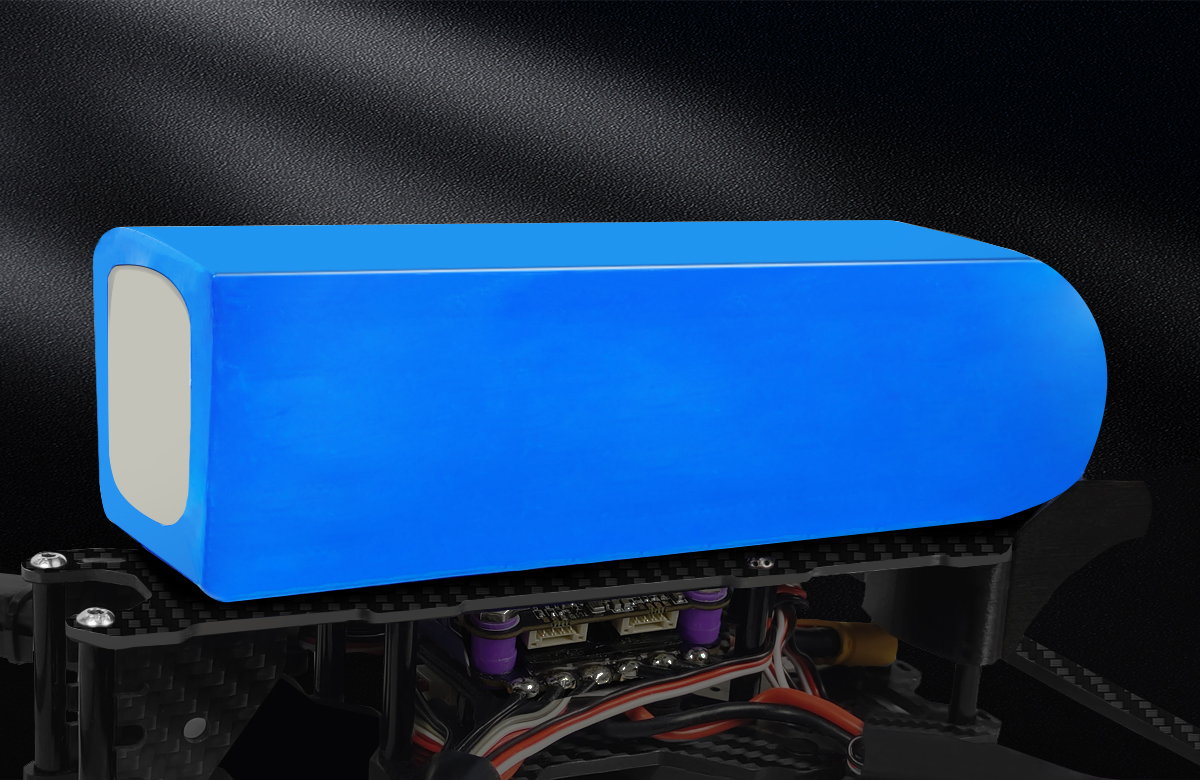

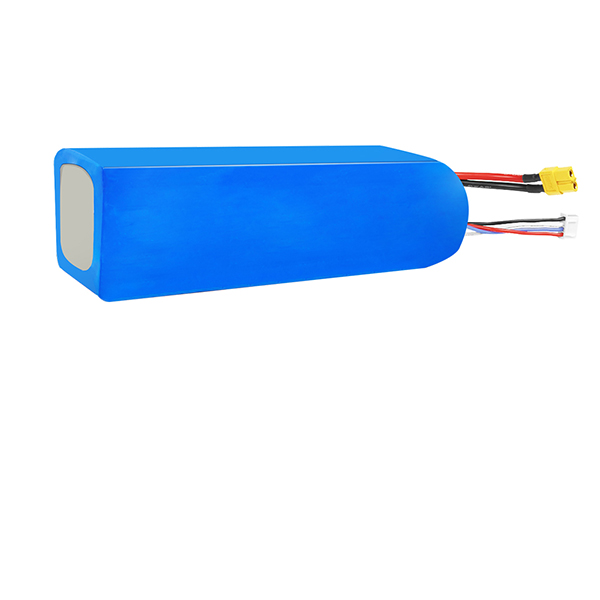

FULLYMAX 6S 6250mAh Battery


The battery of M435 is a 6S 6250mAh 25C XT60 LiPo battery from FULLYMAX  with a high-quality cell. The strong power and good heat radiation ensure longer flight time, 10 minutes of flight time with a 3kg payload, or 28 minutes of flight time without load.

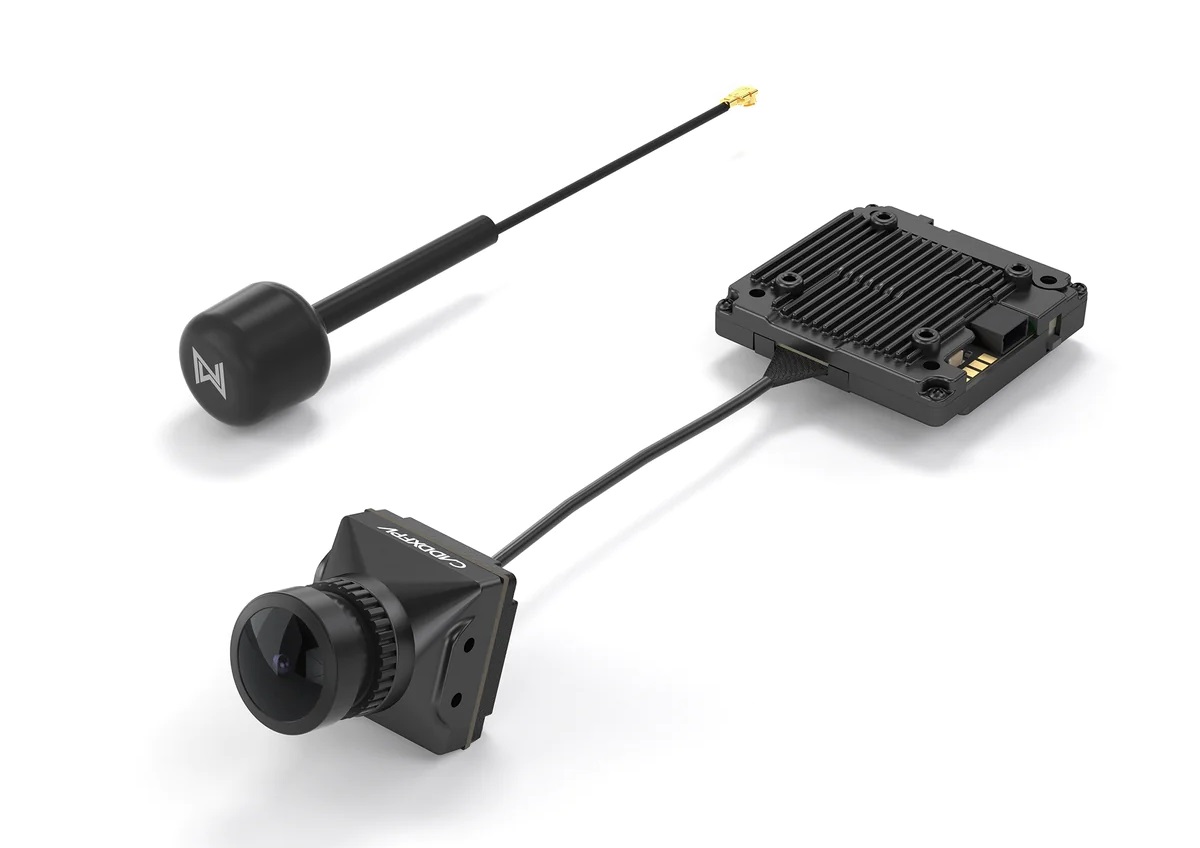

Caddx Walksnail Avatar HD Pro Kit


Walksnail VRX adopts industry-leading H.265 encoding technology, which can provide a minimum delay of 22ms and a maximum resolution of 1080p, the maximum transmission distance is 4km. The HD picture quality ensures more accurate work.

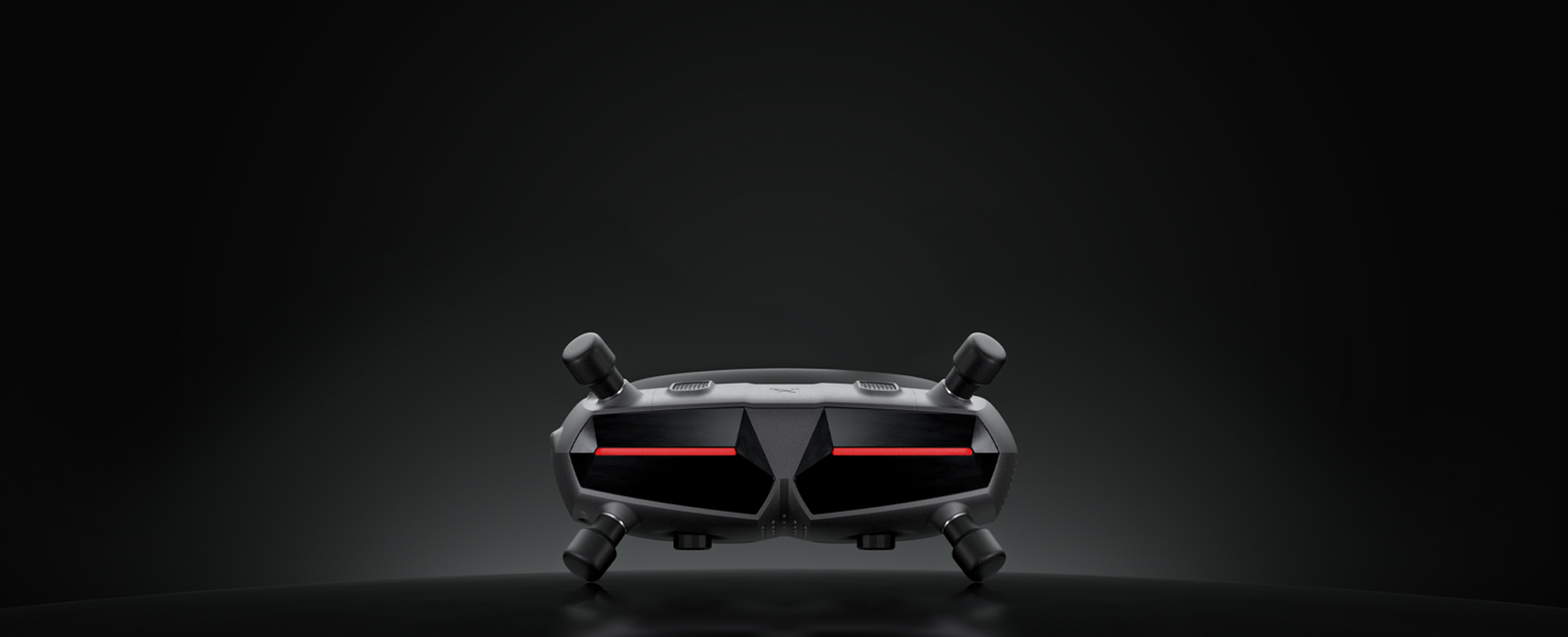

Walksnail Avatar HD Goggles X


The Avatar HD system utilizes industry-leading H.265 encoding technology to

provide 1080P/100FPS FPV video quality with low latency, providing an immersive and responsive experience.

50° FOV, +2 to -6 diopter, 1PD57~72mm, lenses for astigmatism, myopia,

and blue light-blocking glasses can be replaced to meet different vision needs.

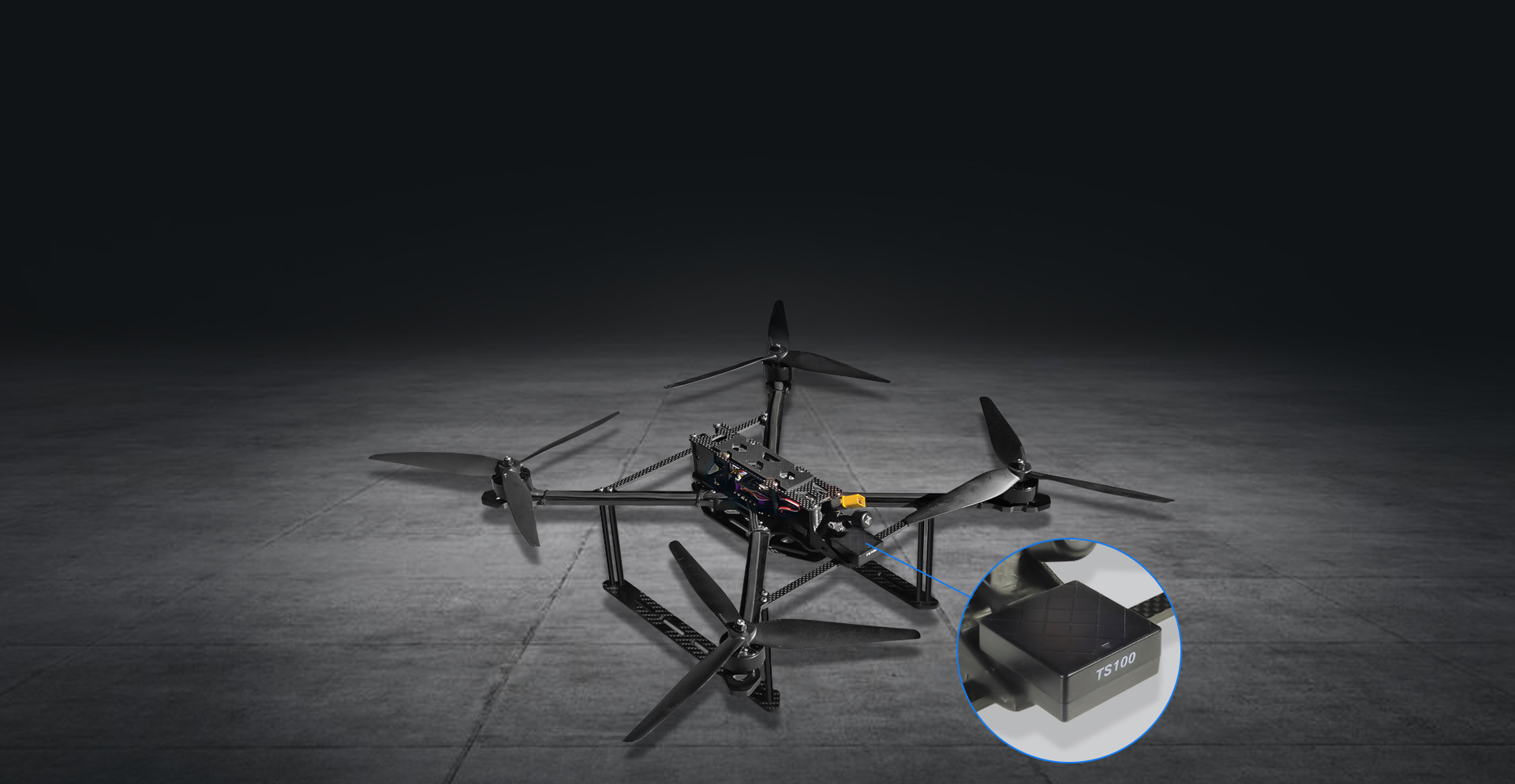

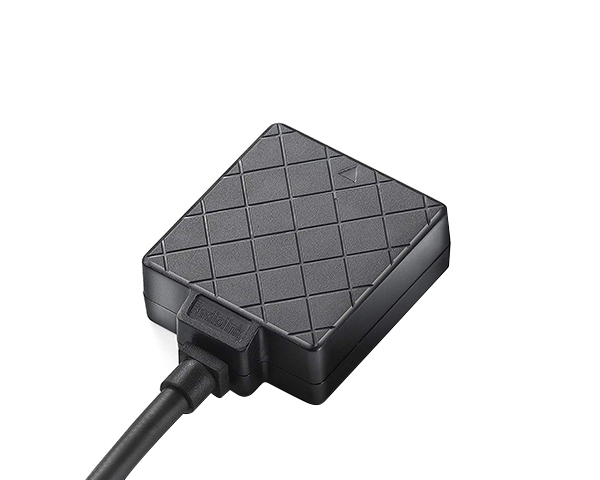

Radiolink GPS TS100 Supported

Dual Anti-interference Technology, 50 Centimeters Positioning Accuracy

Worry-free of UAV 2W High-power Image Transmission, High-Voltage Lines, or Other Strong Signal Interference


De-interference: Two-stage filtering with 78db attenuation effectively filters out-of-band interference.
Anti-interference:
In-band input 1dB compression point -3dBm high linear LNA can minimize the impact of even a

small amount of interference signals that pass the filter.

Effectively resist strong signal interference, such as high-power image transmission on drones, high-voltage lines, etc.

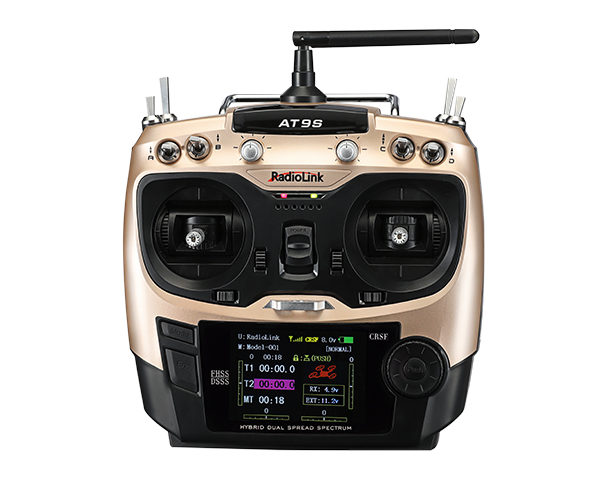

4000 Meters Control Distance

The 12-channel AT9S Pro from RadioLink adopts DSSS&FHSS dual hybrid spread spectrum and 16 channels pseudo-random frequency hopping, ensuring excellent anti-interference performance. Functions are stable and easy to control even under the complicated urban environment with an aerial control distance of 4000 meters, realizing visible and controllable racing in the city.

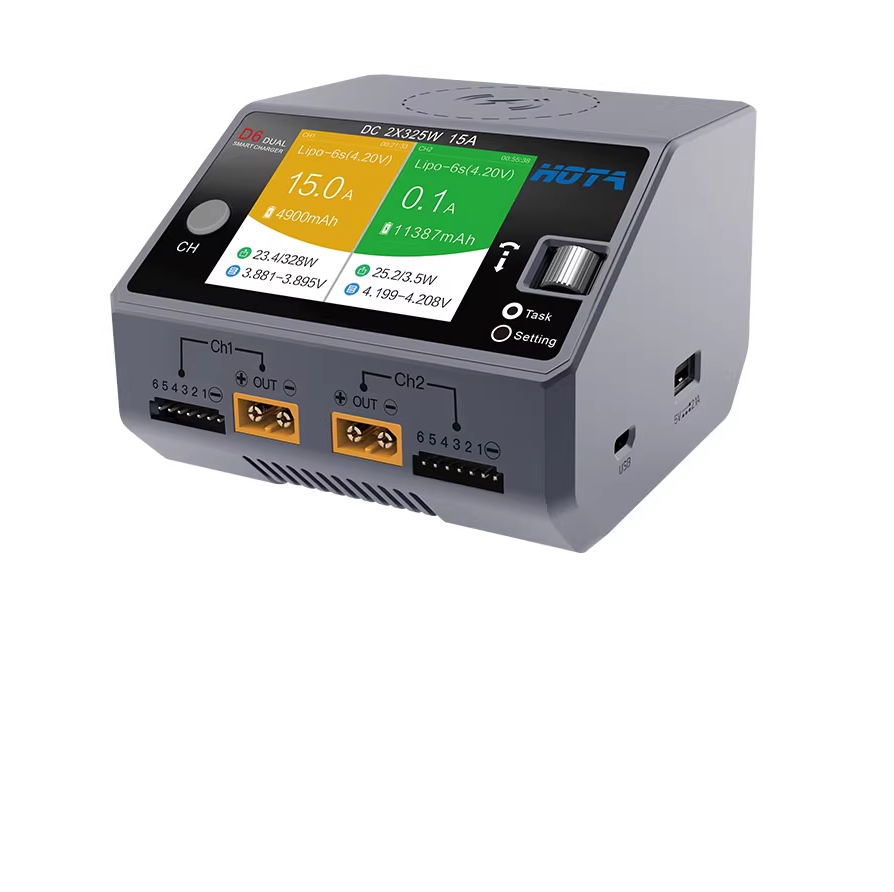

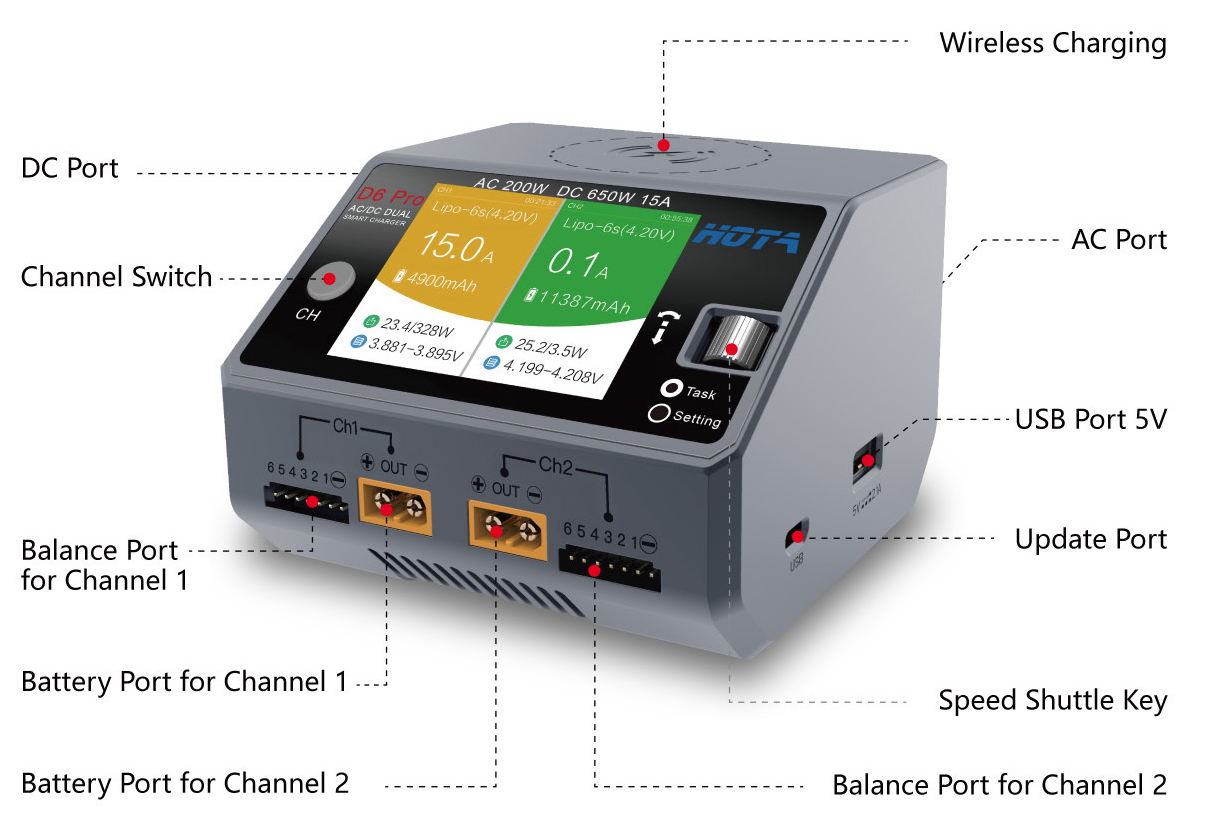

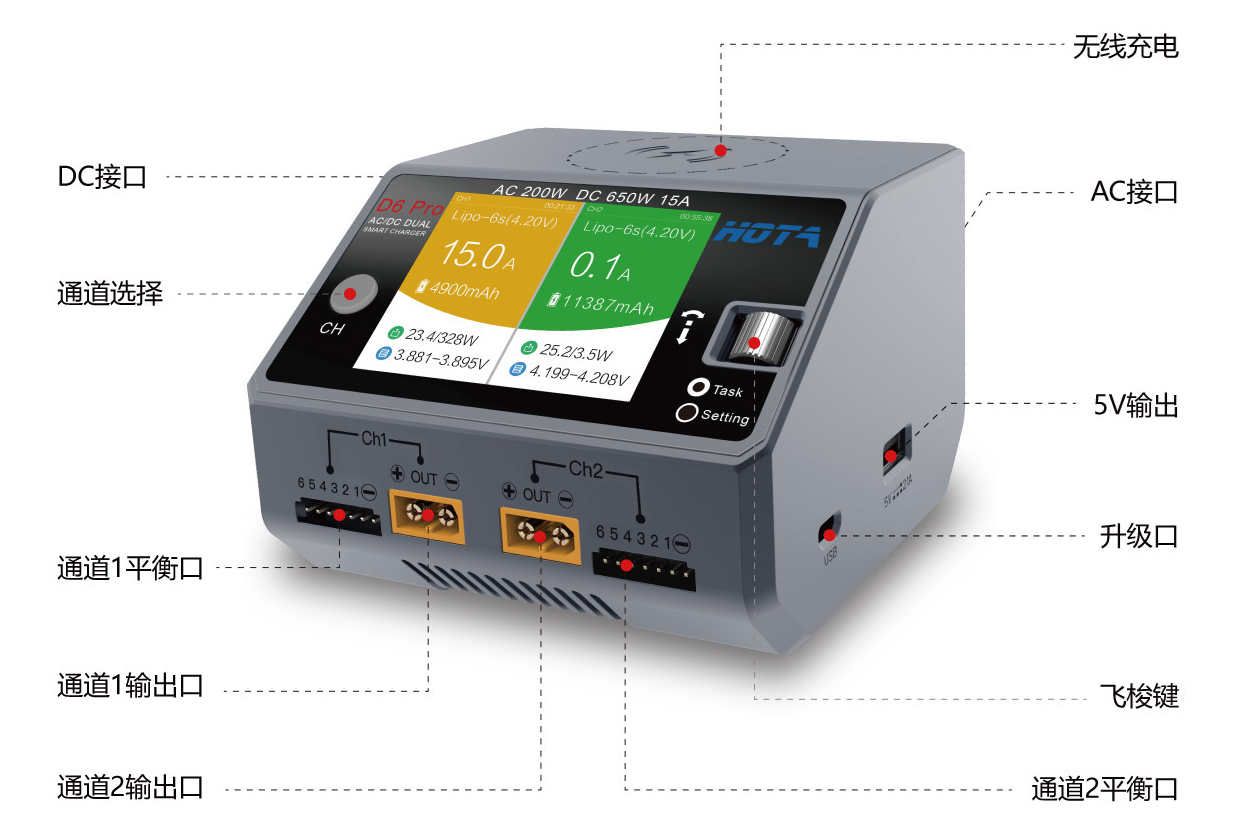

15A Portable and Fast Charger


Equipped with HOTA AC/DC dual-channel smart charger D6 Pro, with a maximum power of 650W,

15A charging current, and 94% operating efficiency, work more efficiently!

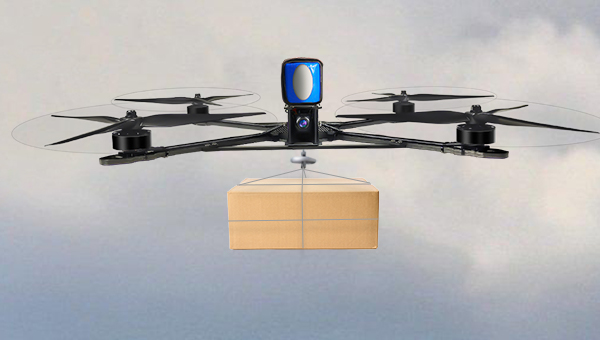

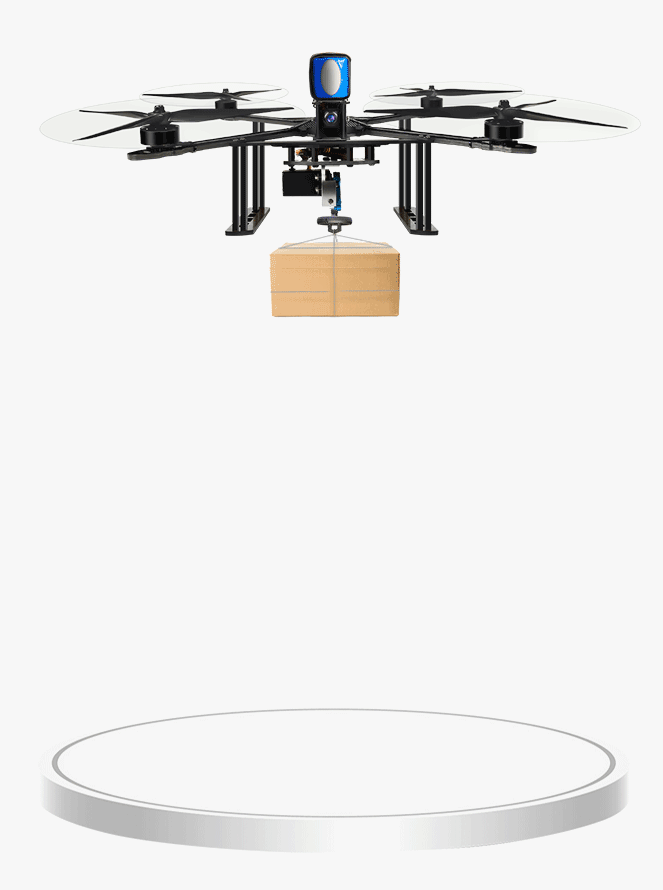

Multiple Types of Payload Modes

It can flexibly meet different transportation scenarios through various transportation modes such as hook or cargo box.

After the package is transported to the designated location by hook, air-drop it by the remote controller to ensure safe operation.

Screw-fastened cargo box.

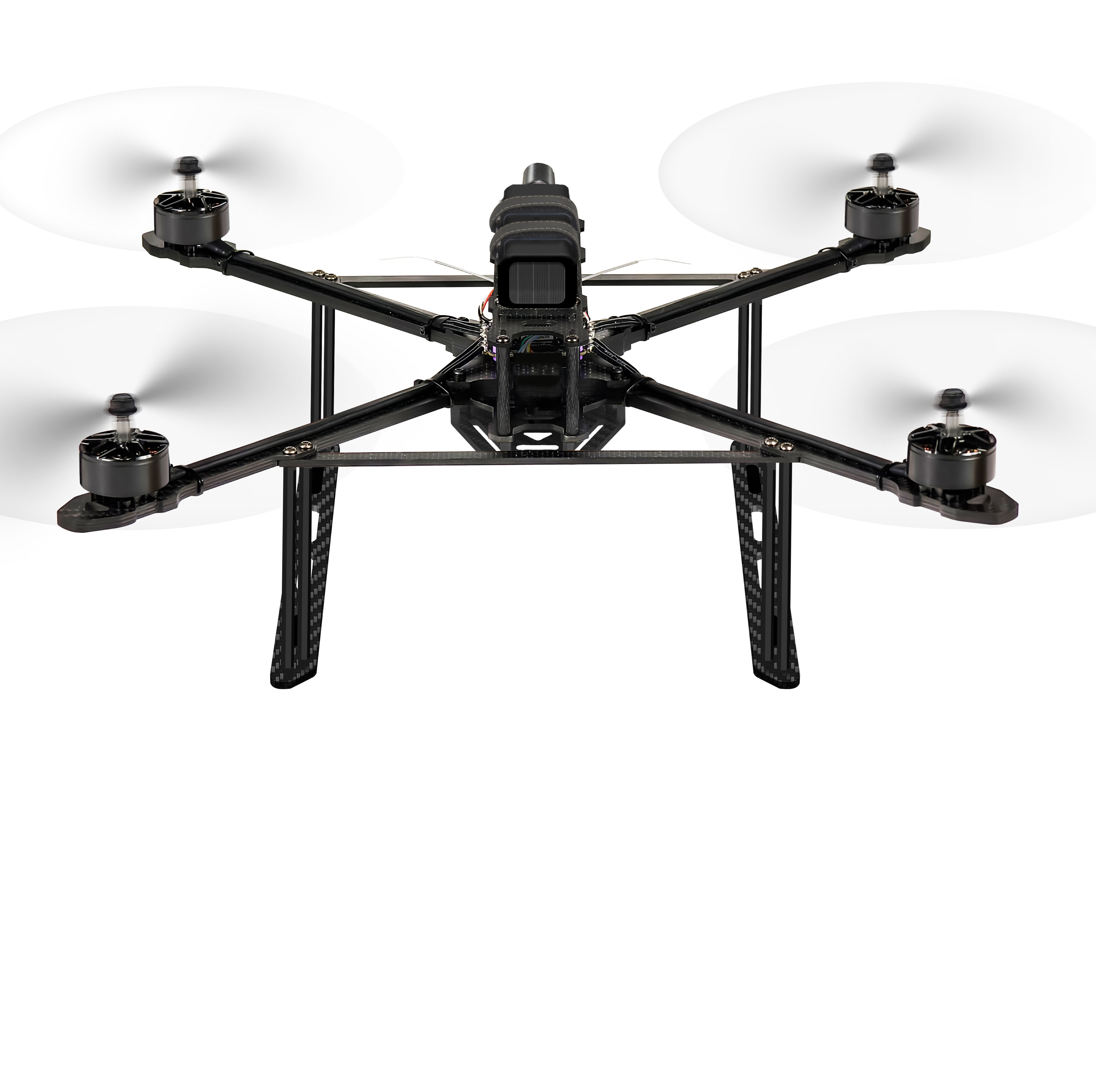

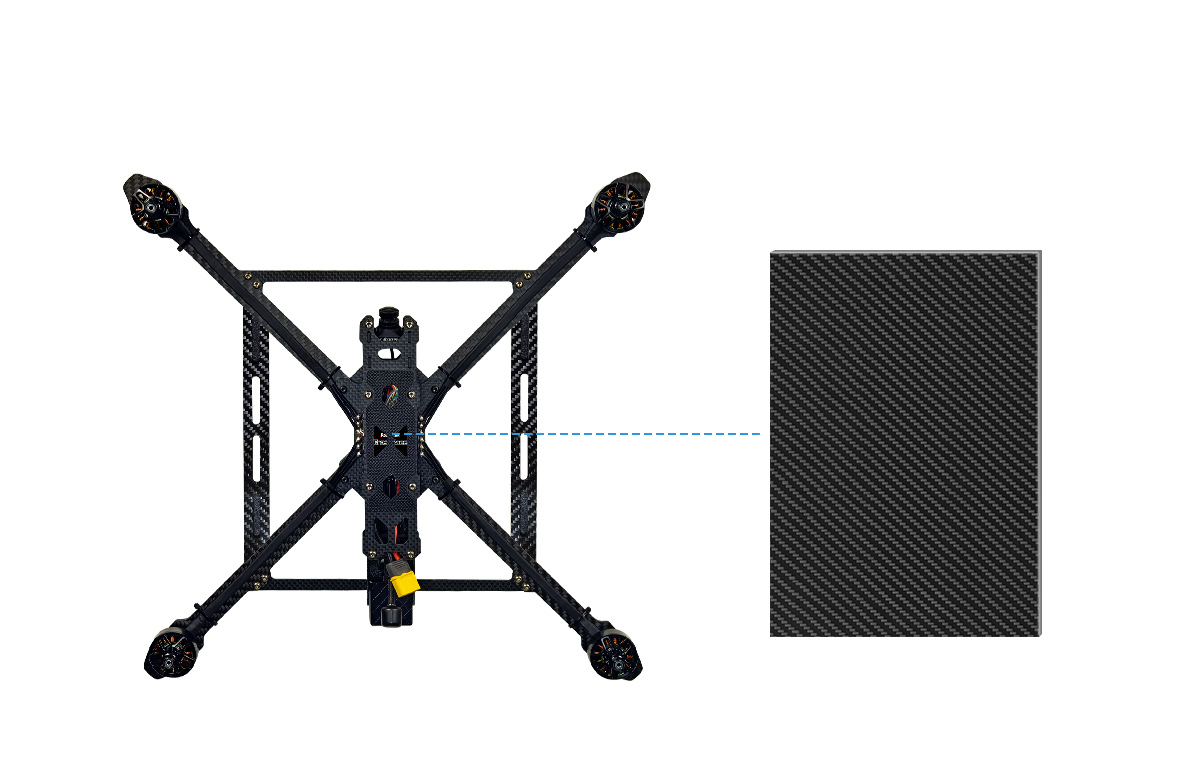

Carbon Fiber Frame, Firm and Solid

The frame of M435 is carbon fiber, minimizing the total weight and increasing the flight efficiency.

Lightweight yet strong and durable Carbon Fiber Material


Comprehensive Technical Support

With more than 21 years of R&D experience in the electric industry can provide

detailed instructions and tutorial videos from installation to flight.

All-round technical support such as installation, application, and calibration from ESC,

motor, and HD image transmission to the flight controller, and transmitter.

Almost all the parts of the Heavy Lift Drone you need we can offer.

* The flight data of the M435 was tested in a good flight environment, the actual control is related to the flight conditions.

* If you encounter problems while using M435, you can check the instructions, usage tutorials, or FAQs on the navigation bar of this introduction, or contact by sending an email to after_service@radiolink.com.cn

* For purchases can contact sales@radiolink.com.cn

M435 Package List


(The motors, ESC, propellers, and the battery may not be the same as on the page of the M435 introduction,

for the actual packing list, please confirm with the salesman first.)

FPV RTF Kit Version

  • M435*1

  • Transmitter(AT9S Pro)*1

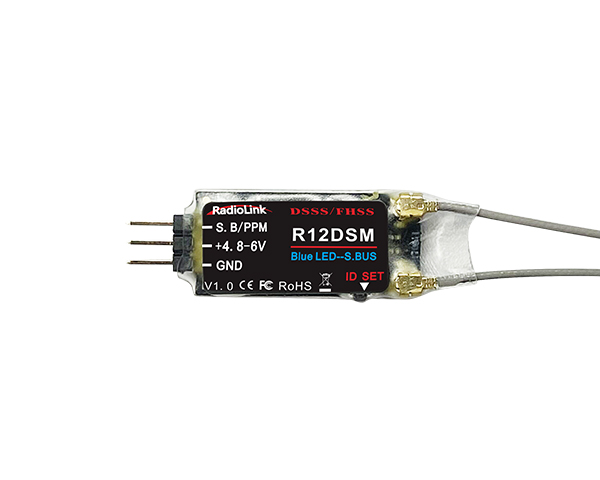

  • Receiver(R12DSM)*1

  • FC(CrossRace)*1

  • GPS TS100*1

  • Charger(HOTA D6 Pro)*1

  • FULLYMAX 6S 6250mAh Battery*1

  • Walksnail Avatar HD Goggles*1

  • Walksnail Avatar HD Pro Kit*1

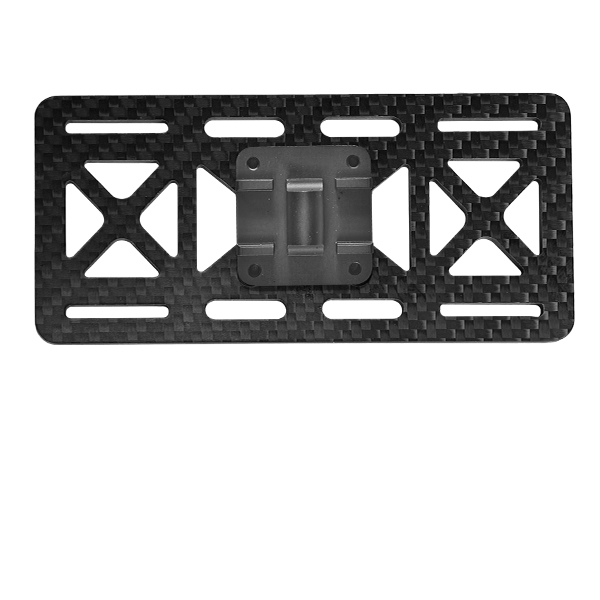

  • Load Material Fixing-Plate*1

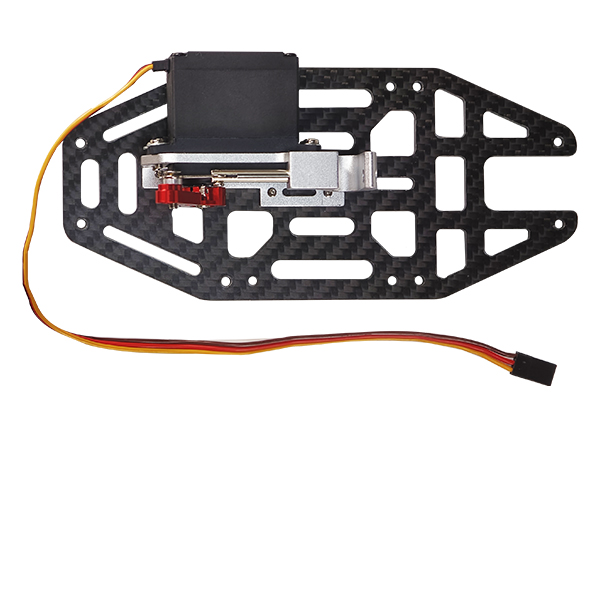

  • 20kg Metal Digital Load Base Plate and Load Servo with Hardware Hook*1

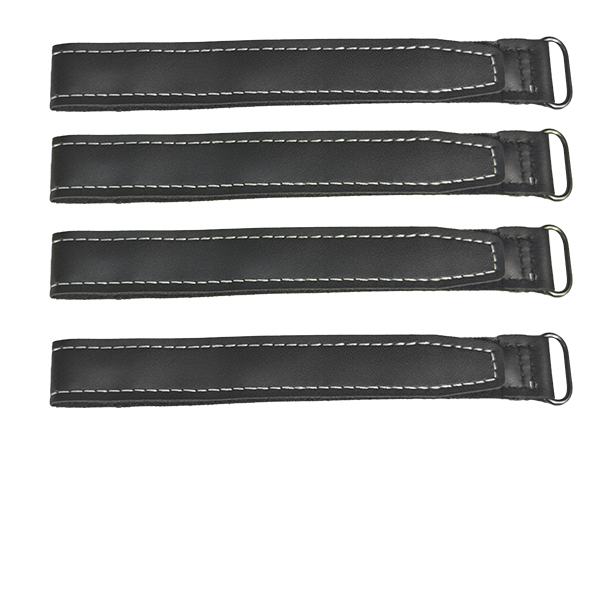

  • Load Material Straps*4

  • 10*5*3 Propellers(spare)*2

  • Screwdriver Socket Wrench*1

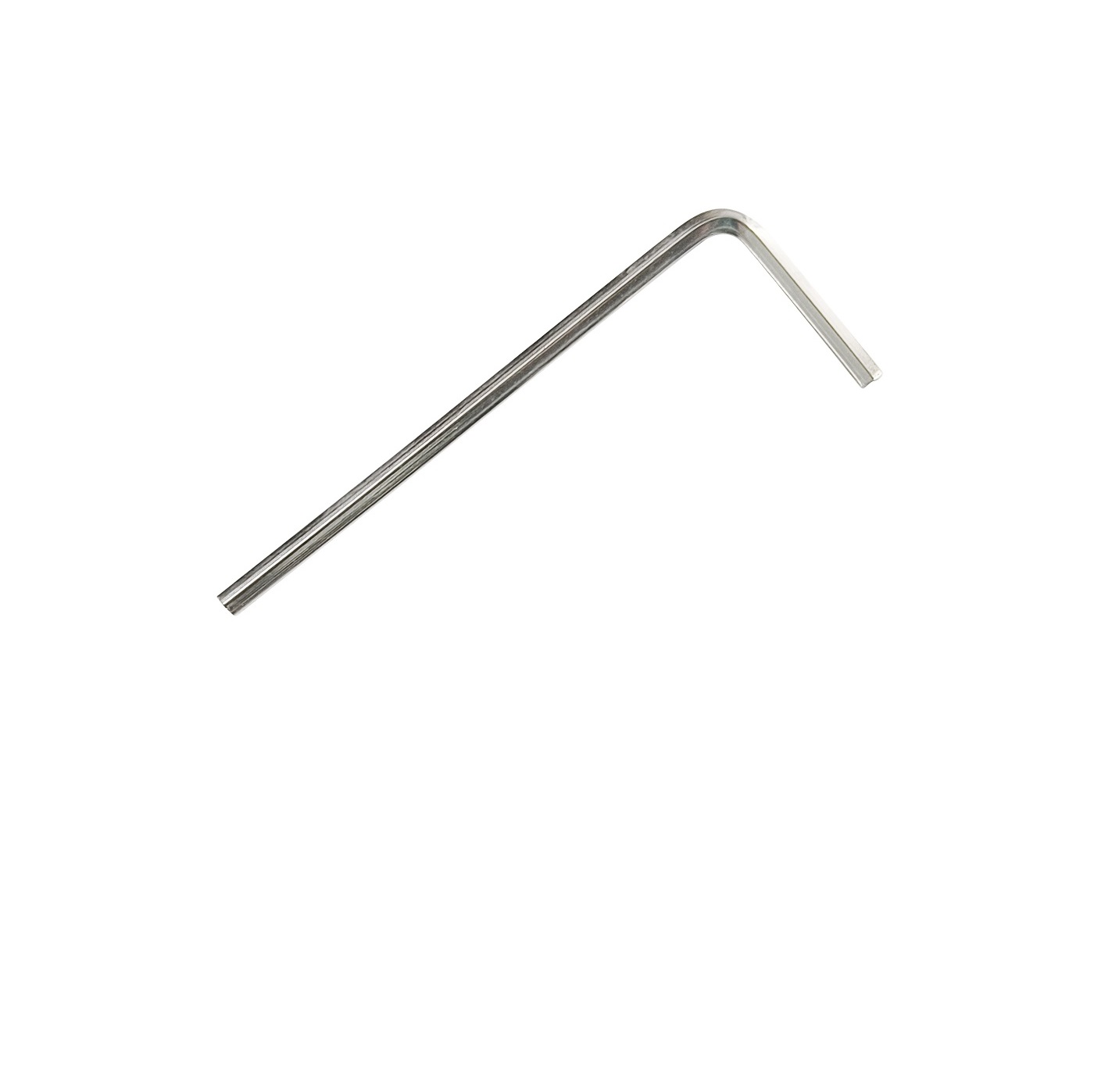

  • Hex Wrench (2.0mm)*1

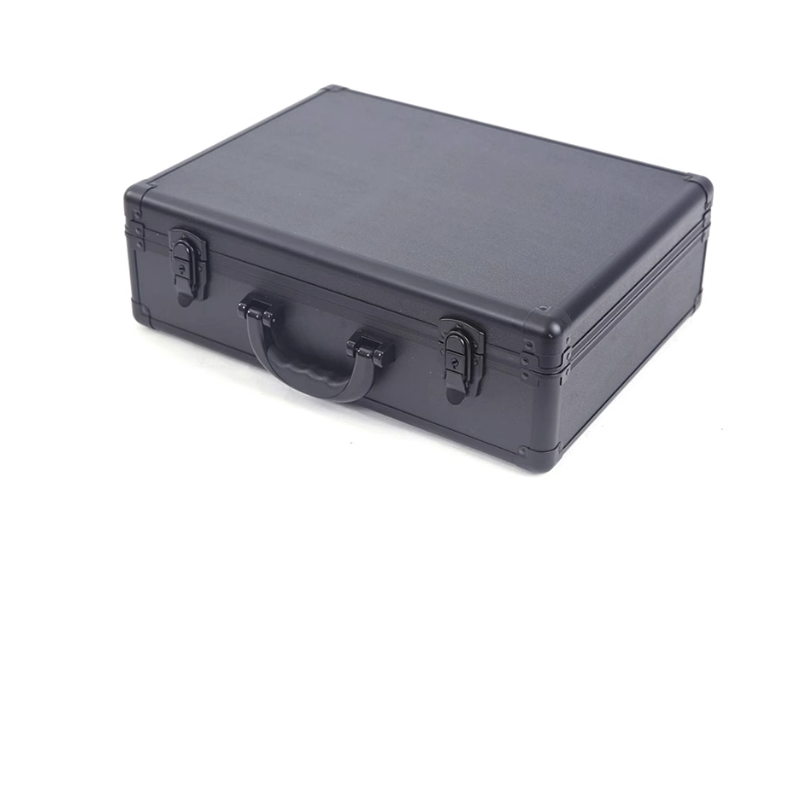

  • Aluminum Case*1

RTF Kit Version(without FPV)

  • M435*1

  • Transmitter(AT9S Pro)*1

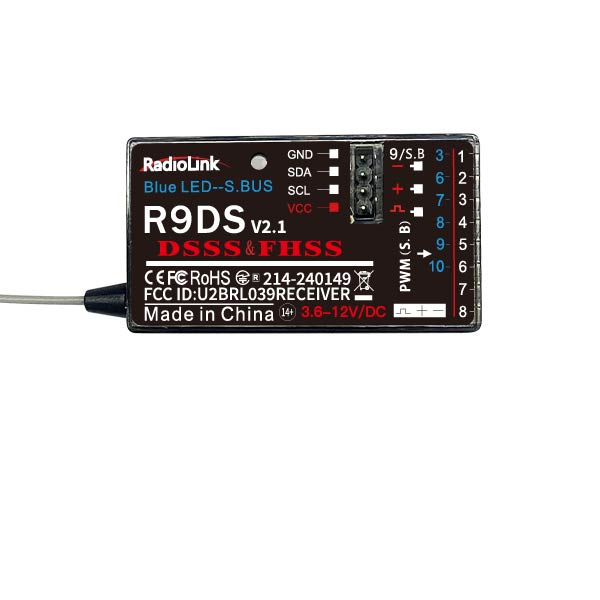

  • Receiver(R9DS)*1

  • FC(CrossRace)*1

  • GPS TS100*1

  • Charger(HOTA D6 Pro)*1

  • FULLYMAX 6S 6250mAh Battery*1

  • OSD Telemetry(PRM-03)*1

  • 20kg Metal Digital Load Base Plate and Load Servo with Hardware Hook*1

  • Load Material Fixing-Plate*1

  • Load Material Straps*4

  • 10*5*3 Propellers(spare)*2

  • Screwdriver Socket Wrench*1

  • Hex Wrench (2.0mm)*1

  • Aluminum Case*1

PNP Version

  • M435*1

  • FC(CrossRace)*1

  • GPS TS100*1

  • FULLYMAX 6S 6250mAh Battery*1

  • 20kg Metal Digital Load Base Plate and Load Servo with Hardware Hook*1

  • Load Material Fixing-Plate*1

  • Load Material Straps*4

  • 10*5*3 Propellers(spare)*2

  • Screwdriver Socket Wrench*1

  • Hex Wrench (2.0mm)*1
