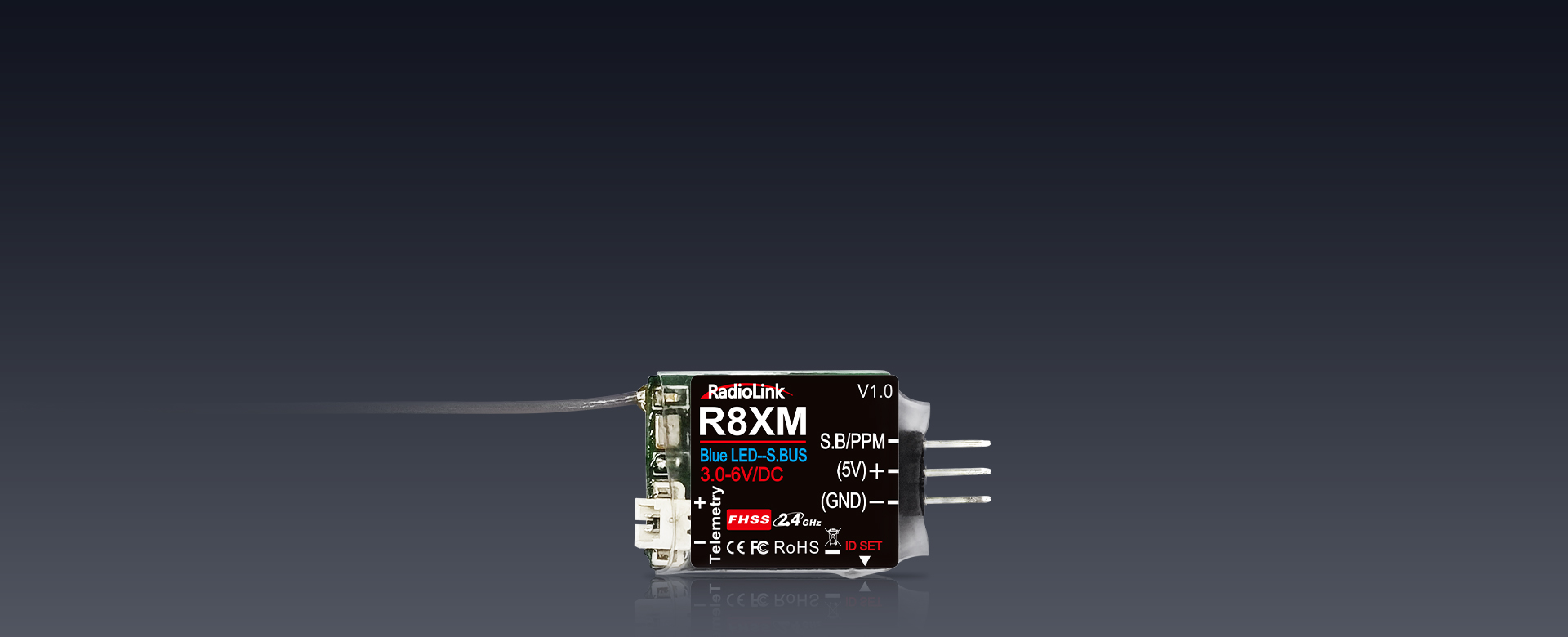

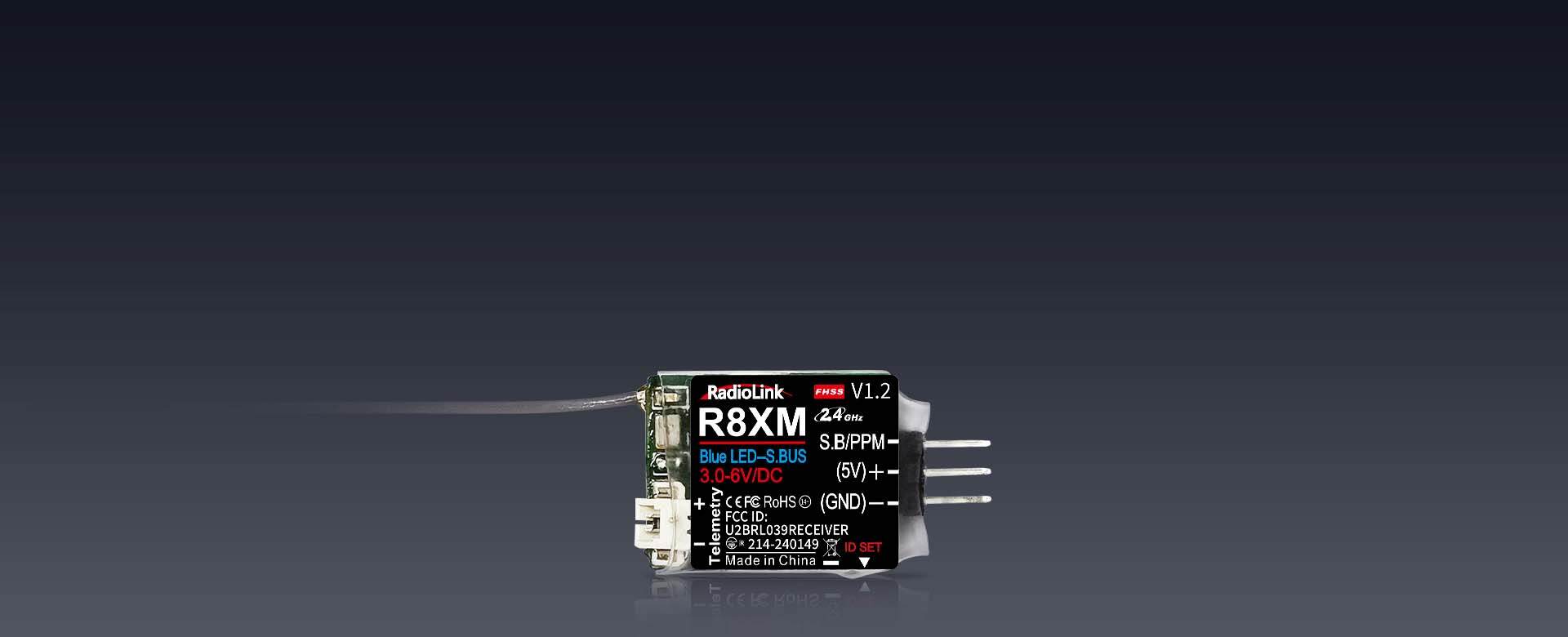

R8XM


8 Channels Mini Receiver

Real-time Built-In Telemetry

Transmission of RSSI, Receiver Voltage, and Model Voltage

4000 Meters* Control Distance


Same FHSS* spread spectrum algorithm as AT9S Pro and 67-channel pseudo-random frequency hopping ensures excellent anti-interference performance, highly constant, and stable transmission signal present on all 8 channels of R8XM.

The bait boat can also be equipped with Mini Pix flight control and 50 centimeters positioning accuracy GPS TS100. It can pre-set sailing routes, automatically implement maritime patrols and data collection, and automatically return home when out of control. That makes scientific and technological fishing and precise cruise come true.

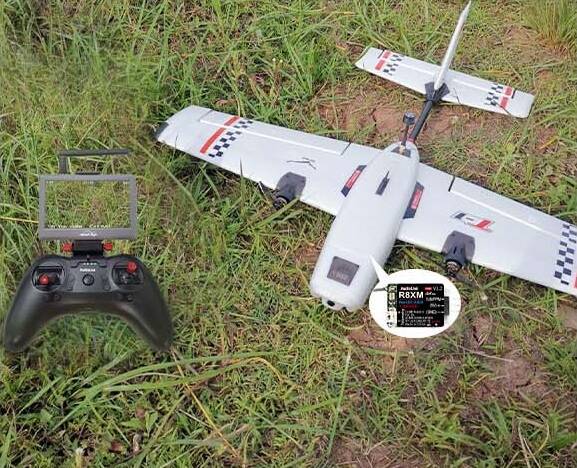

4000 meters control distance, combined with the image transmission camera and FPV display screen/FPV goggles, to

realize long-distance interesting driving from the fixed-wing.

* Frequency Hopping Spread Spectrum offers three main advantages: signals are highly resistant to narrowband interference, are difficult to intercept and can share a frequency band with many types of conventional transmissions with minimal interference.

* Maximum range is tested in an unobstructed area free of interference.

Real-time Built-In Telemetry

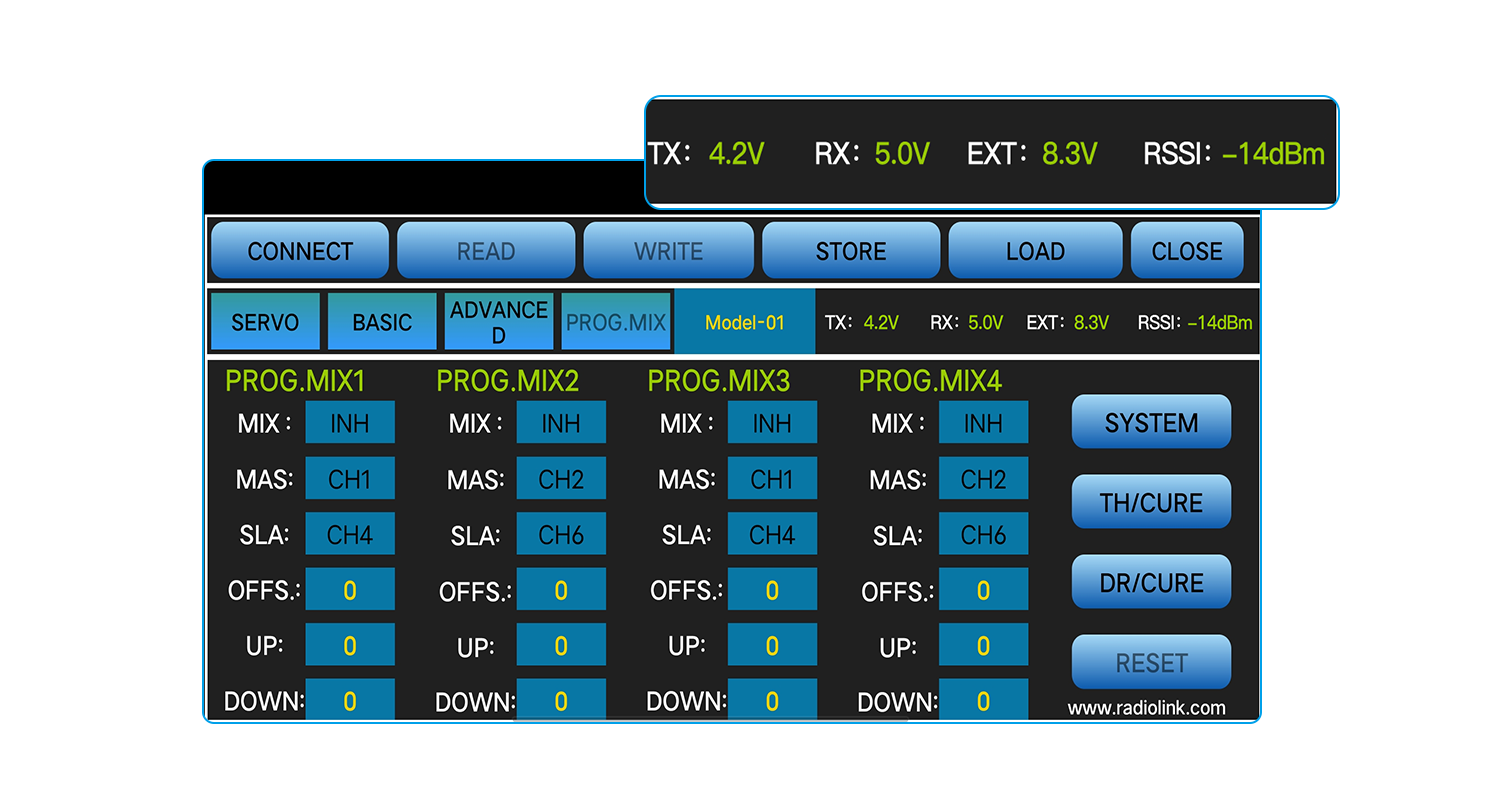

Real-time transmission of RSSI, receiver voltage, and model voltage.

The model voltage telemetry range is same as the control range, that is 4000 meters in the air.

The maximum range is tested in unobstructed areas free of interference.

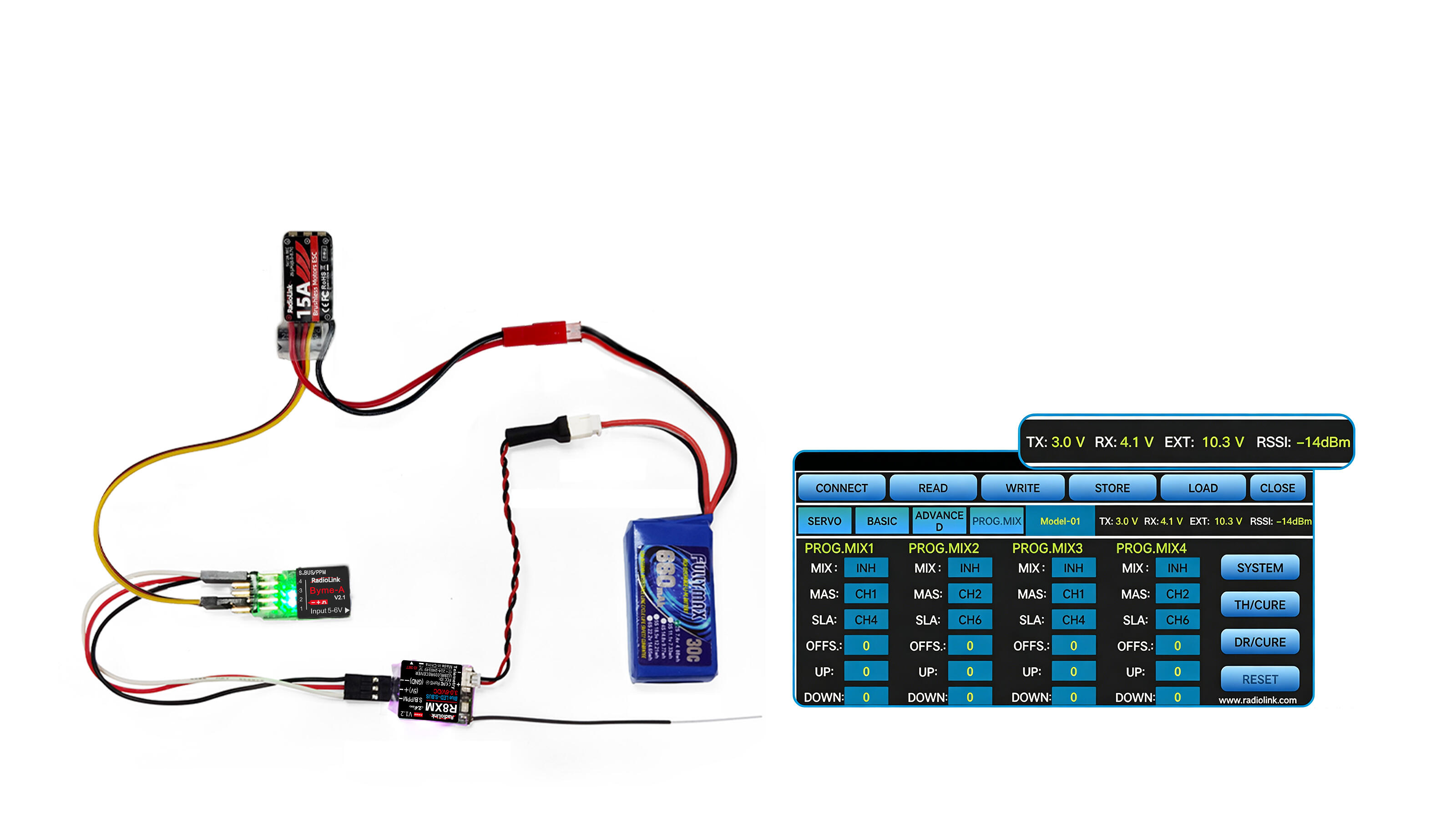

Low Engine Voltage and RSSI Alarm

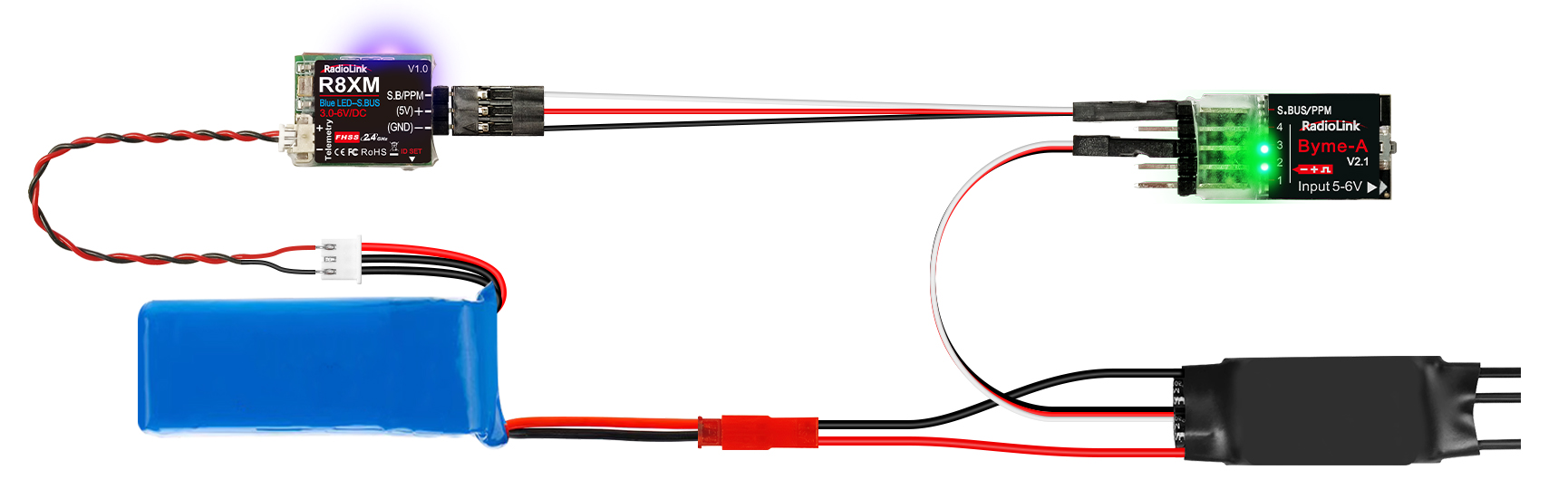

Receiver R8XM supports 2S-6S(7.4V-25.2V) engine voltage telemetry that keeps the bait boat,

racing drone, etc. will not out of control because of low voltage.

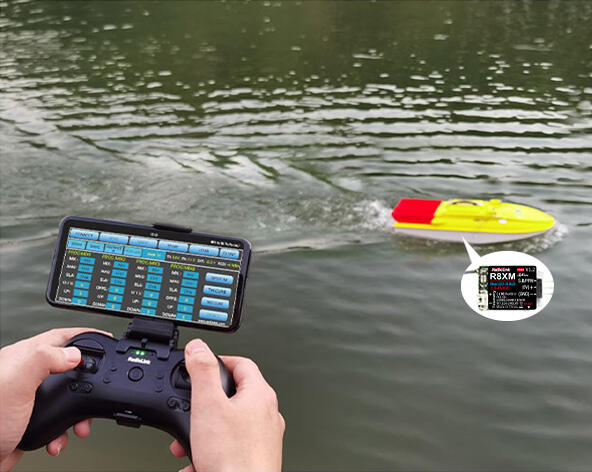

Low RSSI alarm setting makes the bait boat will not out of control.

Output RSSI Value From Receiver To FPV Monitor

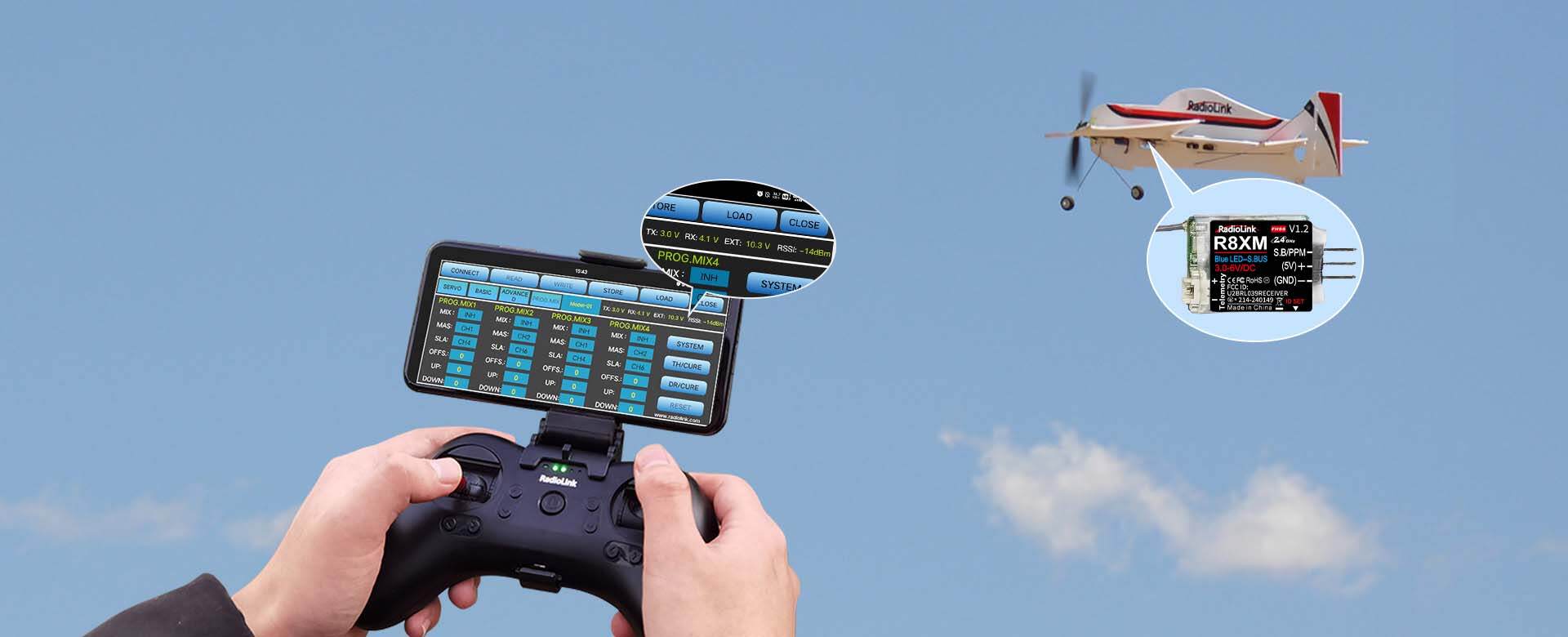

Real-time RSSI Telemetry When Racing/Driving/Sailing


Alarm Beeps

① Low transmitter voltage alarm: keep DDDD beep quickly and continuously

② Low receiver voltage alarm: five DDDDD beeps as a unit continuous beeping prompt

③ Low model voltage alarm: three DDD beeps as a unit continuous beeping prompt

④ Low RSSI alarm: four DDDD beeps as a unit continuous beeping prompt

SBUS&PPM Signals Output

Mini Enough for Mini Racing Drone


8 channels of SBUS/PPM signal output.

Compatible with flight controllers such as PIXHAWK, Mini Pix, TURBO PiX, APM, F4, F7 etc.

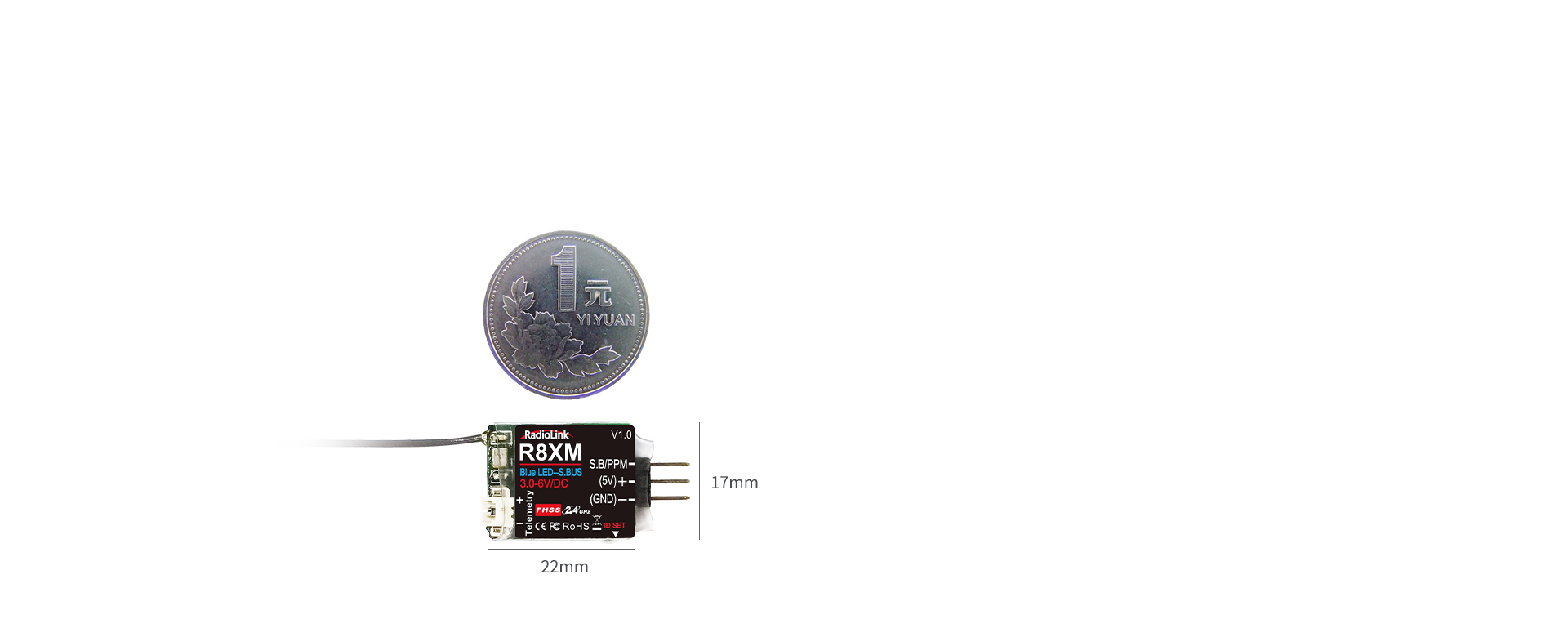

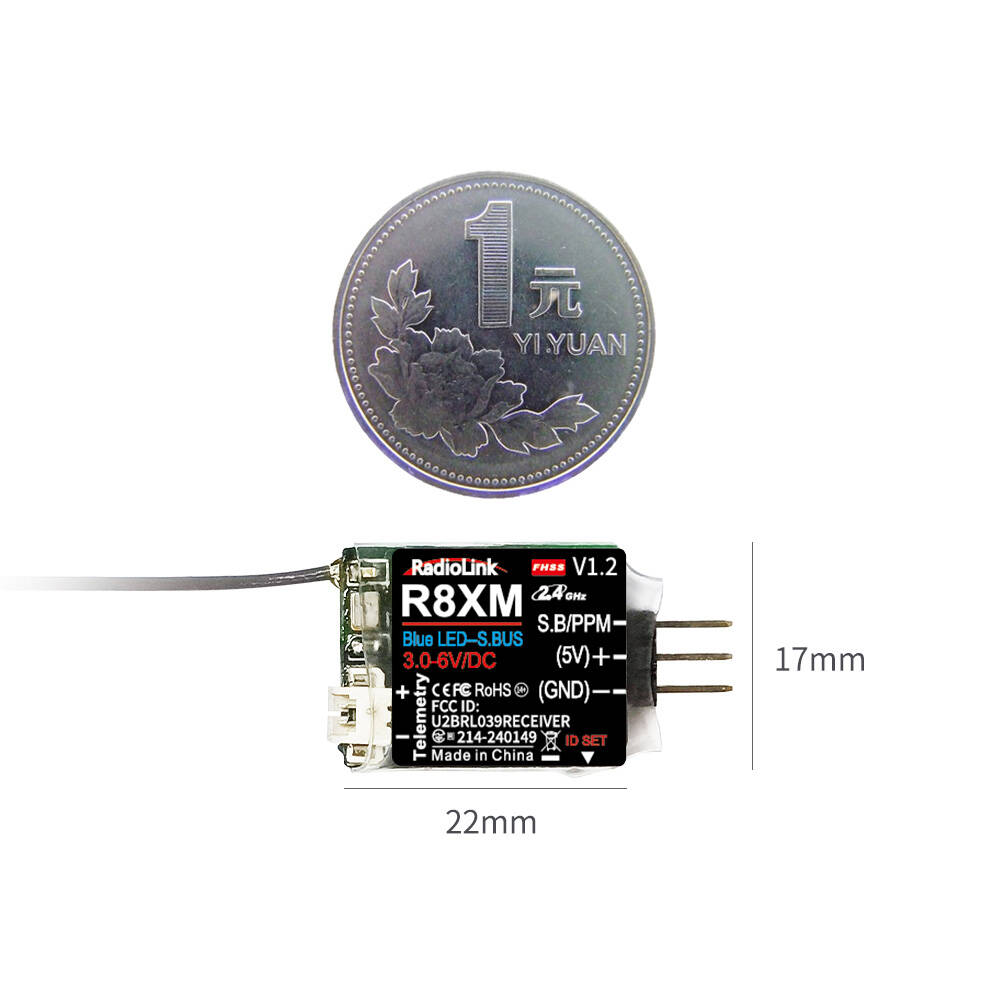

Weight of 4g and small size of 22*17mm make R8XM is tiny enough even for mini racing drone and glider.

Dimension: 22*17mm

Weight: 4g

Antenna Length: 90mm

Channel Quantity: 8 channels

Operating Voltage: 3-6V DC

Operating Current: 40mA±5mA@5V

Signals: SBUS/PPM

Output Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)

Spread Spectrum: FHSS, 67 channels pseudo-random frequency hopping

Adaptable Models: Racing drone/Rotary Wing/Fixed wing/Glider/Multicopter/Car/Boat/Robot (must work with flight controller)

Control Distance: 4000 meters (2.49Miles) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).

Transmission: Return of signal, RSSI, receiver voltage

Model Voltage Telemetry: 2S-6S LiPo battery(7.4V-25.2V)

Compatible Transmitter(must work with flight controller): T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)/

RC8X/RC6GS V3/RC6GS V2/RC6GS/RC4GS V3/RC4GS V2/RC4GS

R8XM包装清单

  • R8XM*1

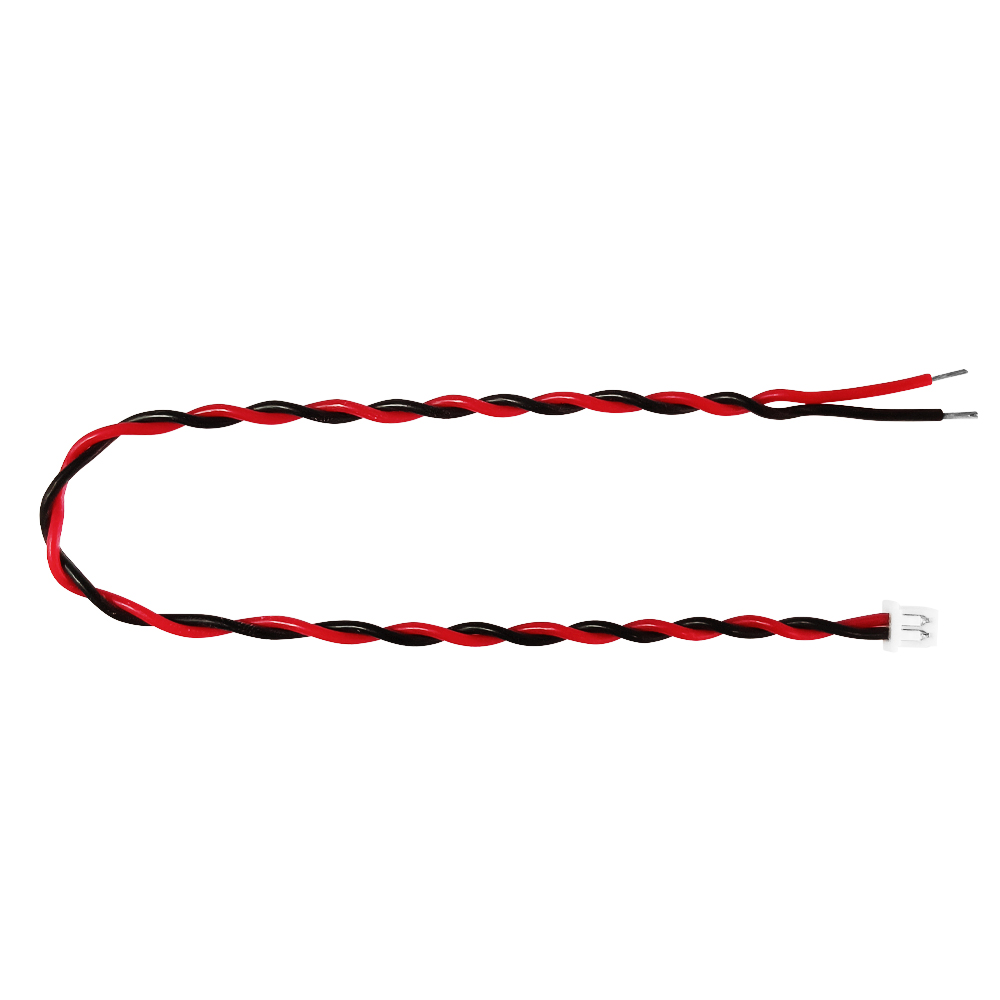

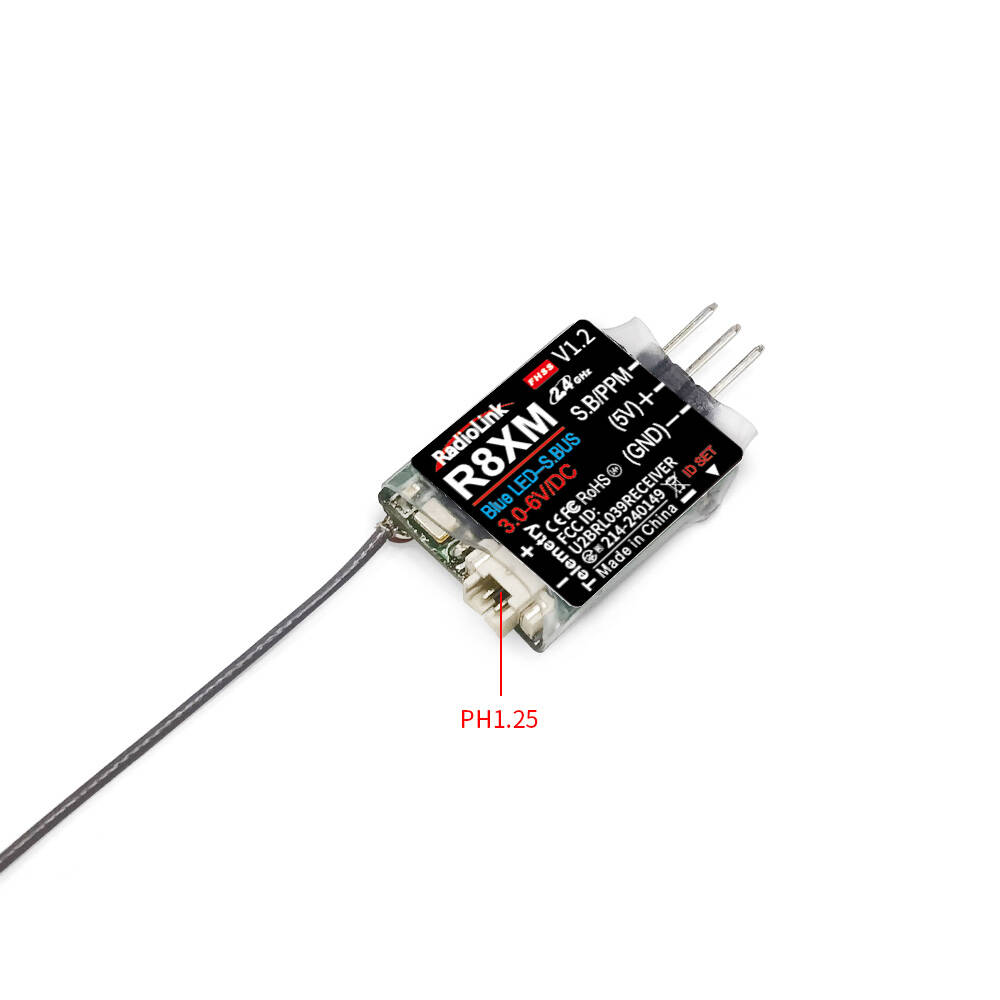

  • Engine Voltage Telemetry Connect Cable*1

  • Packing Bag*1
