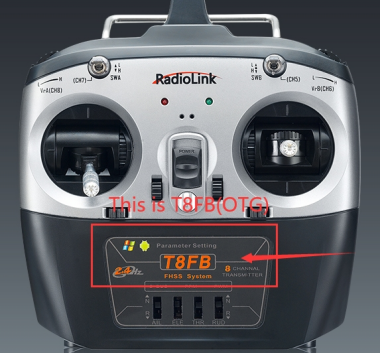

T8FB(OTG) FAQ

Q: How to turn on/off the transmit mode of T8FB?

A: The transmit mode of T8FB is on by default and currently can't be turned off.

Q: Does T8FB have the function of working as Trainer/Primary transmitter?

A: No. T8FB can only work as Trainee/Secondary transmitter.

Q: What mobiles are compatible with the T8FB parameter setup APP?

A: T8FB parameter setup APP is compatible only with ANDROID mobiles or tablets with firmware version V4.0 or above.

Q: What if T8FB fails to connect mobile APP?

A: 1st, please check if the firmware version of T8FB is V2.0.1 or above.

2nd, make sure the USB and the OTG cables work (Note The USB cable should be capable of data transmission instead of charging only.)

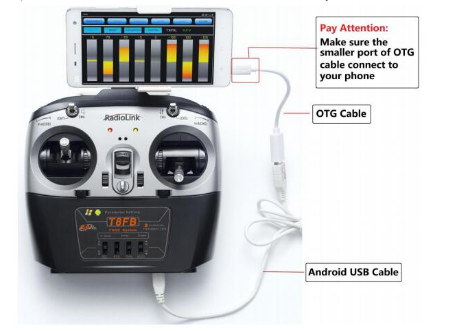

3rd, make sure the USB and the OTG cable connect correctly as below

4th, turn on the OTG and the USB function in mobile SETTINGS accordingly

(Note As both functions could be in different menus from mobiles of various brands. Please google the specific way to turn on functions depending the actual mobile model.)

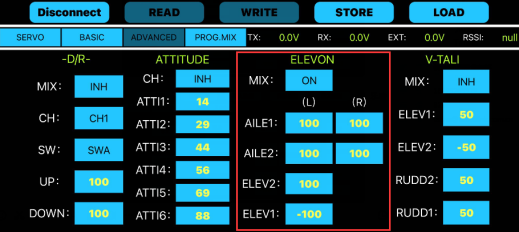

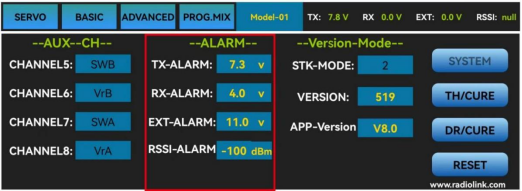

Q: How to setup or modify T8FB parameters?

A: Parameters can be set via APP with mobiles and tablets

https://youtu.be/e6CXVk0i7bE

or software with computer

Q: How to do factory reset to T8FB?

A: Connect and open the parameter setup APP or software, the data displayed is factory default. Do not change any data and click UPDATE to input the default data into T8FB then factory reset is done.

Q: What if the servo range exceeds the red line when doing transmitter calibration in RadioLink Mission Planner of flight controller (Mini Pix &Turbo Pix)?

A: The default servo range of T8FB is 96. If the servo range exceeds the red line when calibrating in RadioLink Mission Planner of flight controller (Mini Pix &Turbo Pix), connect T8FB to the parameter setup APP or software and click BASIC MENU and slightly decrease the servo range value.

Q: Why the servo range jitters when the APP is opened?

A: When there are multiple parameter setup apps running at the back stage, extra data will be read as the servo range displays are not encrypted. Thus, turn off all the running apps, reconnect T8FB to mobile with the USB cable and OTG cable. Click ALLOW to open the APP when the notice pops out asking for open permission.

Q: What’s the function of USB port of T8FB? Can it be used on a computer as a controller as well?

A: The USB port of T8FB is for upgrading the firmware and for copying the data to the computer. It cannot be used on the computer as a controller.

Do not use the USB port as a charging port, or it will damage the transmitter.

Q: Does T8FB support head tracking function?

A: NO.

Q: Why do users encounter various problems when reading SBUS signals?

A:

1. When the data read by the user differs from the reference data we provide, please check whether the EPA setting of each channel in the transmitter is the same. If the EPA setting for each channel is different, the read signal range will be different.

2. If the SBUS data cannot be read, please check whether the devices used are working properly and whether there is any problem with the connecting cable.

3. Our products support standard SBUS signals compatible with various flight controllers. Please refer to the chart below for detailed information.
