RTK F9P

Centimeter-Level GNSS Module





















Introduction

High-precision navigation: Many drone applications require higher accuracy than traditional GNSS, such as drone mapping, drone measurement, and high-precision takeoff and landing.

RTK F9P is a four-star Real Time GNSS system from RadioLink, using two RTK F9P modules, one for the aircraft and the other for the base station.

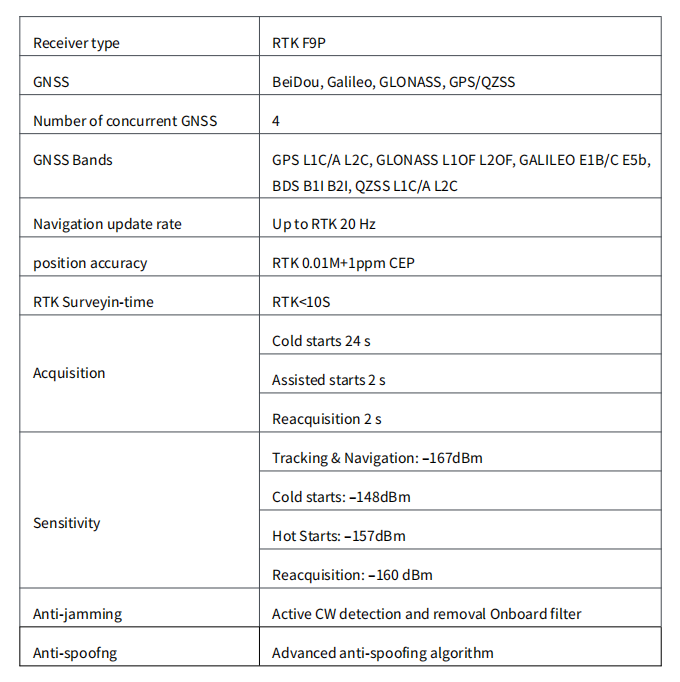

Technical Parameters

Receiver type

RTK F9P

GNSS

BeiDou, Galileo, GLONASS, GPS/QZSS

Number of concurrent GNSS

4

GNSS Bands

GPS L1C/A L2C, GLONASS L1OF L2OF, GALILEO E1B/C E5b, BDS B1I B2I, QZSS L1C/A L2C

Navigation update rate

Up to RTK 20 Hz

position accuracy

RTK 0.01M+1ppm CEP

RTK Surveyin-time

RTK<10S



Cold starts 24 s


Assisted starts 2 s


Reacquisition 2 s



Tracking & Navigation: –167dBm


Cold starts: –148dBm


Hot Starts: –157dBm


Reacquisition: –160 dBm

Anti-jamming

Active CW detection and removal Onboard filter

Anti-spoofng

Advanced anti-spoofing algorithm

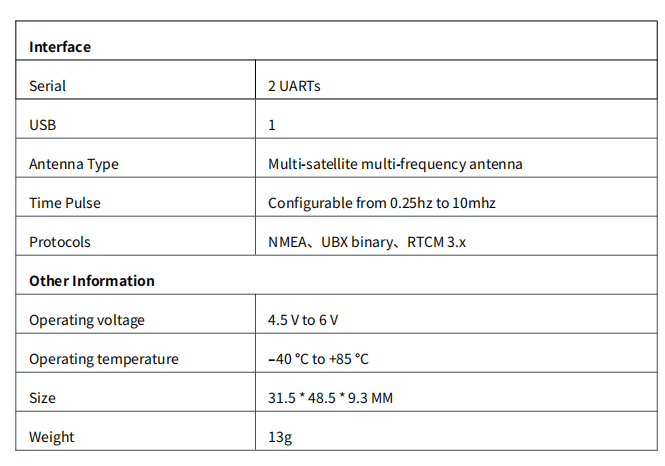

Interface

Serial

2 UARTs

USB

1

Antenna Type

Multi-satellite multi-frequency antenna

Time Pulse

Configurable from 0.25hz to 10mhz

Protocols

NMEA、UBX binary、RTCM 3.x

Other Information

Operating voltage

4.5 V to 6 V

Operating temperature

–40 °C to +85 °C

Size

31.5 * 48.5 * 9.3 MM

Weight

13g


LED & Interfaces
















Hardware Connection

4.1 RTK base hardware connection

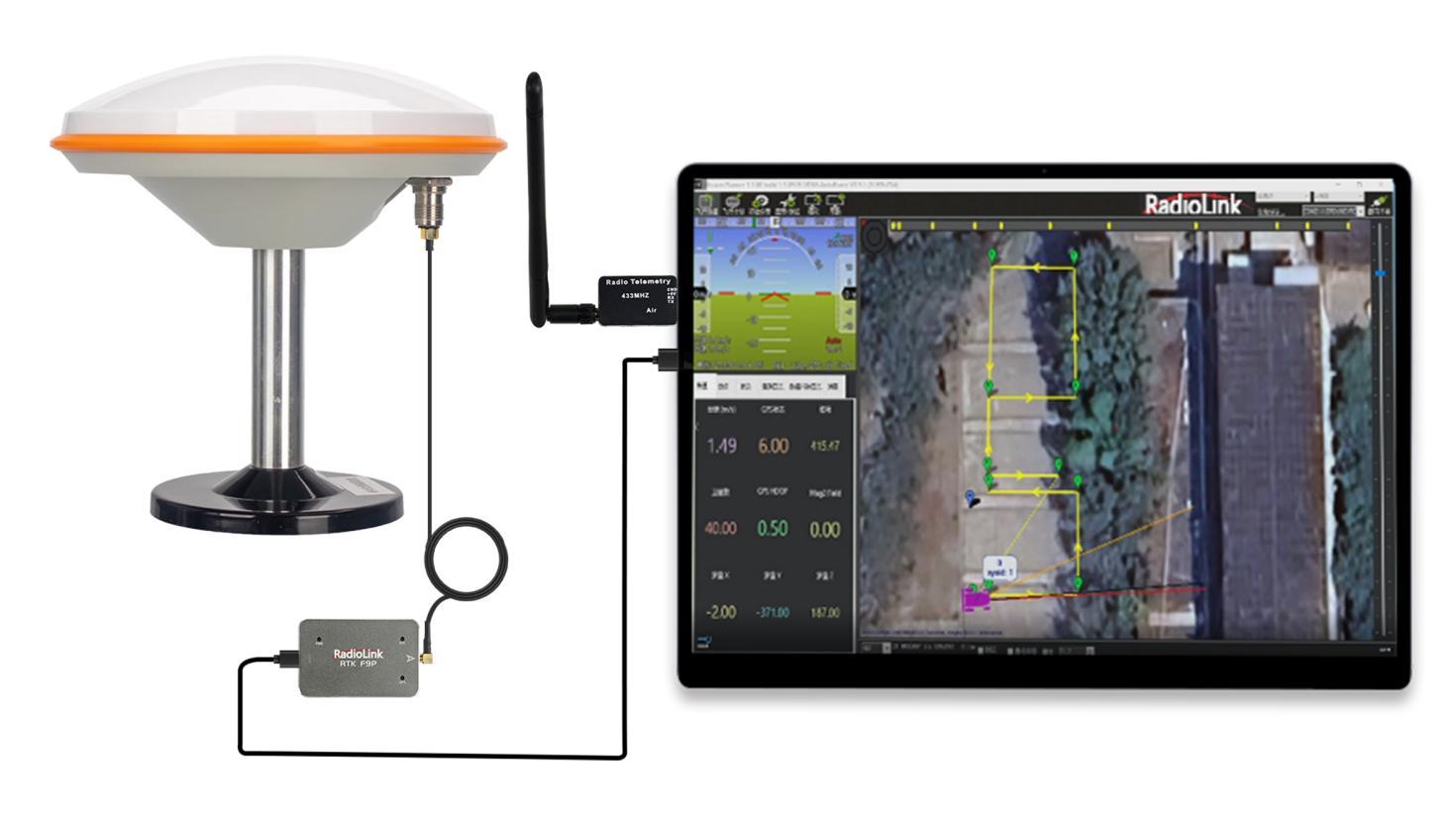

The base station module is connected to the computer via a type-C cable; the ground end of the data transmission module is connected to another USB port on the computer. As shown below:


Note: Please place the base station module outdoors in an environment with sufficient sky coverage to obtain a good satellite search signal. Place the base station on a stable and elevated platform, such as a tripod.


You need to set RTK base in Mission Planner. For more details, please refer to 5. Set RTK base in Mission Planner








4.2 Rover hardware connection

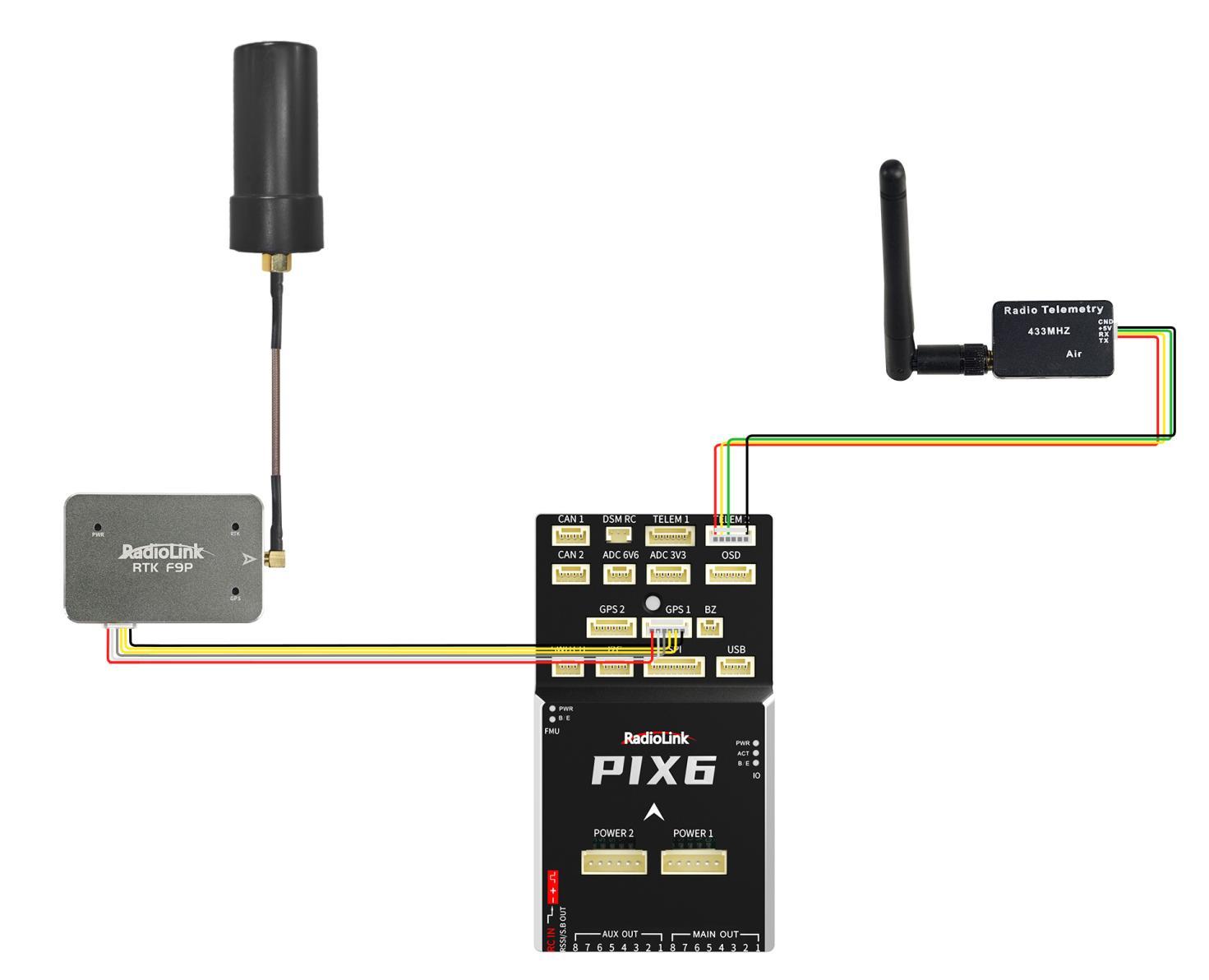

Connect to PIX6:


Pinouts

Pinout

UART1

1

5V

2

GPS_RX(UART1_RX)

3

GPS_TX(UART1_TX)

4

SCL

5

SDA

6

GND


Set RTK Base in Mission Planner

5.1 Build an RTK base station

If you use Ardupilot firmware to build an RTK differential system, you need to configure the base station positioning and forward data in Mission Planner. During the positioning configuration of the base station, there is no need to start the mobile station and drone.

Open Mission Planner

Enter the initial setup

Click on Optional Hardware

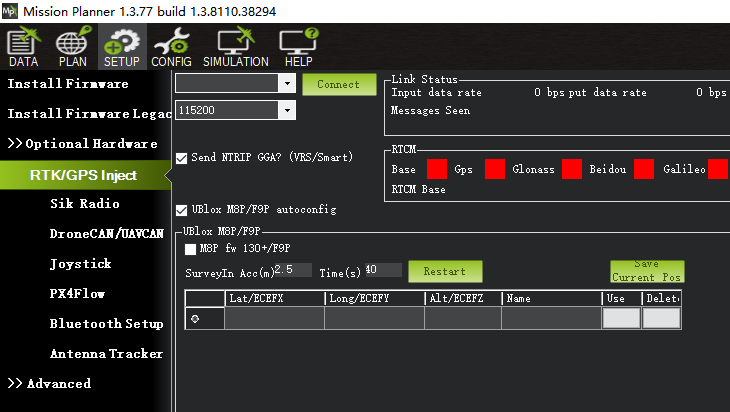

Click on RTK/GPS Inject, you will see the following page:

(Note: If RTK/GPS Inject is not available in your Mission Planner, please update Mission Planner to the latest version.)


Set the base station port in the upper left corner

Click connect

Check "M8P/F9P autoconfig"

Click Restart (Mission Planner will transfer the data you input to the RTK base station, and the base station will start a new round of satellite search and positioning)

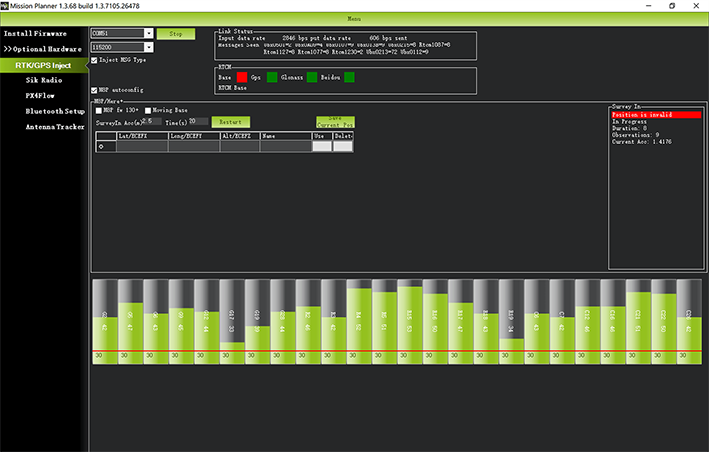

You will see the following page:


Position is invalid: The base station has not yet reached a valid location;

In Progress: Search satellite is still in progress;

Duration: The number of seconds the current search star has been executed;

Observation: the number of observations obtained;

Current Acc: The absolute geographic accuracy that the current base station can achieve. The green vertical bar below Mission Planner shows the satellite and satellite signal strengths currently searched by the base station. The base station requires a certain amount of convergence time to meet your desired accuracy requirements. If you need higher absolute accuracy, it may take longer.


TipIn general, you can set Surveyin=2.5~3.0. The smaller the value, the longer the waiting time. Even if the base station accuracy is 2.5 meters, centimeter-level positioning accuracy can still be obtained after the mobile station solves. After the RTK base station is successfully configured, Mission Planner will display the following page:


The indicator light showing the status of the base station is green, and the status of GPS, Glonass, Beidou, and Galileo satellite systems are also green. The box on the right shows the status “Position is valid”and displays the current longitude and latitude.


5.2 RTK positioning status

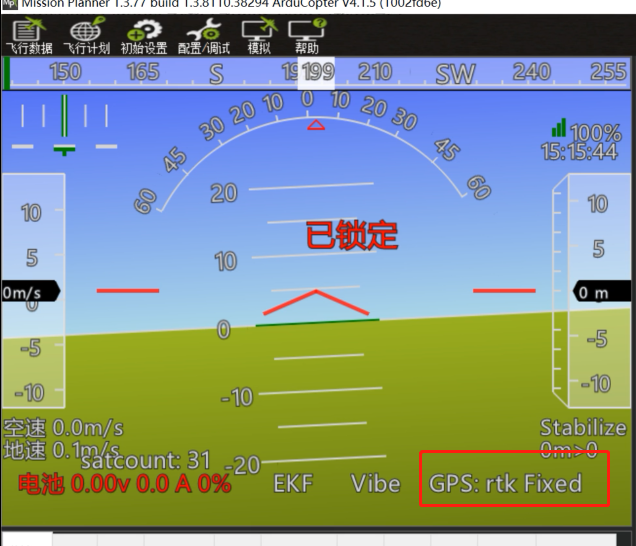

Using the paired digital transmission module to connect to the same Mission Planner, the data of the base station will be transmitted to the RTK mobile station on the drone through the data transmission module. In Mission Planner, you can see that the current GPS status of the drone is displayed as RTK Float/RTK Fixed/3D RTK, indicating that the positioning of the drone has entered the RTK state.

RTK Float is a floating point solution.

RTK Fixed is a fixed solution.


RTK Fixed has higher accuracy and is extremely environmentally demanding. Positioning can only enter the RTK Fixed state when the signal is good enough3D RTK is the unified display method for RTK Float/RTK Fixed in the Chinese version of Mission Planner.
