I2C Transfer Board FAQ

Q: What’s the function of I2C Transfer Board?

A: If the I2C port or Mavlink port on the flight controller is insufficient, they can be extended by the I2C Transfer Board to 2-3 more I2C ports or 1 more Mavlink port. Then more extended devices such as ultrasonic sensors, flight controller status indicators, and GPS can be connected.

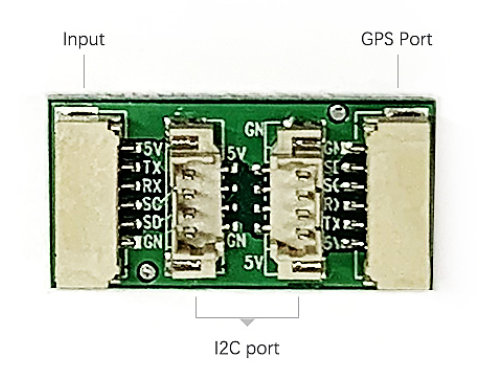

Q: What are the ports of Transfer Board?

Q: What flight controllers are compatible with I2C Transfer Board?

A: Compatible with RadioLink CrossRace/CrossFlight/Mini Pix/TURBO PIX/PIXHAWK. Cables for these flight controllers are packed by factory default.

Q: The flight controller, telemetry, and safety switch can connect the I2C Transfer Board successfully, why GPS and status indicators are not?

A: The GPS and flight controller connected to two ends of the I2C Transfer Board are mistaken. Change their position and the problem would be solved.
