A: The JST connector of RC6GS V2 can be easily adapted for various battery, including LiPo battery of 2S to 4S and 6pcs of AA batteries. The voltage range is 4.8V to 15V.

A: Yes. RC6GS V2 is capable of returning signal strength, RSSI, RX voltage. If work with RadioLink receiver R7FG/R8F, vehicle voltage can also be returned. However, telemetry of motor speed and temperature is NOT available yet.

A: Sure. RC6GS V2 is a perfect remote control to all types of on-road electric powered or gasoline cars and twin-engine cars, tracked vehicles, crawlers, drift cars, tractor trucks, nitro cars, mini cars, sailboats, fishing boats.

A: Select whichever two preferred channels and refer the PROGRAMMABLE MIX CONTROL setup part in the user manual of RC6GS V2 or click below link for the detailed steps to setup mix control

https://www.radiolink.com/newsinfo/477940.html

A: RC6GS V2 can store 10 models data at most.

A: The standard packed receiver of RC6GS V2 is R7FG. RC6GS V2 is compatible with R6FG, R7FG, R8F, R6F, R4FGM and R4F is specially developed for mini cars.

Note

* All RadioLink transmitters are not open sourced and can only bind to receivers developed by RadioLink. Vice versa.

A: All the binding of RadioLink transmitters and receivers is the same. Power on the products, long press the binding button on the receiver and release, the led indicator always on means the binding is done. Click the tutorial video to learn more https://youtu.be/Kxjzt4vzqU4

A: No, you can set the in the menu D/R. But you cannot assign a switch to control the dual rate function.

A: Set the cruise control function in IDLUP menu.

   Set the percent of throttle-lock to negative number.

A: Yes.

A: MODEL selection is not for choosing the receiver. It's for different data setting. You need to set ID SEED in the basic menu.

A: The USB port of RC6GS V2 is for upgrading the firmware and for copying the data to the computer. It cannot be used on the computer as a controller.

Do not use the USB port as a charging port, or it will damage the transmitter.

A: LK-A means lock mode of SwA button. For example, when you assign SwA to control the function, when you press the SwA, the function is triggered. When you release the button, the function is turned off. But when you assign LK-A to control the function, when you press the SwA for once, the function is triggered. When you press the SwA again, the function is turned off. LK-B is for lock mode of SwB button. LK-C for SwC. LK-D for SwD.

A: When you speed up, the instantaneous voltage is high, so the voltage of battery may fall. When it slows down, the voltage of battery will go back slowly. You can set the alarm voltage lower than 11.1V.

A: Yes.

RC6GS, RC6GS V2 all support Crossfire. For wiring and setting method, please refer to the following YouTube tutorial video.

https://www.youtube.com/watch?v=TRsJF_JICR4&t=95s

Note: The firmware of the transmitter must be the version below V6.3.2.

A: Please check the instruction manual of your ESC and set the mode of your ESC.

A: Please click the below link for how to test RSSI value of RC4GS, RC4GS V2, RC6GS and RC6GS V2:

https://www.radiolink.com/newsinfo/561239.html

A:

1. When the data read by the user differs from the reference data we provide, please check whether the EPA setting of each channel in the transmitter is the same. If the EPA setting for each channel is different, the read signal range will be different.

2. If the SBUS data cannot be read, please check whether the devices used are working properly and whether there is any problem with the connecting cable.

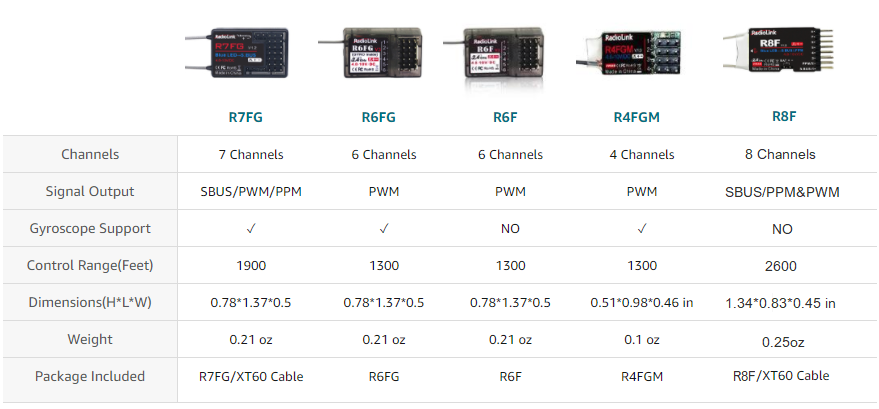

3. Our products support standard SBUS signals compatible with various flight controllers. Please refer to the chart below for detailed information.

A: Yes. The Frequencies Band of RadioLink transmitters are 2.4GHz ISM band, with a bandwidth of 83M. Up to 50 transmitters can be used at the same time.
