R8F

8-Channel Dual Antenna Receiver with 2-way Transmission

800 Meters Control Distance


The stable remote-control distance of R8F is up to 800 meters on the ground. Control with the camera and the display screen/goggle makes the drivers enjoy FPV fun.

Two-way Transmission

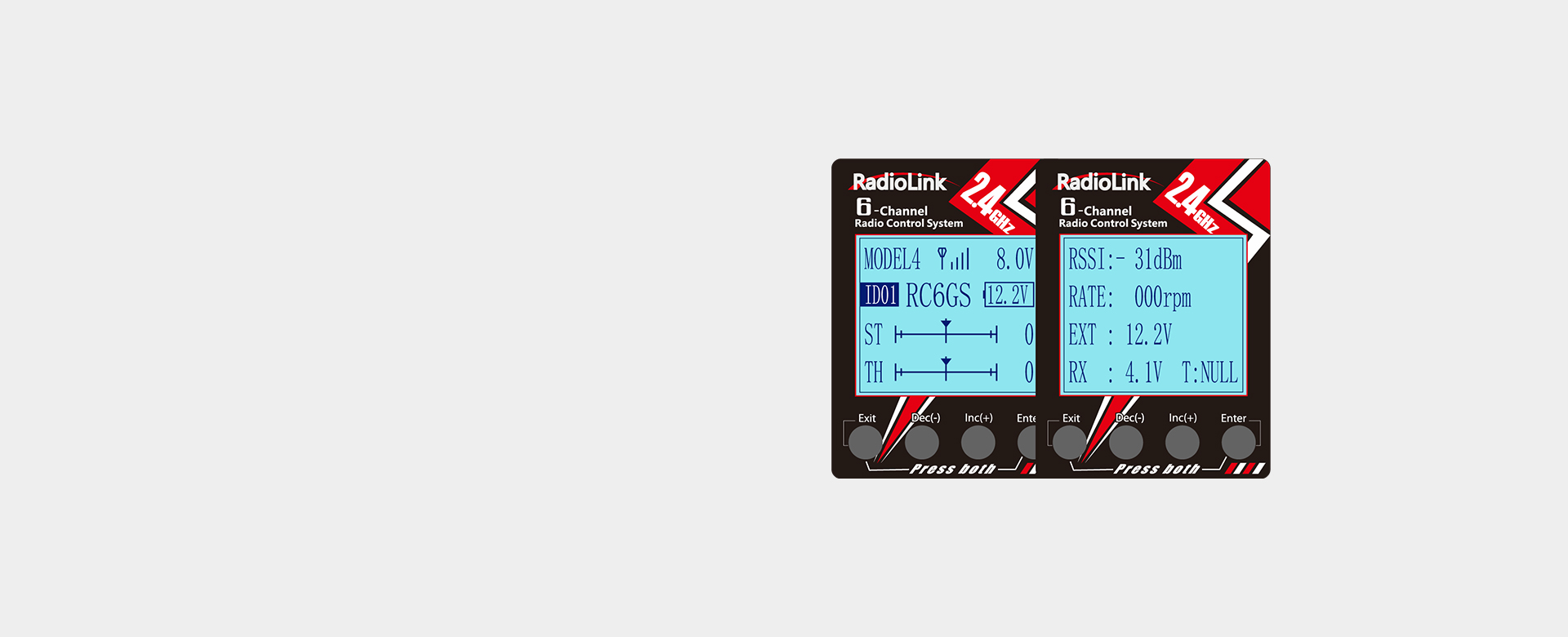

Capable of real-time transmission of RSSI, receiver, and model voltage. The RSSI value and receiver voltage will display on the screen once the binding complete between transmitter and receiver.

The model voltage will display on the screen by connecting the battery to the Telemetry port via the voltage feedback cable (come with R8F), without extra backhaul module needed.

The real-time maximum voltage can be up to 8S battery.

To support the two-way transmission function, the corresponding latest firmware needs to be flashed.

FHSS Hopping Communication, Anti-Interference


FHSS spread spectrum algorithm and 67-channel pseudo-random frequency hopping make excellent anti-interference performance, perfect for multiplayer complete synchronously.

The 32 bits industrial level M0 chip applied makes better protection from fuel engine spark and ensures the safety of enjoying fuel-powered model cars.

SBUS/PPM/PWM Supported


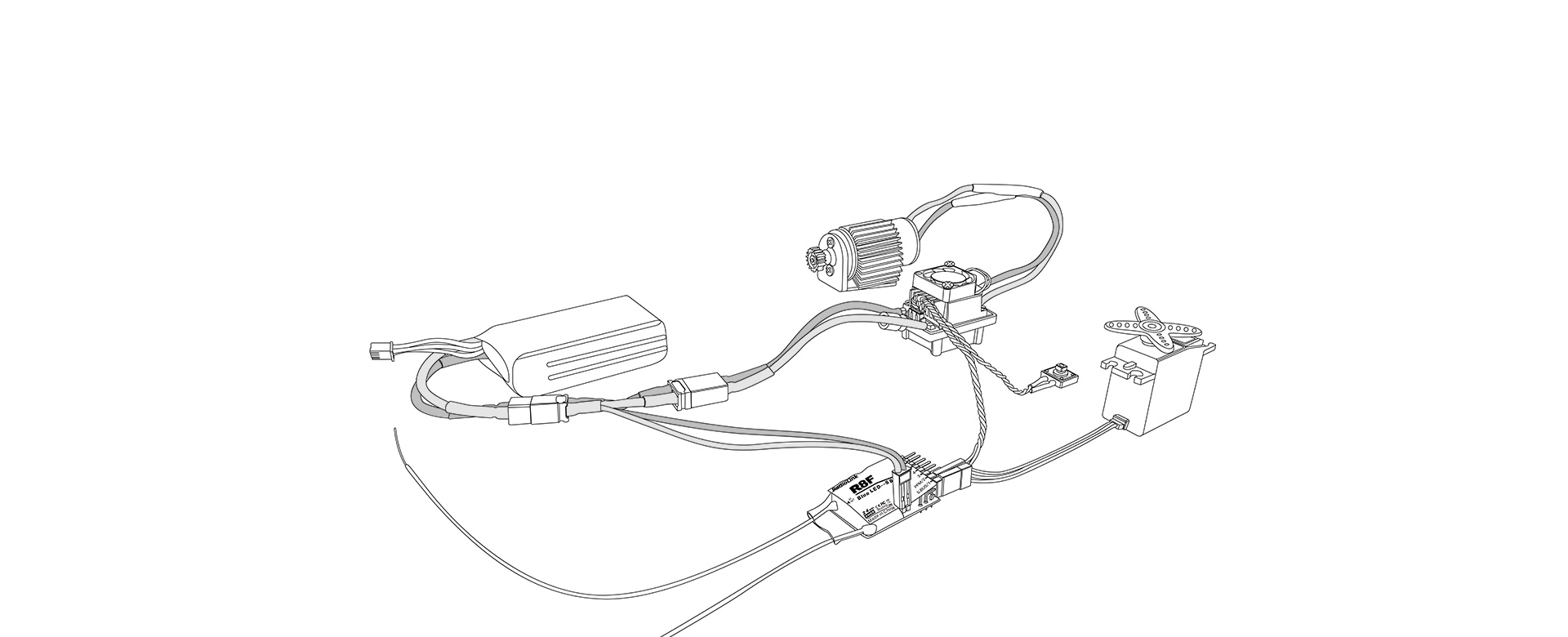

When at standard working mode, channel (CH) 1 to channel 8 are PWM signal output. Besides CH1 for steering and CH2 for throttle, CH3 to CH8 are auxiliary channels to connect extended functions such as light modules and buzzers.

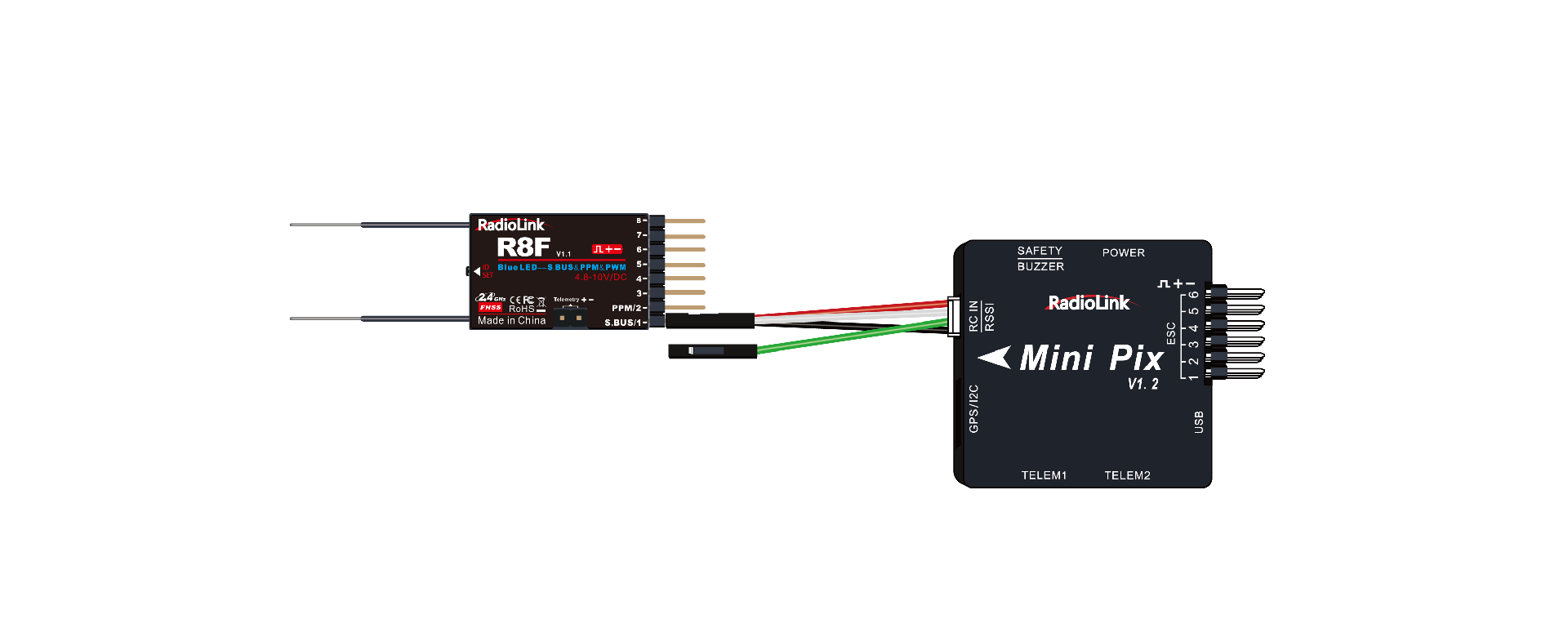

When at SBUS/PPM signal output, the flight controller can be connected and works with GPS to realize the RTL function of the shipping boat or setup of Mecanum models.

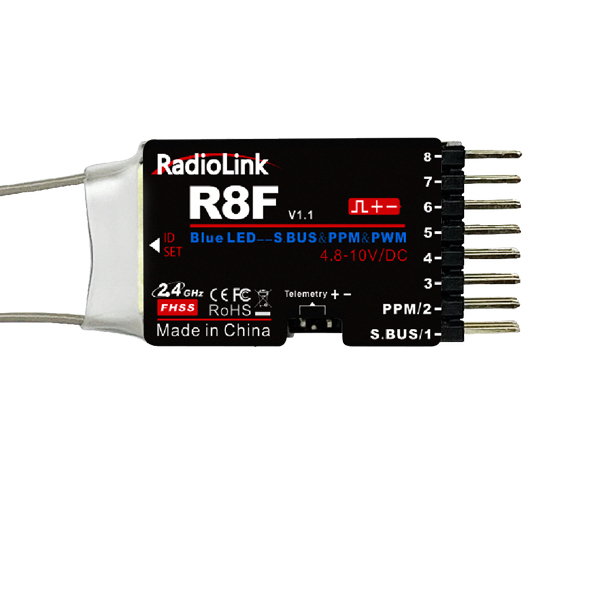

⑧

⑦

⑥

⑤

④

③

②

①

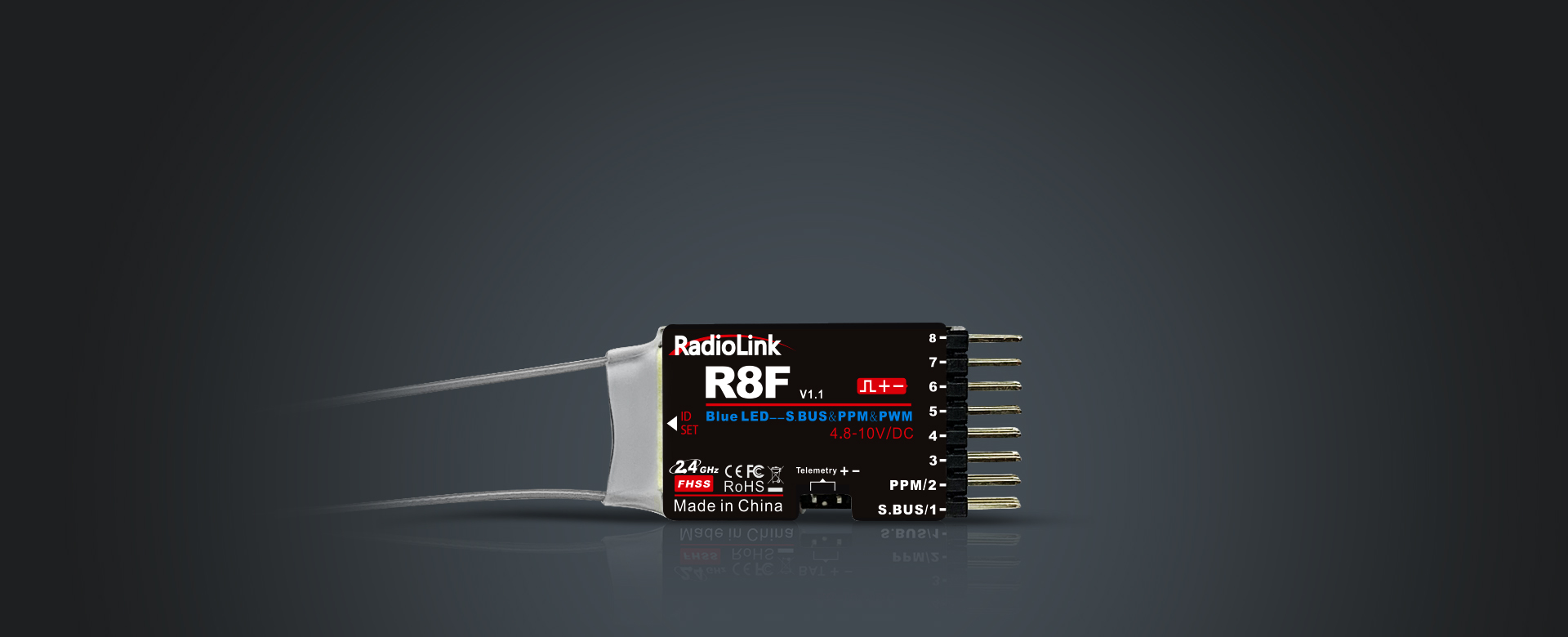

Standard Mode-Red light on(without FC)


① CH1-Steering

② CH2-Throttle

③ CH3-Auxiliary Channel

④ CH4-Auxiliary Channel

SBUS/PPM Mode-Blue light on(with FC)


① SBUS

② PPM

③ CH3-Auxiliary Channel

④ CH4-Auxiliary Channel

⑤ CH5-Auxiliary Channel

⑥ CH6-Auxiliary Channel

⑦ CH7-Auxiliary Channel

⑧ CH8-Auxiliary Channel

⑤ CH5-Auxiliary Channel

⑥ CH6-Auxiliary Channel

⑦ CH7-Auxiliary Channel

⑧ CH8-Auxiliary Channel

4096 Precision, 12ms Fast Response

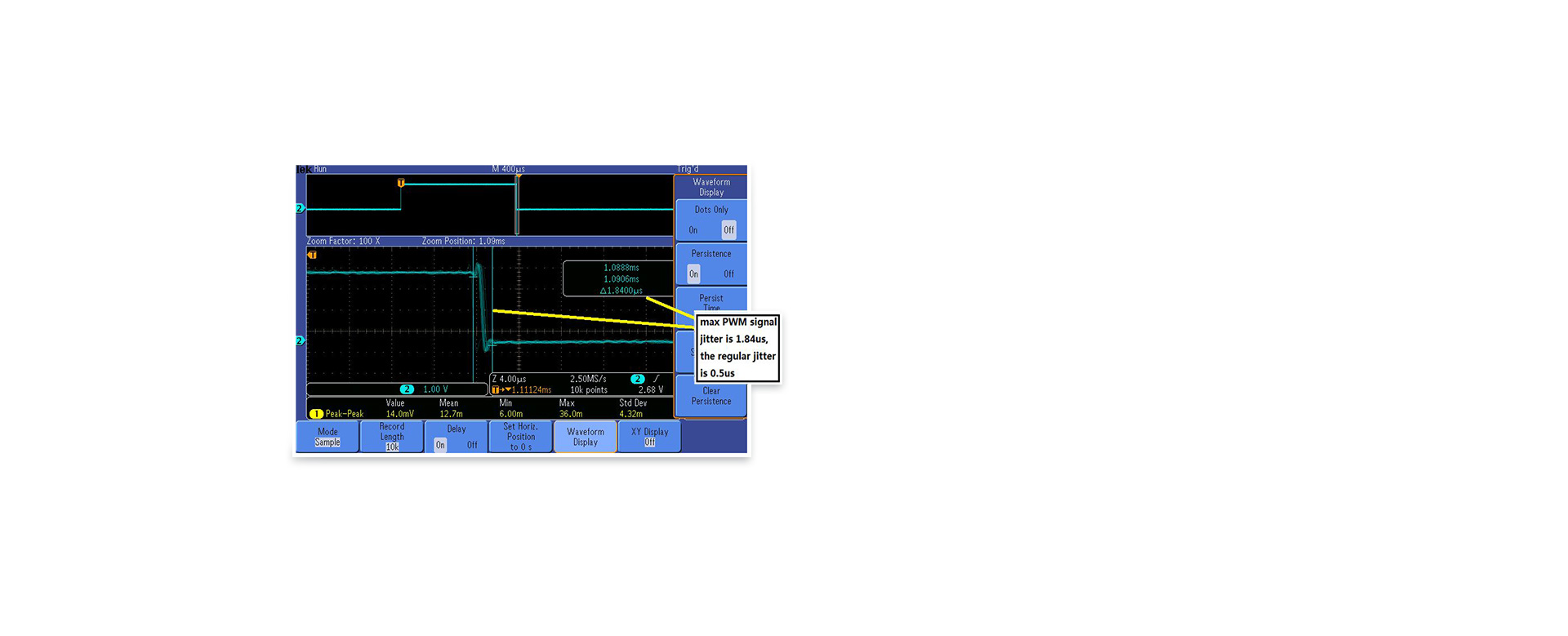

The high-resolution ratio of 4096, the stability of 0.25us, the low drop-out rate, and the high-speed processor of 48MHz M0 ensure the extremely fast response within 12ms.

Subsidiary ID


Capable of designating a subsidiary ID among multiple binding receivers to meet special needs such as long-distance rescue with model cars/boats. There can be a total of 10 subsidiary ID stored.

Anti-polarity Connect Protection, Power by Wide Voltage


Even the polarities are mistakenly connected, the receiver will not get damaged.

The power of 3~12V supports high voltage servo.

Specifications

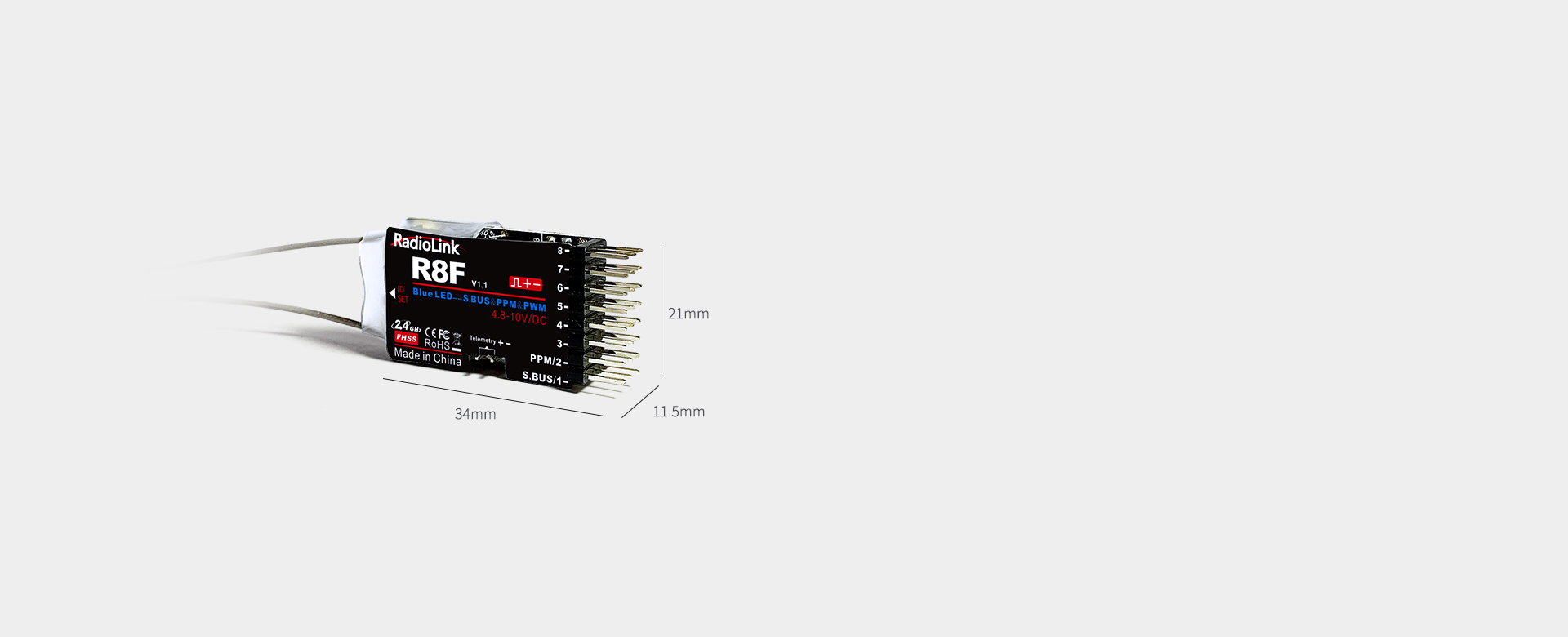

Dimension: 34*21*11.5mm(1.34"*0.83"*0.45")

Antenna Length: Dual antenna, 205mm(8.07")

Weight: 6.5g(0.23oz)

Channel Quantity: 8 channels

Output Signal: PWM/PPM/SBUS

Transmission: Return of Signal, RSSI, Model battery voltage

Model Application: Car/Boat/Fixed-wing/Glider/Multirotor

Frequency: 2.4GHz ISM(2400MHz to 2483.5MHz)

Spread Spectrum Mode: FHSS 67-channel pseudo-random frequency hopping

Voltage Range: 4.8-10V DC

Operating Current: 30mA (based on power voltage)

Control Distance: 800 meters on the ground

Telemetry: The maximum real-time voltage can be up to 8S battery.

Compatible transmitter:

RC8X/RC6GS V3/RC4GS V3/

RC6GS V2/RC4GS V2/RC6GS (3-position switch version)/RC4GS (version with P.D AFTER 180101) /

T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)

Package List for R8F

  • R8F

  • Engine Voltage Telemetry Connect Cable

  • Packing Bag
