TURBO PiX

Easier Flight & Safer Fun

Same Functions as PIXHAWK


Vibration Damping by Software

More Channels for Multicopters

Overall Obstacle Avoidance with 6

modules connected

Vibration Damping by Software, Altitude and Posture Hold


Specially developed by RADILINK team, Turbo Pix keeps the complete PIXHAWK functions but resolves its Alt-Hold uncontrollability problem at high speed. With the software optimization, Turbo Pix achieves better vibration damping and diminishes the posture deviation. Combination of Inertial navigation and barometer decreases airflow influences and ensures better stability even when speed up.

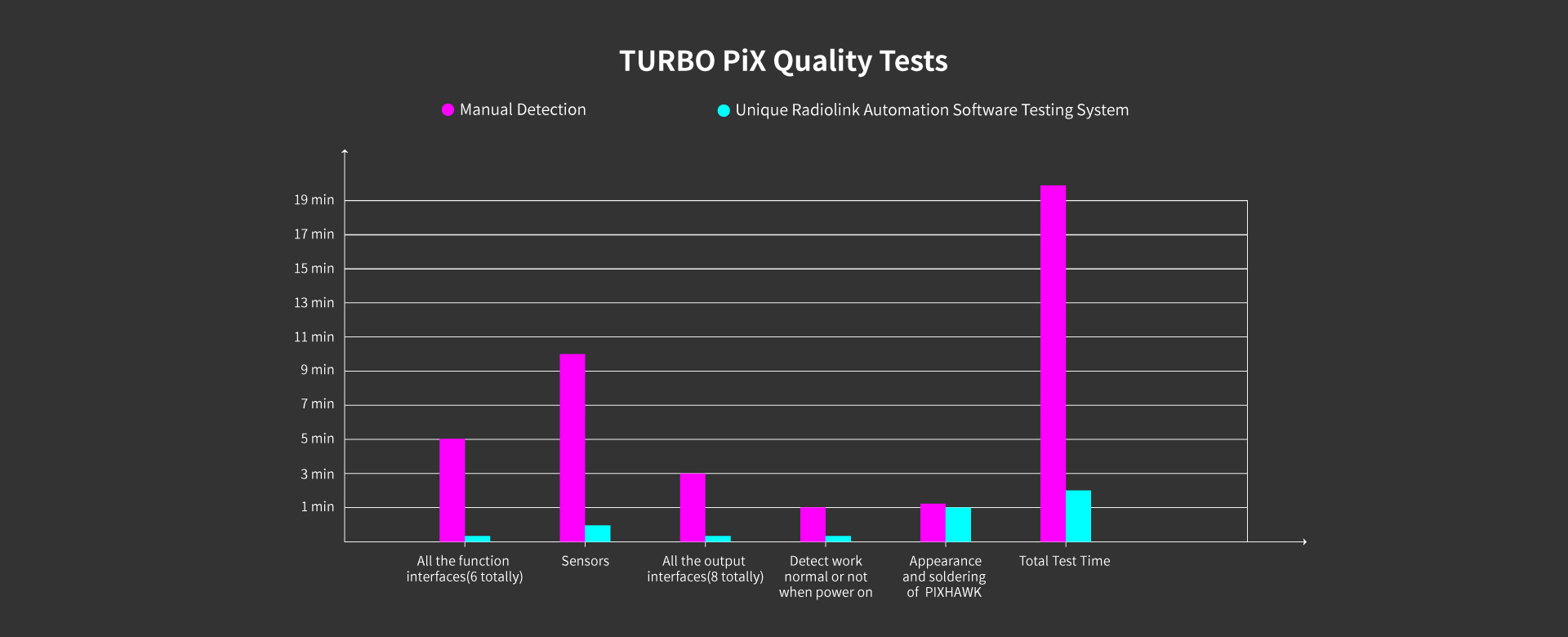

Quality Assurance


Radiolink took about six months to develop the Automation Software Testing System, ensure the quality of every function of every Mini Pix.

As the only PIX manufacturer that realizes test automation from the sensor to the interface, testing efficiency of Radiolink is far more than traditional manual testing.

More Channels, All Multicopters Possible

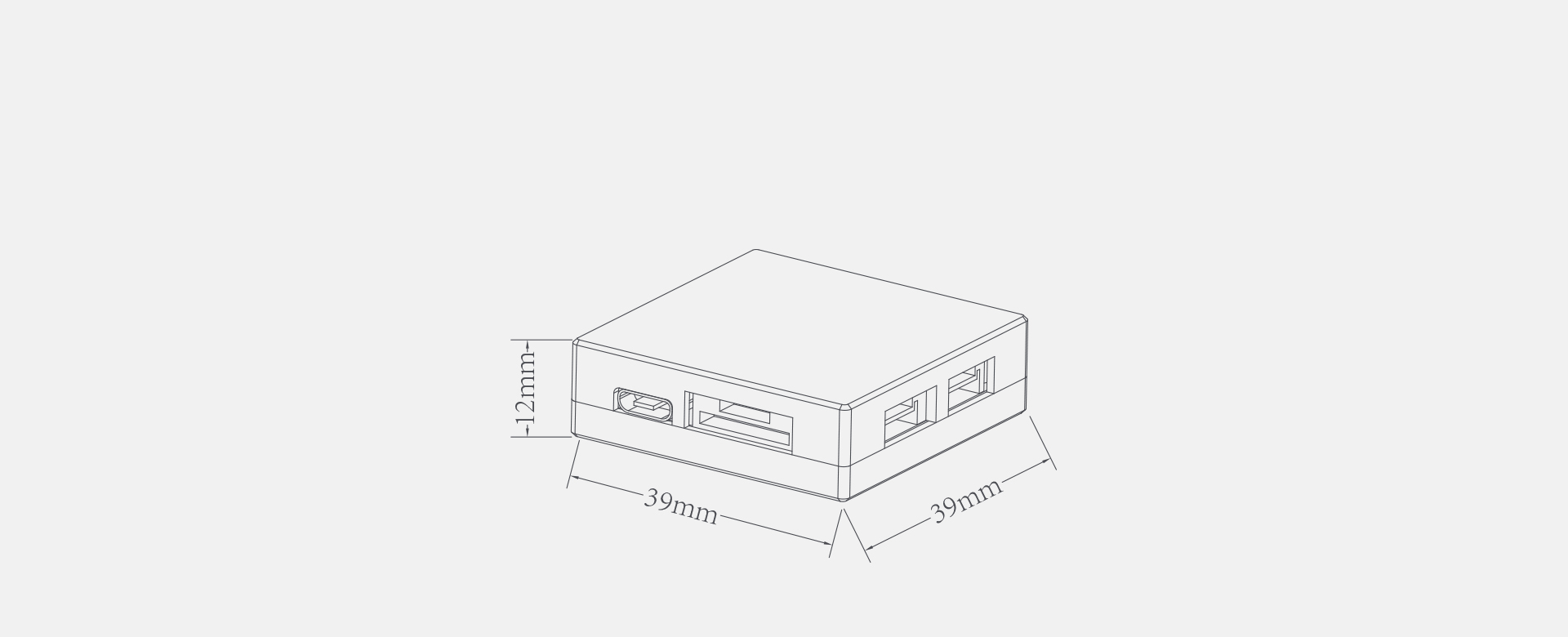

With the dimension of 39*39*12mm (1.54"*1.54"*0.47") and the weight of 39g(1.28oz) including cables, TURBO PIX lightens the whole weight of the aircraft and diminishes battery consumption, allowing longer flight time. The 8- channel output fits all models including fixed-wing/helicopter/car/boat/3-8 copters.

Work with SUI04, Overall Synchronous Obstacle Avoidance



The Transfer Board* packed extends the I2C port quantity of MINI PIX as TWO. The two I2C ports can be used to connect corresponding I2C modules such as one ultrasonic sensor SU04* to achieve altitude holding and an LED module.

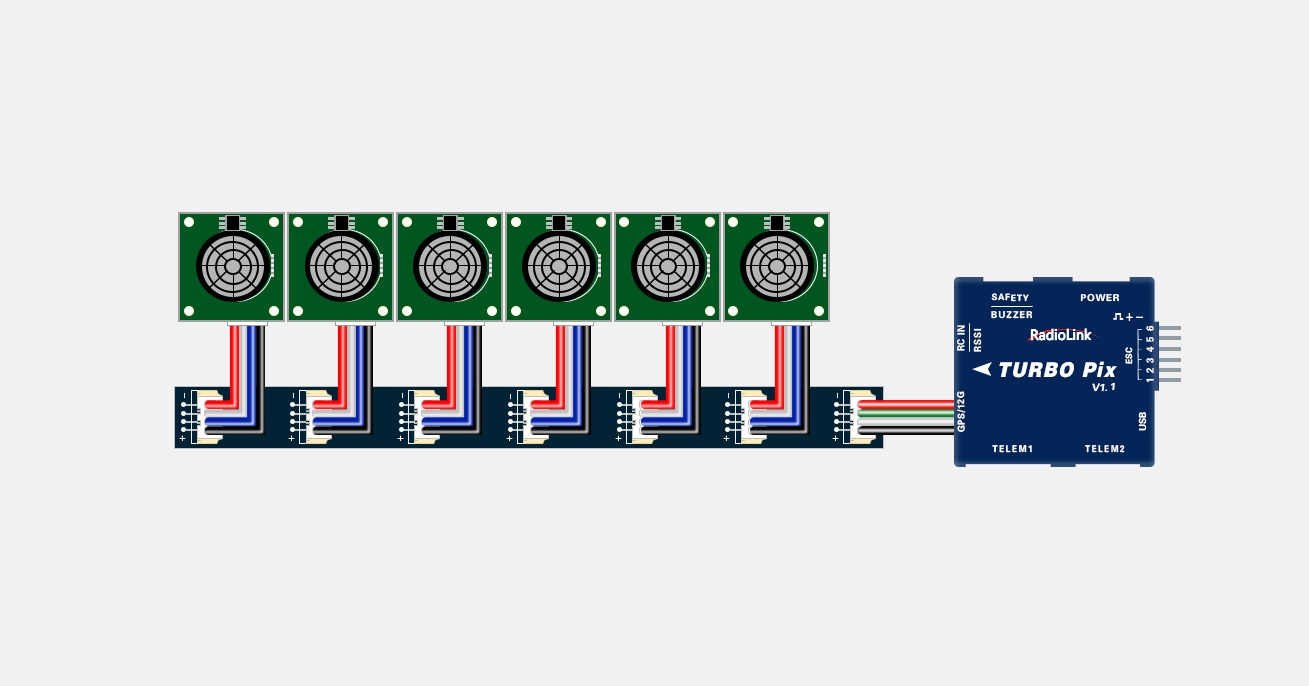

Or with the optional expansion board, maximum 6 ultrasonic sensors SUI04 can be connected to make aircraft avoid obstacles from 5 directions (forward/backward/left/right/upward) and altitude hold downward.

* I2C Transfer Board:Standard accessory packed with MINIPIX/TURBOPIX.

* I2C Expansion Board:I2C port of flight controller can be extended to maximum six.

Obstacle Avoidance

(forward)

Obstacle Avoidance

(backward)

Obstacle Avoidance

(left)

Obstacle Avoidance

(right)

Obstacle Avoidance

(upward)

Obstacle Avoidance

(downward)

I2C Expansion Board

Easy to Install and Setup, Ready to Fly


With the default PID parameters for racing drones/agriculture drone/helicopter ready to download, TURBO PIX is easy to fly, especially for novices. It is capable of sensing the sudden throttle push and brakes then immediately reacts to avoid collision and falling, meanwhile, it detects obstacles in real time to protects both aircraft and pilots regardless of the possible misjudgments.

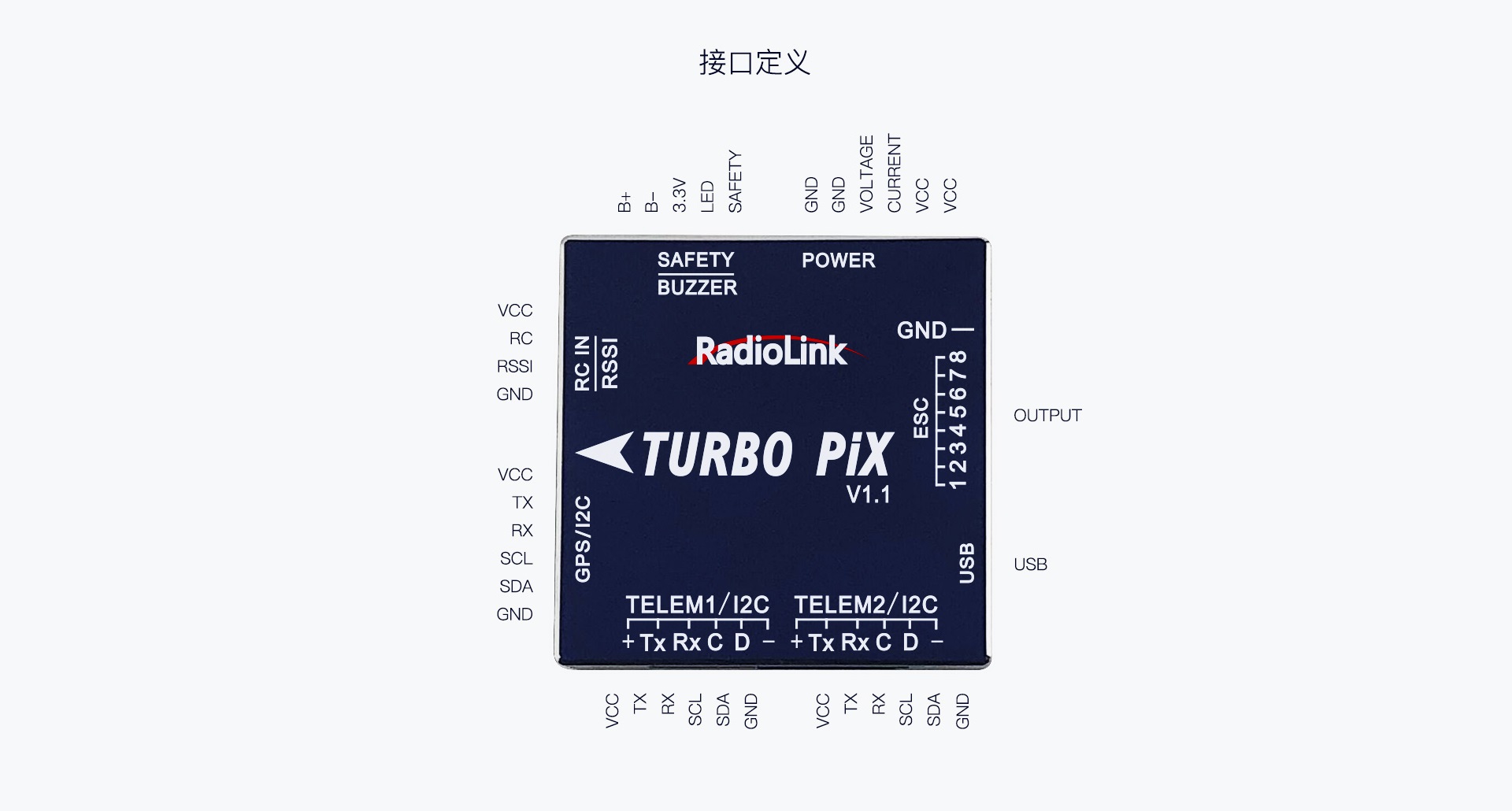

TURBO PiX Ports

Package List for TURBO PiX

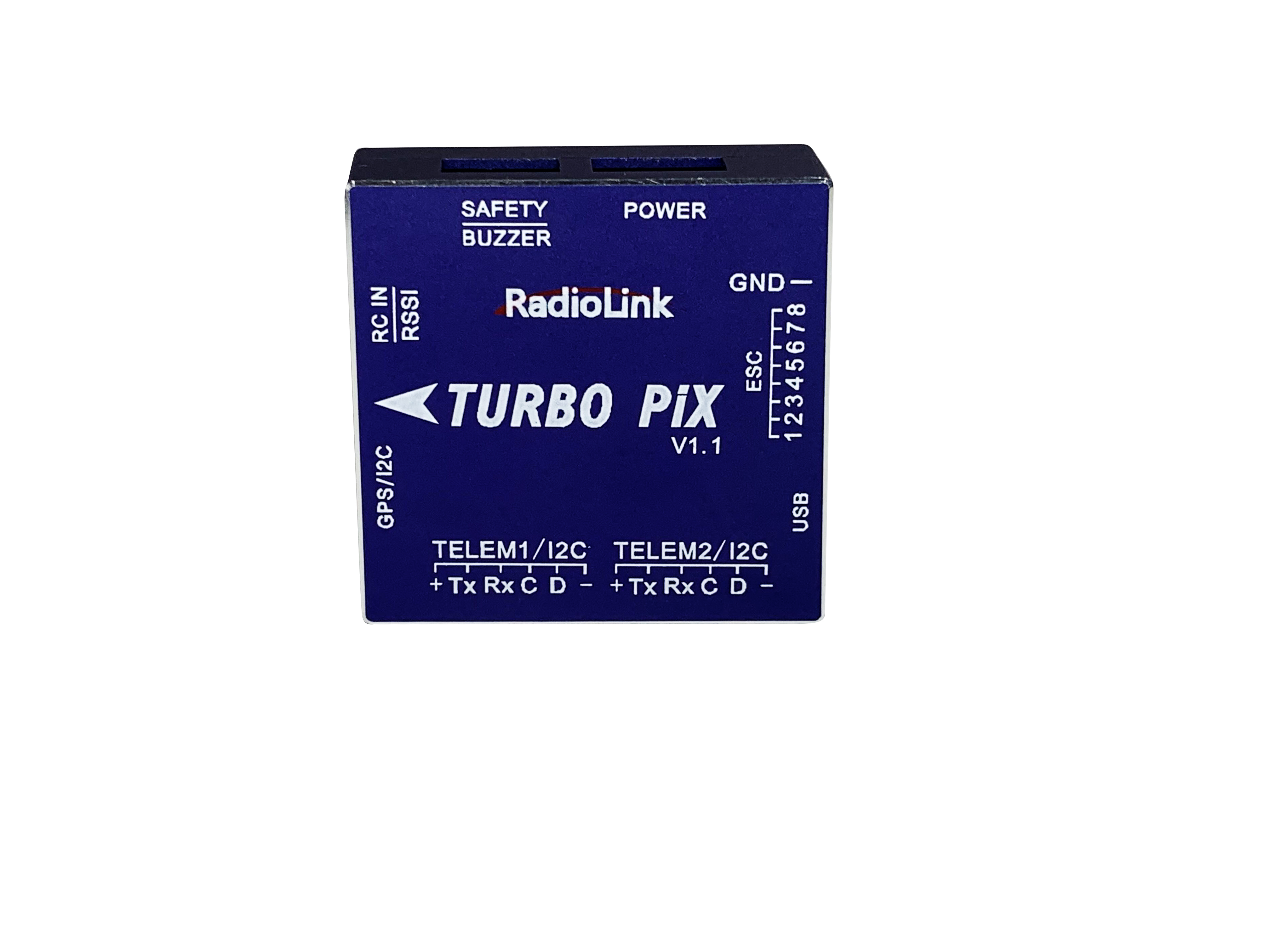

  • TURBO PiX x1

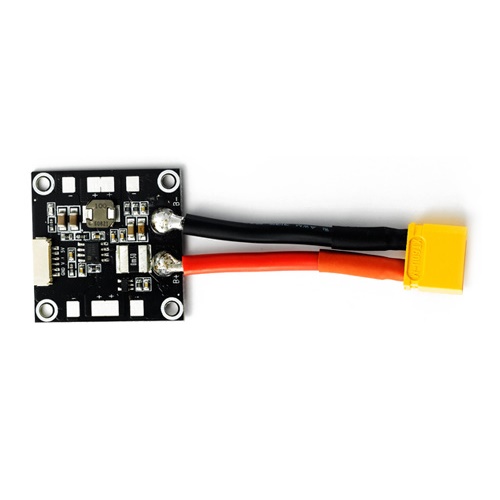

  • Power Module(Support 2-12S) x1

  • Ultrasonic Sensor SUI04 x1

  • Buzzer&Safety Switch x1

  • I2C Transfer Board x1

  • FC Status Indicate LED x1

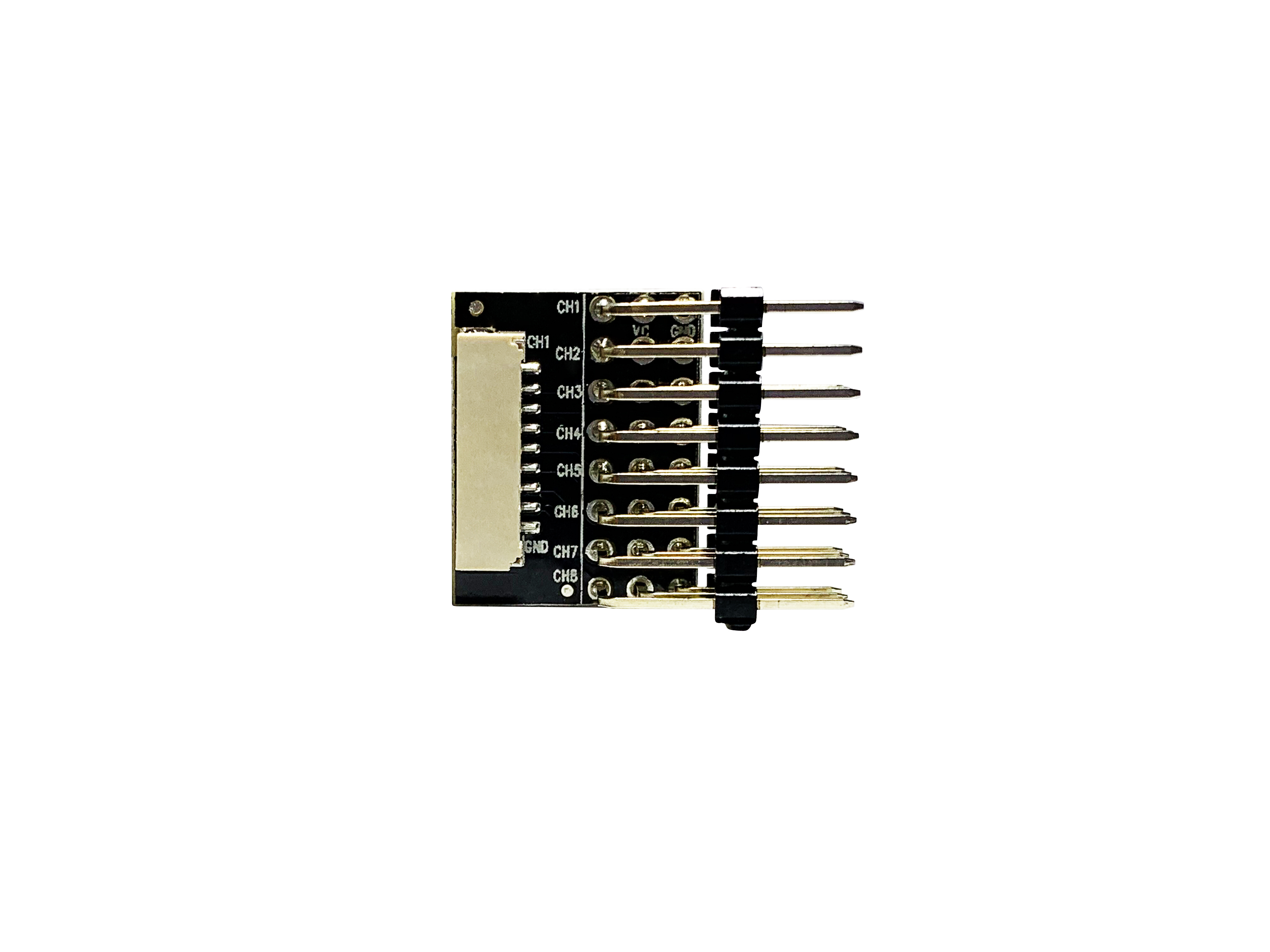

  • Motor Output Connector x1

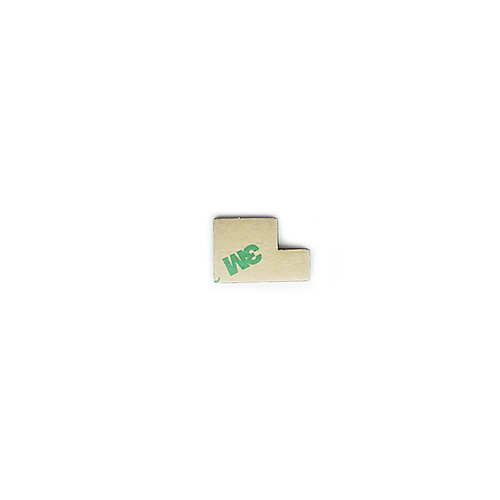

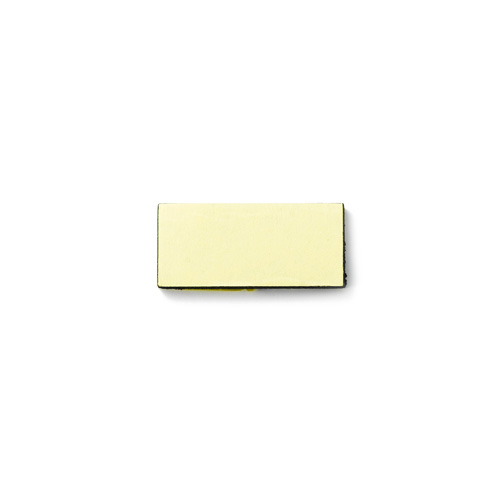

  • Double-sided Adhesive Tape x1

  • Double-sided Adhesive Tape x1

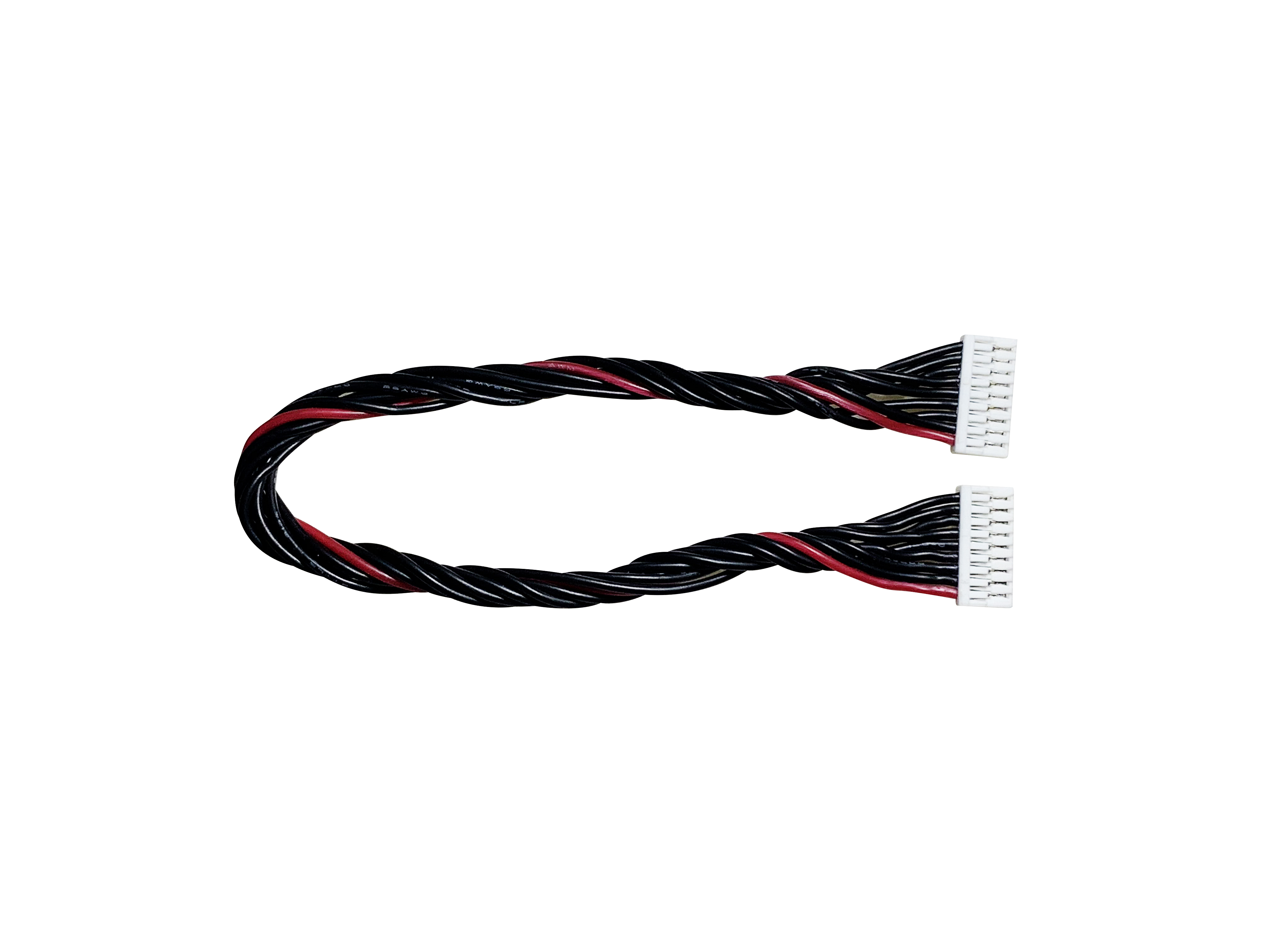

  • Motor Output Connector Connect Cable x1

  • SUI04-PIXHAWK Connect Cable x1

  • SUI04-TURBO PiX Connect Cable x1

  • Receiver&RSSI Connect Cable x1

  • Buzzer&Saftey Switch Connect Cable x1

  • FC Status Indicate LED Connect Cable x1

  • Power Module Connect Cable x1

  • OSD Connect Cable x1

  • I2C Transfer Board Connect Cable x1

  • USB Cable x1

  • Packing Box x1
