3KG heavy-duty racing carrier UAV M435

M435 | Heavy Lift Drone

3KG Payload with 120km/h Flight Speed

M435, the 3KG Heavy Lift Drone with 120KM/H flight speed,

integrates high speed, strong signal, and portable load.

It is efficient, intelligent, and can be reached anywhere.

3KG

Heavy Lift Drone

4000 Meters

Control Distance

120km/h

Max Flight Speed

12m/s

Max Wind Speed Resistance

10 Minutes

With 3KG Payload

28 Minutes

Without Load

Auto Flight by Following the Waypoints

It can pre-set flight routes to perform tasks such as autonomous takeoff or landing, and automatic delivery packages.

Racing Drone Flight Speed Even with 3KG Payload

Even when 3KG equipment is loaded, it can still achieve a high-speed flight speed of 20 m/s,

greatly shortening the task execution time and completing the delivery task intelligently and efficiently.

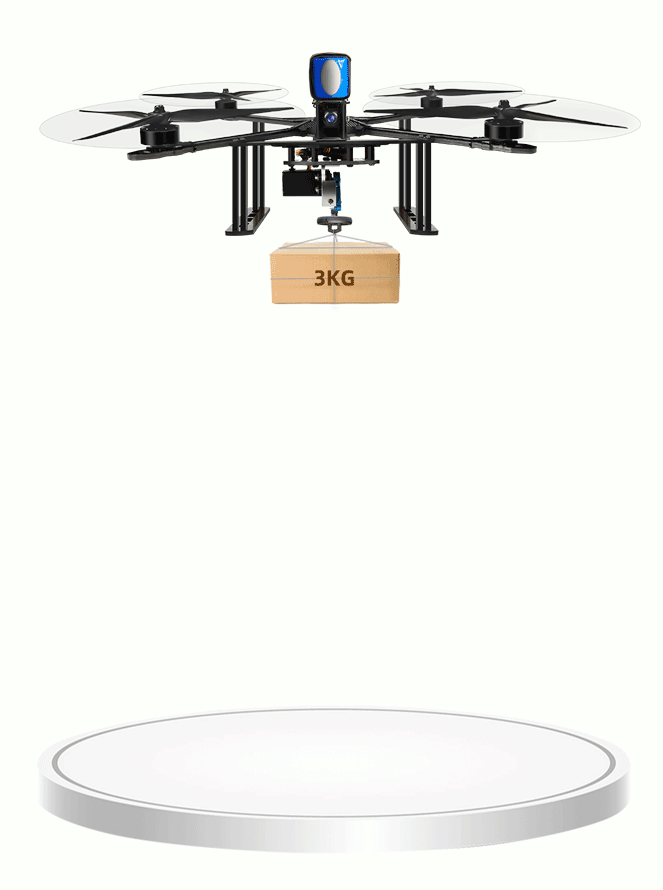

3KG Payload

The power configuration can easily be equipped with 3KG of packages such as food, medical supplies,

or other equipment, and there is still a large power reserve even when carrying the counterweight.

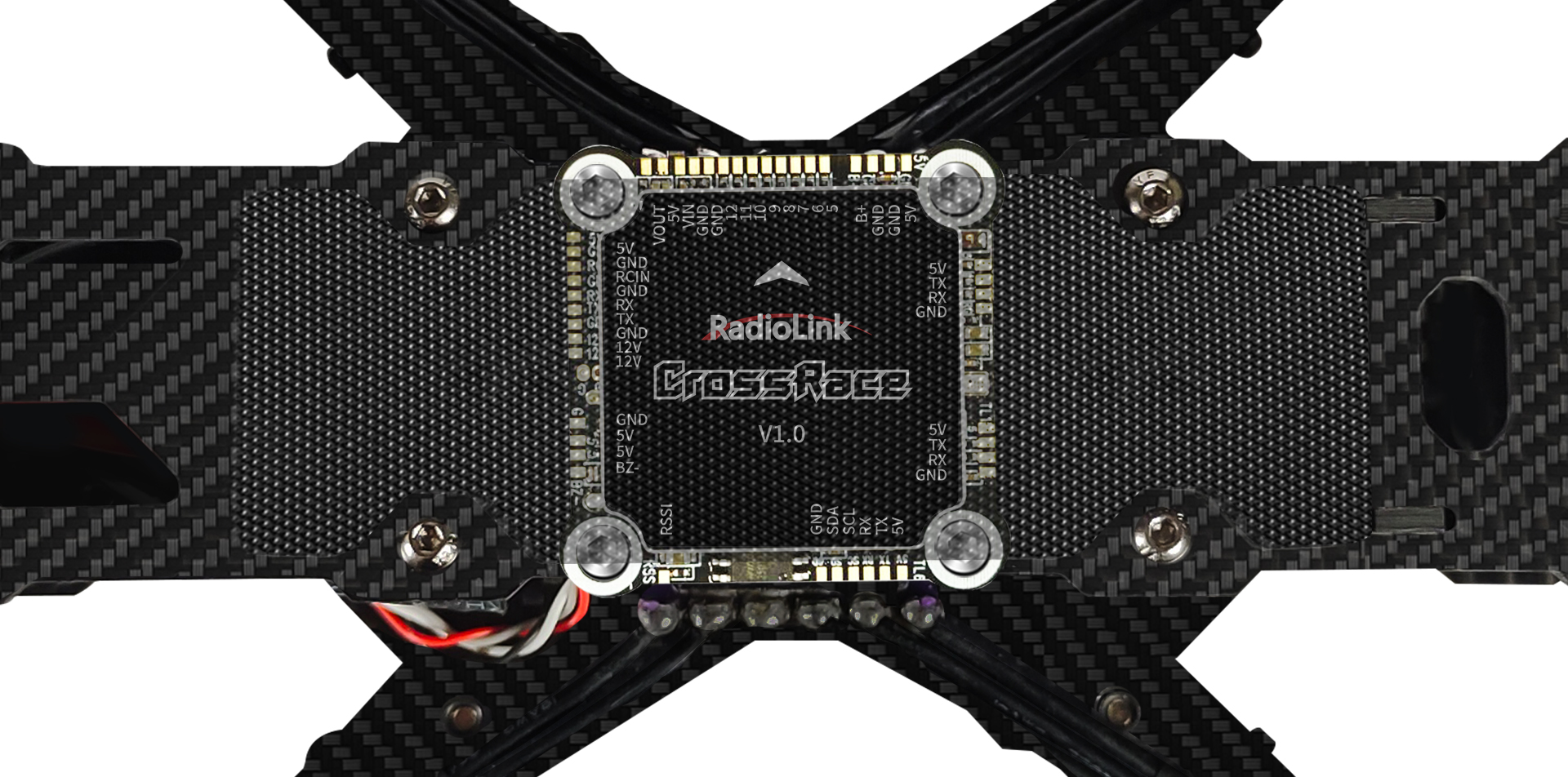

Radiolink Flight Controller CrossRace

Built-in Radiolink's new flight controller CrossRace, the full-featured flight controller is compatible with four-in-one ESC.

With a micro size of 37*37mm, it supports 12 PWM output channels,

all interfaces are directly plugged in without soldering wires, and the installation is completed in one go!

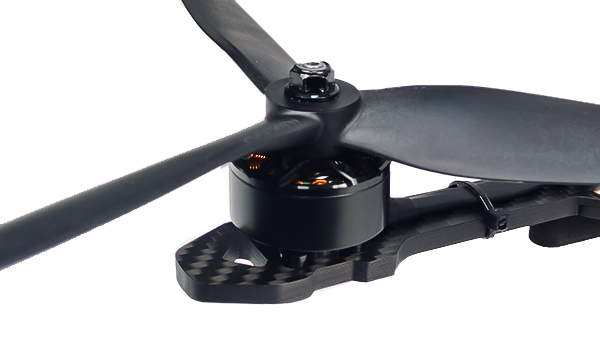

SZ-SPEED 2810 900KV Motor

Good mechanical design ensures the heat dissipation of the base.

The linear output power ensures higher efficiency, more steady flight, and longer flight time.

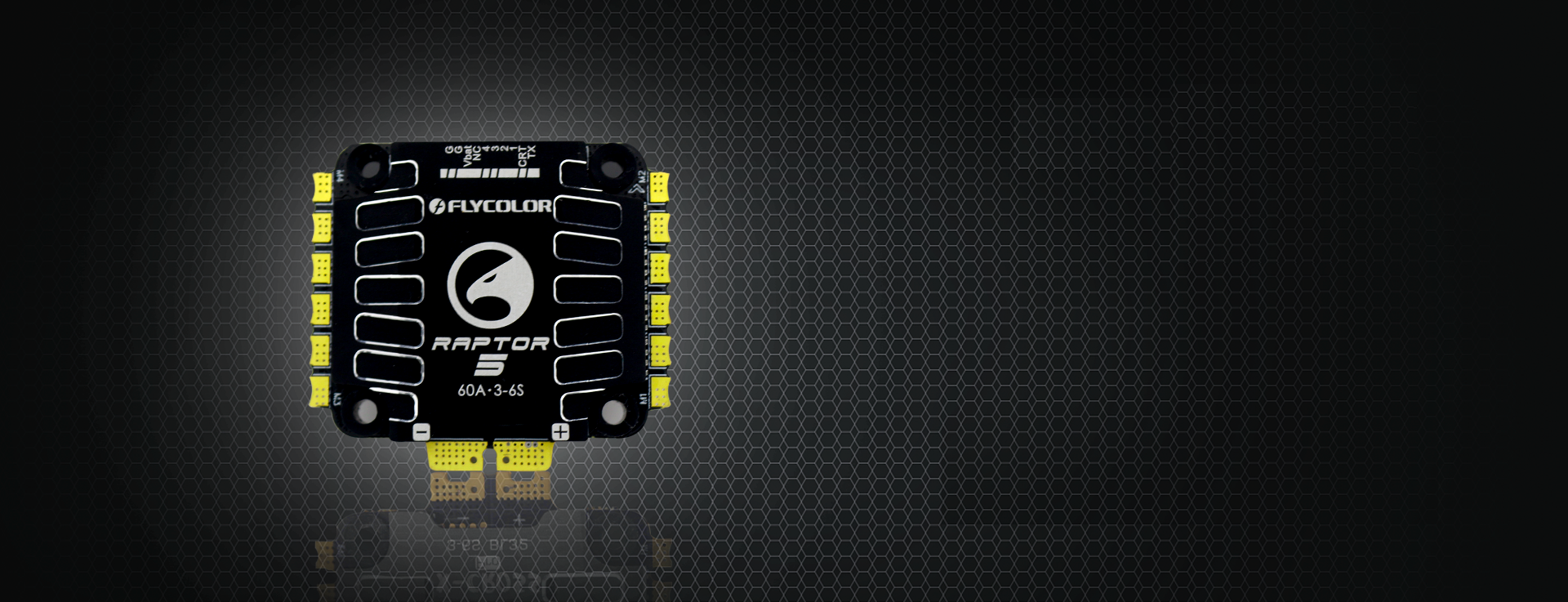

FLYCOLOR 60A 4in1 ESC

The frequency is up to 64MHz, the continuous current is 60A and the burst current is 70A, supporting a 3S-6S LiPo battery. Large-area aluminum heat sinks can effectively slow down the temperature rise.

Damped light regenerative braking causes very fast motor retardation and inherently also does active freewheeling, ensuring linear throttle with no delayed response.

Gemfan 10*5*3 Propellers

The propeller from Gemfan takes full advantage of aerodynamics and is repeatedly tested and modified, based on its weight and the effects of thickness distribution on rotary inertia.

The propellers use fiber-reinforced nylon and are bending-resistant. Every detail from appearance to function is carefully polished to achieve high efficiency. With extremely fast response and no vibration under high speed, the propellers offer pilots an unforgettable flight experience.

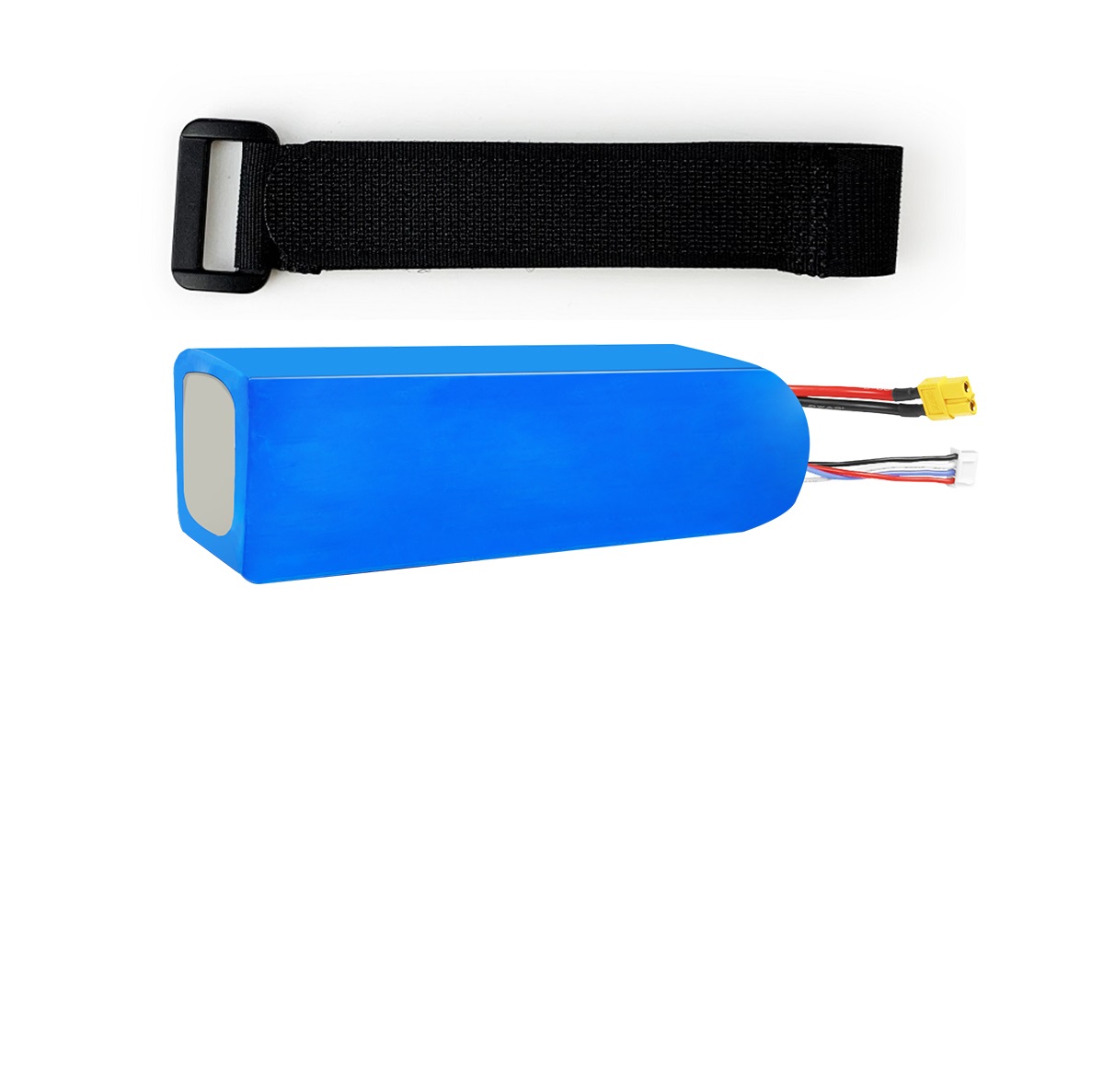

HPY 6S 5000mAh Battery

The battery of M435 is a 6S 5000mAh 35C XT60 LiPo battery with a high-quality cell. The strong power and good heat radiation ensure longer flight time, 10 minutes of flight time with a 3kg payload or 28 minutes of flight time without load.

Caddx Walksnail Avatar HD Pro Kit

Walksnail VRX adopts industry-leading H.265 encoding technology, which can provide a minimum delay of 22ms and a maximum resolution of 1080p, the maximum transmission distance is 4km. The HD picture quality ensures more accurate work.

Walksnail Avatar HD Goggles X

The Avatar HD system utilizes industry-leading H.265 encoding technology to

provide 1080P/100FPS FPV video quality with low latency, providing an immersive and responsive experience.

50° FOV, +2 to -6 diopter, 1PD57~72mm, lenses for astigmatism, myopia,

and blue light-blocking glasses can be replaced to meet different vision needs.

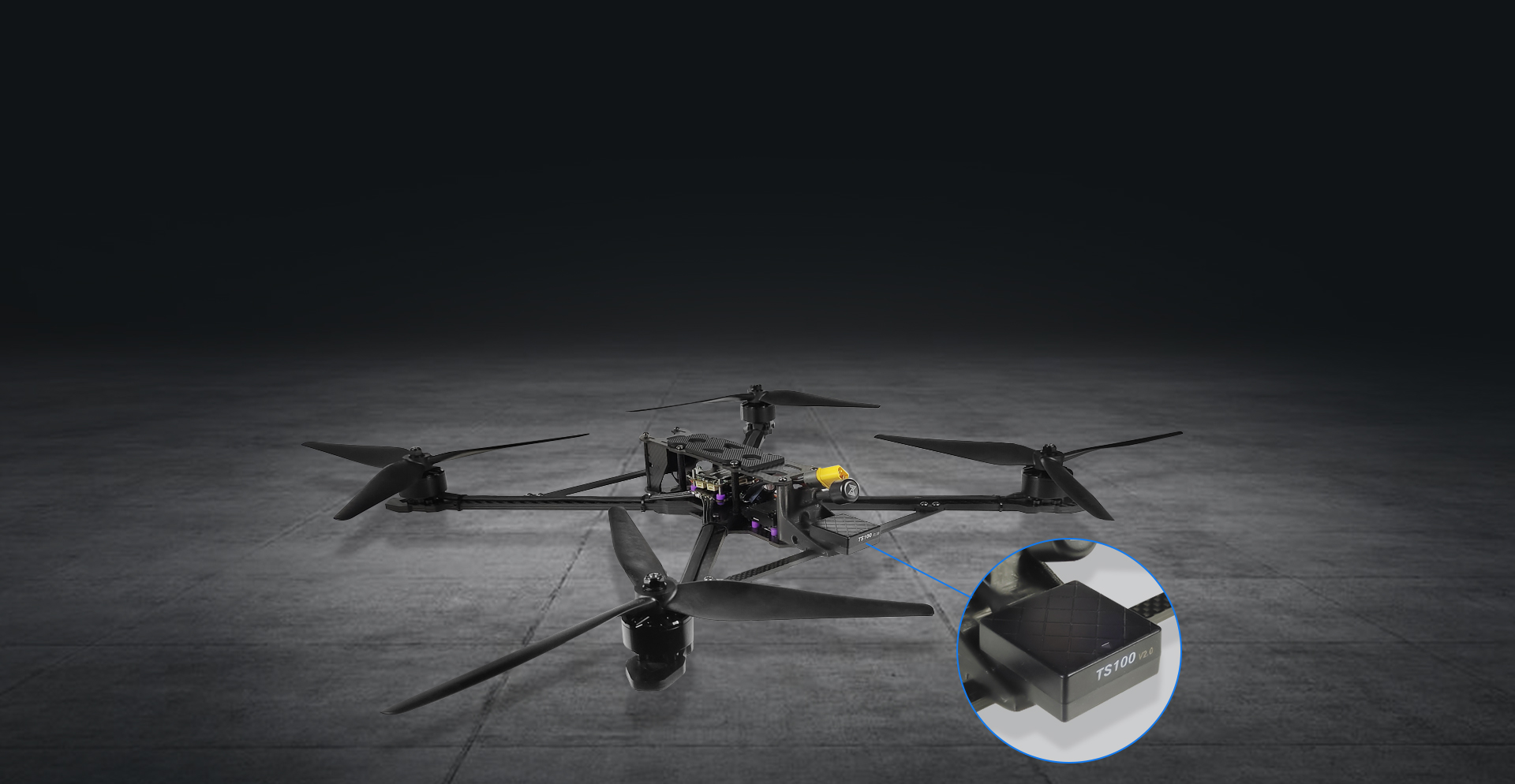

Radiolink GPS TS100 Supported

Dual Anti-interference Technology, 50 Centimeters Positioning Accuracy

Worry-free of UAV 2W High-power Image Transmission, High-Voltage Lines, or Other Strong Signal Interference

De-interference: Two-stage filtering with 78db attenuation effectively filters out-of-band interference.
Anti-interference: In-band input 1dB compression point -3dBm high linear LNA can minimize the impact of even a

small amount of interference signals that pass the filter.

Effectively resist strong signal interference, such as high-power image transmission on drones, high-voltage lines, etc.

4000 Meters Control Distance

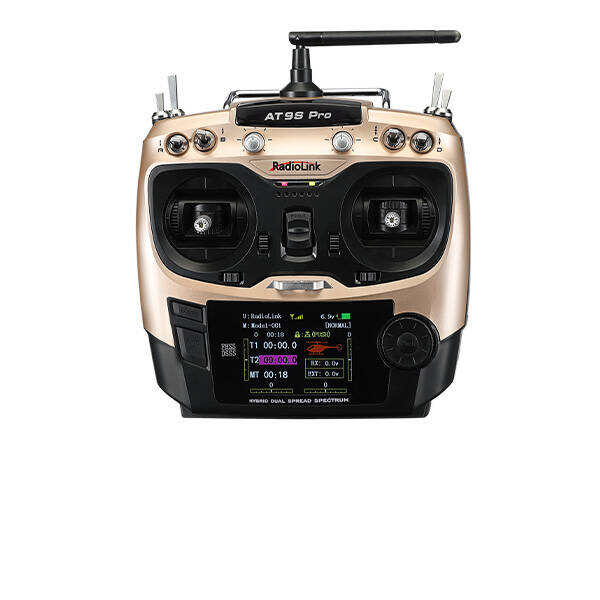

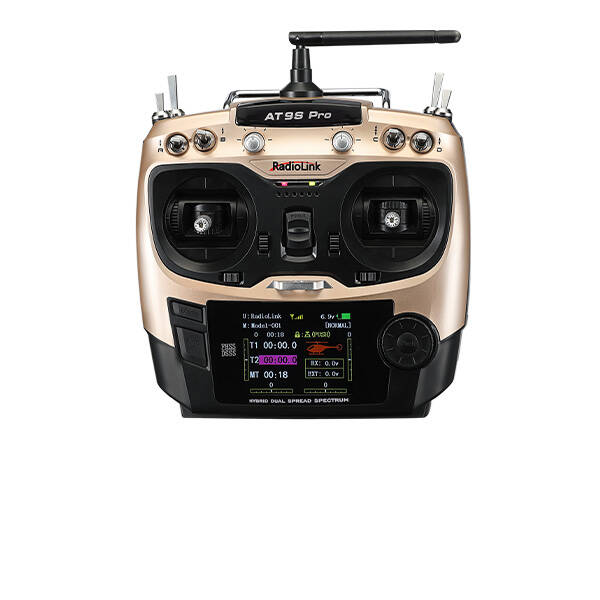

The 12-channel AT9S Pro from RadioLink adopts DSSS&FHSS dual hybrid spread spectrum and 16 channels pseudo-random frequency hopping, ensuring excellent anti-interference performance. Functions are stable and easy to control even under the complicated urban environment with an aerial control distance of 4000 meters, realizing visible and controllable racing in the city.

15A Portable and Fast Charger

Equipped with HOTA AC/DC dual-channel smart charger D6 Pro, with a maximum power of 650W,

15A charging current, and 94% operating efficiency, works more efficiently!

Multiple Types of Payload Modes

Screw-fastened cargo box.

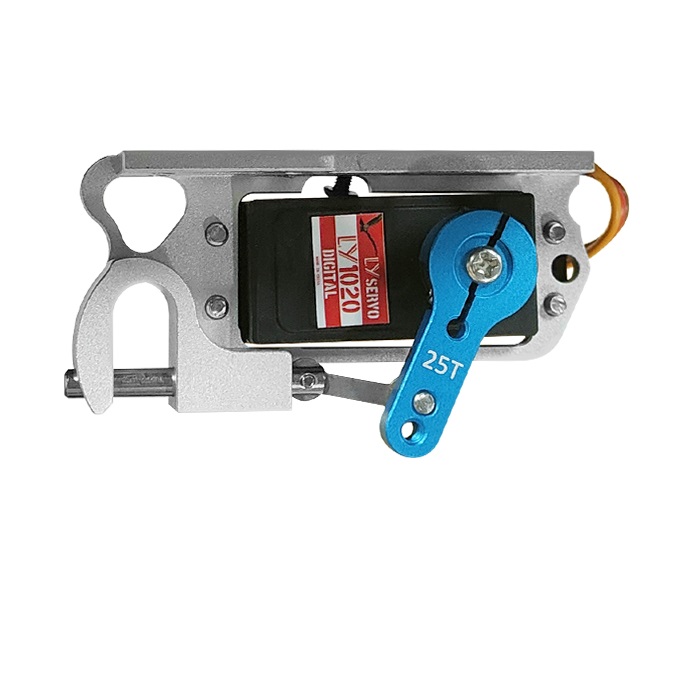

After the package is transported to the designated location by hook, air-drop it by the remote controller to ensure safe operation.

It can flexibly meet different transportation scenarios through various transportation modes such as hook or cargo box.

Carbon Fiber Frame, Firm and Solid

The frame of M435 is carbon fiber, minimizing the total weight and increasing the flight efficiency.

Lightweight yet strong and durable Carbon Fiber Material

Comprehensive Technical Support

With more than 20 years of R&D experience in the electric industry can provide

detailed instructions and tutorial videos from installation to flight.

All-round technical support such as installation, application, and calibration from ESC,

motor, and HD image transmission to the flight controller, and transmitter.

Almost all the parts of the Heavy Lift Drone you need we can offer.

* The flight data of the M435 was tested in a good flight environment, the actual control is related to the flight conditions.

* If you encounter problems while using M435, you can check the instructions, usage tutorials, or FAQs on the navigation bar of this introduction, or contact by sending an email to after_service@radiolink.com.cn

* For purchases can contact sales@radiolink.com.cn

M435 Package List

(The motors, ESC, propellers, and the battery may not be the same as on the page of the M435 introduction,

for the actual packing list, please confirm with the salesman first.)

FPV RTF Kit Version
