Radiolink F722

Racing Master

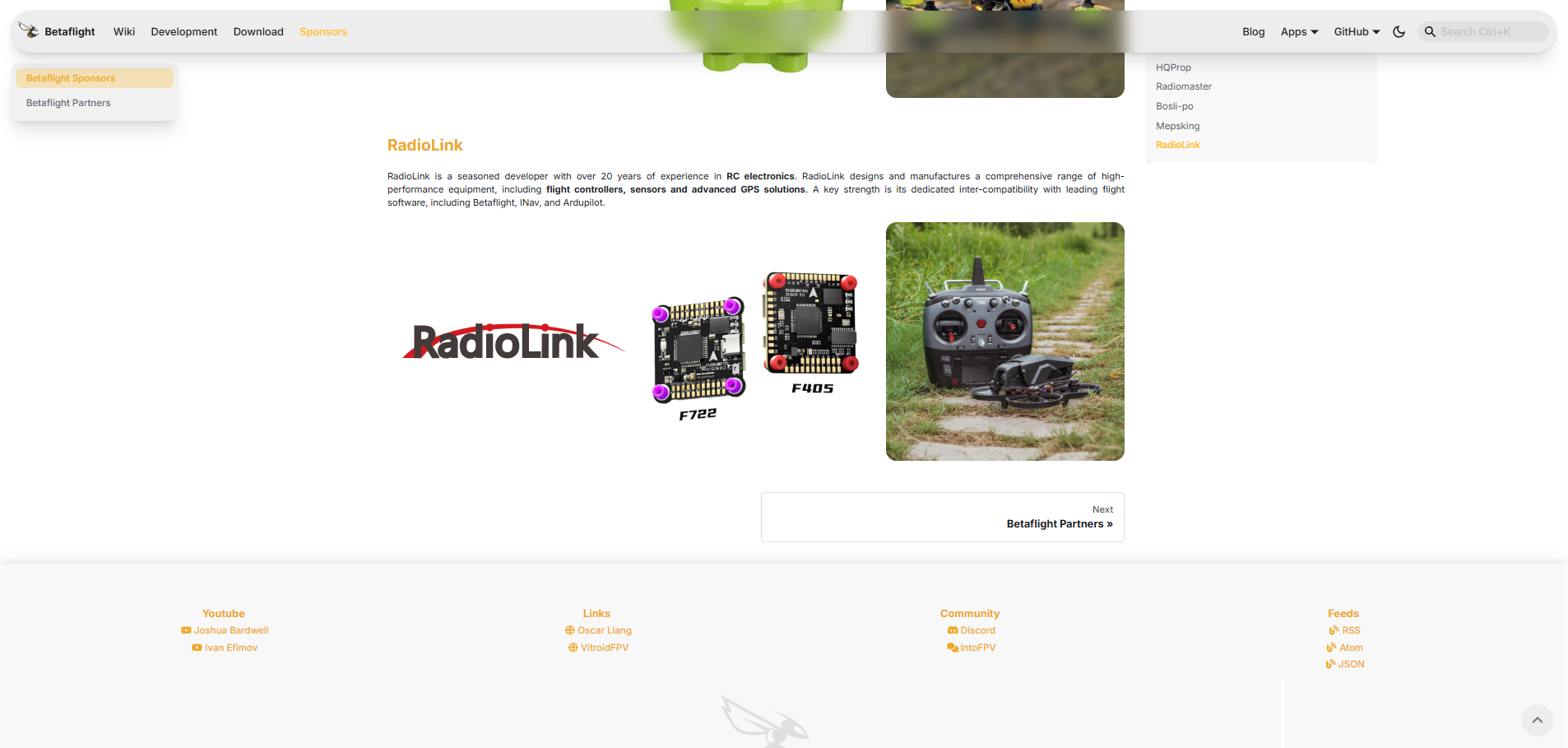

Support Betaflight and INAV Firmware

High Configuration

Optimal PCB Layout and Routing

Unique Automation Software Testing System

Multiple Image Transmission Support

Combine Soldering Plate and Socket

High Configuration


F722, equipped with a STM32F722RET6 main processor, ICM42688 gyroscope, BMP280 Barometer,

128MB capacity of Black Box, and MP2491C switching power supply chip from MPS.

Get Source Code from GitHub for Redevelopment:

https://github.com/betaflight/config/blob/master/configs/RADIOLINKF722/config.h




Optimal PCB Layout and Routing


With more than 10 years of experience in independent flight control design, repeated optimization of PCB layout and routing,

achieving a perfect combination of high current and low noise, ensuring sensor accuracy.

Video Player is loading.
Current Time 0:00
Duration -:-
Loaded: 0%
Stream Type LIVE
Remaining Time -:-

1x
    • Chapters
    • descriptions off, selected
    • subtitles off, selected

      Unique Automation Software Testing System


      With the independent research and development of multiple unique flight control systems, we have designed a full-featured automation software testing system from sensor to connection ports and interface. The test efficiency and quality assurance are far superior to traditional manual tests, ensuring the quality of every function of every F722.

      SBUS Receiver

      GPS

      Multiple Image Transmission Support


      It supports DJI and CADDX high-definition digital image transmission plug-and-play.

      Built-in 3.3V/4.5V/5V/12V multiple BEC.

      Analog Video Transmission

      F722 Flight Controller

      Four-in-one ESC

      Camera

      DJI HD Digital Image Transmission

      CADDX HD Digital Image Transmission

      Video Player is loading.
      Current Time 0:00
      Duration -:-
      Loaded: 0%
      Stream Type LIVE
      Remaining Time -:-

      1x
        • Chapters
        • descriptions off, selected
        • subtitles off, selected

          A switch can be set as the 12V BEC switch, which is used to turn on or off the image transmission power supply so that the parameters of the flight controller such as the power and the frequency of the image transmission can be set by the transmitter directly.

          Multiple Interfaces

          Supports up to 8 channels output and is adaptable to a 2-8 axis multi-rotor including X8 models.
          A combination of socket interface and solder pad makes it more convenient to connect external devices.

          ESC Connect Port(NO.2)

          ESC Connect Port(NO.1)

          Camera Connect Port

          Receiver Connect Port

          GPS Connect Port

          DJI Digital Image Transmission Connect Port

          Analog Video Transmission Connect Port

          Solder Pad: for ESC, Receiver, Camera

          Solder Pad: for Buzzer, LED Strip, GPS, DJI HD Image Transmission, Analog Video Transmission

          Socket Interface, HD Digital

          and Analog Video Transmission Plug-and-play

          A 6-pin socket interface designed for DJI high-definition digital image transmission plug-and-play. A 4-pin VOUT socket interface is designed for analog image transmission connections.

          More Interfaces can be Expanded as You Need

          By combining socket interfaces and soldering pads, more interfaces can be expanded without changing the size of the flight controller to meet the needs of more DIY functions.


          Support Current Various Mainstream Throttle Signals

          ESC Information Telemetry Supported

          Support two-way DShot, OneShot, and PWM signals.


          OSD Module Integrated

          Real-time Gesture Visualization Display

          F722 can graphically display OSD information such as the flight direction and position of the aircraft in real-time without the need for an external OSD module. The pilot can intuitively grasp the status and coordinates* of the aircraft at any time during the first-view (FPV) flight. Achieve a more comfortable flying experience.

          * Real-time display of flight information such as flight mode, distance, GPS sats, longitude and latitude, battery voltage, current, GPS speed, home direction, Blackbox log status, stick overlay left, throttle position, etc. Rich parameters display and thoughtful setup make the safer flight.


          Cost-effective Solution

          Flight controller F722 works with the 16 channels remote control system T16D, the 16 channels receiver R16F, the 50 Centimeters Positioning Accuracy GPS TS100, the DJI/CADDX high-definition digital image transmission, and HD Goggles, and the ELRS long-range module, almost all the parts of the RC drone you need we can offer, realizing the super adaptability of various cost-effective solutions such as high-speed aerial photography and cinematography solutions.

          Battery

          Four-in-one ESC

          Receiver

          Motor

          GPS

          F722 FC

          Propeller

          Remote Control

          HD Digital Image Transmission System


          Use Guarantee

          Installation and Parameter Setting are not Difficult

          With the accumulation of research and development in the past ten years, we have reanalyzed and retested all the functions of all the models including airplanes, multi-copters, helicopters, cars, and boats. All the usage guidance needed for all functions from basic use, PID parameter adjustment, log viewing, etc. of each model we can offer.

          FAQ on the official website, Facebook, YouTube, Instagram, TikTok and the professional section of the forum, Radiolink is eager to help users use Radiolink products on multiple platforms.


          * F722 supports PC or Mobile Phone Betaflight Configurator for parameter adjustment or firmware upgrade.

          * Please download the latest version firmware of the F722 from Radiolink's official website.

          * The latest firmware of F722 will not be notified separately. Please pay attention to the firmware download section of Radiolink's official website to view the latest firmware and firmware instructions. Please upgrade according to your needs.

          * In the process of using the F722, if you encounter problems, you can view the instructions, tutorials, or FAQ on the navigation bar of this introduction.

          * After consulting all the tutorials, you still have questions about the operation. You can consult our technical support by emailing after_service@radiolink.com.cn

          F722 Packing List

          • F722(Flight Controller)*1

          • ESC Connect Cable*2

          • Camera Connect Cable*1

          • ELRS Receiver Connect Cable*1

          • Analog Video Transmission Connect Cable*1* 1

          • GPS Connect Cable*1

          • R8SM Receiver Connect Cable*1

          • Receiver Connect Cable*1

          • Package Box*1
