400mm Brushless Soccer Drone
RadioLink LDZ-A40
Education · Training · Competition
Patent-Protected Crash-Resistant Frame Design

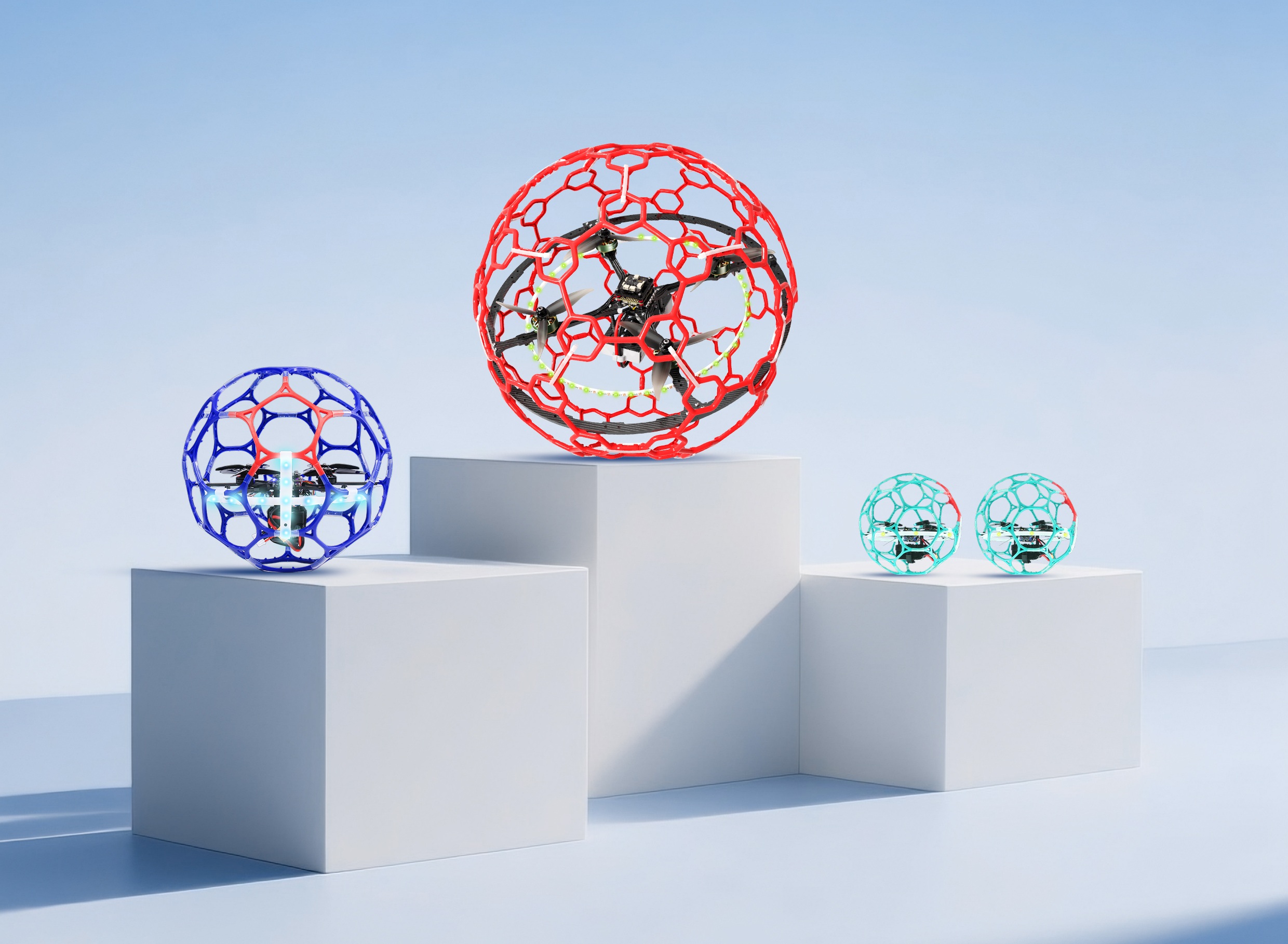

All-Round Drone Soccer Solution
High-Speed Altitude-Hold Flight Control Algorithm
Advanced Anti-Interference Communication Technology
Four Operating Modes
Where Education Meets Competition
Independently Developed with Excellent Cost Performance
Professional Competition-Grade Configuration
LDZ-A40 Applicable Events
① FIDA(Class 40)
② FAI World Drone Soccer Championships(F9A-A)
③ Volume F9 Drone Sports(F9A-A Provisional class)

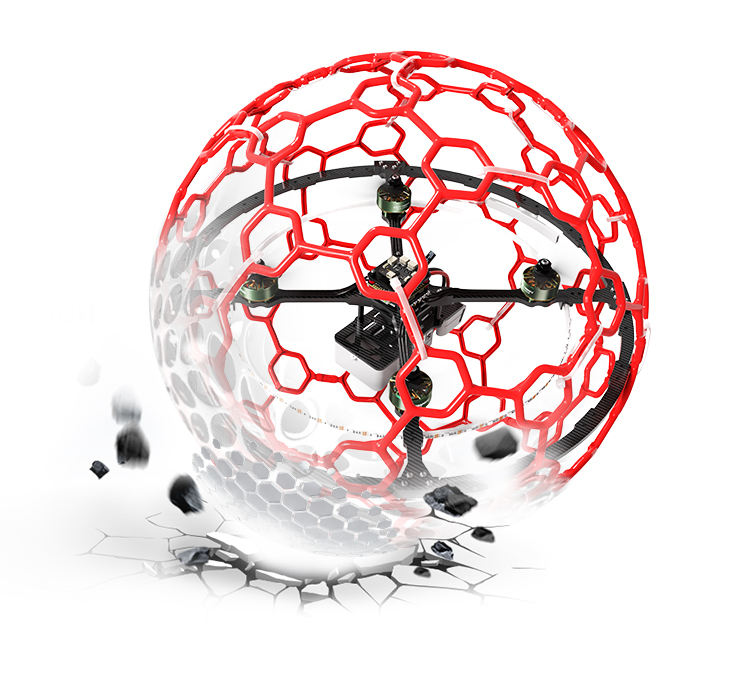

Perfect Balance of Strength and Weight
Strong and Resilient, Crash- and Impact-Resistant

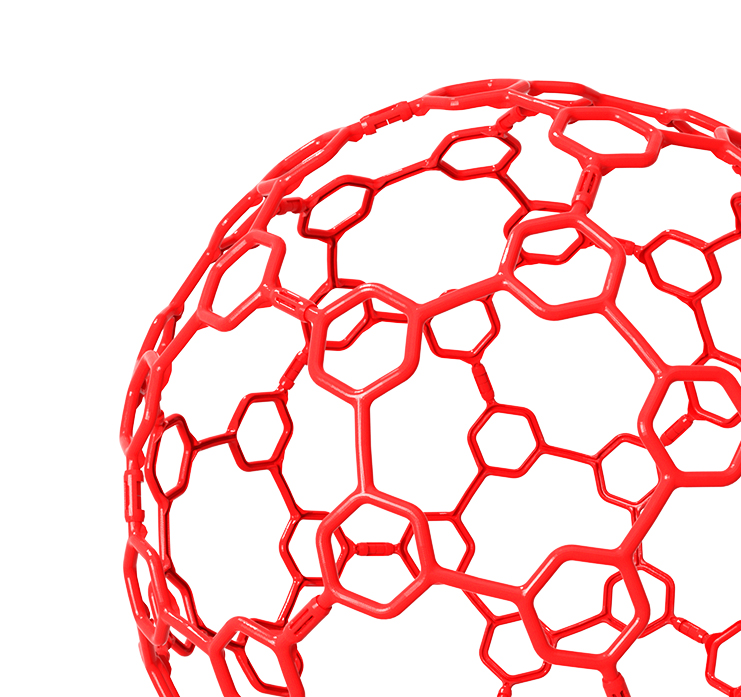

Patented Impact-Resistant Frame Design
Featuring a hollow reinforced structure and 5 millimeters ⊗-shaped carbon plate design, it achieves an ideal balance of rigidity and toughness. The five major frontal stress points are reinforced with 8x-strength ABS armor, fortifying high-impact areas. Every collision is a confident response to the limits of structural endurance.
PE+PC Composite Eco-Friendly Material
Combining lightness and toughness, with reinforced thickness. Tested over four generations and hundreds of material trials, it maintains the integrity of the body even under intense collisions, easily withstanding high-frequency impacts and always staying battle-ready. Made from eco-friendly, heat-resistant, and insulating materials, ensuring safety and peace of mind for children.
High-Speed Altitude-Hold Flight Control Algorithm
Intelligence that Balances Speed and Stability
High-Speed Altitude-Hold Algorithm
With over a decade of Radiolink’s expertise in high-speed autonomous flight control development, this algorithm perfectly resolves the contradiction between velocity and stability. It ensures that in altitude-hold mode, the throttle delivers stabilization-level response speed. While the flight controller assists with stabilization, the drone flies faster, enabling beginners to compete with greater accuracy.

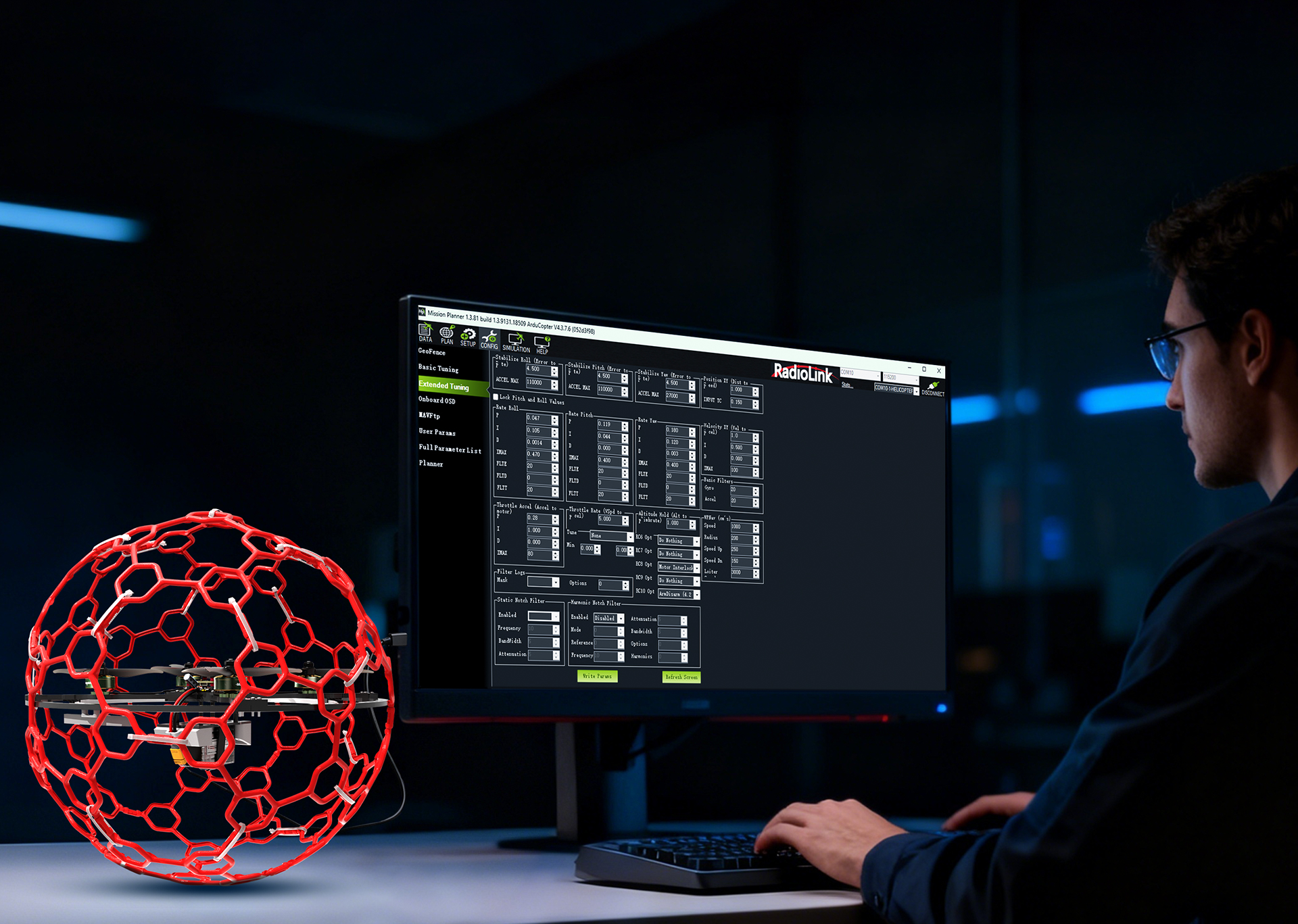

Flight Control Tuning Capability
With over a decade of experience in flight controller operation, the parameters can be finely tuned to achieve optimal flight performance. Combined with a high-dynamic attitude algorithm, the LDZ-B20 maintains precise attitude control even during high-speed maneuvers. It can brake sharply and stop instantly at full speed, and after repeated intense collisions, it remains stable without erratic movements—ready to return to competition mode immediately.
Four Operating Modes
Altitude Hold, Stabilize Mode, Turtle Mode, and Air Mode — four operating modes can be easily switched with one click.
When the drone ball flips over, Turtle Mode can be activated to right itself quickly.
Stabilize Mode empowers Strikers to make lightning-fast attacks and score; Altitude Hold Mode enables Keepers to defend with rock-solid stability, earning the title of Best Goalkeeper.
Multiple modes allow for flexible tactical expansion and effortless control of the field.
Alt-Hold Mode
Alt-Hold Mode
Stabilize Mode
Air Mode OFF
Null
Air Mode ON
Turtle Mode OFF
Turtle Mode ON
Disarm
Null
Arm
Excellent Anti-Interference Communication Capability
Unlike open-source systems where frequency bands easily overlap—often causing signal interference in multi-player competitions—Radiolink employs a proprietary pseudo-random frequency hopping technology combined with its proven wireless communication algorithm, refined over 22 years of development. This ensures interference-free operation even when more than a hundred users can compete at the same venue without interference, giving a decisive advantage in drone soccer team matches.
Video Source: Guangzhou Renxin Culture Development Co., Ltd.
Professional Competition-Level High Configuration
High-Value Intelligent Manufacturing
Equipped with RadioLink APM & BF multi-firmware flight controllers, RadioLink 80A 4-in-1 ESC, RadioLink remote control systems, SZ-SPEED motors, Gensace batteries, GEMFAN propellers, and HOTA chargers — every component is sourced from top-tier, renowned brands in the industry.
Universal components and easy maintenance make training and competition more efficient and cost-effective.
Remote controllers and chargers are compatible across multiple drones, reducing power consumption, boosting efficiency, and lowering the costs of equipment upgrades.
GEMFAN 5-inch 51466 Propellers
RGB Light Board
Gensace 6S 22.2V 1400mAh 150C Battery
SZ-SPEED 2207.5-1950KV Brushless Motors
RadioLink APM & BF Multi-Firmware
Flight Controller

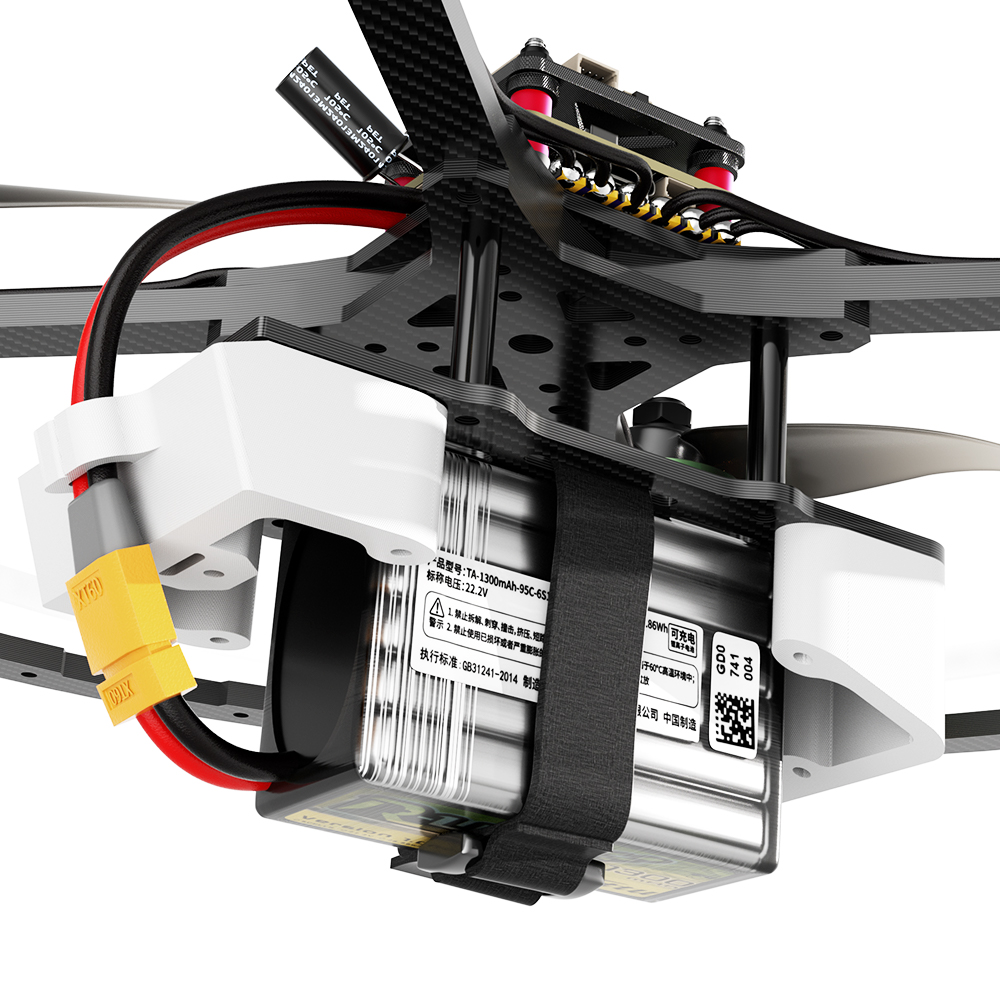

RadioLink Custom-Molded Battery Protection Bay
RadioLink 80A 4-in-1 ESC
An Integrated, Detachable 7-Color RGB LED Strip(40 LEDs)
Crash-Resistant Carbon Fiber Frame
RadioLink 16-Channel Receiver R16SM
984.8g
Takeoff Weight
6 Minutes
Flight Time
3000 Meters
Control Distance

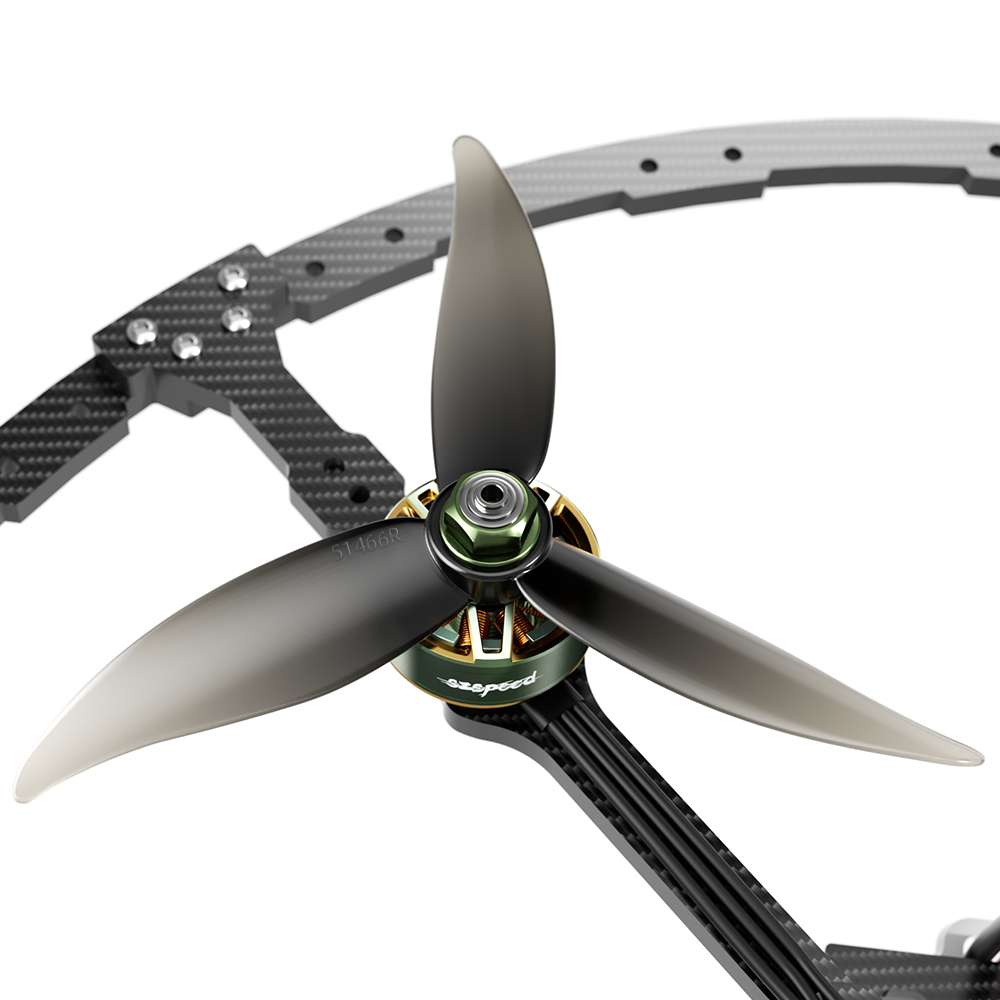

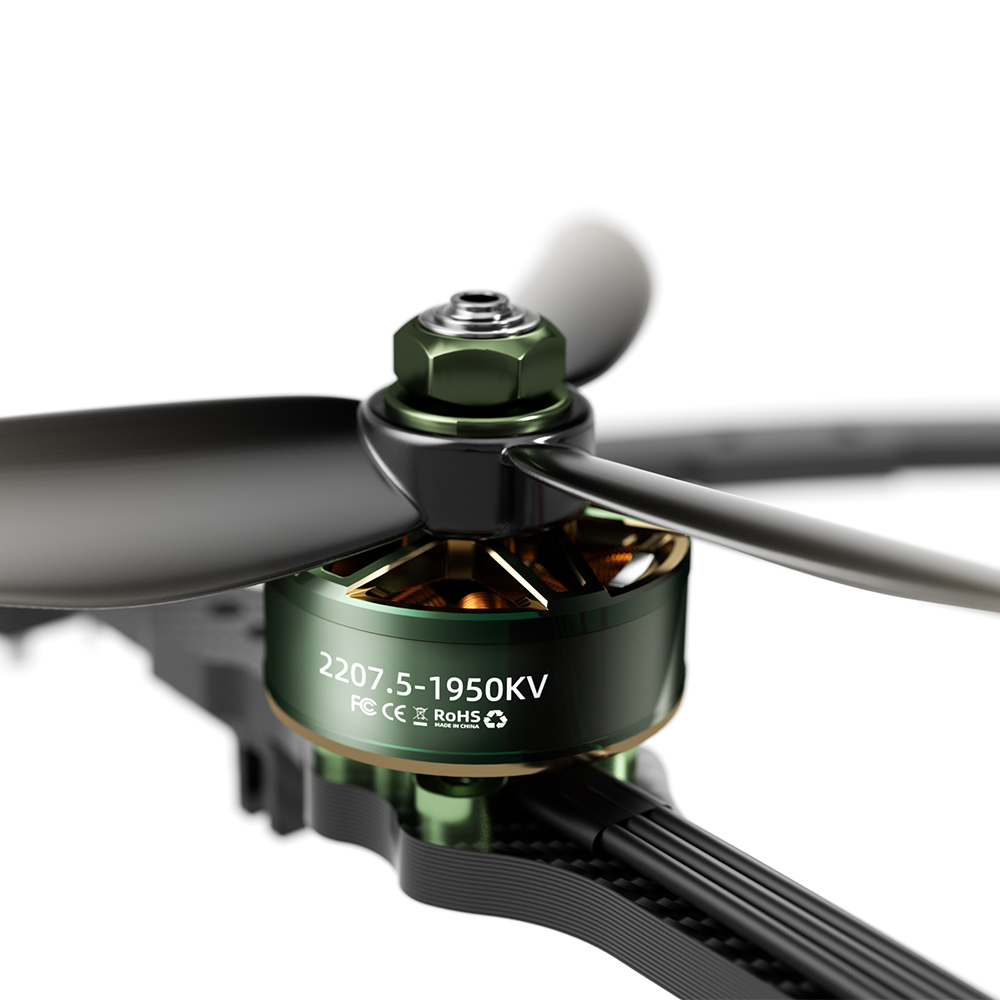

SZ-SPEED 2207.5-1950KV Brushless Motor
Manufactured with aerospace-grade machining precision, each motor undergoes high-accuracy dynamic balance calibration. It delivers exceptional current tolerance and instantaneous burst power, ensuring rapid yet stable power output — easily handling high-intensity flight conditions with confidence.
Gemfan 5-Inch(51466) Propellers
Custom-designed for drone soccer, these propellers feature a precisely optimized pitch ratio that balances thrust and responsiveness. They maintain excellent stability and low noise during high-speed rotation, enabling the drone soccer to achieve faster response and smoother attitude control—combining speed with elegance as it cuts through the air.
Gensace 6S 1400mAh 150C LiPo Battery
Delivers exceptional high-discharge performance and powerful burst output. Built with premium cells that support over a thousand charge cycles while remaining stable and reliable, it easily withstands the demands of high-frequency, competition-level missions.
Intelligent Charging System
Dual Guarantee of Efficiency and Safety

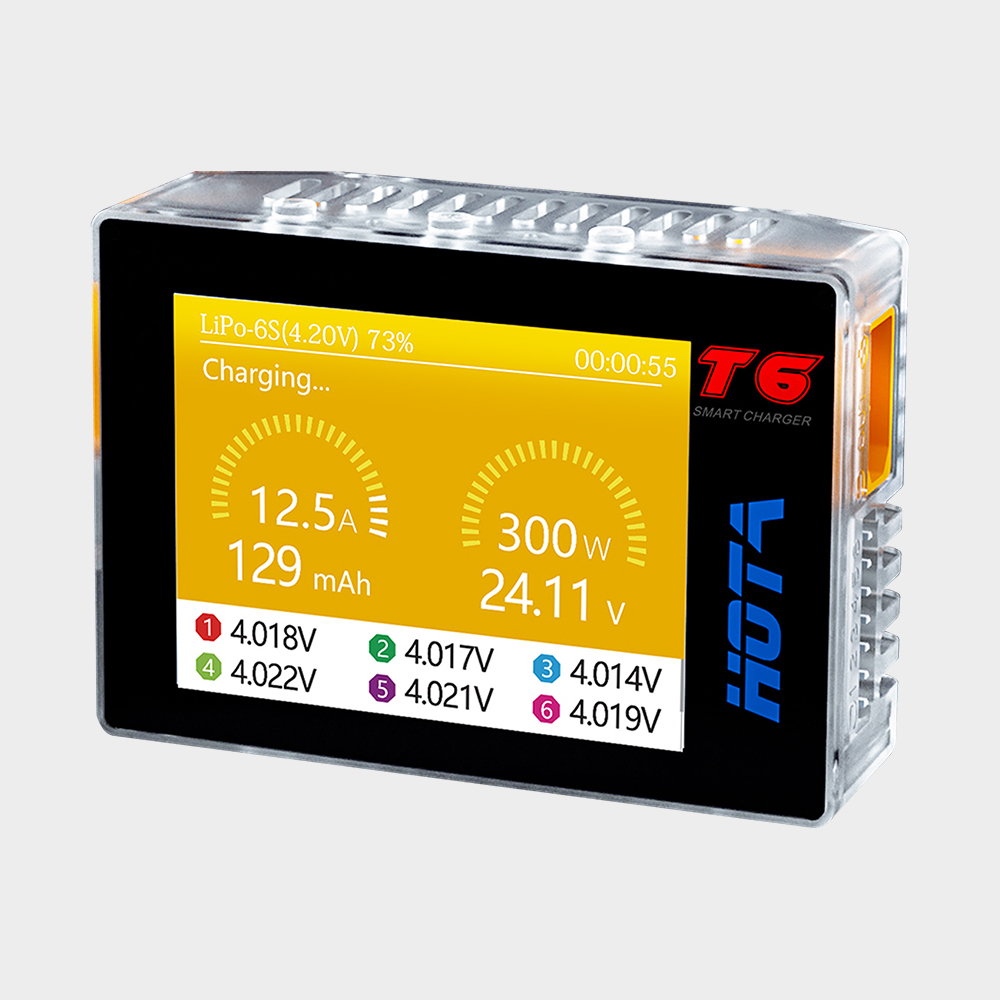

HOTA Charger T6
The standard configuration includes a HOTA DC/PD dual-channel smart charger T6.
With a maximum power of 300W, 15A charging current, and 94% operating efficiency, work more efficiently!

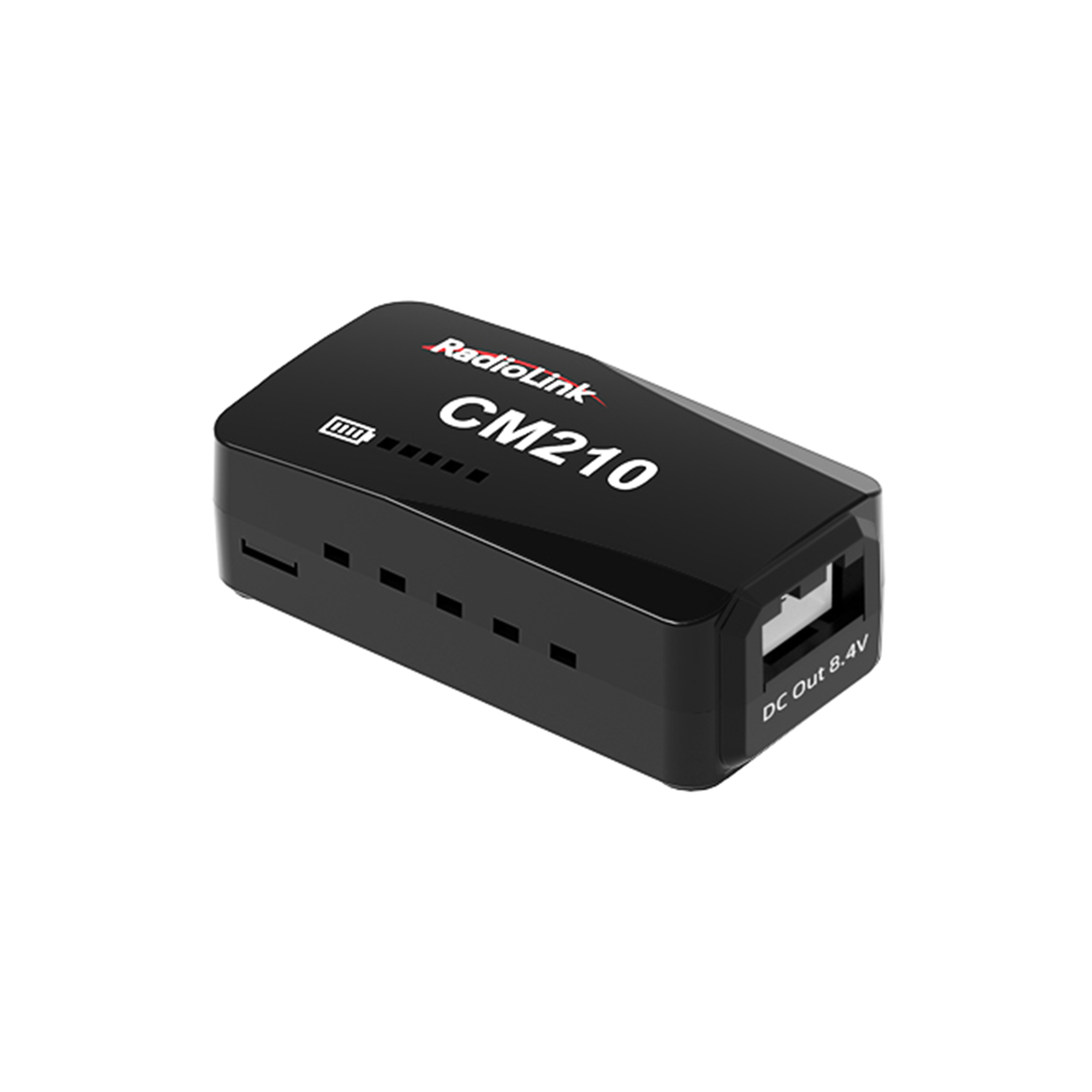

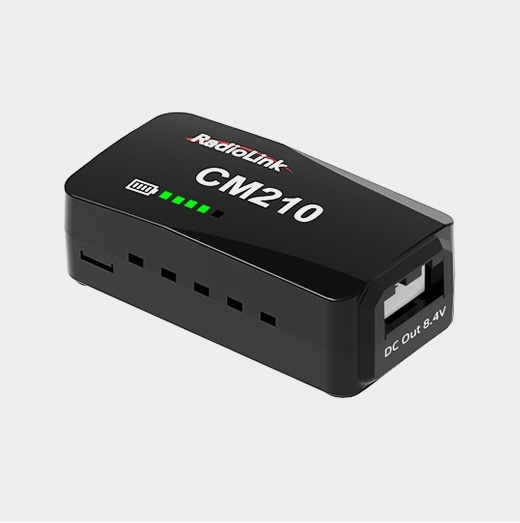

RadioLink Charger CM210
Also included a Radiolink 2S transmitter battery dedicated charger — lightweight, efficient, and highly compatible — providing a fast charging solution that keeps your transmitter fully powered and ready at all times.

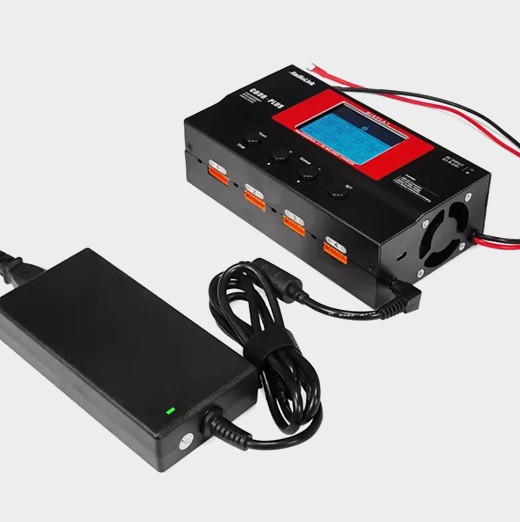

RadioLink Charger CB86-PLUS
It also supports 1–6S multi-type battery balance charging, featuring a built-in high-precision voltage detection and balancing algorithm for precise control of each cell, ensuring energy safety (optional, expandable accessory).
Intelligent Low-Voltage Protection
The main interface of the remote control allows real-time monitoring of the drone ball's battery voltage. When the voltage drops below 22.0V, the remote emits a beeping alarm to prompt a timely landing and battery replacement. If the voltage reaches 21.5V, the drone will automatically land to prevent over-discharge, protecting battery life and extending its competitive performance.

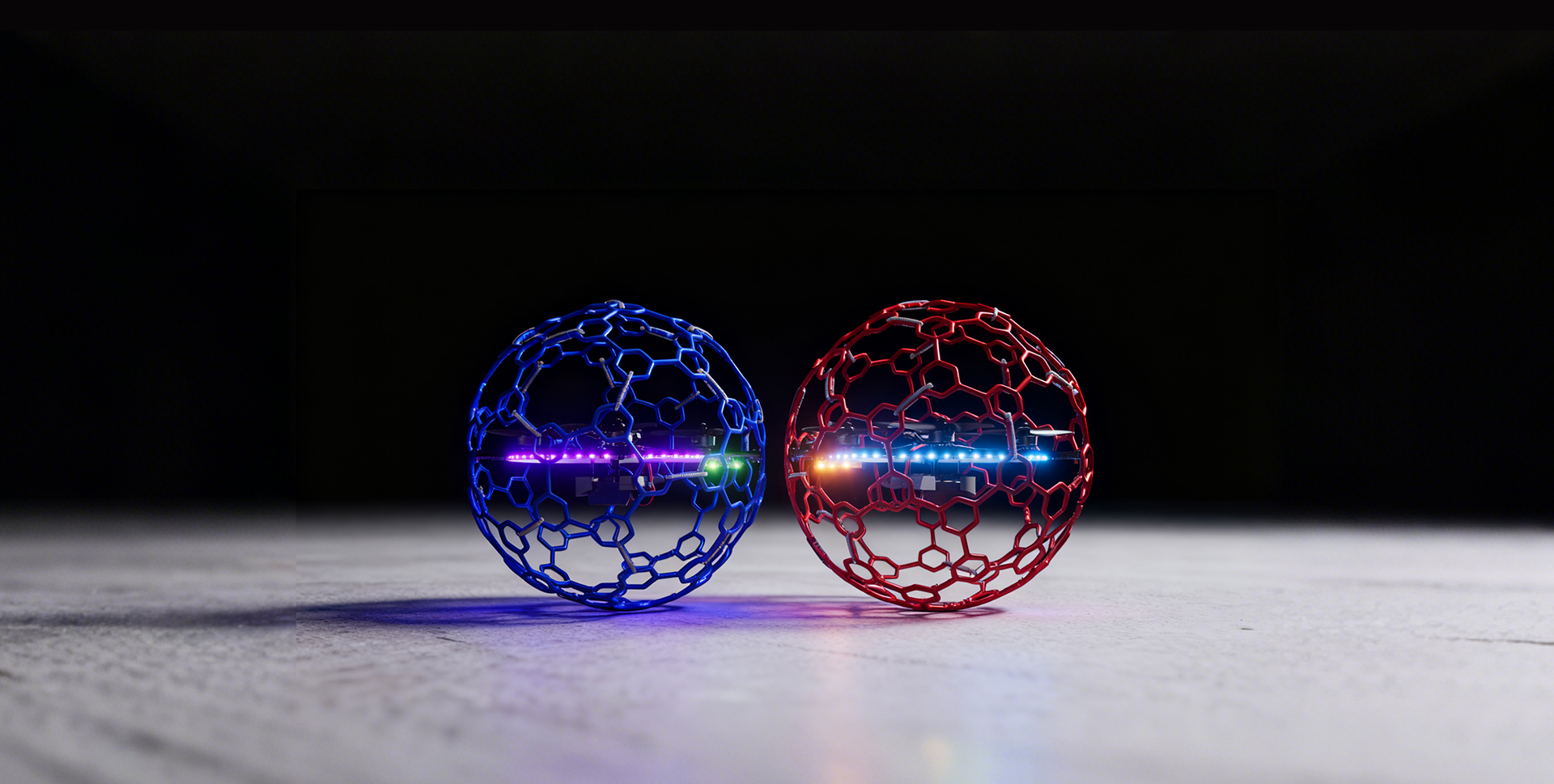

Colorful RGB Light Strip
An integrated, detachable 7-color (red, green, blue, yellow, purple, cyan, white) RGB LED strip (40 LEDs) plus tail light, supporting custom programmable effects for easy role switching.
Complies with the technical requirements of multiple competitions, including the FAI World Drone Soccer Championships(F9A-A), Volume F9 Drone Sports(F9A-A Provisional class), and FIDA(Class 40).
Comprehensive Solution
In addition to offering drone soccer kits of various levels, we also provide essential equipment for drone soccer training and competitions — including intelligent electronic scoring goals, competition cages, automatic scoring systems that can connect to electronic scoreboards or large computer displays, and related event information.

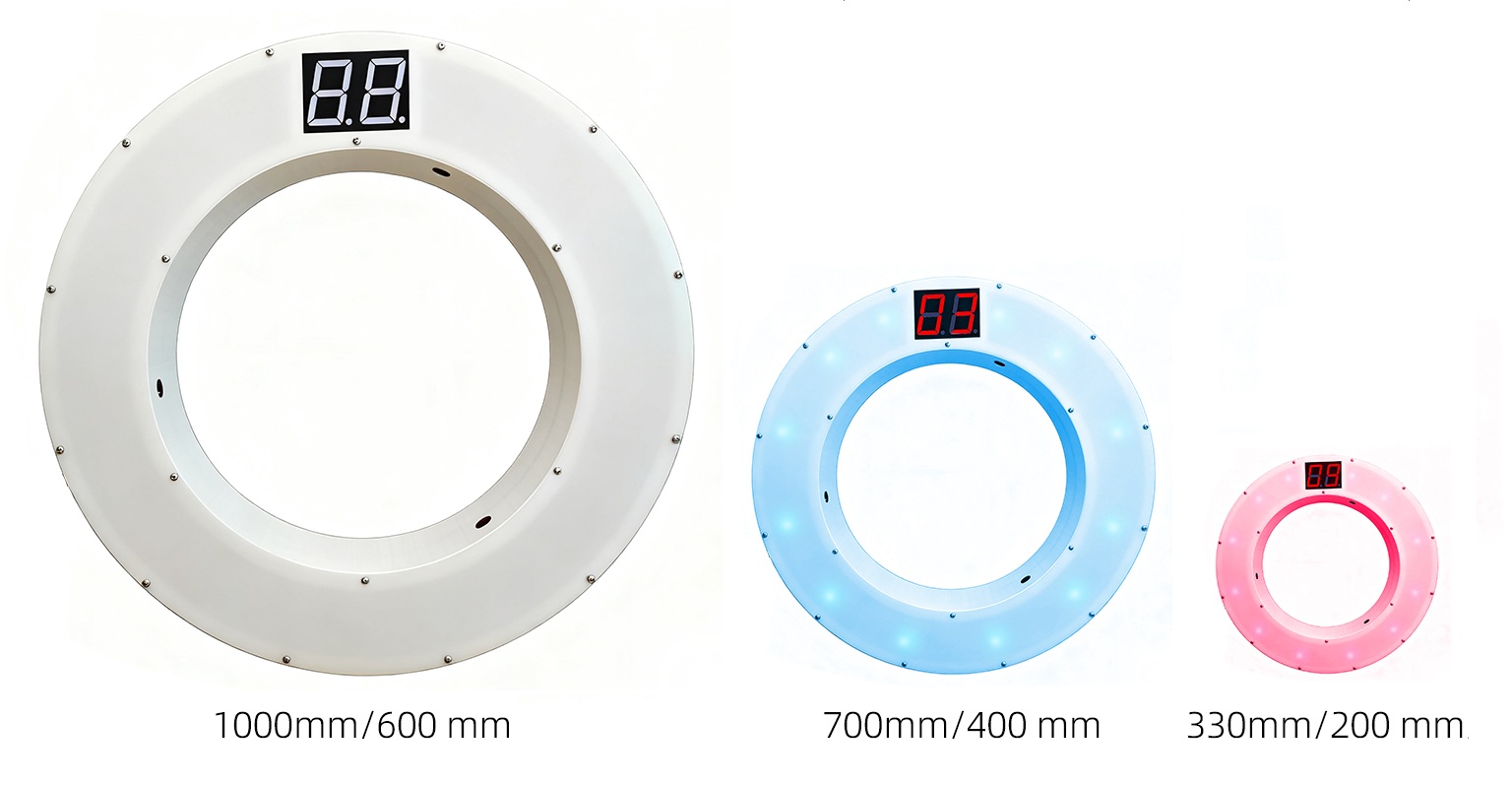

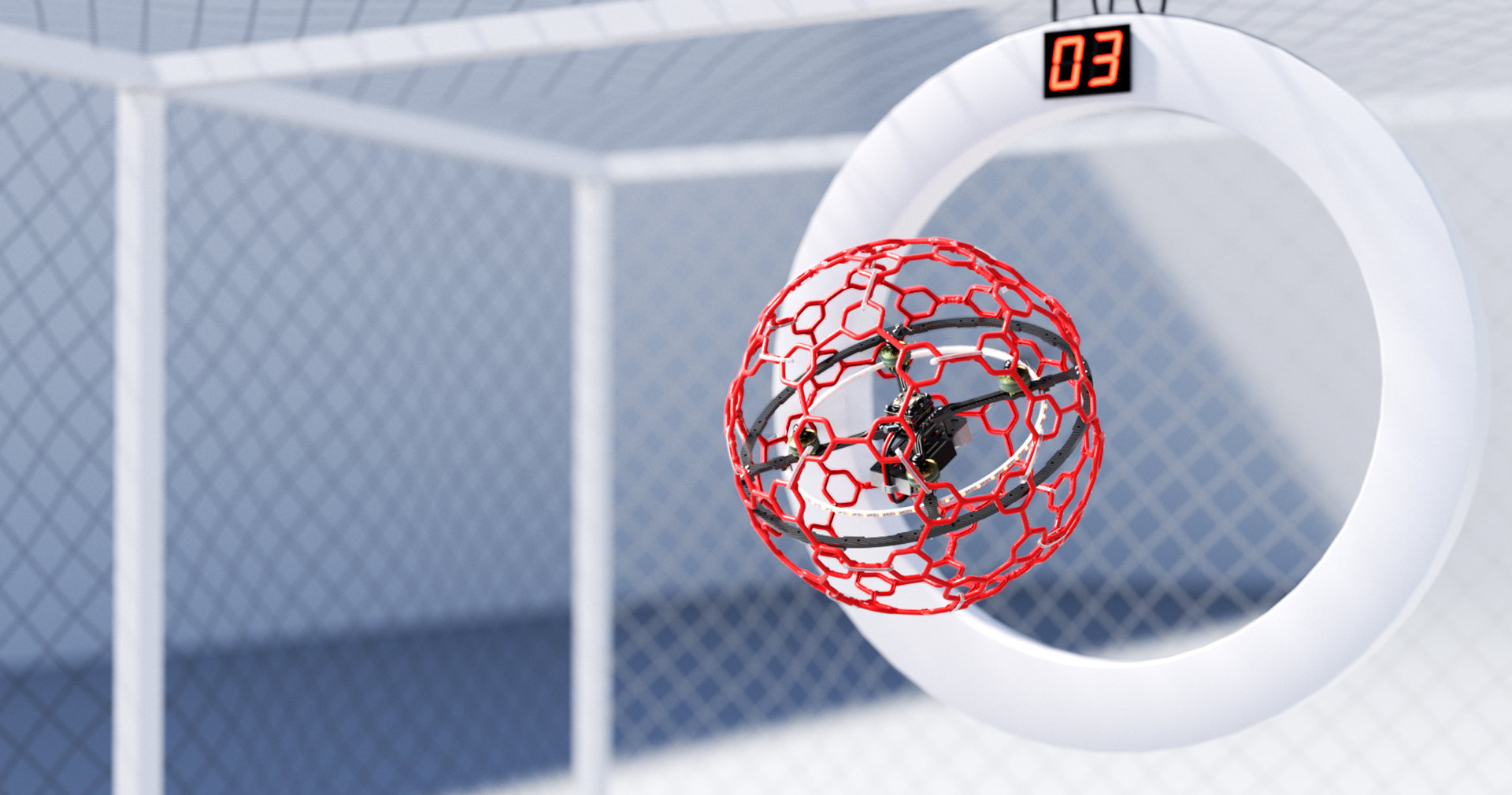

Intelligent Electronic Scoring Goal
Smart recognition and scoring system — an effective tool for detecting own goals, freeing referees from manual judgment and visual strain.

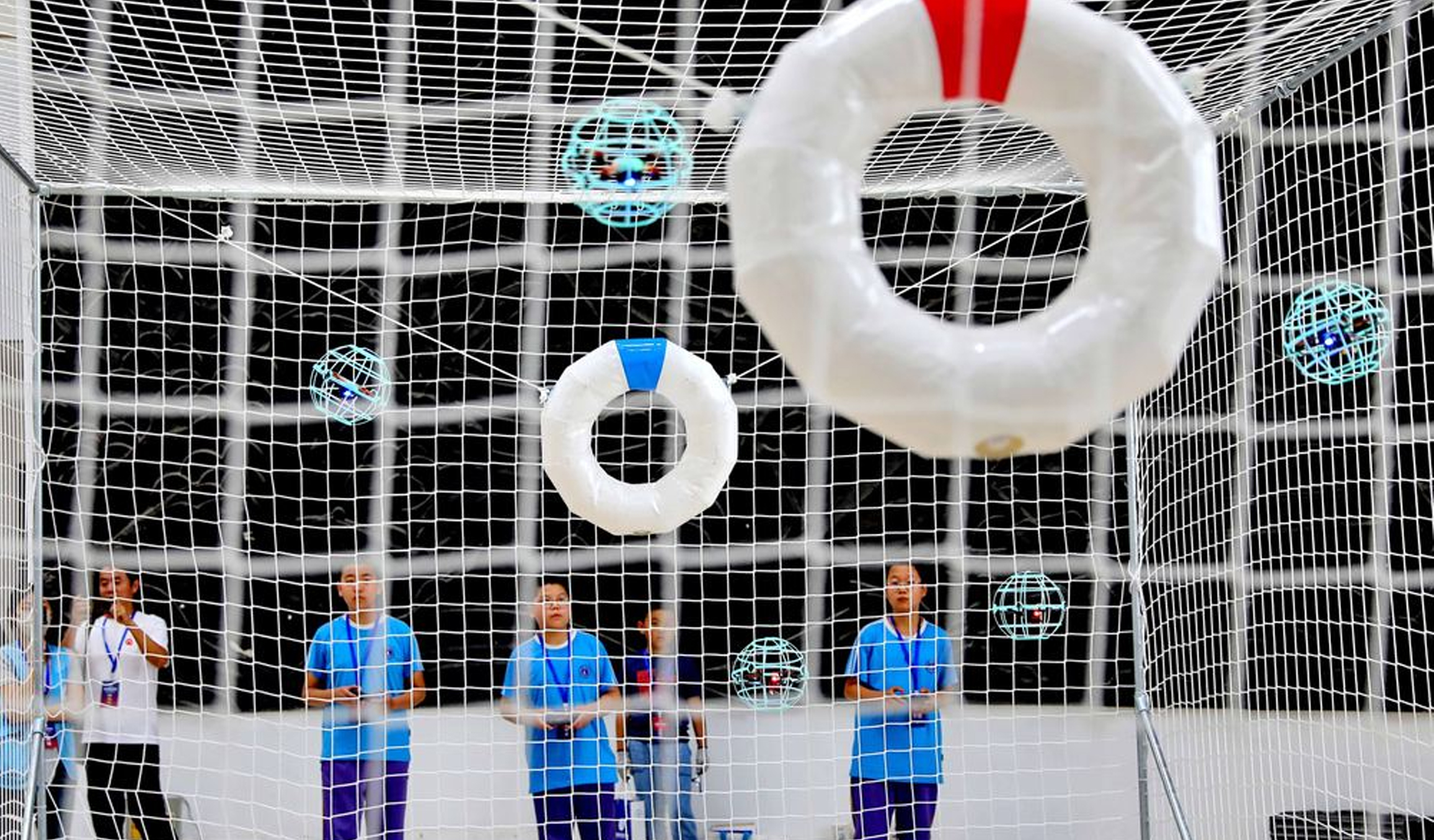

Competition Arena Cage
Fully enclosed structures — available in iron frame, inflatable, and other high-quality designs — provide an easy and reliable solution for setting up training and competition venues.

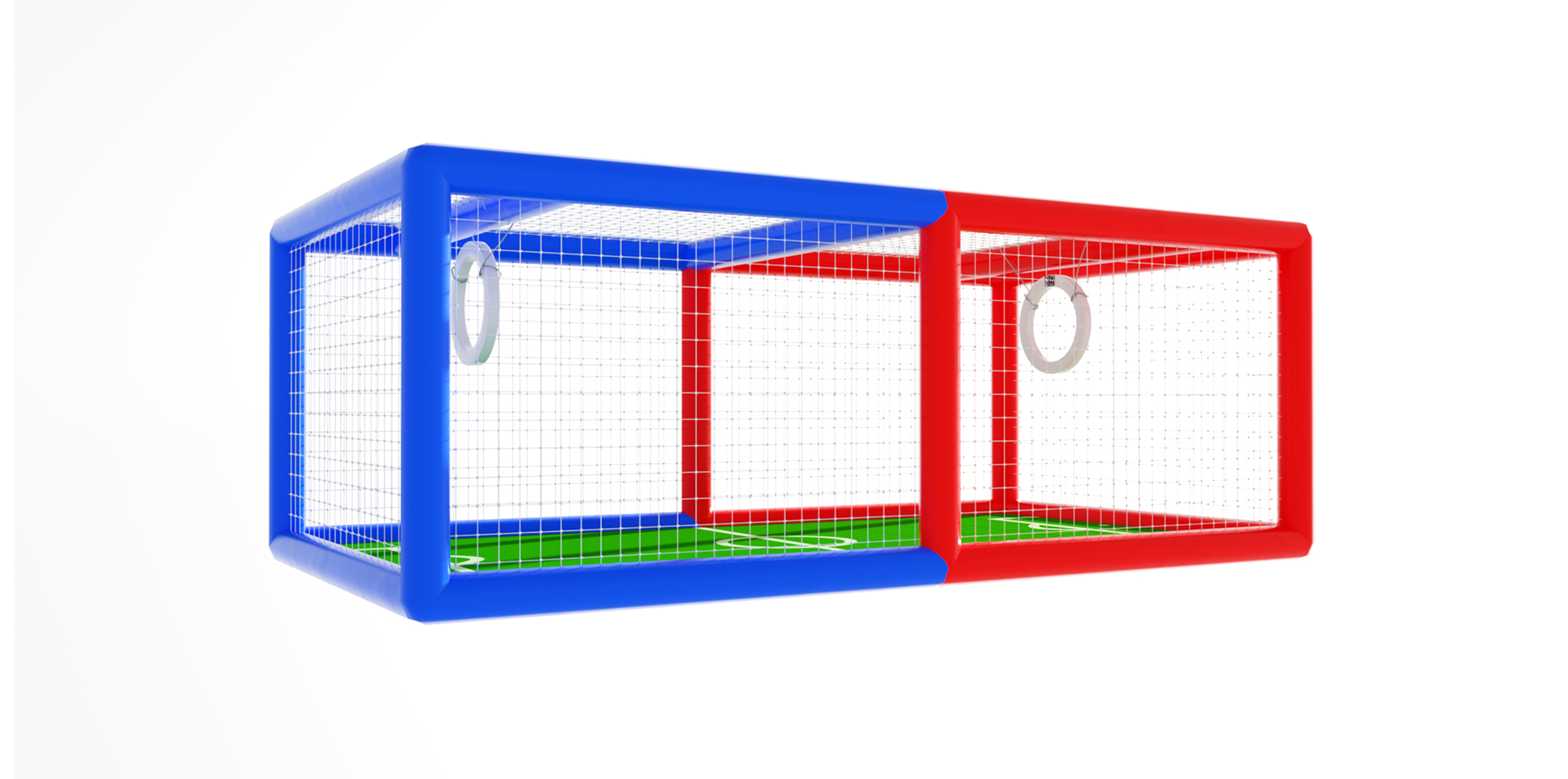

Inflatable Arena Cage
Easy to Assemble and Dismantle

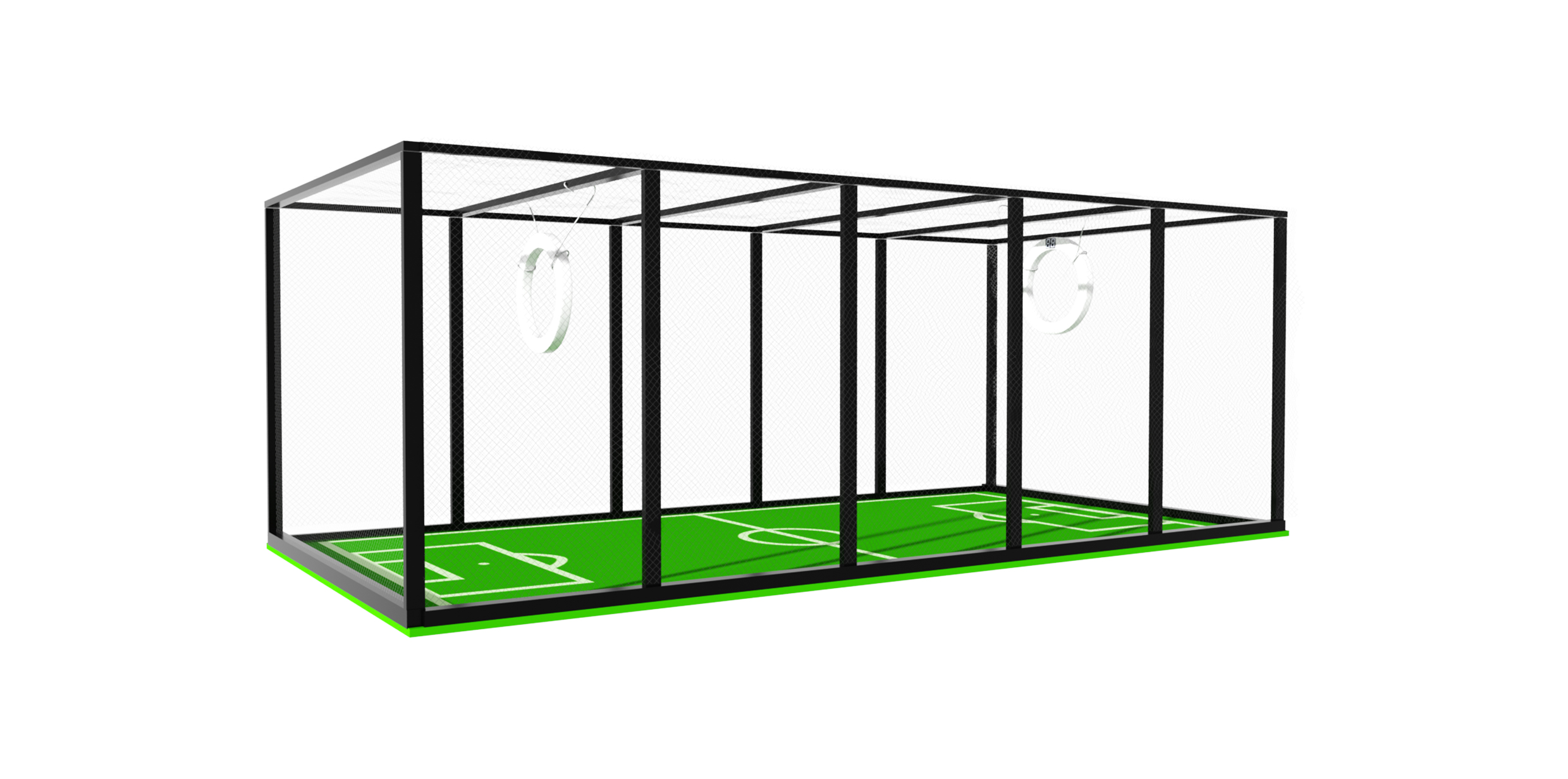

Iron Frame Arena Cage
No Assembly or Disassembly Required

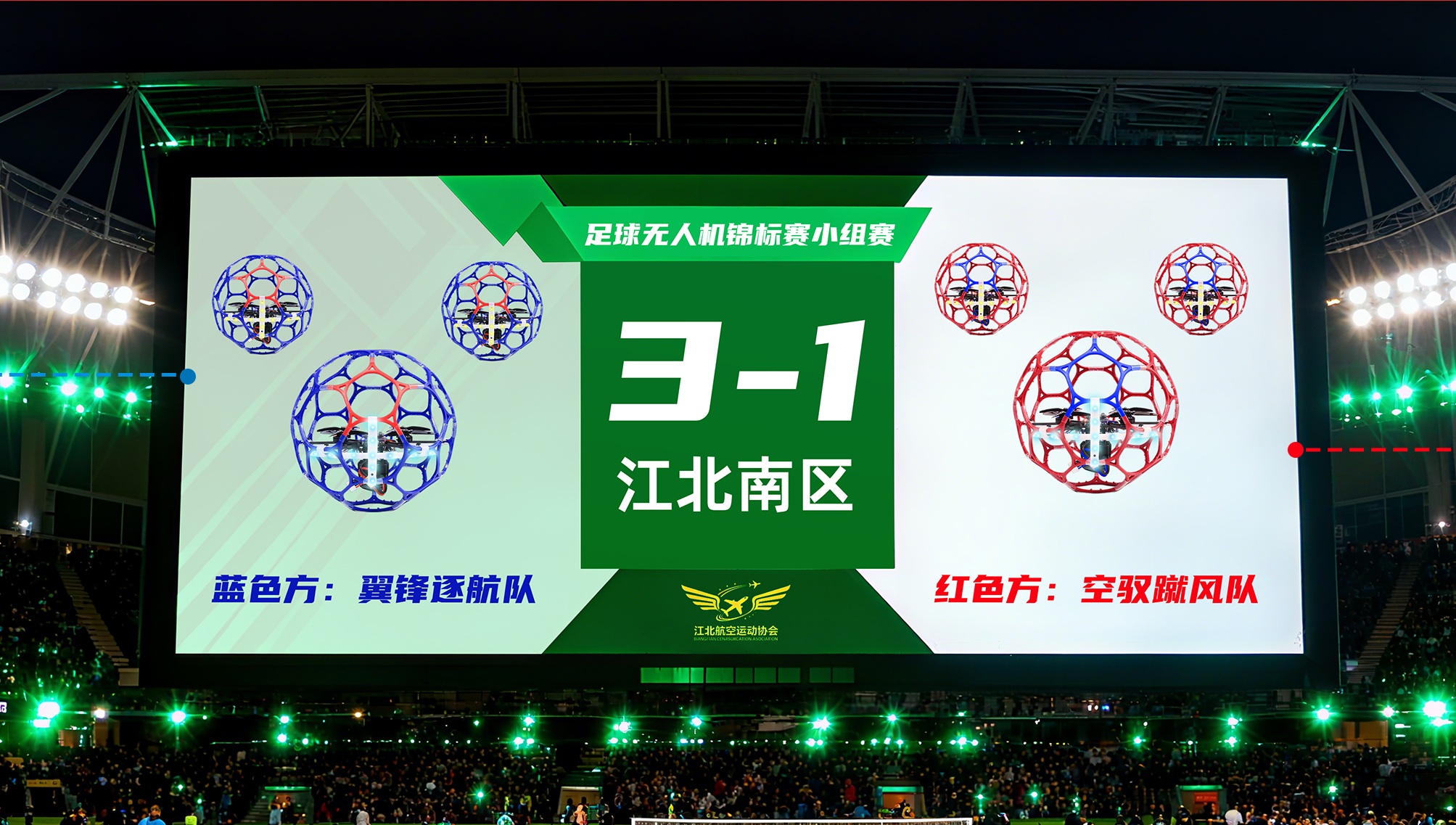

Automatic Scoring System
Can connect via Bluetooth to electronic scoreboards or computer displays, providing real-time and accurate score updates to elevate the spectator experience.
Event and Industry Information Sharing
With 22 years of R&D and manufacturing experience, and nearly a decade of dedicated focus on youth drone education and competitions, we offer deeply customized solutions tailored to the needs of schools and grassroots organizations, paving a comprehensive pathway for science and technology education.
Supply and Customization of Various Equipment
Over 20 Years of Experience Serving Educational and Training Institutions
Comprehensive Safety Protection
Unlike traditional racing drones with exposed propellers, the drone soccer aircraft features a fully enclosed protective frame made of high-toughness materials. The 360° shielding design eliminates propeller risks, ensuring zero injury during training and competition.
Venue-Friendly Design
Unlike fixed-wing or FPV drones that require large open spaces, the international drone soccer arena only needs an area of 14×7×5 meters. Even a corner of a school campus can be transformed into a competitive arena.
Multi-Dimensional Empowerment
It sharpens hand-eye coordination, stimulates creative thinking, enhances focus and reflexes, and fosters leadership qualities through teamwork.
Comprehensive Competition Ecosystem
Fully compatible with the "FAI World Drone Soccer Championships(F9A-A)", "Volume F9 Drone Sports(F9A-A Provisional class)", and "FIDA(Class 40)", creating a clear competitive pathway from campus to international levels.
Comprehensive Technical Support
With more than 22 years of R&D experience in the electric industry can provide detailed instructions and tutorial videos from installation to flight.
All-round technical support such as installation, application, and calibration from ESC, motor, and HD image transmission to the flight controller, and transmitter.
Almost all the parts of the Drone you need we can offer.
* The flight data of the LDZ-A40 was tested in a good flight environment.
* If you encounter problems while using LDZ-A40, you can check the instructions, usage tutorials, or FAQs on the navigation bar of this introduction.
* After consulting all the tutorials, you still have questions about the operation. You can consult our technical support by emailing after_service@radiolink.com.cn
Blue/Red Soccer Drone LDZ-A40*1
Transmitter(T12D)*1
Gensace 6S 1400mAh Battery*1

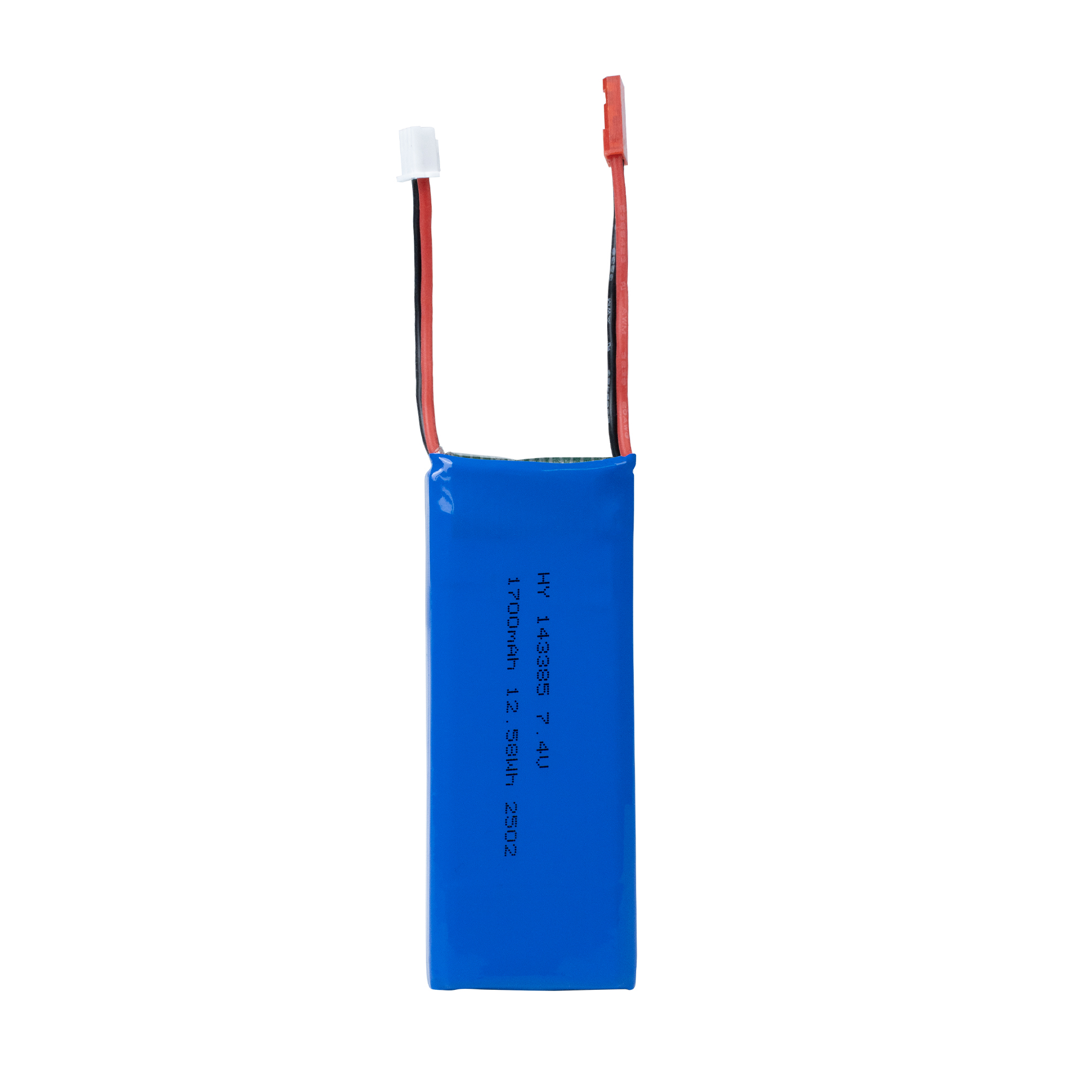

HY 2S 1700mAh Battery*1
HOTA Balance Charger T6(1-6S)*1
RadioLink Charger CM210(2S)*1
Screwdriver Socket Wrench*1
Hex wrench(2.0mm)*2
Charging Cable(for CM210)*1
Upgrade Cable(Type-C)*1
Hook and Spring(Spare)*1
Package Box*1
LDZ-A40 Package List
