INTRODUCTION



Thank you for purchasing RadioLink MINI M8N GPS TS100.


Suggestion: In order to fully enjoy the benefits of this GPS, please read the manual carefully and set up the device as described below.


Please refer to the manual or call our after-sales (+86-0755-88361717) or log in https://www.facebook.com/Radiolink-1455452961436694/ to check the issues related answer to questions if you have any questions.


Due to unforeseen changes in production procedures, the information contained in this manual is subject to change without notice.


More information please check our website as below:


http://www.radiolink.com













Support and Service:


It is recommended to have your RadioLink equipment serviced annually during your hobby’s “off season” to ensure safe operation.


Please be sure to regularly visit the Service and Support website at www.radiolink.com. This page includes extensive programming, use, set up and safety information.


Any technical updates and manual corrections will be available on this web pages. If you do not find the answers


to your questions there, please see the end of our contact area for information on contacting us via email for the


most rapid and convenient response.


FOR AFTER-SALES SERVICE:


Please start here for getting more service.


www.radiolink.com


Phone:+86-755-88361717


Email: after_service@radiolink.com.cn/after_service1@radiolink.com.cn


FOR TECHNIQUE SUPPORT:


Please start here for answers to technique questions:


www.radiolink.com


Phone:86-755-88361717


Email: alice@radiolink.com.cn












1


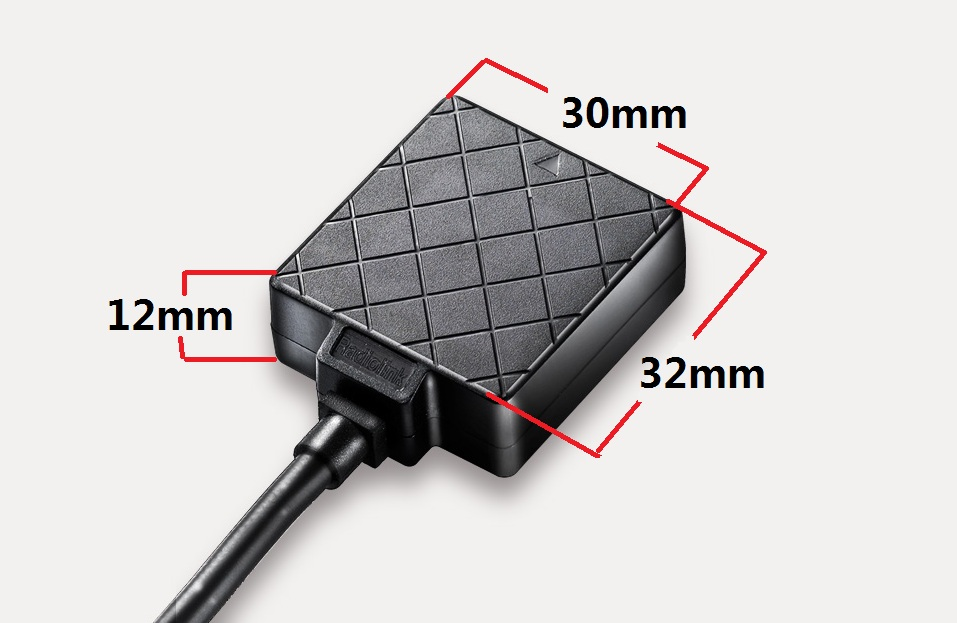

TS100


RadioLink MINI M8N GPS TS100, benefits from 15 years of professional wireless experiences of RadioLink engineers, exceed the limitation of IC sensitivity index from circuit schematic design to PCB placement.


50 centimeter position accuracy. Positioning 20 satellites in 6 seconds at open ground. Industry-leading valley station-keeping ability.


TS100 is compatible with flight controller RadioLink MINI PIX and PIXHAWK(the multi-copter/helicopter firmware after V3.5.4 version, the fixed wing firmware after V3.8.0 version). Other flight controller also can compatible with TS100.



















RadioLink MINI M8N GPS TS100 Configuration


GPS decoder chip: RadioLink M8N GPS SE100 use the best receiving chip of first GPS brand u-blox UBX-M8030(M8), 72-channel, MMIC BGA715L7 from Infineon, is much better than single GNSS 7N.


Concurrent reception of GPS/QZSS L1 C/A,GLONASS L10F, BeiDou B1, two GNSS working at the same time. SBASL1 C/A: WAAS, EGNOS, MSAS


Geomagnetic: QMC5883L which with same technology as HMC5983 from Honeywell


Antenna : 2.5dbI high gain and selectivity ceramic antenna


Power amplify IC: MMIC BGA715L7 from Infineon


Double Filter: SAWF(Surface acoustic wave filter) form Murata


Parameter


1)

Positional Accuracy: 50 centimeter precision when working with concurrent GNSS.

2)

Velocity precision: 0.1m/s

Max update rate: up to 10Hz

3) Max height: 50000m

Max speed: 515m/s


Max acceleration: 4G


Sensitivity


Tracking & Nav.: -167dBm, Reacquisition: -163dBm, Cold start: -151dBm, Hot start: -159dBm.


Time to first fix: Cold start: 26s, Hot start:1s.


Connect ports


Power supply: voltage 5V  DC+-5%, current 50~55mA


Ports


GPS UART interface, baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K


Geomagnetic I2C interface




2

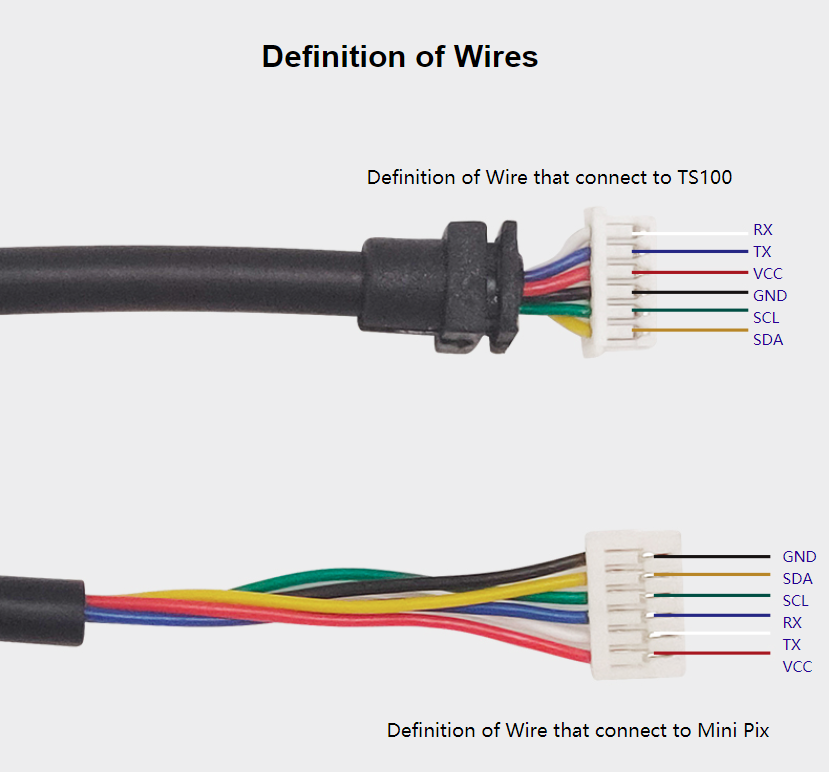

Definition of Connector


Connect to flight controller: Black wire-GND, Yellow wire-SDA, Green wire-SCL, Blue wire-RX, White wire-TX, Red wire-VCC


GPS Mainboard : White wire-RX, Blue wire-TX, Red wire-VCC, Black wire-GND, Green wire-SCL, Yellow wire-SDA

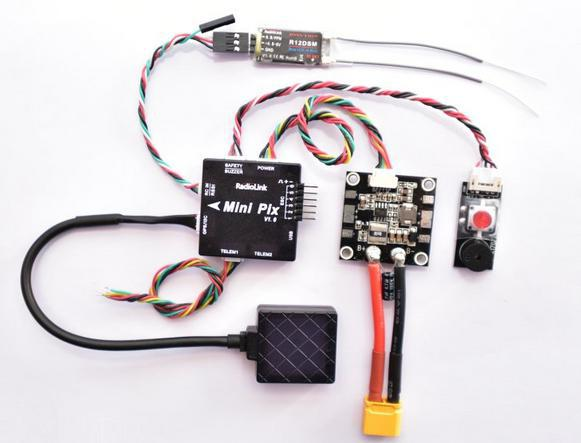

TS100 Connect to Mini Pix












































3


Compass calibrate


Please use Mission Planner

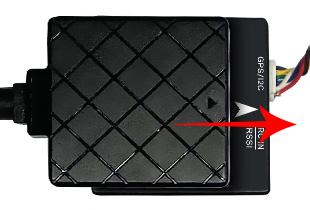

Arrows shows the front, point to the same direction as the flight controller.


Keep the same direction with flight controller.


Positioning Indicate


Humanized positioning green LED indicate. The green LED will flicker when TS100 have positioning.

























Compass calibrate(calibrate with APM mission planner)

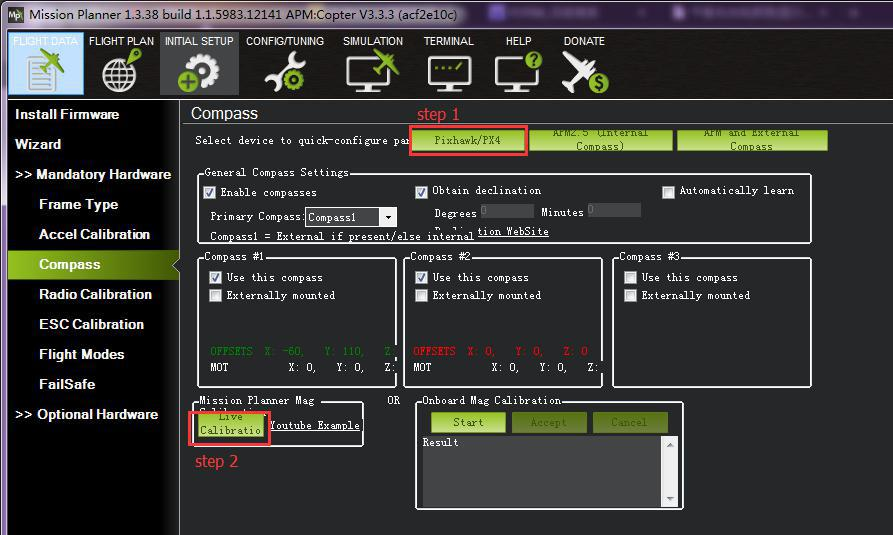

Compass calibrate(Using version 1.3.39 of Mission planner), please choose Pixhawk/PX4 if you use with flight controller MINI PIX or PIXHWAK.





































4

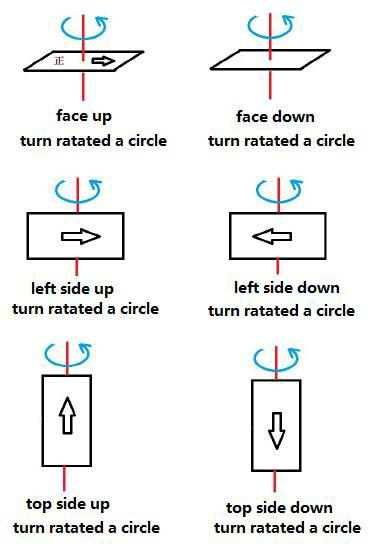

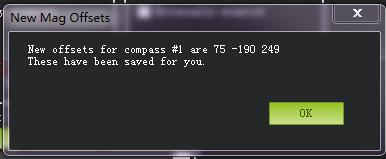

Calibrate like this picture shows, click Done to finished the calibrate. Click OK to save the settings.

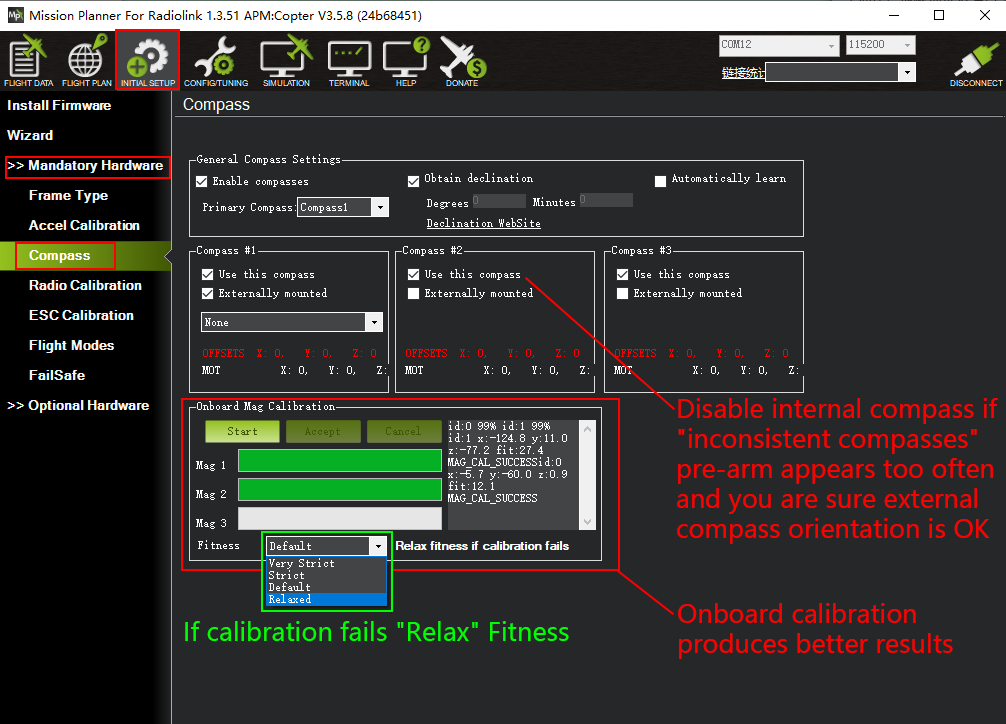

If   X 2  Y 2  Z 2  <600, please try to cancel Compass #1 or Compass #2.
