F121


Mini Racing Drone

Altitude Hold by Inertial Navigation


User Manual





Thank you for purchasing RadioLink mini racing drone F121.

To fully enjoy the benefits of this product and ensure safety, please read the manual carefully and set up the device as instructed steps.

If any problems found during the operation process, either way listed below can be used as online technical support.

Send mails to after_service@radiolink.com.cn and we will answer your question at the earliest.

Send message to us on our Facebook page or leave comments on our YouTube page

If purchased from an approved dealer or distributor, you can contact them directly for support.

All manuals and firmwares are available on RadioLink official website www.radiolink.com and more tutorials are uploaded. Or follow our Facebook and YouTube homepage to stay tuned with our latest news.





Never operate models during adverse weather conditions. Poor visibility can cause disorientation and loss of control of pilots model.

Never use this product in a crowd or illegal areas.

Always ensure the trim levers of the transmitter at 0 and battery properly charged before connecting the receiver.

Stay at a certain distance from the aircraft during flight to avoid getting hurt by the components of high-speed rotation (eg. Propellers, brushed motors)

After landing off, make sure the aircraft is disarmed and propellers have stopped moving before getting close to touch the aircraft.

Always be sure about turning off the receiver/powering off the aircraft before the transmitter.

Follow the instructions of propellers installation in case of dropping during flight.

To ensure the best radio communication, please enjoy the flight at the space without interference such as high voltage cable, communication base station or launching tower.



This product is not a toy and is NOT suitable for children under the age of 14. Adults should keep the product out of the reach of children and exercise caution when operating this product in the presence of children. Water or moisture may enter the mini drone and the transmitter through gaps of electronics and cause model instability, even out of control. If flying in the wet weather(such as game) is inevitable, always use plastic bags or waterproof cloth to cover the transmitter.


This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and Prevents external wireless interference, including interference that may cause undesired operation.

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.



* Please be kindly noted that this manual will be updated regularly and please visit RadioLink official website to download the latest version:www.radiolink.com


Packing List

Pictures

Item

PNP

PNP FPV

RTF

RTF FPV

F121 box

1

1



Carrying/Shoulder Bag



1

1

F121

1

1

1

1

R8SM Receiver



1

1

T8S Transmitter



1

1

FPV Camera


1


1

660mAh Li-Po Battery

1

1

2

2

GEMFAN Spare Propeller(4 for a set)

2

2

2

2

Propeller Guard

4

4

4

4

Propeller Remove Tool

1

1

1

1

Hawkeye 4.3 FPV Monitor




1

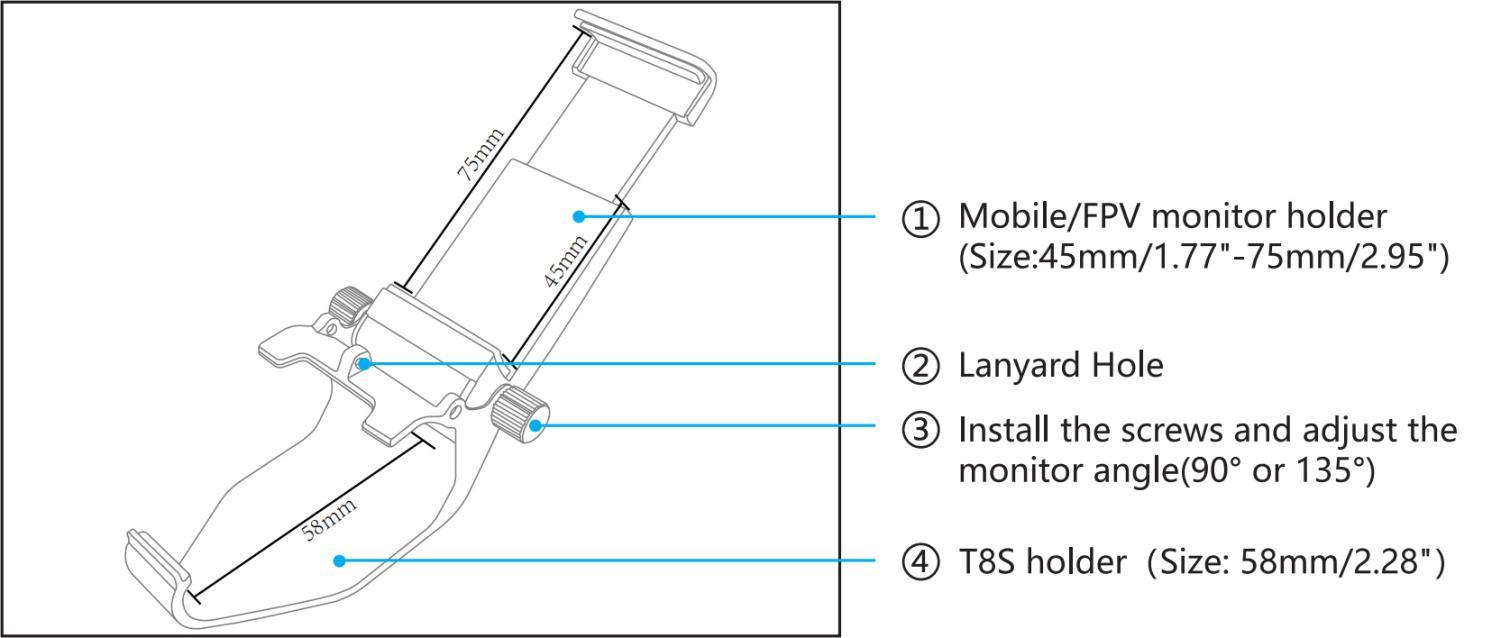

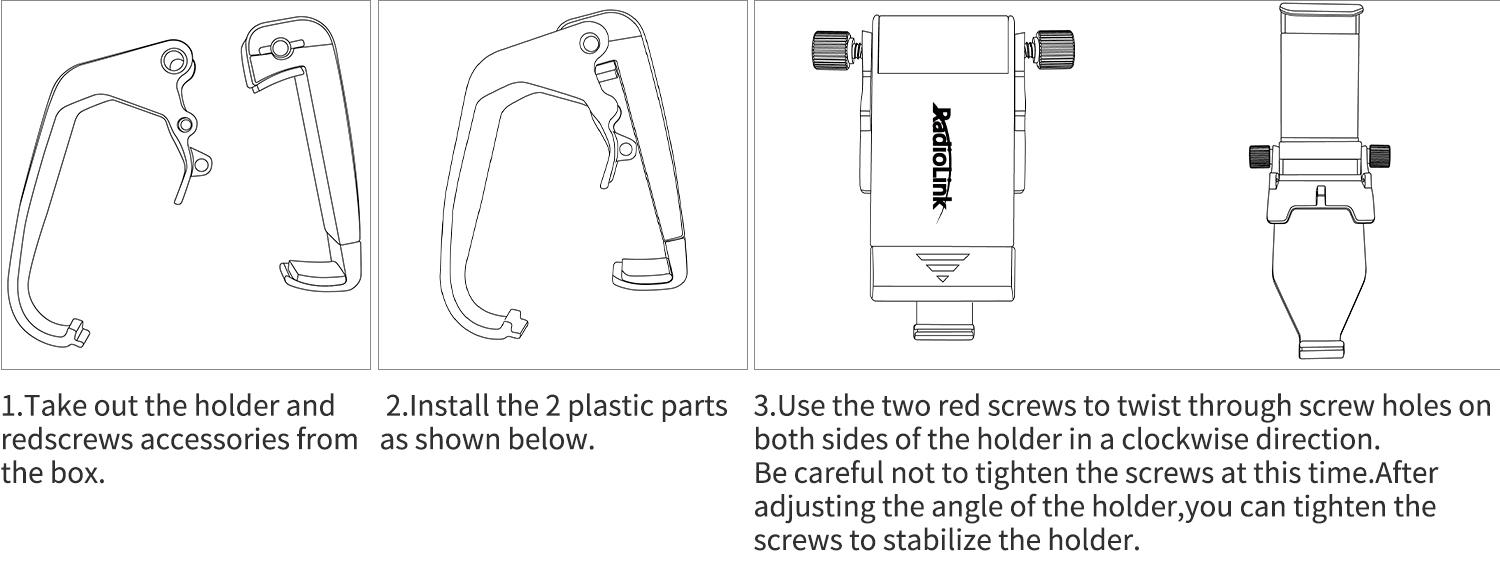

TX and FPV Monitor Holder




1

Shell for DIY



1

1

Hook and Spring



1

1

Battery Charger

1

1

1

1

USB Cable



1

1

RX and FC Connect Cable



1

1

Direction LED for night flight




1

Screwdriver

1

1

1

1

F121 User Manual

1

1

1

1

Hawkeye FPV Manual




1


Chapter 1 Features of F121


As the mini racing drone that can fly at high speed at Altitude Hold Mode, F121 is very easy to master for drone freshman. The inertial navigation system technology blending Kalman filteringgyro, accelerometer and barometer makes F121 possible to flight through narrow space with accuracy and hold altitude even itless than one-meter height to the surface or at high speed. With three flight modes Alt-Hold at low speed, Alt-Hold at high speed and Stabilize, beginners can flight stably at the first trial.

F121 is monitored by RadioLink mini racing drone flight controller F121which is different from other flight controllers with PID needs to be set before use,will tune automaticallyThe software noise reduction technology not only enables a more pleasant flight but also makes the motors more responsive and more efficient than traditional 8520 coreless motors.It can be thrown and start to fly at any angle even under high-speed and remains stable even facing with sudden airflow fluctuations such as during takeoff, under braking, or after extended flying. Without compass locking, F121 always automatically modify angles during flight .


Chapter 2 Before Flight


2.1 Power Supply

Power for transmitter T8S: Make sure the transmitter is fully charged.

Power for F121The voltage of 1S LiPo battery packed with F121 by default is not fully charged so the battery needs to be charged with the charger CM120 before flight.

The LiPo battery charger CM120, specially designed for 1S LiPo battery, sharing the professional development and high precision of CB86PLUS, ensures safer charging and battery life span.

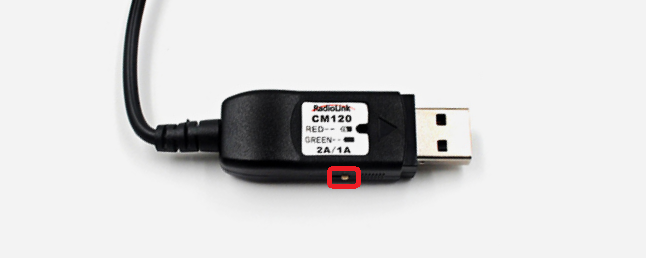

Charging current can be set as 1A or 2A by toggling the switch at the side of the charger.

The Red LED flashes slowly indicates the battery is under charging. The Green LED always on indicates the battery is fully charged. The Red and Green LED Flashing alternately indicates Fault prompt.

CM120 applies general USB connector, both computer and power bank for mobile phone can be used with CM120.

Note Voltage output of power supply should be NO higher than 5V.

2.2 Transmitter

The two joysticks of T8S correspond to the four basic channels respectively . The below example takes RadioLink radio T8S Mode 2 (Throttle on the left stick) .

Left joystick

Make the F121 rise or descend by toggling the left stick(THROTTLE) vertically upward or downward and turn clockwise or anticlockwise by toggling the left stick(YAW) to the left or right.

Right joystick

Make the F121 fly forward or backward by toggling the right stick(PITCH) vertically upward or downward and to left or right by toggling the right stick(ROLL) to the left or right.







Note If its the transmitter from other brands used with RadioLink F121, make sure that the receiver should be SBUS signal output supported. Once the receiver is installed on the mini drone, the phase of the throttle should be reversed while the other three channels normal and the CH5 should be set with a 3-way switch. Servo phases of transmitters from other brands should be set according to the actual situation.


2.3 F121

Assembled as building block makes the RC students exercise their DIY ability and free from lengthy mobile games.Learning knowledge of science and technology when assembling, setting parameters and flight.






















2.4 Joysticks & Flight Movements

A. Throttle: Rise/ Descend/Hover

Toggle the throttle stick (on the left) vertically upward and F121 will rise and toggle the throttle vertically downward, then F121 descends

If at Alt-Hold Mode, toggle the throttle stick vertically upward till the F121 rises to the preferred height, then toggle back to center position and release, the F121 will remain at this height.






















Yaw: Clockwise/Anticlockwise

Toggle the yaw stick (on the left) to the left and F121 will turn anticlockwise and toggle the yaw stick to the right, then F121 turns clockwise.















Pitch: Forward/Backward

Toggle the pitch stick (on the right) vertically upward and F121 will fly forward and toggle the pitch stick vertically downward, then F121 flies backwards.





















RollRight/Left

Toggle the roll stick (on the right) to the left and F121 will fly to the left side and toggle the roll stick to the right, then F121 will fly to the right side.


















Chapter 3 Get Ready to Flight

Motor Installation

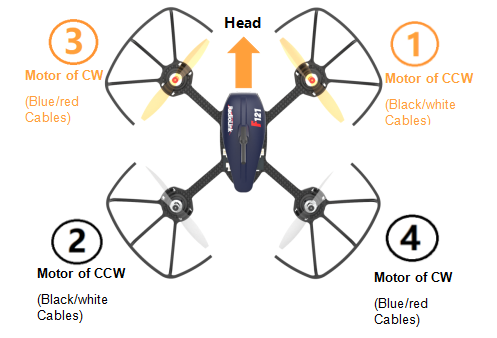

To make the aircraft fly, motors usually rotate clockwise(CW)/counterclockwise(CCW) with the propellers. The rotation direction of F121 motors can be identified by the cable colors. That is, red/blue means motor of clockwise(CW) while black/white means that of counterclockwise(CCW). It is very important to make sure about the rotation direction as below when installing motors. Otherwise, the drone would fail to take off.


* Motors installation can be skipped as the whole F121 is already assembled by factory default. If any of the motors is worn out and needs to be replaced, its essential to identify the correct motor rotation.


3.2 Propellers Installation

F121 is installed WITHOUT propellers protector by factory default because of the package consideration. To ensure a safety flight, its strongly advised to check if the protectors are well installed .



Find the two notches respectively on the motor protector

and propeller protector as image on the right.

Put on the propeller protector from the bottom and adjust

the position of the notches correspondingly.

Stabilize the frame with left hand and buckle the notch

of one side with right hand. Then buckle the notch of the other

side with left hand. A DA sound will be heard if the installation is done with success.

4. Extra 4 screws are in the package and pilot can installed on the propeller protector as prefer.







Note After the installation of the four propeller protectors, double confirm if they are leaning or slightly shake F121 to see if they drop. If they are crooked or drop, repeat the above steps to ensure the well installation.

Propellers installation can be skipped as the whole F121 is already assembled by factory default. If the default propellers get worn and needs to be replaced after a period of flight, it is important to well identify the rotation direction of propellers. If installed incorrectly, F121 can’t take off even the throttle is pushed to max.

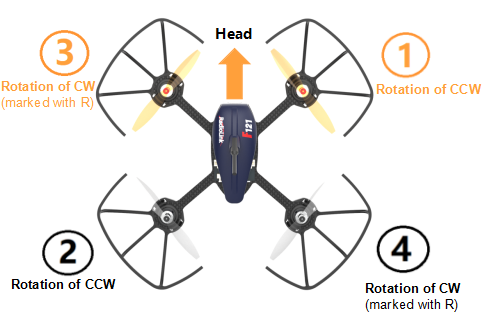

In order to identify the propellers rotation, take a propeller and observe there’s a radian at both sides of the small cylinder in the middle. The higher part (also called windward side) of the right propeller is at the front and the rotating motor will make propeller rotate counterclockwise(CCW). On the contrary, that is clockwise(CW) rotation. For the 65mm GEMFAN propellers used on F121, there are two marked with a letter R, meaning they should be installed on the motors of clockwise.










When the installation is done, make sure the four motors are vertical to the aircraft frame. Adjust them to vertical positions if necessary, otherwise F121 may not flight successfully.








3.3 Power On F121

Before powering on F121fully charge the 1S LiPo battery first. Plug the PH2.0 end of the battery into the F121, then insert the battery into the battery frame under at the bottom of F121.

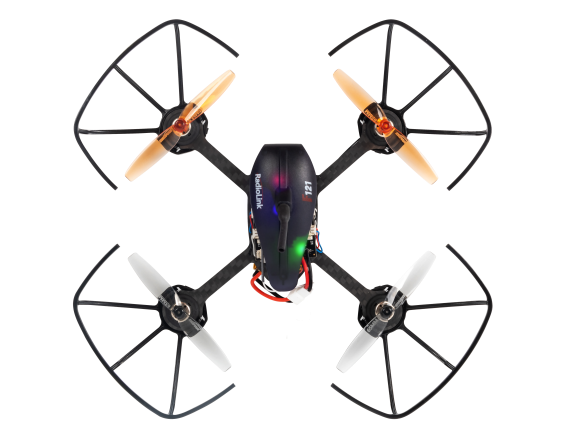

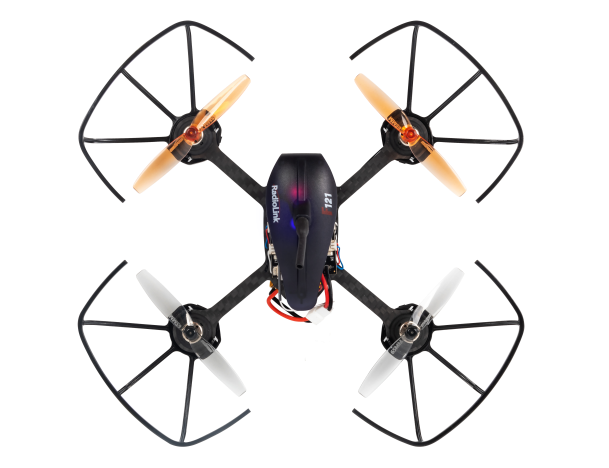

Orange propellers indicates the head of F121 by default. make sure they point to the same direction as the pilot when powering on and be ready to fly, to ensure safety.

The green LED of F121 will begin flashing when powered on. When it’s off, it means F121 finishes calibration.

Note Head direction is determinate. IF121 is calibrated with the direction different from the default, it will turn back to the default direction automatically when starts flying, That’s what we called Head Front Forward Point Without Compass. When the flight controller incorrectly recognizes the nose direction, you can re-power the aircraft, or make the flight controller re-identify the nose direction by re-calibrating the aircraft.


3.4 Flight Note

If its the first time of flying drone, flight mode of Altitude Mode-Low Speed is strongly advised to set. At the altitude mode, when toggle the throttle upward till the drone reaches a certain height and release, F121 will remain at this height. Its simpler because pilots only need to toggle the other joystick to make the F121 move forward/backward or turn left/right. If its the Stabilize Mode chosen, try to toggle the joysticks slightly to correct the flight and avoid the drone having sudden moves.

If F121 drops by hitting something, toggle throttle stick to the bottom position immediately to stop motor rotation.

Make sure the signal output of receiver is SBUS to ensure normal operation of F121. For RadioLink receivers(R8SM/R6DSM) installed on F121, the led indicator is blue/purple when its SBUS working mode.

3.5 Setup Compatible Transmitters

By factory default, F121 standalone version doesnt have receiver installed while RTF version is packed with the transmitter T8S and receiver R8SM combo. Receiver R8SM is also compatible with RadioLink T8FB. If its RadioLink transmitter AT10/AT10II/AT9/AT9S/AT9S Pro used with F121, compatible receiver should be R6DSM.

When using transmitters and receivers from other brands, please note:

1. Check the minimum working voltage of the receiver.

The minimum working voltage of many mini receivers on the market can only reach 3.7V, while aircrafts with coreless motors are usually powered by 1S 4.2V lithium batteries, and the voltage of the aircraft can easily drop below 3.7V during high-speed flight. Then the receiver will lose control due to insufficient power supply, and the aircraft will crash. So if you use transmitters and receivers from other brands, please pay attention to the minimum working voltage of the receiver. The minimum working voltage of RadioLink R8SM, R8FM, R6DSM mini receivers and F121 flight controllers can work well even when it reaches 2.3V.

2. Please make sure that the receiver you are using supports SBUS signal.


T8FB/T8S

RadioLink 8-channel transmitter are well set by factory default with the flight modes. To control F121, binding is the only thing needs to be done.

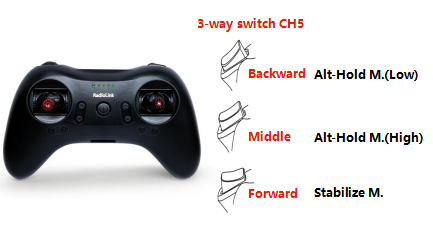

There are three flight modes for F121 including Altitude Mode- Low Speed, Altitude Mode- High Speed and Stabilize Mode. It can be changed by pressing the three-way switch on T8FB- SWB or T8S- CH5 as below










AT9S Pro/AT9S/AT9/AT10/AT10II

Enter BASIC MENU, select MODEL TYPE and choose MULTIROTOR










(2) Return to BASIC MENU, select REVERSE and set CH3 Throttle as REV .











(3) Enter ADVANCE MENU, select ATTITUDE and set the CHANNEL as CH5, SW3 as SWC with up position as Alt-Hold Mode(Low Speed), middle position as Alt-Hold Mode(HIgh Speed) and low position as Stabilize Mode.























* For more setting instructions of different RadioLink transmitters, please visit www.radiolink.com to download the corresponding detailed e-manual.


3.6 Binding

If it’s the RTF version( whole pack including T8S+F121+bag) purchased, there’s no need to bind because the binding is complete with receiver R8SM installed by factory default. However, if it’s only the aircraft F121 is purchased, binding between the transmitter and F121 with receiver installed needs to done first.


If fly F121 with RadioLink transmitter and receiver, binding steps are same as following.

Place the transmitter and receiver(installed on F121) close to each other within 50 centimeters.

Power on the transmitter and F121.

There is a black binding button(ID SET) on the side of the receiver, press it for more than 1 second. When the LED starts flashing, meaning binding process has started.

The binding is complete when the LED is always on.

Make sure F121 is armed (Details in next section). Gently push the throttle of transmitter to see if motors move. If doesn’t, retry binding again.











Note

F121 currently supports SBUS signal output onlyalways make sure the LED of R8SM/R6DSM is blue/purple, meaning SBUS signals outputIf the LED is red, press the binding button twice in 1 second and release to change it to purple/blue.

If its the transmitter of AT9S Pro/AT9S/AT10/AT10II used, channel quantity needs to be set first in order to be compatible with receiver R6DSM. Long press MODE to enter BASICE MENU, select SYSTEM and modify CH-SELECT as 10CH. Otherwise, F121 wont be able to be armed.


3.7 Arm and Disarm F121

A. How to arm

Throttle on left(Mode 2): Toggle the left joystick to the lower right corner and hold this position for 3 seconds till the green LED of F121 is on.










Throttle on right(Mode 1): With right joystick at bottom, toggle the left stick to the right and hold this position for 3 seconds till the green LED of F121 is on.








B. How to disarm

When the flight is finishedalways make sure F121 is disarmed when get close and try touching it to avoid unexpected harm.

Throttle on left(Mode 2): Toggle the left joystick to the lower left corner and hold this position for 3 seconds till the green LED of F121 is off.












Throttle on right(Mode 1): With right joystick at bottom, toggle the left stick to the left and hold this position for 3 seconds till the green LED of F121 is off.








Chapter 4 Flight at Different Flight Modes


It’s strongly advised for beginners to start from Altitude Hold Mode (Low-speed) to Altitude Hold Mode (High-speed) then to Stabilize Mode.

It’s better to keep the direction of F121 head same as pilot in order to easily judge the flight direction. Otherwise, F121 may flight towards pilot and get him/her hurt. If the aircraft head is changed unexpectedly and different from pilot’s direction, pull the throttle stick to the lowest position to land F121.

4.1 Altitude Hold Mode (Low-speed) and Altitude Hold Mode (High-speed)

4.1.1 Rise/Descend

Press the CH5 switch of T8S backward, which makes F121 fly at Altitude Hold Mode (Low-speed). Make sure the orange propellers at front when powering F121 on. Then arm F121 and push the throttle joystick vertically upward higher than center position, then the F121 will rise while if push it vertically downward, then the F121 will descend.

4.1.2 Hover

Push the throttle joystick vertically upward till the F121 rises to a height as wish, then toggle it back to center position and release , the F121 will hover at this height.

4.1.3 Forward/Backward/Right/Left

At Altitude Mode, F121 is able to fly forward/backwards or towards to right/left by toggling the right stick at the certain height .

For beginners, make sure to push the stick gently because being a racing drone, F121 is very responsive. It’s advised to release the stick as soon as toggle to one direction so that F121 will back to level automatically. Otherwise, F121 will keep flying to the toggled direction with accelerated speed.

4.1.4 Clockwise/Anticlockwise Rotation

When get familiar with the above flights, try flight clockwise/anticlockwise because the yaw practice is more difficult to judge the flight direction. Clearly knowing the direction will quickly help master drone flight. Try imagine sitting on the drone could be better way to practice.

Toggle the rudder joystick to the left and F121 will flight anticlockwise while if to the right, then the F121 will flight clockwise.

4.2 Stabilize Mode

Press the CH5 switch of T8S backward and it keeps F121 work in Stabilize Mode.

When at Stabilize Mode, F121 will flight faster than when at Altitude Mode. Toggle joysticks as gentle as possible to avoid drastic movements, which may possibly hurt the pilot. Make sure that the battery is fully charged before enjoying the flight.

Once get familiar with the low speed and high speed at the Altitude Mode, beginners can practice how to rise/descend,hover, pitch forward/backward, move to left/right and rotate to clockwise/anticlockwise at the Stabilize Mode, which is more challenging.


4.3 Switch for 360 Angle Flips Mode

F121 add a mode named Switch for 360 Angle Flips Mode except Altitude Hold Mode, and Stabilize Mode. The setting steps as below:














When the transmitter is T8S, press the CH6 switch twice continuous and then push the aileron or elevator stick. If push the aileron stick to the left, the F121 will roll 360 degrees to left. If push the aileron stick to the right, the F121 will roll 360 degrees to right. If push the elevator stick upward, the F121 will roll 360 degrees forward. If push the elevator stick downward, the F121 will roll 360 degrees backward.

When you ready to controlling your F121 roll 360 degrees backward, you must fly your F121 far away from yourself first to ensure safety.

When the transmitter is T8FB, the 360 Angle Flips Mode switch is VrB, the operating steps are same as T8S.

Attention: The interval time for push the aileron or elevator stick do not more than 5 second when you press the 360 Angle Flips Mode Switch. You have pressed the switch again if the time is more than 5 second.

Note When the green LED on F121 starts flashing during flight, it means the voltage of F121 is lower than 3.8V as this value is default for 1S battery. It’s advised to stop flying to avoid battery over discharging.



Chapter 5 Image Transmission of F121

The image transmission device of F121is 5.8G 25mW all-channel camera integrated image transmission. If its the image transmission version purchased, the binding between F121 and the FPV screen has been done by factory default. Pilots only need to power both on before flight. If its the standalone version of F121, an FPV screen or a goggle with integrated 5.8G image transmission receiver is needed and setup by following its instructions.

The default transmission power is 25MW. Available power among 25MW,100MW and 200MW can be changed by pressing the button on the camera. More instructions about setting the power, please visit www.radiolink.com for detailed manual.

Note As device of image transmission includes transmit and receive, the distance could be influenced by the gain of transmit and receive.



5.1 Little Pilot (SCHOOL) All-in-one 4.3 inch FPV Monitor

5.1.1 Buttons and Functions



















Button Name

Function

1. Adjustment button(+)

Short press to select desired frequency from 6 groups A-B-C-D-R-F

2. Power/Menu button

Long press to turn-on/off

3. Adjustment button(-)

Short press to select desired frequency from groups 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8

4. Micro USB Charge port

Charging

5. Reset

Reset

5.1.2 Little Pilot Monitor Frequency Group Selection


5.1.3 Bind Little Pilot Monitor to F121

1. Automatic binding (Recommended):

Power on F121, and then long press button(+) in Little Pilot FPV to start auto search. After searching, the FPV screen with the strongest signal will be automatically displayed.

2. Manual binding:

 Check the frequency of F121 according to the method in Chapter Chapter 5.3.2 Customize the power/Band/frequency

 Match frequency of F121 to the frequency table of Little Pilot FPV. Short press button(+) to adjust to the corresponding frequency band, and short press button(-)to adjust to the corresponding frequency point

For example, the frequency of F121 is B5, 5809, according to the method in Chapter 5.3.2 Customize the power/Band/frequency. 5809 corresponds to D5 in frequency table of Little Pilot FPV Monitor. After the FPV monitor is turned on, adjust the band/frequency at the top of the screen to D5 by short pressing the button(+) and button(-) to complete the binding.




5.2 LONGSITE 3-inch FPV Goggle









5.2.1 Description

① Key 1: Short press for MENU mode; Long press (More than 3 sec) for Power ON/OFF.

② Key 2: Short press for Auto-Searching (Automatic selection of the strongest channel).

③ Key 3: Short press for Band+ (Change bands A-B-E-F-R circularly).

④ Key 4: Short press for Channel+ (Change channels 1-2-3-4-5-6-7-8 circularly).

⑤ Eye ring: protect the surrounding parts of the eyes, so that the wear more comfortable.

⑥ Micro-USB Charging port: Supports DC5V only.

⑦ Antenna port A: RP-SMA male.

⑧ Charging indicator: Red light when charging light; full power, the indicator goes off.

⑨ Antenna port B: RP-SMA male.

⑩ AV Jack: In RF receiving mode can output AV signal; In AV mode can enter the video signal.

⑪ Head band: Adjustable headband.


5.2.2 Menu Operation Instructions

In normal mode, press Key 1 to enter the MENU mode.

 In MENU mode:

① Key 1: Select the option bar.

② Key 2: Return to normal mode.

③ Key 3: Value -.

④ Key 4: Value +.





5.2.3 LONGSITE FPV Goggle Frequency Table

Frequency Table(MHz)


CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

Band A

5865

5845

5825

5805

5785

5765

5745

5725

Band B

5733

5752

5771

5790

5809

5828

5847

5866

Band E

5705

5685

5665

5645

5885

5905

5925

5945

Band F

5740

5760

5780

5800

5820

5840

5860

5880

Band R

5658

5695

5732

5769

5806

5843

5880

5917









5.2.4 Bind LONGSITE FPV Goggle to F121

1. Automatic binding (Recommended):

Power on F121, and then long press Search button in LONGSITE 3-inch FPV Goggle to start auto search. The successful display of the image transmission means that the binding is successful.

2. Manual binding:

 Check the frequency of F121 according to the method in Chapter 5.3.2 Customize the power/Band/frequency

 Match frequency of F121 to the frequency table of LONGSITE FPV Goggle. Short press Band+ button to adjust to the corresponding frequency band, and short press CH+ button to adjust to the corresponding frequency channel.

For example, the frequency of F121 is D5, 5820, according to the method in Chapter 5.3.2 Customize the power/Band/frequency. 5809 corresponds to F5 in frequency table of LONGSITE FPV Goggle. After the FPV goggle is turned on, adjust the frequency at the top of the screen to F5 by short pressing the Band+ and CH+ button to complete the binding.


5.3 Image Transmission of F121

5.3.1 LED Indicator of the image transmission

① RED and BLUE always on means normal working status. YELLOW is used to indicate that the module is overheated, and the image transmission enters the protection mode.

② If RED is always on while BLUE is off, meaning it’s at PitMode. That is, transmission off. The transmission distance is 1-2m. It’s advised to choose this mode if there are many people switching channels simultaneously at the same space so that channels won’t get mixed.

③ The transmission power is 200MW by default. If you need to change the transmission power, press Channels/Power Switching Button on the camera to set it. The transmission power can be set to 25MW, 100MW and 200MW. For details, see Chapter 8.3.2 below.

④ Since the image transmission system consists of the transmit and the receive, the receiving distance of the image transmission is related to the gain of both the transmitter and the receiver of the image transmission.








5.3.2 Customize the power/Band/frequency

After powering on, wait for 10 seconds to initialize, red and blue(and yellow) always on means normal working statusLong press the channels/power switching button, the channel frequency, the channel team and the transmit power will recycle.














Table of Band/Frequency

Band/Freq

1

2

3

4

5

6

7

8

A

5865M

5845M

5825M

5805M

5785M

5765M

5745M

5725M

B

5733M

5752M

5771M

5790M

5809M

5828M

5847M

5866M

C

5705M

5685M

5665M

5645M

5885M

5905M

5925M

5945M

D

5740M

5760M

5780M

5800M

5820M

5840M

5860M

5880M

E

5658M

5695M

5732M

5769M

5806M

5843M

5880M

5917M

F

5362M

5399M

5436M

5473M

5510M

5547M

5584M

5621M









Frequency Selection: When the image transmission is in normal working state (that is, when the RED and BLUE indicator lights are always on), long press the channels/power switching button for 5 seconds, the RED led flashes once means entering the frequency selection mode. Then short press the button again, the frequency changes each time the button is pressed once. The blue led flashes 1 time means Frequency 1, 2 times means Frequency 2, 3/4/5/6/7/8 etc.


Take F121 and Little Pilot FPV Monitor as an example:

For frequency selection, long press channel/power switch button on F121 for 5 seconds to enter the frequency selection mode, and then short press the button to switch to the desired frequency point. For example, the frequency point was originally A1 5865. Short press the channel/power switch button 3 times to switch the frequency point from A1 5865 to A4 5805. After switching the frequency point of F121, the Little Pilot FPV Monitor screen will be disconnected due to different frequency points. At this time, long press button(+) on Little Pilot FPV Monitor to start auto search (for the method of manual binding, please refer to the chapter: 5.1.3 Bind Little Pilot (SCHOOL) FPV Monitor to F121), After searching, the FPV screen with the strongest signal will be automatically displayed. and the frequency on the screen will be changed to A4 5805 synchronously. After the frequency point is changed, you need to save the settings. Press and hold the channel/power switch button for 3 seconds. The RED and BLUE lights always on indicates that the modified parameters are saved successfully. Otherwise, original frequency point will be remained after F121 is powered on again.


Note: Sometimes the frequency point on the lower left of the FPV screen of the Little Pilot FPV Monitor is different from the frequency point on the upper right, but the image can also be displayed. That is because the image can be seen in the similar frequency band, but once the distance between the aircraft and the FPV display screen is far away, The sensitivity will be reduced, and image will be unclear, so it is best to keep the same frequency.


Band Selection: In frequency selection mode, long press the channels/power switching button for 5 seconds, the RED led flashes twice means entering the band selection mode. Then short press the button again, the band changes each time the button is pressed once. The blue led flashes 1 time means Band A, 2 times means Band B, C/D/E/F etc.


After F121 and Little Pilot FPV Monitor are successfully bound, if you still need to switch the band, please press the channel/power switch button in the band selection mode to switch to the desired band. After switching, you need to long press button(+) on Little Pilot FPV Monitor to automatically search for channels. After the band is changed, you need to save the settings. Otherwise, original band will be remained after F121 is powered on again. Press and hold the channel/power switch button for 3 seconds. The RED and BLUE lights always on indicates that the modified parameters are saved successfully.


Power Selection: In Band selection mode, long press the channels/power switching button for 5 seconds, the RED led flashes three time means entering the power selection mode. Then short press the button again, the power changes each time the button is pressed once. The blue led flashes 1 time means 25mA, 2 times means 100mW and 3 times means 200mW.


After F121 and Little Pilot FPV Monitor are successfully bound, if you still need to switch the power, short press the channel/power switch button in the power selection mode to switch to the desired power. At the same time, the screen of the Little Pilot FPV Monitor will update the power in real time. After the power is switched, it will be automatically saved, you dont need to save the parameters again.


Turn on/off the transmission: When at the normal working status(with RED and BLUE lights on), quickly press the button twice and the working mode will change. When the RED light is on and BLUE light is off, it means its at Pitmode(Low power mode). When RED and BLUE lights are on, it means the normal transmission mode.


Parameter saving: When all parameters set, press and hold the channel/power switch button for about 3 seconds, the RED and BLUE always on means setting saved successfully; the RED and BLUE lights alternately flash means the frequency/band/power selection mode, and the parameters are not saved successfully. You need to press and hold the channel/power switch button again until the red and blue lights are always on.


Note

 When installing the image transmission camera, make sure the heat radiation is considered. Otherwise, the transmission power will decrease even turn off as the protection of over heating is activated.

 Its normal that the camera will get heated during usage. DO NOT touch it directly with hands in case of getting burnt.

 If the transmission antenna is broken or not well welded, the transmission distance will be impacted. Replace the antenna as soon as possible.

 The detailed instructions of setting FPV screen and goggle, please refer to its corresponding manual.

 If theres interference during the usage, try switching the camera channel first, then search for a new channel on FPV screen or goggle.

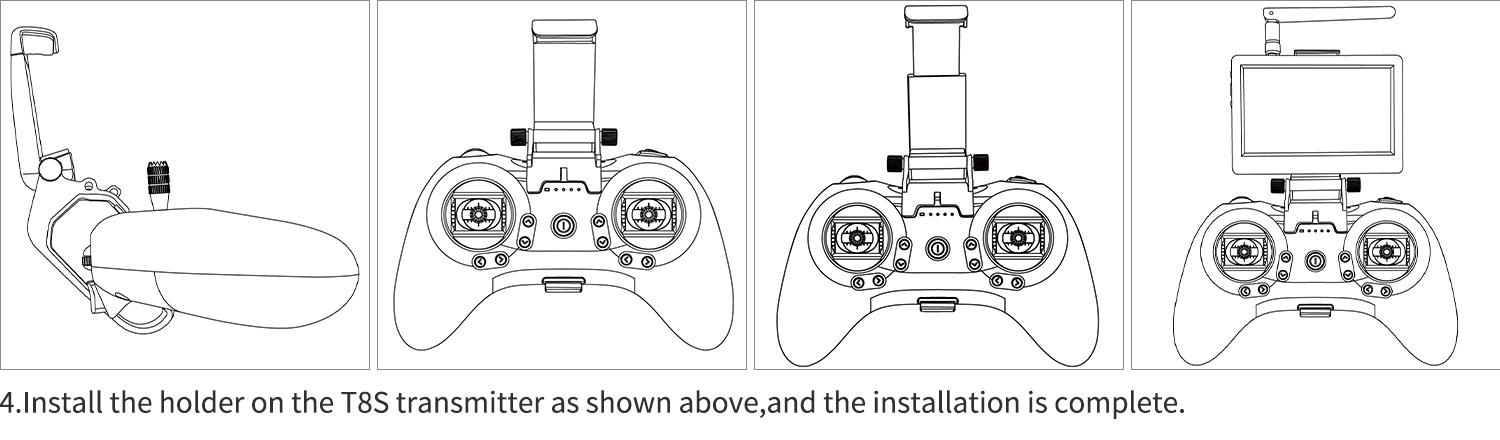

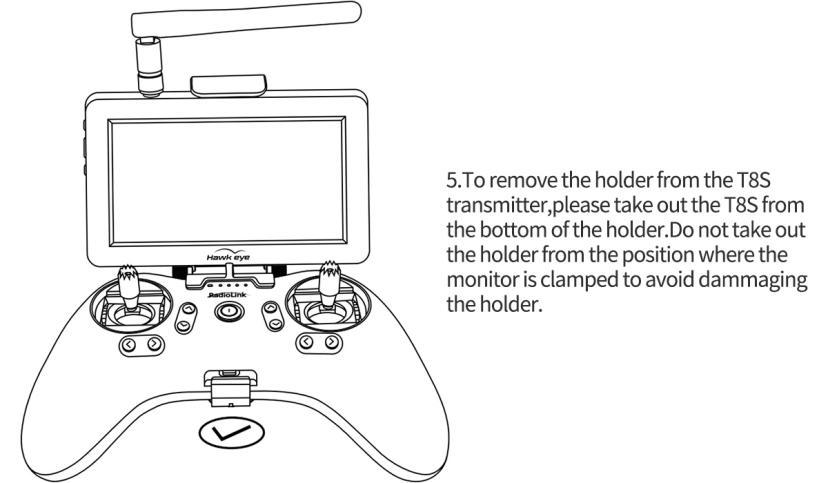

5.4 T8S Mobile/FPV Monitor Holder Instruction
















Chapter Specifications

6.1 F121 Specifications

Name: F121(Altitude Hold Micro Racing Drone)

Weight: 47.5g(Drone only)

Drone Size: 121*55mm(with antenna; 41mm without antenna)

Package Size: 170X210x113mm(RTF bag);210x163x67mm(Standalone box)

Transmitter Frequency: 2.4G

Image Transmission Frequency: 5.8G

Material: Carbon Fiber(Frame), Plastic(Cover, Bases for Image transmission/battery, Prop protector)

Motor: 8520 coreless with software to reduce noise

Propeller: GEMFAN propellers with diameter of 65mm

Transmitter: RadioLink 8-channel handle transmitter T8S

Receiver: RadioLink 8-channel mini receiver R8SM

Flight Controller: RadioLink flight controller F121

Battery: FULLYMAX 3.7V 660mA 25C LiPo Battery

Charger: USB Charger (1A/2A)

Flight Time: 10 minutes, suitable for Indoor and outdoor

Low Voltage Alarm: Green led flashes quickly when lower than 3.8V

Control Distance2KM in the air(Maximum range is tested in an unobstructed area free of interference)


6.2 Image Transmission System Specifications

Operating Frequency: 5.8G(48 channels: 6 brands, 8 channels of each band)

Power: 25mW/100mW/200mW

Voltage: DC 3~5.2V (1S)

Current (4.2V): 320mA(25mW)/400mA(100mW)/460mA(200mW)

Weight: 4.4g

Dimensions: 18.03*16.83*16.55mm

Resolution: 800 TVL

FOV: 150°

Focal Length: 1.2mm


6.3 Little Pilot Monitor Specifications

Brand: Hawkeye

Frequency: 5.8GHz

Display Dimensions:4.3 inch

Resolution: 480*3(RGB)*272

Channels: 48 channels

Brightness: 700 cd/㎡

Aspect Ratio: 16:9

Response Time: <10ms

Color System: PAL/NTSC

Working Time: more than 2.5 hours

Receive Sensitivity:-94dB


6.4 LONGSITE FPV Goggle Specifications

NameMini FPV Goggles

LCD Screen size3.0 Inch

Resolution480*320

Display Ratio16:9

View Angle6 o'clock

Brightness350cd/m² with high brightness backlight LED

Video delayless than 20ms

Lens: 4X Fresnel Lens, 92% transparent rate no distort of light

Antenna: 2 X RP-SMA male

LanguagesEnglish and Chinese

Power adapterDC5V/1A (USB interface)

Battery3.7V/1200mAh, Each full charge revive around 2.5hr working time



Thank you again for choosing RadioLink products.
