A560 3D Fixed Wing

Vertical Flight with 1 Switch

Assembly & Disassembly Instruction



























All electronic components of A560 are already set. If it’s the RTF version(with transmitter T8S and receiver packed), all you need to do after unpacking the box is to assemble the wingand then fly it.

Note: If it is the PNP version(without transmitter T8S and receiver packed), please follow the instruction manual of A560 to set channel 5 and channel 7 in your transmitter.

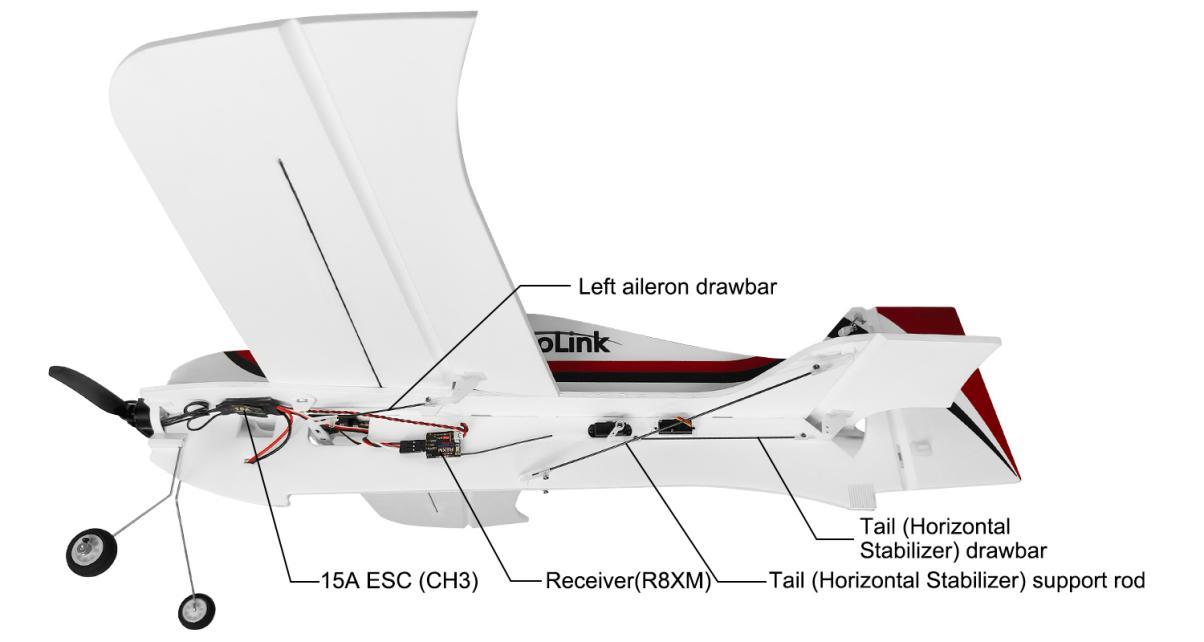

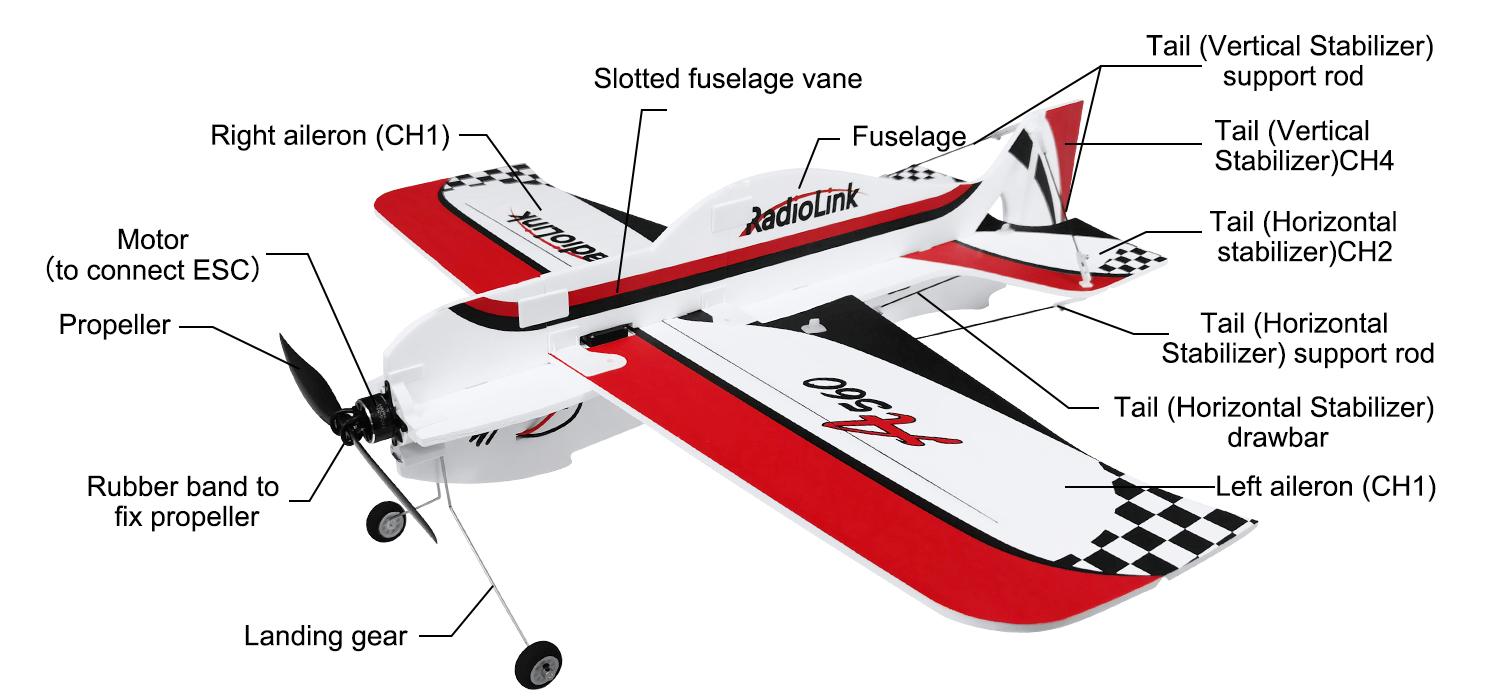

A560 Introduction:

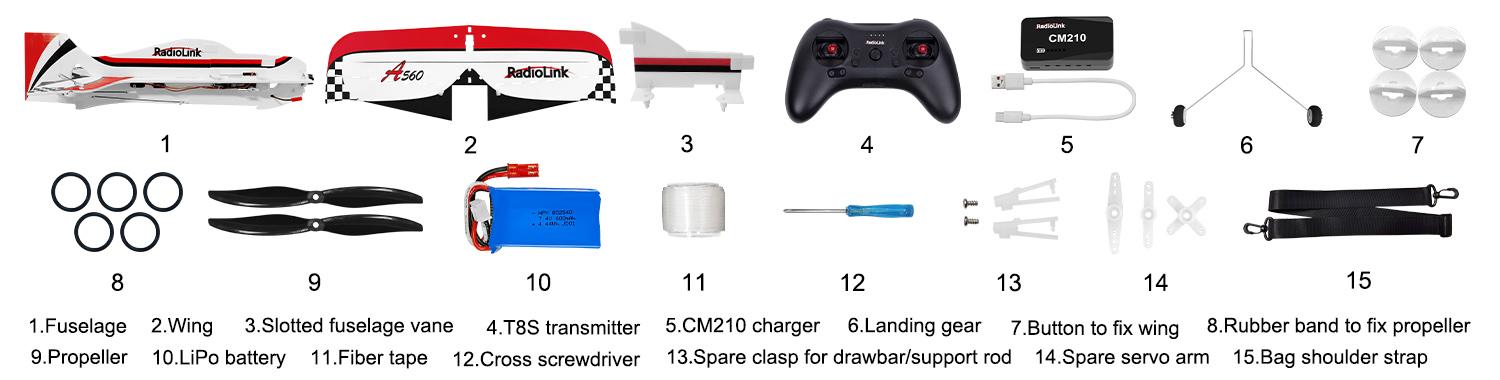

RTF A560 Spare Part List:











Note: Please refer to the sales interface for the actual spare part list.



A560 Assembly Steps:


Install the wing

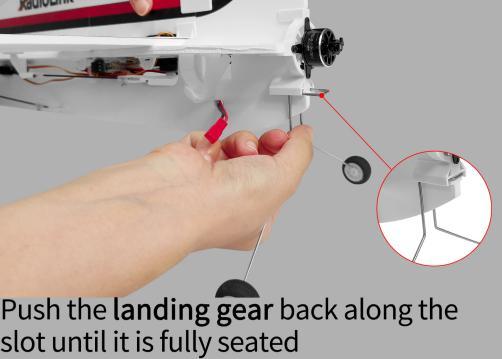

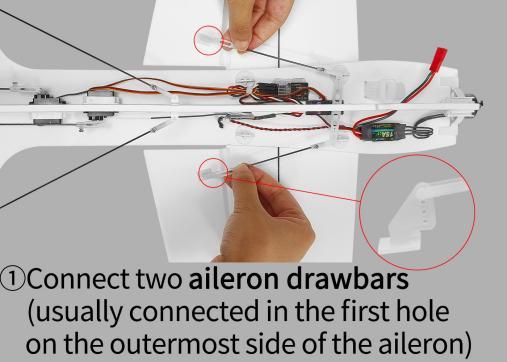

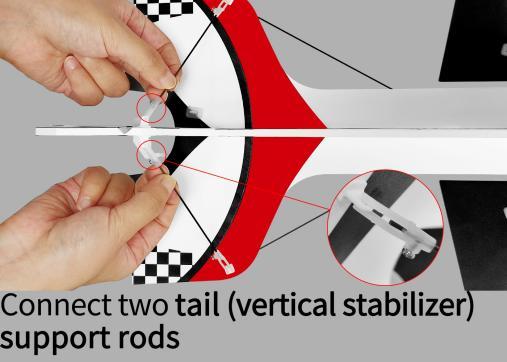

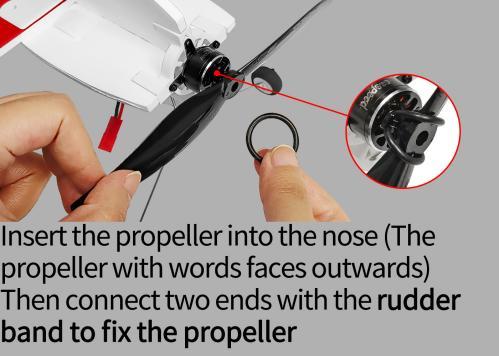

2. Connect tail support rods             3. Connect aileron drawbars           4. Install the landing gear                         5. Install the propeller













A560 Disassembly Steps:

After the flight, please disconnect the battery first, and then refer to the above assembly steps to disassemble the parts of A560 in turn. The disassembly steps are as follows:

Disassemble the propeller and landing gear. Please see Note①

Disassemble the the drawbars and tail support rods. Please see Note②

Diassemble the buttons to fix the wing. Remove the slotted fuselage vane and wing. Insert the slotted fuselage vane back.

Arrange all the spare parts and put them into the bag in turn. Keep all drawbars and rods parallel to the fuselage when packing it. Please see Note③


Disassembly Notes:

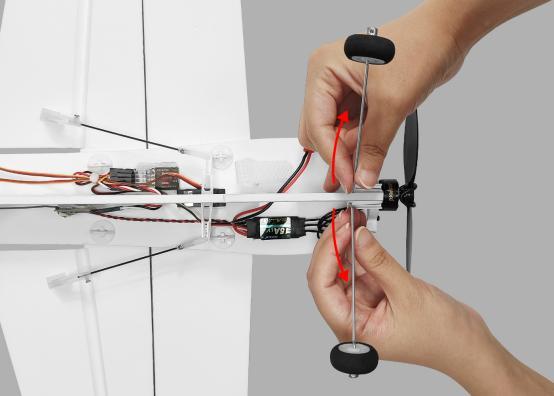

When disassembling the landing gear, please push the two metal rods of the landing gear in opposite directions at the same time, and then push the metal rods to make it out of the slot.

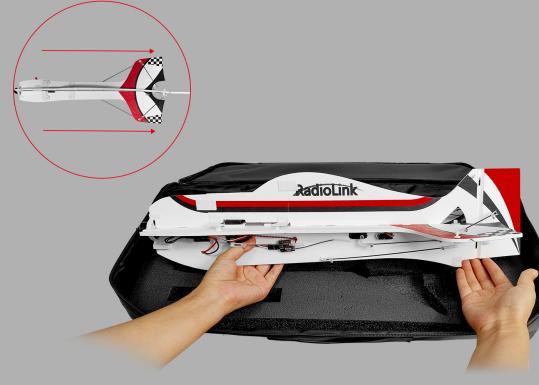

when packing the fuselage in the bag, please keep all drawbars and support rods parallel to the fuselage to avoid damage to the drawbar/rod caused by improper placement.

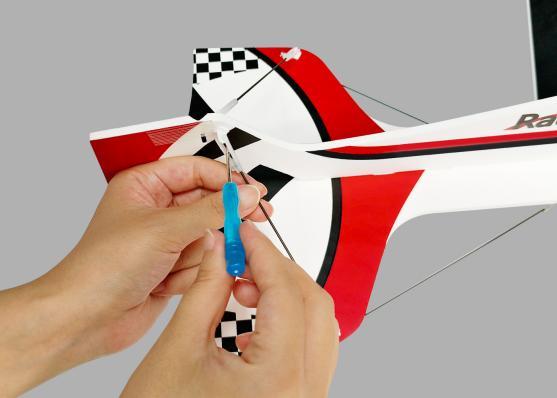

When disassembling the drawbars or support rods, please put the screwdriver in the middle gap of the clasp, and then pry it.

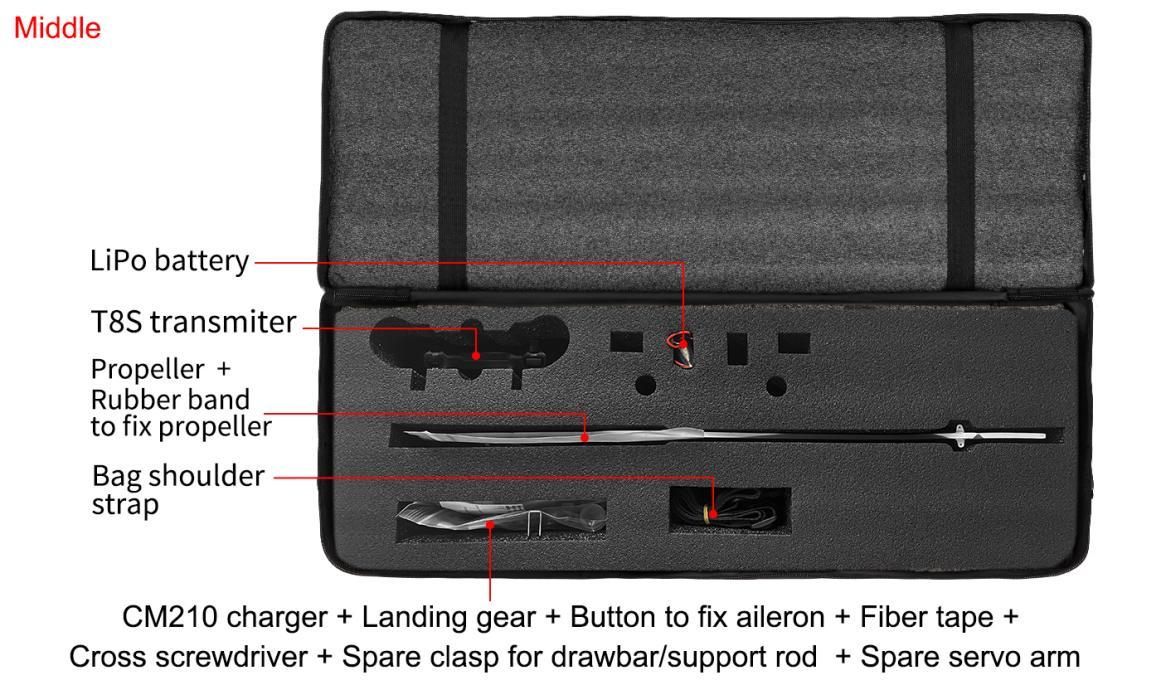

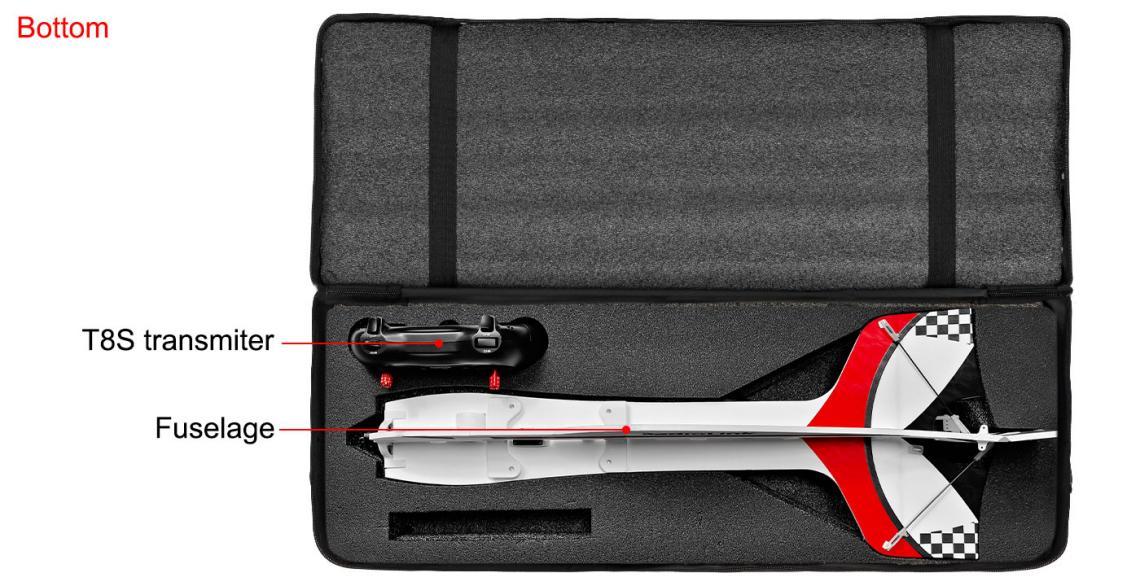

A560 Packing Steps:

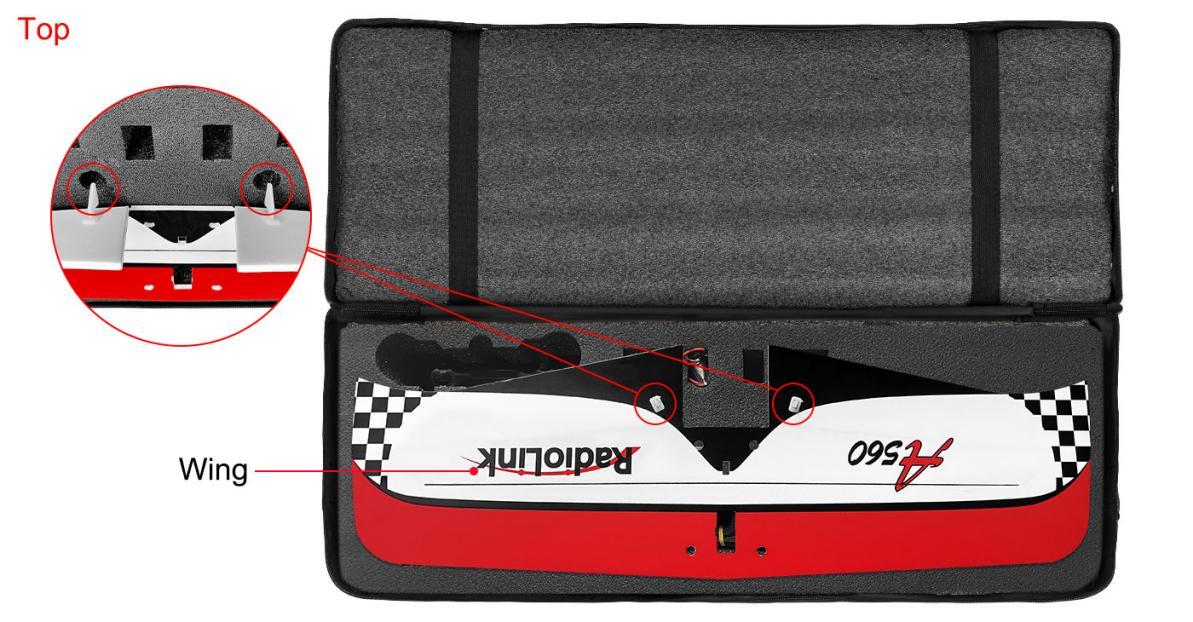

After the disassembly, please pack the parts of the A560 in the bag as shown in the picture below.

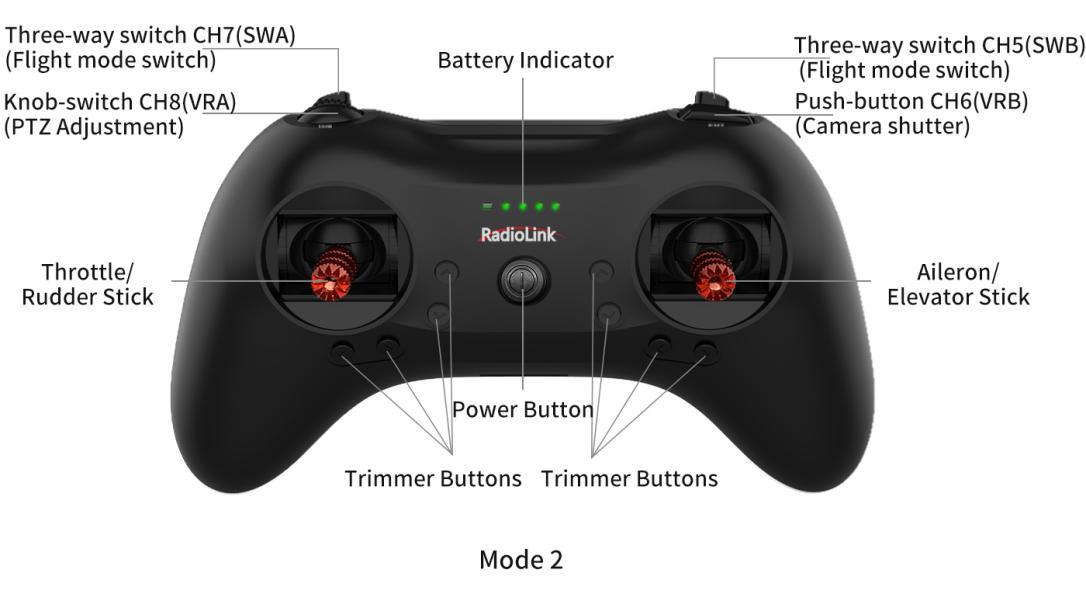

T8S Transmitter Overview:                                                                                                 Six Flight Modes Switch of A560:

















Scan below codes to view A560 tutorials:
