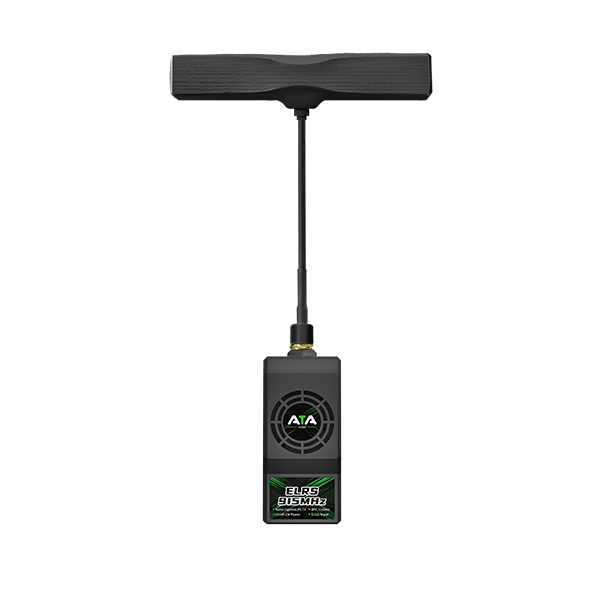

915MHz Long-range Module

ATA ELRS 1W

High Penetration | Strong Diffraction | Long-distance

ExpressLRS V3.2

1W Transmit Power

200Hz Maximum Refresh Rate

915MHz Frequency

JR Head Adapter Plug-in-play

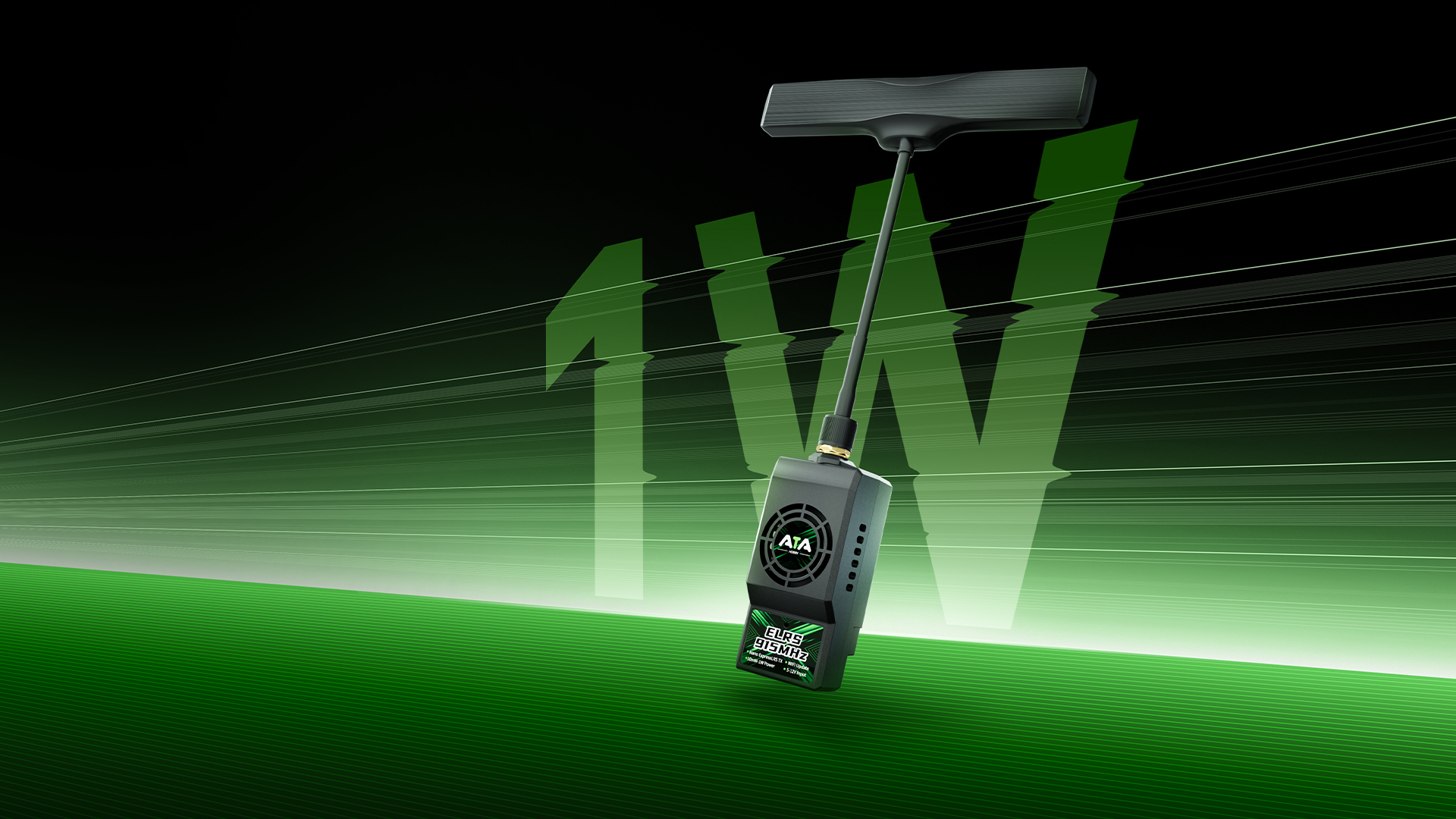

1W Transmit Power

Effective Expansion at a Longer Distance

FCC 915MHz frequency band

Data refresh rate and RF output power can be selected freely.

Exceptional penetration and bypass capabilities

The 915MHz high-frequency head boasts exceptional penetration and diffraction capabilities. It can penetrate or bypass obstacles such as buildings, forests, and mountains. Even when aircraft fly behind obstacles, the signal connection remains intact.

Super-long transmission distance

At equivalent transmit power, the 915MHz high-frequency head exhibits slower signal attenuation, making it more suitable for long-range navigation and operations in complex terrain.

200Hz Maximum Refresh Rate

Stable Data Transmission

It provides users with more reliable connections and more stable data transmission. Whether indoors or outdoors, it can provide a reliable and stable control experience.

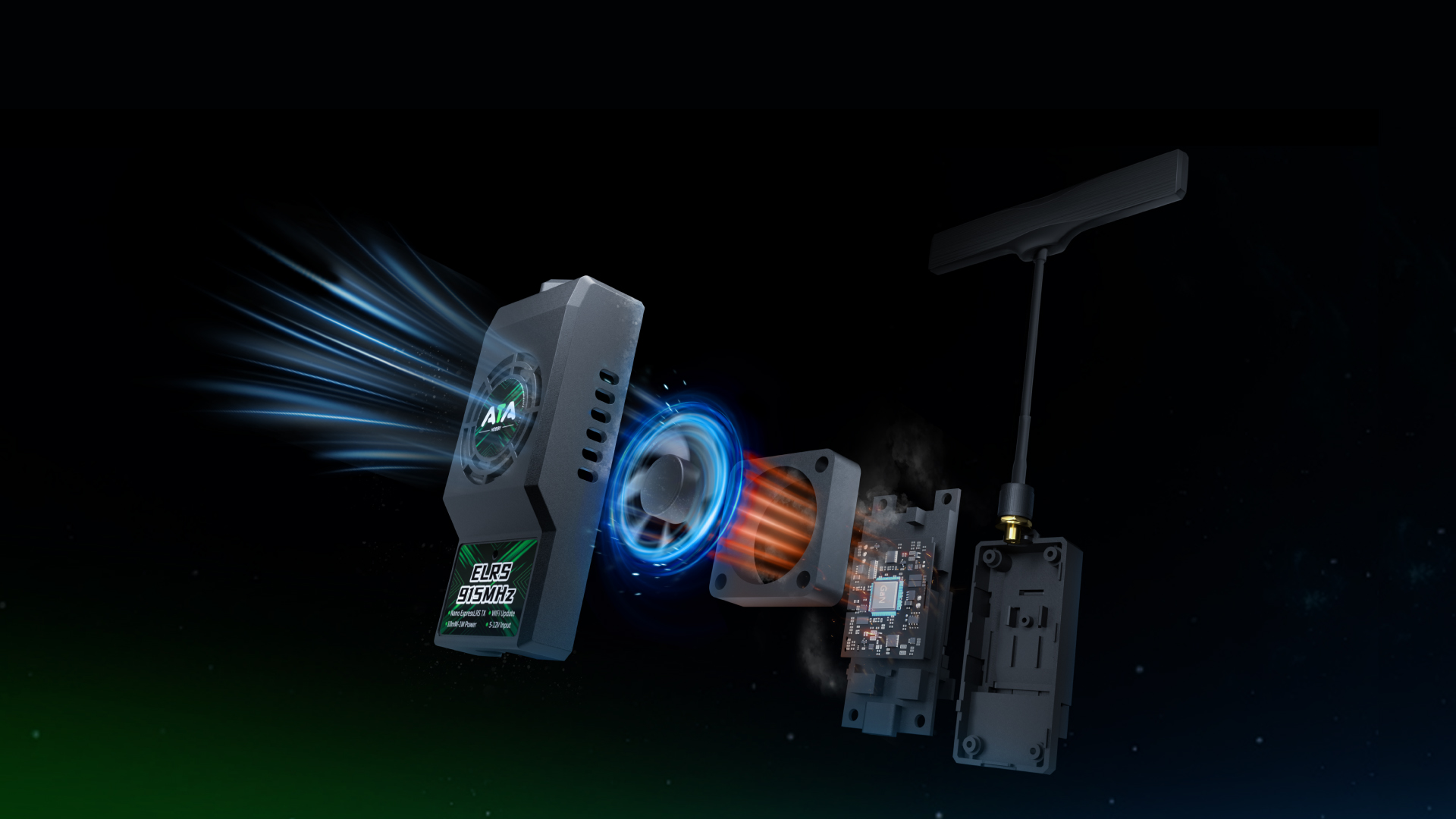

Built-in High-Efficiency Cooling Fan

With a built-in high-efficiency cooling system and an independent cooling duct, when the power exceeds 250mW, the fan will automatically start*

at a constant speed. Long-term working at 1W power will maintain a mild temperature.

* When the factory default power exceeds 250mW, the fan will start automatically, and the power that triggers the fan to start can also be adjusted by script.

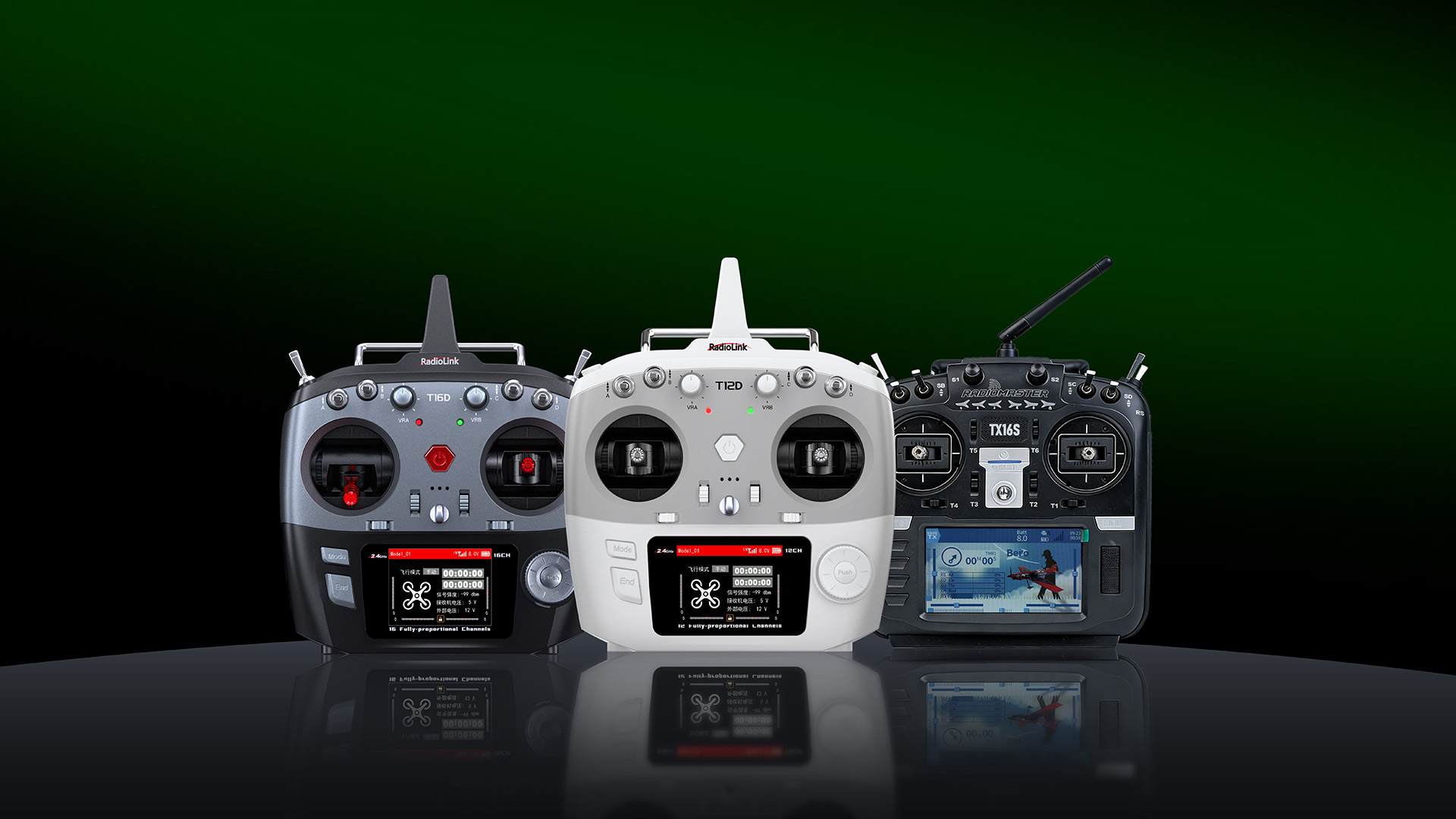

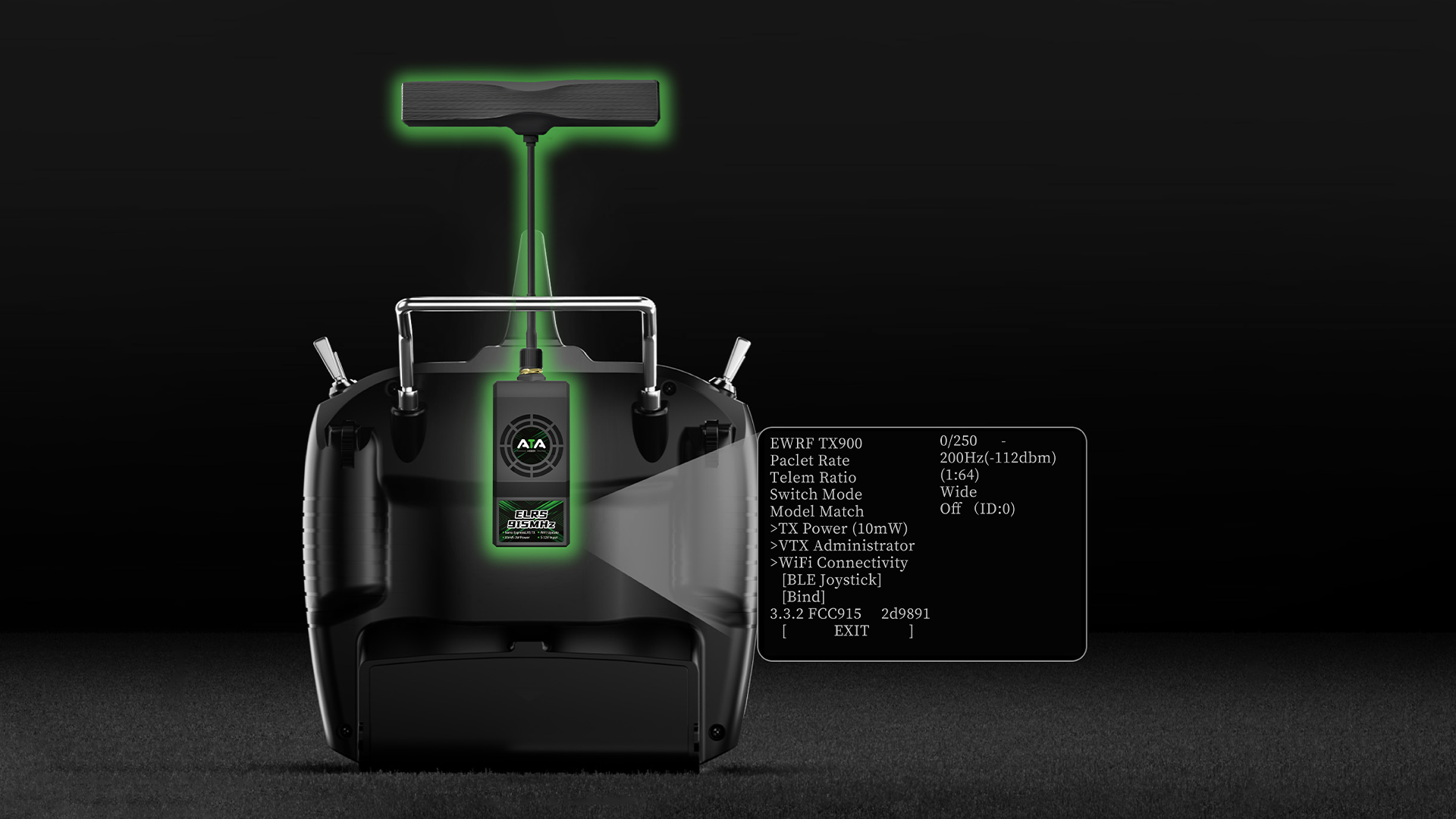

All Parameters of the FPV Aircraft Can be Adjusted by the Remote Controller

When it is used with the Radiolink 16 fully proportional channels transmitter T16D, the operating system can be synchronized to its latest version with one button through the LUA script. Parameters such as transmission power, frequency band, data refresh rate, and so on, can be set by the remote controller, thus realizing the perfect combination of the user-friendly interface of the remote controller and various functions of the open-source ELRS module.

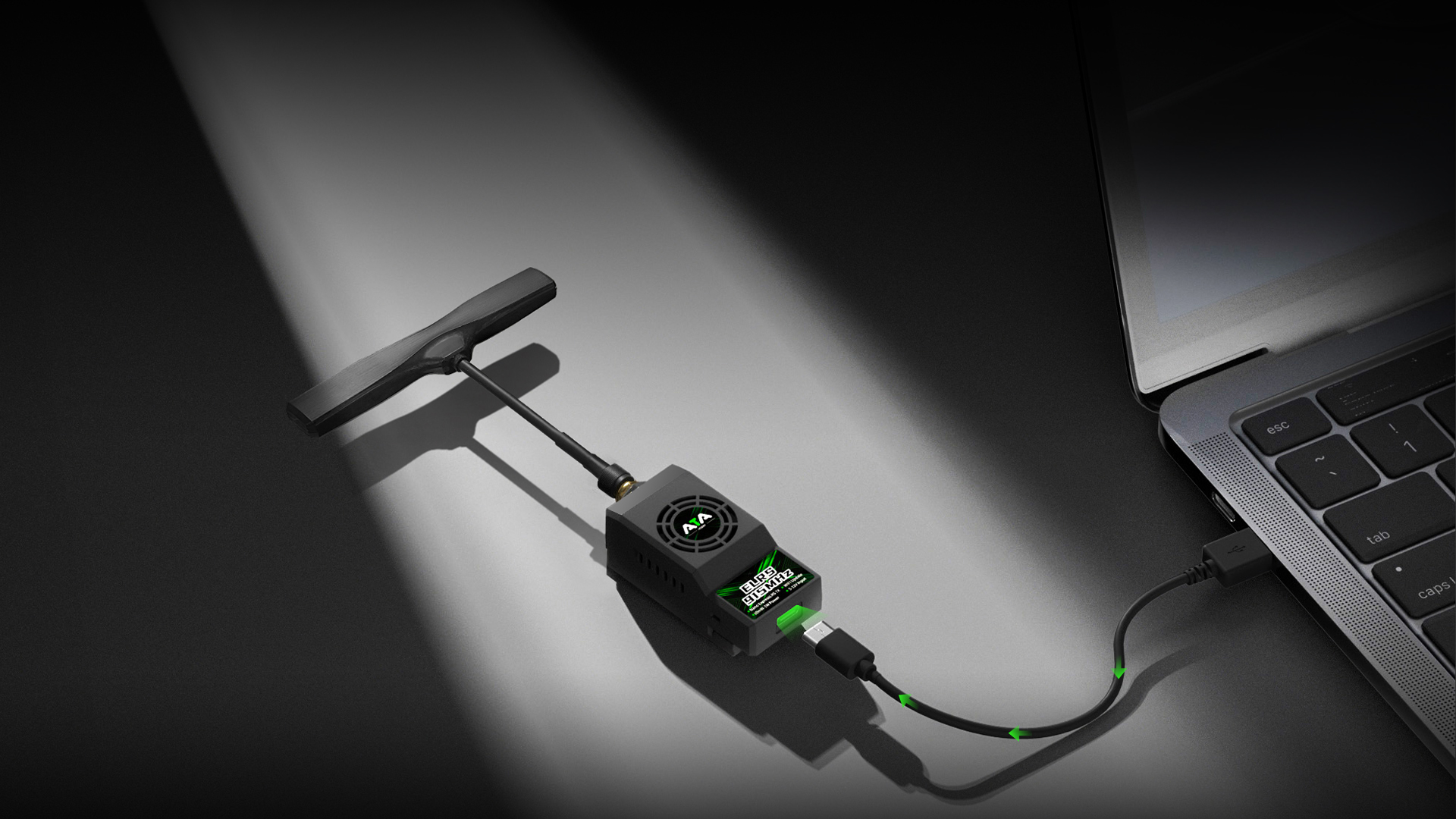

USB Online Upgrade

ATA ELRS 915 can be connected to a computer through the Type-C interface for upgrading.

USB mode is very simple to operate, so it is easy to complete the upgrade and synchronize the latest functions.

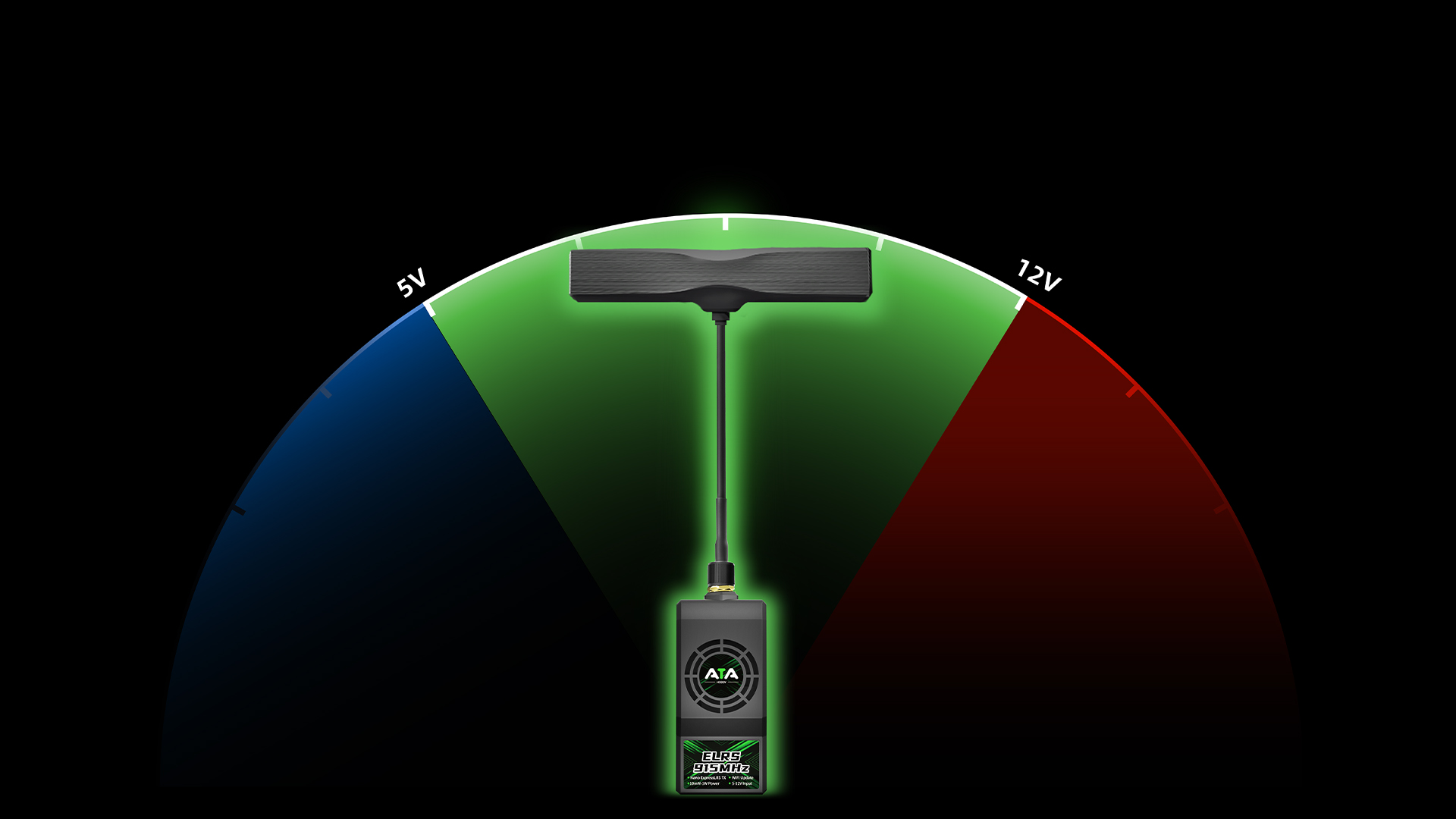

Power Supply Range

Power Supply Range: 5-12V DC(2-3S)

* 4S and above (> 12.6V) battery power supply is not supported, otherwise the ELRS module will be permanently damaged.

Comprehensive Technical Support

With more than 22 years of R&D experience in the electric industry can provide detailed instructions and tutorial videos from installation to flight.

All-round technical support, including installation, application, and calibration, from ESC, motor, and HD image transmission to the flight controller and transmitter.

Radiolink complete package: transmitter AT9S Pro (supports multicopter) + PIXHAWK flight controller + SE100 (Radiolink GPS) +Radiolink Power Module.

Almost all the parts you need for the Drone, we can offer.

* In the process of using ATA ELRS 915, if you encounter problems, you can view the manual, tutorials, or FAQ on the navigation bar of this introduction.

* After consulting all the tutorials, you still have questions about the operation. You can consult our technical support by emailing after_service@radiolink.com.cn

ATA ELRS 915 Module Packing List
